75mm Indoor racing drone

   08025 brushless motor with durable ball bearing for increase flight and low maintenance

   Durable polypropylene plastic frame with propeller guards

   Motor beeper function. Find your tinyhawk after a crash

   Speeds up to 56kph

   Up to 4 minutes flight time on single battery

   Fast F4 Processor for smooth stable flight characteristics

   MPU6000 gyro for vibration free operations

   Unique inverted motor design to keep CG as low as possible to fit in the smallest of spaces

   25mw VTX and 600tvl Camera included for fun FPV flight via FPV style goggles

   Smart Audio function to change VTX channel via your transmitter

   OSD settings control to customize flight feel

   Pre-tuned from factory with expert pilots and new pilots in mind. 3 rate profile settings for all types of flying feel

   Plug in type motors for easy maintenance

   1s High Voltage (HV) 450mah lipo included

   40 Channel goggles for FPV (First Person View) be like a bird, or pilot.

   6 Channel gamepad size controller. Feel comfortable, like it playing a video game

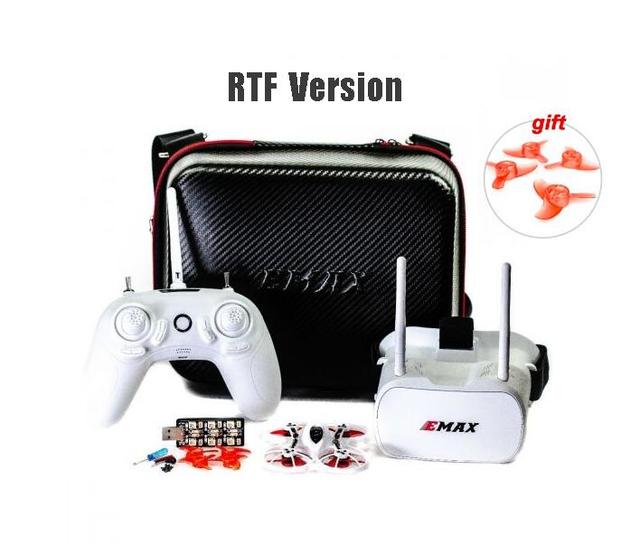

   Everything included in one package, no need for extra to get in the air out of the box.

   Frsky compatible D8 receiver built in to FC

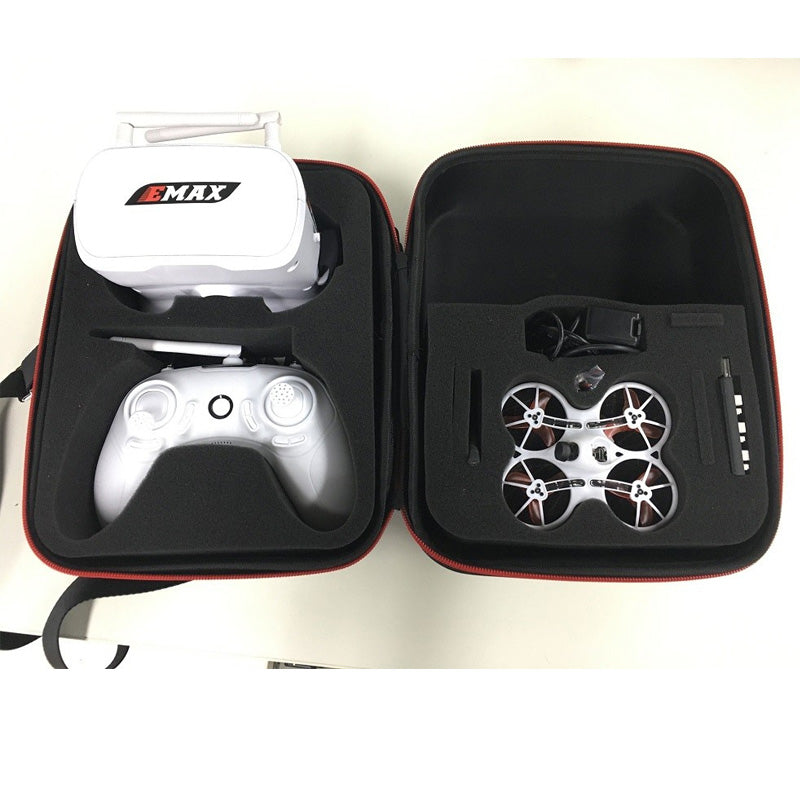

   Custom carbon fiber themed carrying case

  Tinyhawk Specifications:

     Size: 75mm motor to motor L 110mm x W 95mm x H 39mm

   Dry Weight: 29g

   All Up Weight: 42g with 450mah 1s Battery

   Frame Material: Polypropylene

   Propeller Properties:

   Diameter: 40mm

   Blades: 3

   Pitch: 23mm

   Weight: 0.5 g

   Motor Properties;

   Stator: 8mm x 2.5mm (08025)

   Kv: 15000kv

   Weight: 2.5g

   Bearing Size: Φ1.5*Φ4*2mm

   Shaft Diameter:  Φ1.5mm

   Propeller Mount: Press Fit Over Bell

   Main PCB:

   Flight Controller: F4（MATEKF411 firmware）

   ESCs: 4in1 3A

   Receiver: EMAX Tiny receiver (Compatible with Frsky D8 mode)

   Battery Connector: JST-PH2

   Camera and VTX:

   VTX Power: 25mw

   Channels: 37CH

   Camera Properties: 600TVL CMOS

   Smart Audio

   Battery:

   Voltage: 1s 4.35v HV

   Capacity: 450 mAh

   Discharge rating: 80c/160c

  EMAX Transporter Goggles Specifications:

     Maximum appearance size 140×153×90(mm)

   Weight (without battery) 398g

   Resolution 480×272

   Battery 1 cell 18650 lipo battery

  EMAX E6 Transmitter Specifications:

     Maximum appearance size 181×213×80(mm)

   Weight (without battery) 211g

   Number of channels 6 Channels

   Transmission frequency 2.4GHz ISM Band（2400MHz~2483.5MHz）

   Output Power 22dbm

   Modulation GFSK

   Battery 1 cell 18650 lipo battery
