Wheelbase: 75mm
Dry Weight: 31.2g
All Up Weight: 43.5g with 1x 450mAh 1S battery
Frame Material: Polypropylene
Motors
Stator Size: 0802
Kv: 16000kv
Propeller Mount: Push-On Avan TH-style
Propeller: Avan Turtlemode 4-Blade
All-In-One (AIO) Flight Controller
Flight Controller: F4 (MATEKF411RX Firmware)
ESC: 4-in-1 5A BlHeli_S
Receiver: EMAX SPI Receiver (Compatible with FrSky D8 mode)
Battery Connector: JST-PH2.0
Camera and VTX
VTX Power: 25/100/200mw Switchable
Channels: 37CH incl. Raceband
Camera: RunCam Nano 2 1/3" 700TVL CMOS
Smart Audio Connected
Goggles

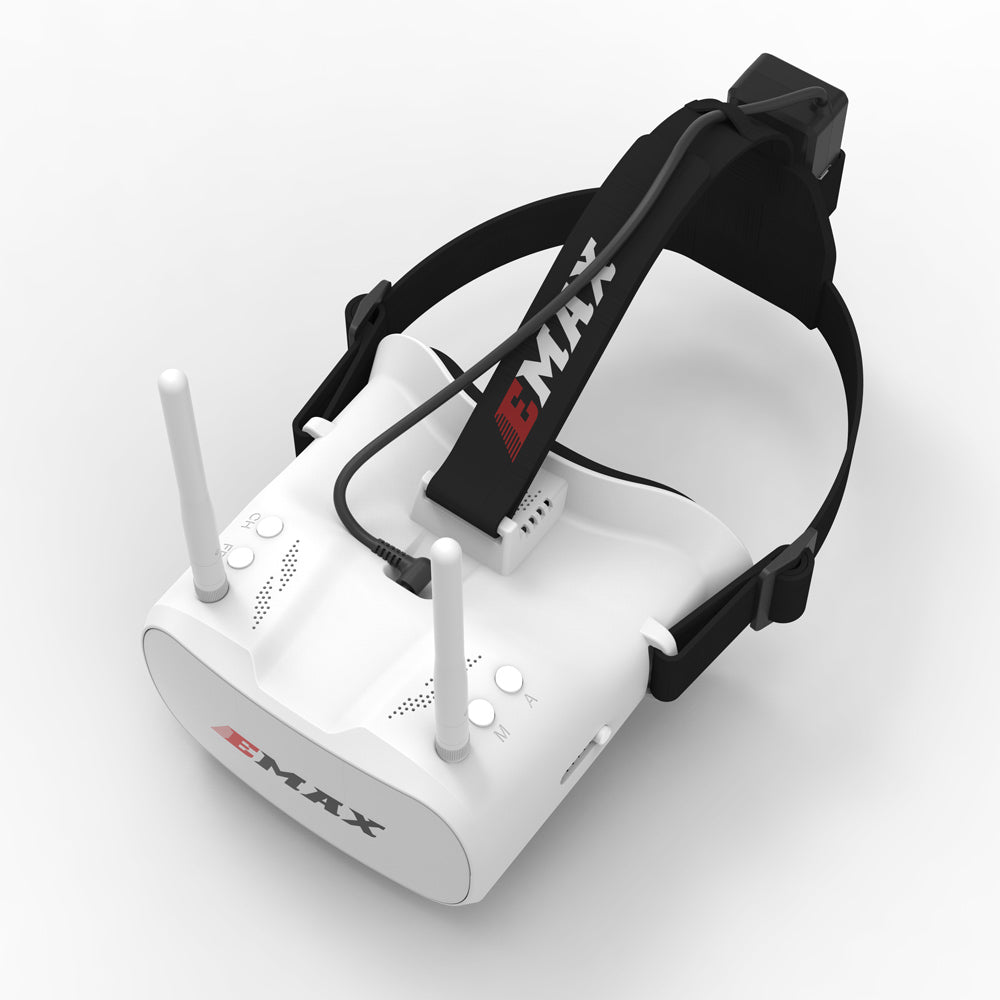

EMAX Transporter Goggles Specifications:
Maximum appearance size 140×153×90(mm)
Weight (without battery) 398g
Resolution 480×272
Battery 1 cell 18650 lipo battery
Transmitter
EMAX E6 Transmitter Specifications:
Maximum appearance size 181×213×80(mm)
Weight (without battery) 211g
Number of channels 6 Channels
Transmission frequency 2.4GHz ISM Band(2400MHz~2483.5MHz)
Output Power 22dbm
Modulation GFSK
Battery 1 cell 18650 lipo battery

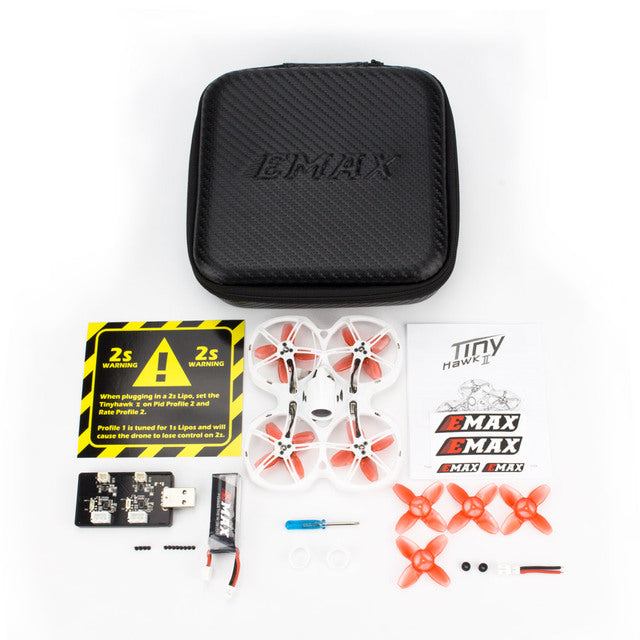

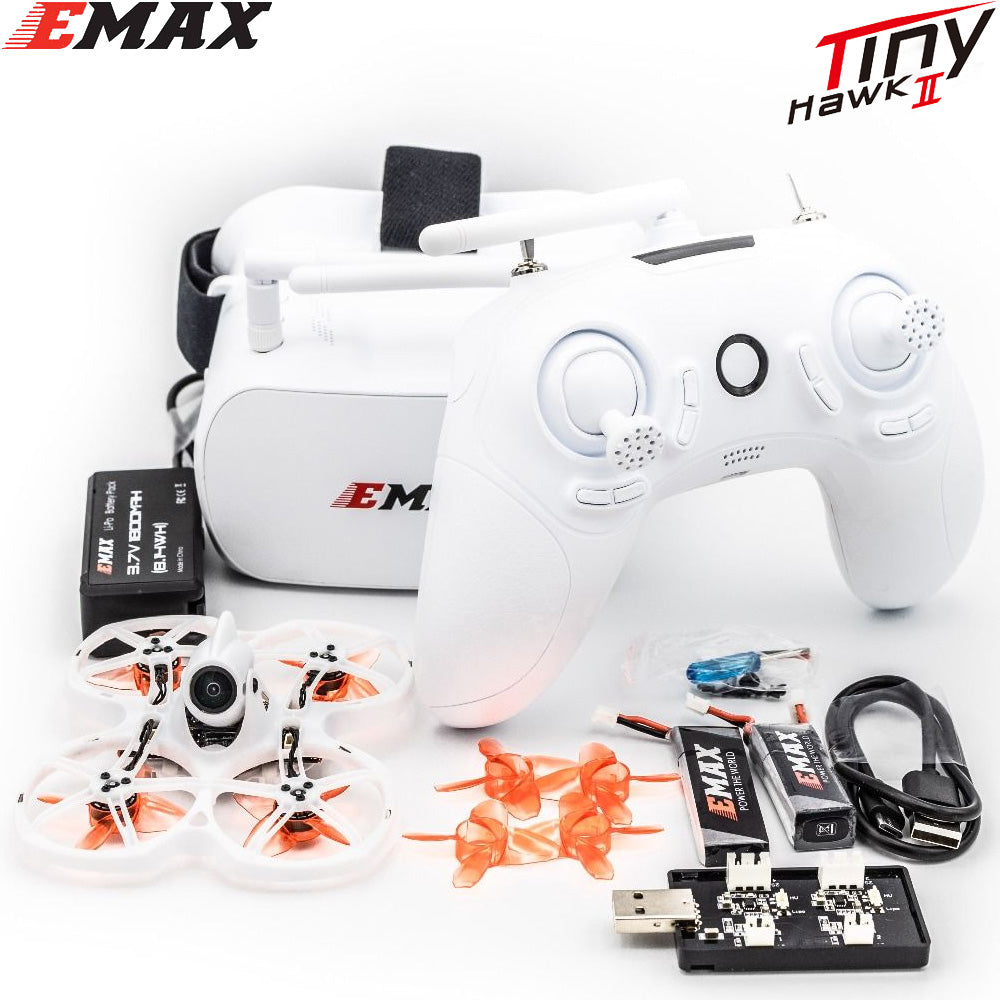

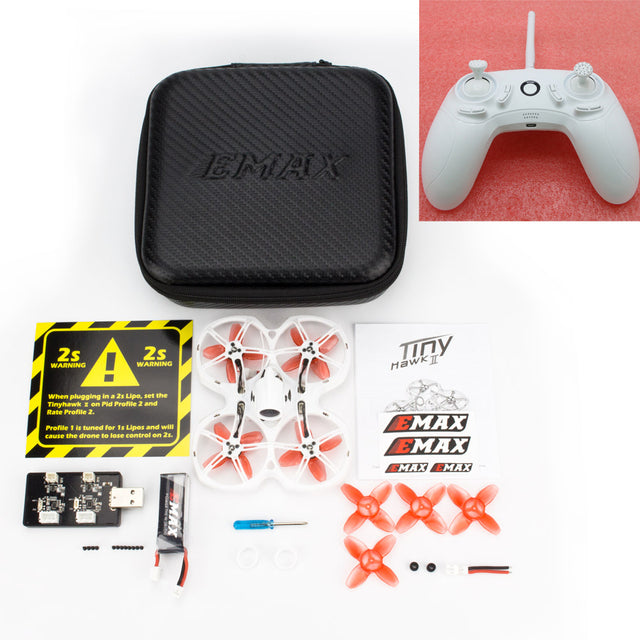

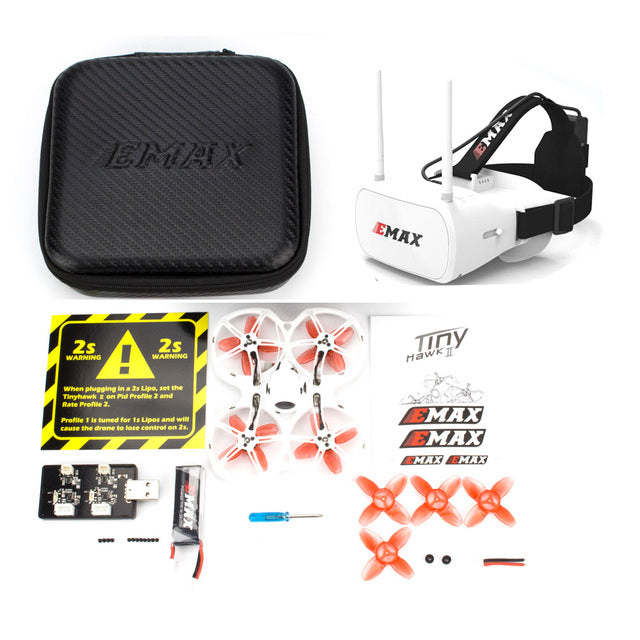

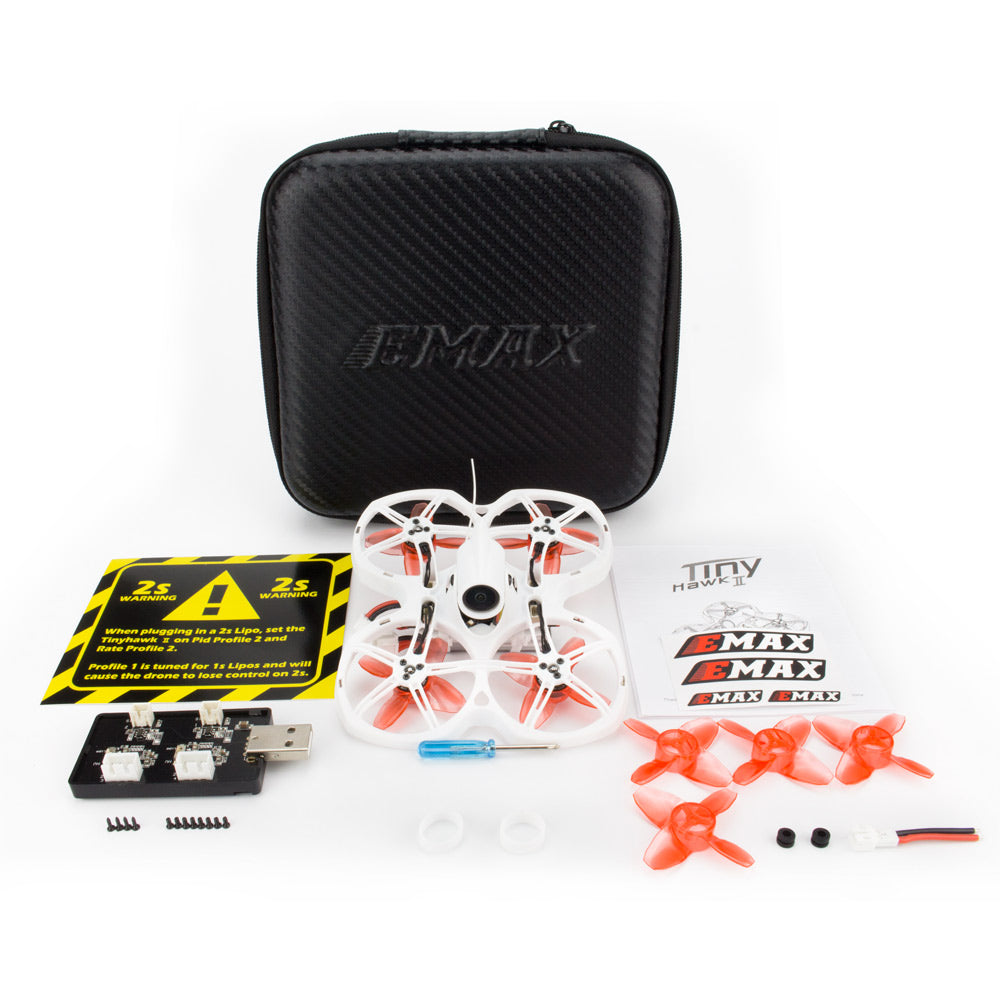

Package Included:
1x Tinyhawk II FPV Racing Drone
1x EMAX Transporter 5.8G FPV Goggles
1x EMAX Transporter 18650 Goggle Battery Pack w/ USB Charging
1x EMAX E6 Transmitter
1x EMAX 450mAh 1S HV Battery
1x EMAX 300mAh 2S HV Battery
2x CCW + 2x CW Spare Props
1x 1S-2S USB LiPo Charger
1x Screwdriver + Hardware Kit
1x Micro USB Charging Cable
1x Faux Carbon Fiber Carrying Case
