atures:
📍 High performance decoding chip, can read 1D/ 2D QR codes and IC card, Communication Method: WIEGAND 26/34/RS232/RS485/TTL.

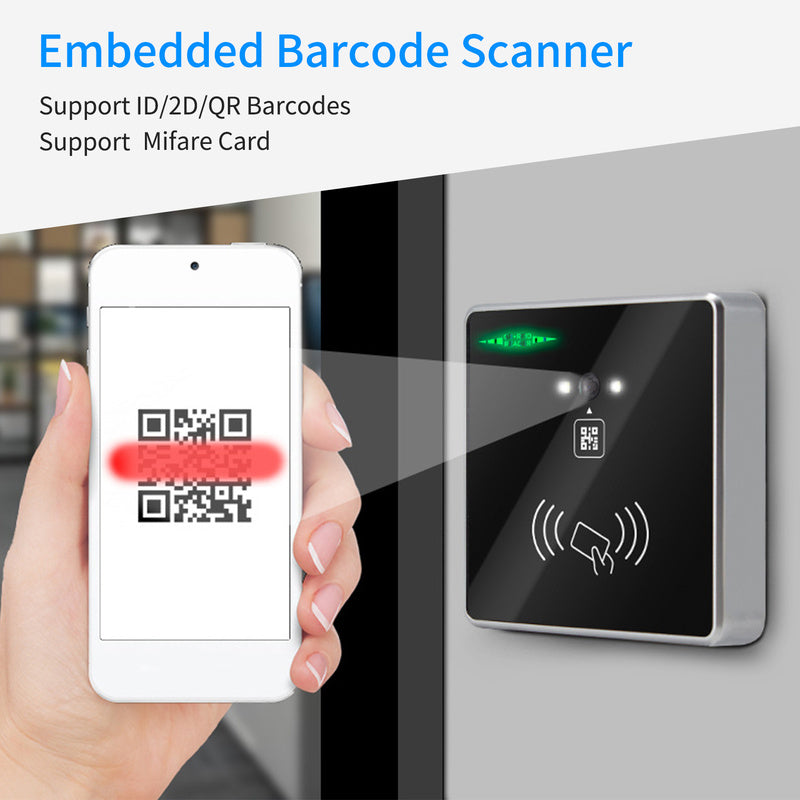

📍 Using image scanning technology, it can scan paper code and screen code, fast to recognize the barcodes.
📍 The buzzer will make a crisp sound Beep to prompt after successfully scanning.
📍 Made of high quality Zinc Alloy Frame and Acrylic Panel material, the scanner is durable and not easy to damage.
Specification:

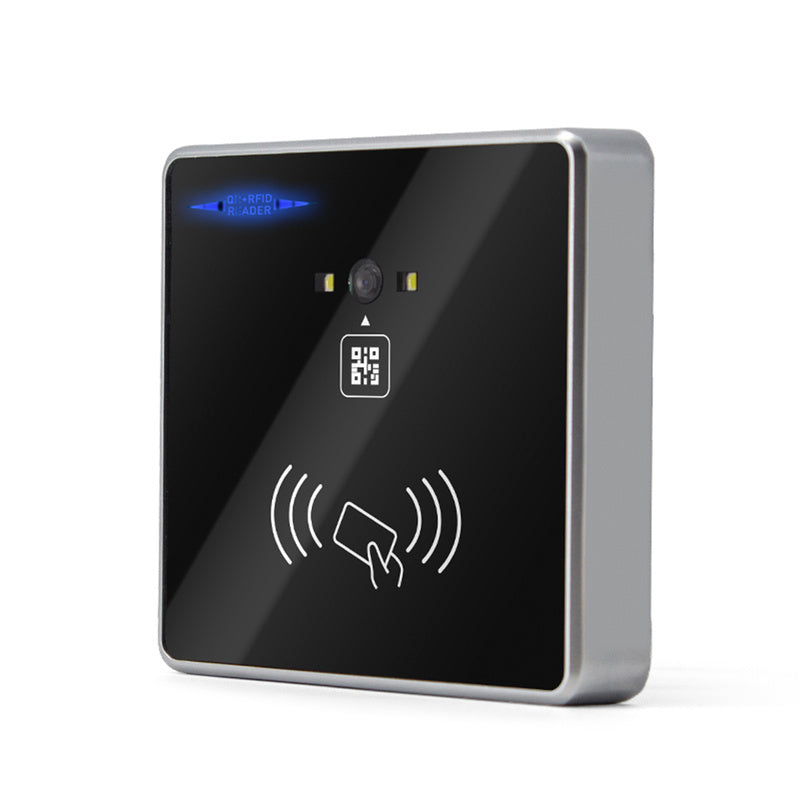

Model: R36
Material: Zinc Alloy Frame + Acrylic Panel
Size: 86 x 86 x 18mm/3.4 x 3.4 x 0.7in
Weight: 150g/5.3oz
Card Reader Type: Mifare Card
Barcode Type: Qr, One/Two-Dimensional Code

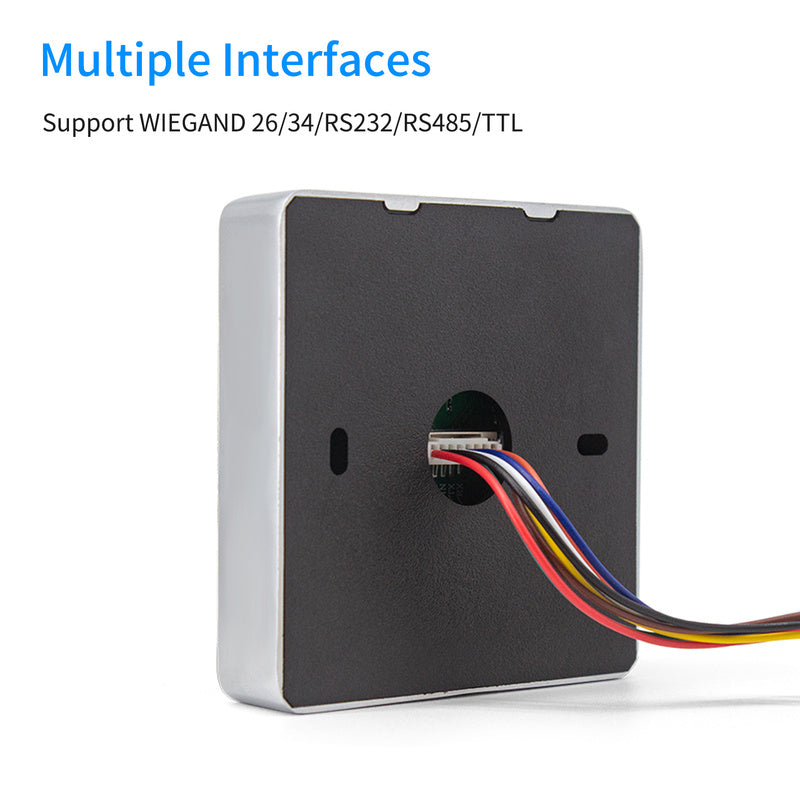

Communication Method: WIEGAND 26/34/RS232/RS485/TTL
Decoding Mode: Image Decoding
Reading Direction (Bar Code): Angle 45° With The Lens As The Center Point
Scan Code Characteristics: Automatic Induction, Buzzer Promp
Operating Voltage: 8-12v
Working Current: 800ma

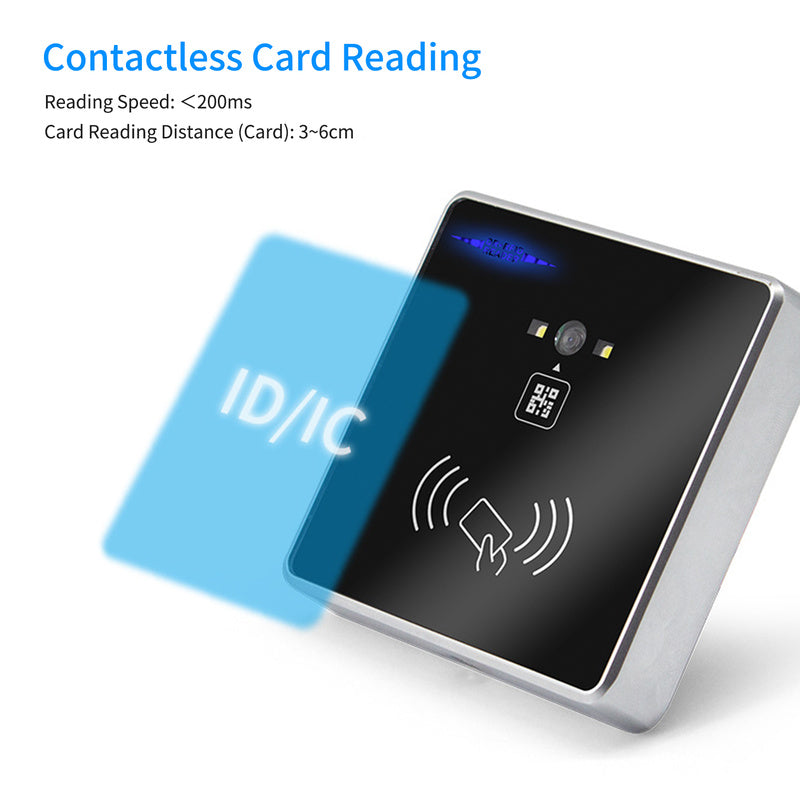

Card Reading Distance (Card): 3~6cm
Reading Speed: 200ms
Reading Distance (QR Code): 0-20cm
Working Humidity: 10%~90%
Operating Temperature: -20℃~70℃
Operating System: Windows XP/7/8/10), Linux
Indicator Light: Blue Work Light, Green Feedback Light
Package Size: 16.5*13*4/6.5*5.1*1.6in
Package Weight: 420g/14.8oz
Packing List:
1 x Embedded Barcode Scanner
