Specification:

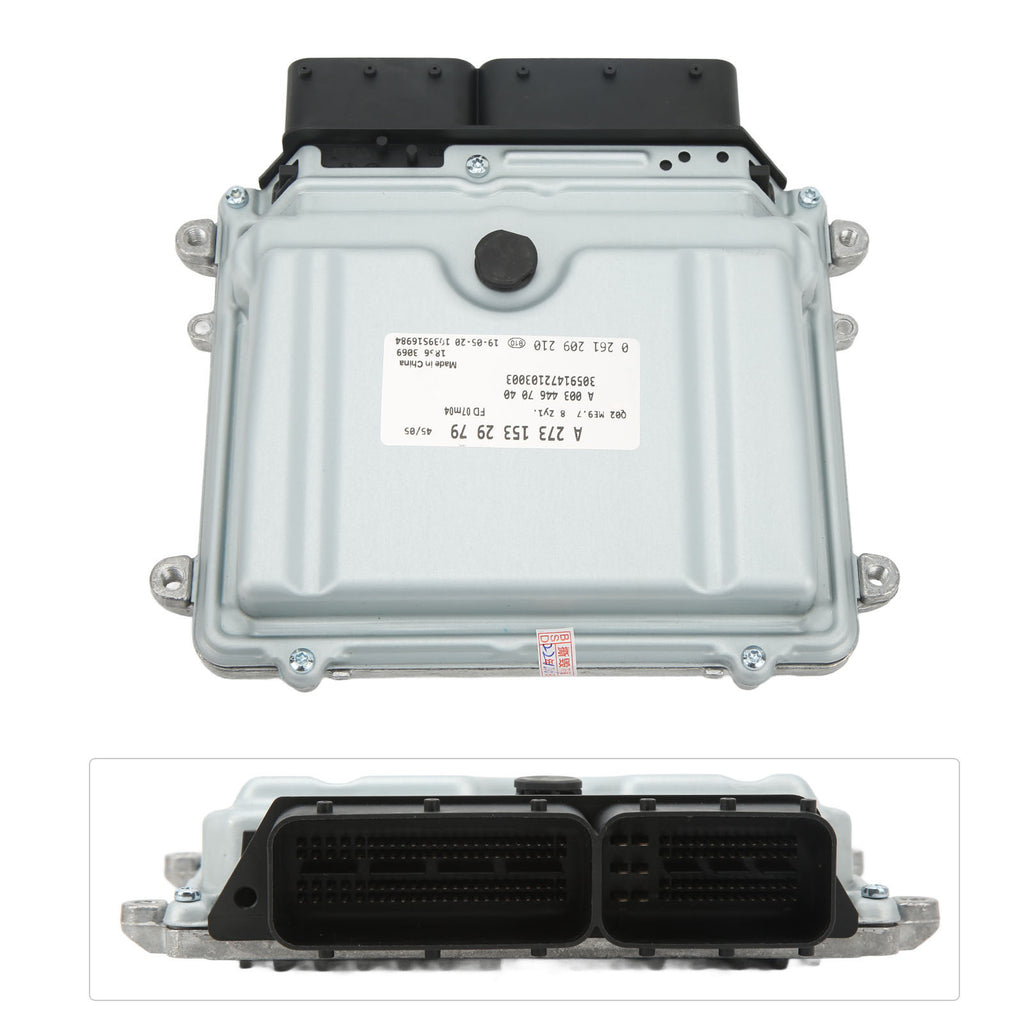

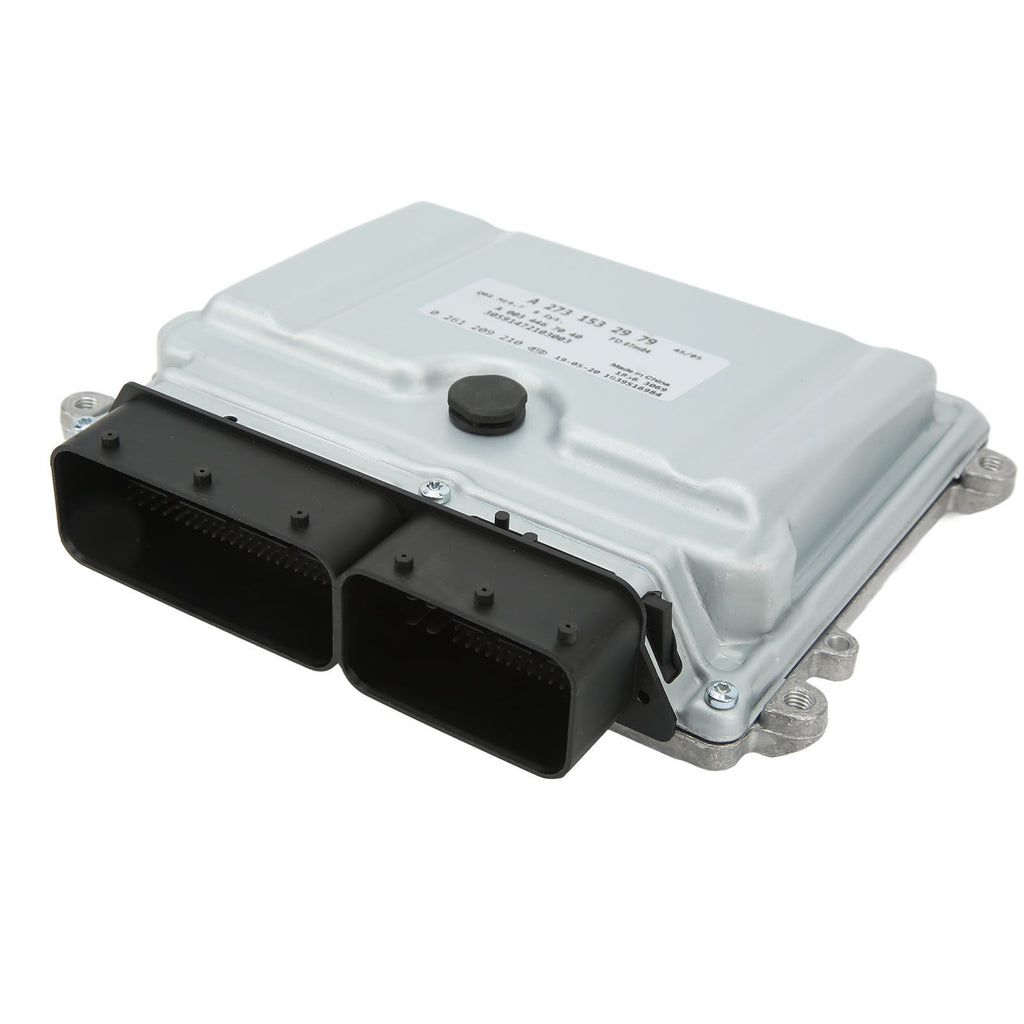

Item Type: ECU Engine Control Unit

Material: Aluminum alloy and ABS

OEM: 2731532979, A2731532979, A 273 153 29 79 2979, 0034662040, A0034662040, A 003 466 20 40 2040.

Applicable Models:

Replacement for Mercedes-BenzS5504Matic Sedan 4-Door5.5L 5461CC 333Cu. In. V8 GAS DOHC Naturally Aspirated 2011

Replacement for Mercedes-BenzS550Base Sedan 4-Door5.5L 5461CC 333Cu. In. V8 GAS DOHC Naturally Aspirated 2011

Replacement for Mercedes-BenzCL5504Matic Coupe 2-Door5.5L 5461CC 333Cu. In. V8 GAS DOHC Naturally Aspirated 2010

Replacement for Mercedes-BenzS5504Matic Sedan 4-Door5.5L 5461CC 333Cu. In. V8 GAS DOHC Naturally Aspirated 2010

Replacement for Mercedes-BenzS550Base Sedan 4-Door5.5L 5461CC 333Cu. In. V8 GAS DOHC Naturally Aspirated 2010

Replacement for Mercedes-BenzCL5504Matic Coupe 2-Door5.5L 5461CC 333Cu. In. V8 GAS DOHC Naturally Aspirated 2009

Replacement for Mercedes-BenzS5504Matic Sedan 4-Door5.5L 5461CC 333Cu. In. V8 GAS DOHC Naturally Aspirated 2009

Replacement for Mercedes-BenzS550Base Sedan 4-Door5.5L 5461CC 333Cu. In. V8 GAS DOHC Naturally Aspirated 2009

Replacement for Mercedes-BenzCL550Base Coupe 2-Door5.5L 5461CC 333Cu. In. V8 GAS DOHC Naturally Aspirated 2008

Replacement for Mercedes-BenzS5504Matic Sedan 4-Door5.5L 5461CC 333Cu. In. V8 GAS DOHC Naturally Aspirated 2008

Replacement for Mercedes-BenzS550Base Sedan 4-Door5.5L 5461CC 333Cu. In. V8 GAS DOHC Naturally Aspirated 2007

Replacement for Mercedes-BenzCL550Base Coupe 2-Door5.5L 5461CC 333Cu. In. V8 GAS DOHC Naturally Aspirated 2007

Replacement for Mercedes-BenzS5504Matic Sedan 4-Door5.5L 5461CC 333Cu. In. V8 GAS DOHC Naturally Aspirated 2007

Replacement for Mercedes-BenzS550Base Sedan 4-Door5.5L 5461CC 333Cu. In. V8 GAS DOHC Naturally Aspirated 2007

Replacement W221 M273

Installation Precautions:

1. It is recommended to find a professional auto mechanic to install the

2. Product installation to pay attention to, first check out the reasons for the previous computer board bad, to avoid using the same fault again burned computer board. .

3. Before installing the computer board to check whether the voltage is normal (voltage of about 12V), more than 15V recommended not to install, check whether the line is normal, the overlap is good, otherwise there is the possibility of burning the computer board.

4. After the installation of the computer board (insert the plug for trial operation) key to NO position switch back and forth three or four times and then start.

5. If the car has with anti-theft, you need to decode (match) before you can, this depends on your car rather than the computer board

The Correct Installation Method of the Computer Board:

1. First remove the battery line a firewire, and then the computer board (circuit board) to install, and then connect the line.

2. After the car key to NO on the car do not start, wait 1-2 minutes, and then ignition.

3. If the last time you can not fire, and then repeat the previous step, try again, or look at the computer board and the computer board plug whether there is dust inside, if there is a clean brush to clean up, or check whether the pins are neat, so that the computer board installed on is basically OK

Common Fault Problem Solving Methods:

1. Fault light indicates that there is a problem with the sensor.

2. Repeatedly burn the computer board "ECU" or refueling does not work, please check whether the generator voltage is normal.

3. Appear lack of cylinders, check the spark plug, ignition wire, injector nozzle, etc. is normal.

4. Idle speed is unstable, please check whether the idle speed motor and throttle valve body are normal and there are foreign objects.

5. If there is difficulty in starting, please check whether the pressure sensor and water temperature sensor are normal.

6. If you cannot start, please check whether the crankshaft position sensor and speed sensor are normal.

Basic Knowledge of Circuit Board:

1 Product Installation: Confirm that the product model and specifications are normal, install and fix the new circuit board, connect the wiring harness connector, repeatedly switch the ignition switch 3-5 times "switch time 2-3 wonderful, off time 4-6 wonderful

2 Check and Judgment After Installation: Whether the idle speed is running normally "hot 800-950 rpm, cold 1000-1300 rpm", whether the electronic fan is running normally "85.C on, 90.C off", whether the air conditioning is running normally "open the idle speed to 1100-1300 rpm", whether the hot engine exhaust is normal "if not normal, please check the pressure sensor", if there is idle speed, please adjust the ignition angle properly.

    Package List:

1 x ECU Engine Control Unit
