ETCR001F Current Meter Separated Integrator
Note: This product only contains ETCR001F, without flexible coil
Function：
Measurement of AC current, higher harmonic current, Complex Waveforms current, transient current, starting current, Phase,
Electric energy, power, power factor etc.
Features:

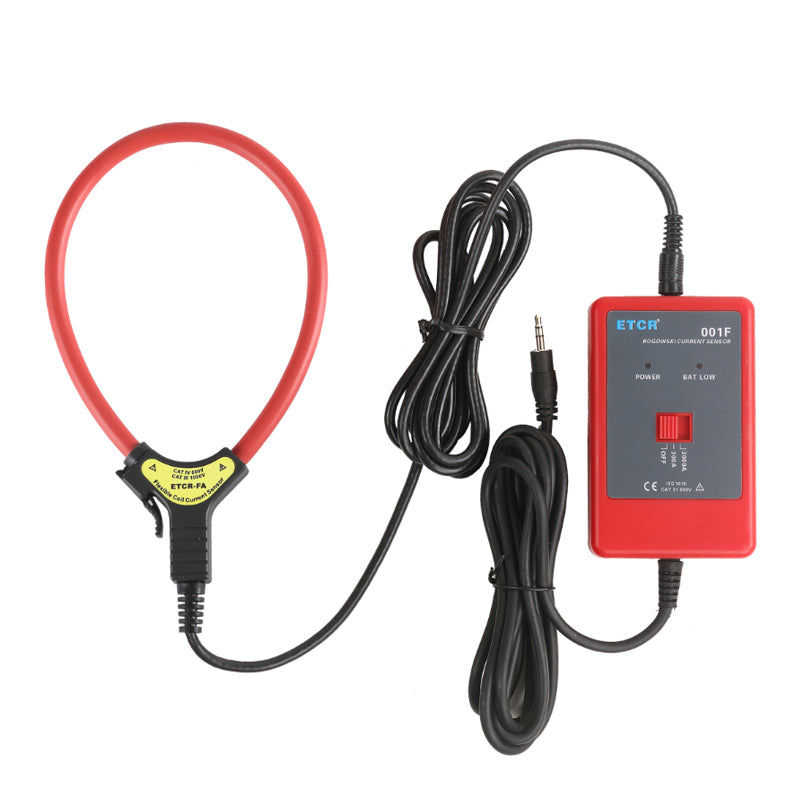

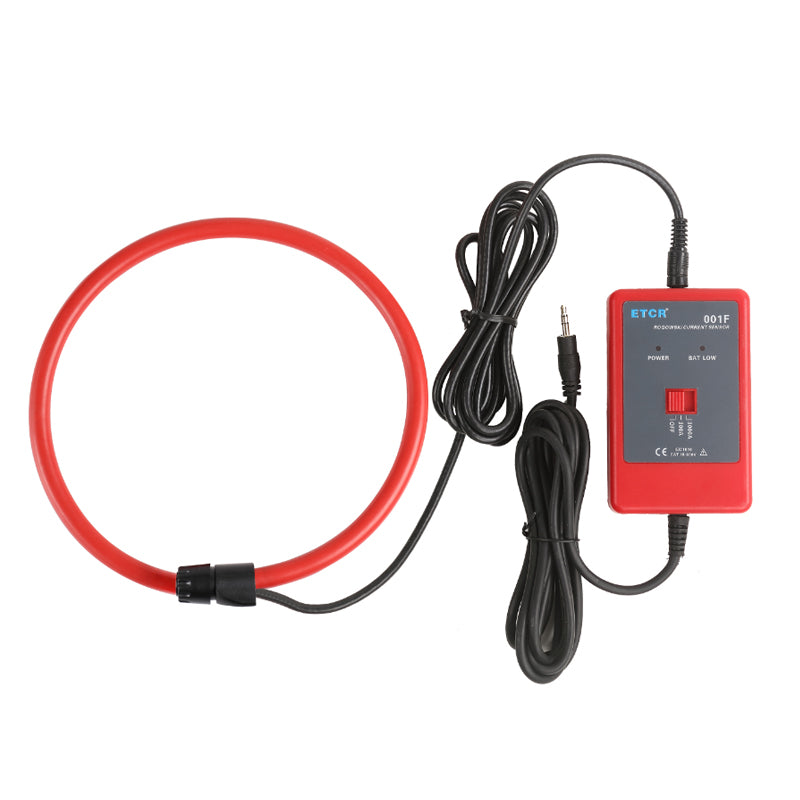

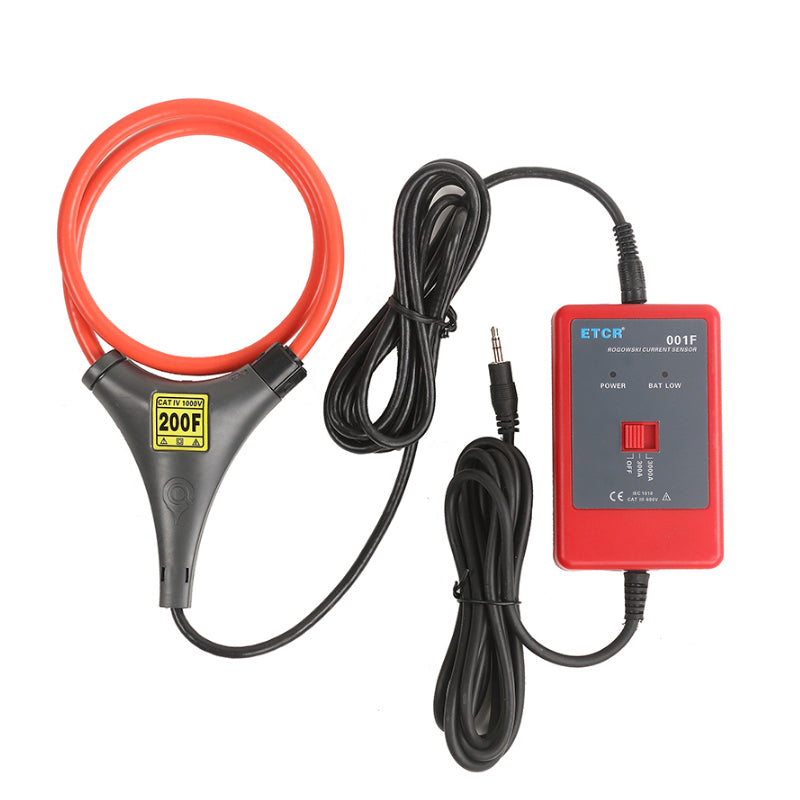

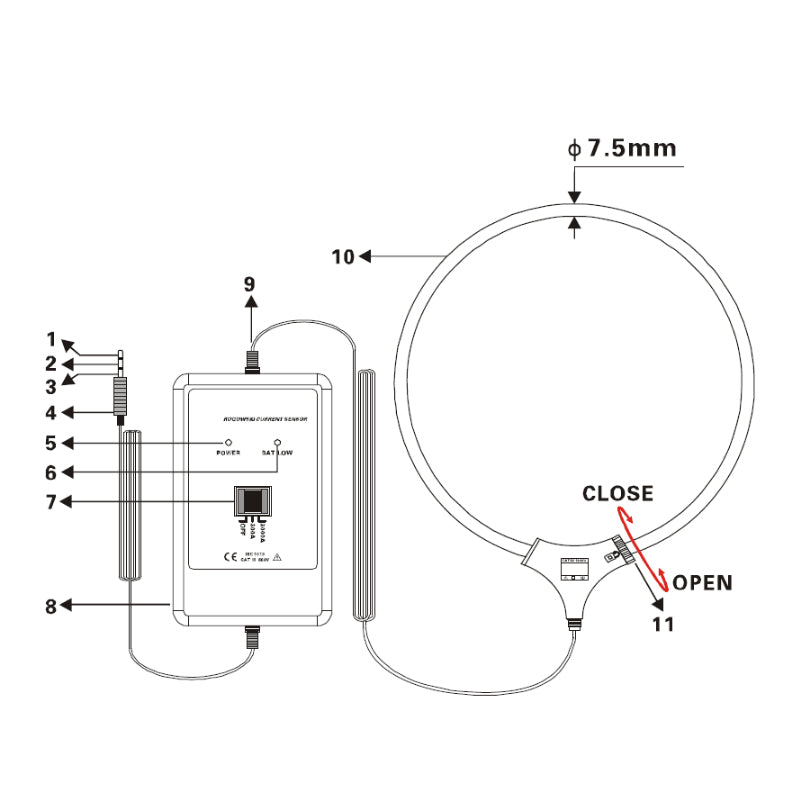

1.The separated integrator can be equipped with various specifications flexible coils , conveniently to meet different demand
2.Non-contact measurement, safe and reliable. With wide range, high precision, strong reliability and wide response band of measurement.
3.Integrator small size and light weight, coil soft and flexible, suitable for cramped environment, ribbon cable intensive site,
and measuring conductor currents of large size or irregular shape.
4.Particularly suitable for relay protection, silicon controlled rectifier, frequency control, semiconductor switches, power
electronics conversion equipment, arc welding and son on serious signal distortion industrial environments.
5.The coil diameter and length can be customized according to customer requirements
Specifications:
Model
ETCR001F
Material Coil Diameter
Φ7.5mm/Φ12mm (Optional)
Current Coil Diameter
Φ40~Φ3000mm (Optional)
Power Supply
6F22 9VDC Zinc-manganese dry batteries (external power supply)
Range
AC 0A~3000A/6000A/10000A
Resolution
1A/2AN3A
Accuracy Class
±1%FS (50Hz/60Hz;23℃ ±2℃ ,Below 70%RH, the wire is in the center of the coil)
Phase Error
≤1°(50Hz/60Hz;23℃ ±2℃ )
Signal Output
AC 0~1V (corresponding Full range output )
Integrator Size
103mm×65mm×26mm
Integrator Weight
205g
Integrator Output Interface
3.5mmAudio frequency plug/BNC plug(Optional)
Output Line Length
2m
Electric Field Interference
No hysteresis effect, not effected by external electric field
Wire Position
The cable in the center of the coil and the position error affects ≤±0.5% FS
Current Frequency
45Hz~70OHz(Measured current frequency)
Response Frequency
0.1Hz~1MHz
Line Voltage
Below AC 600V
Accessories
Flexible coil.1PCS; Integrator:1PCS;
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
