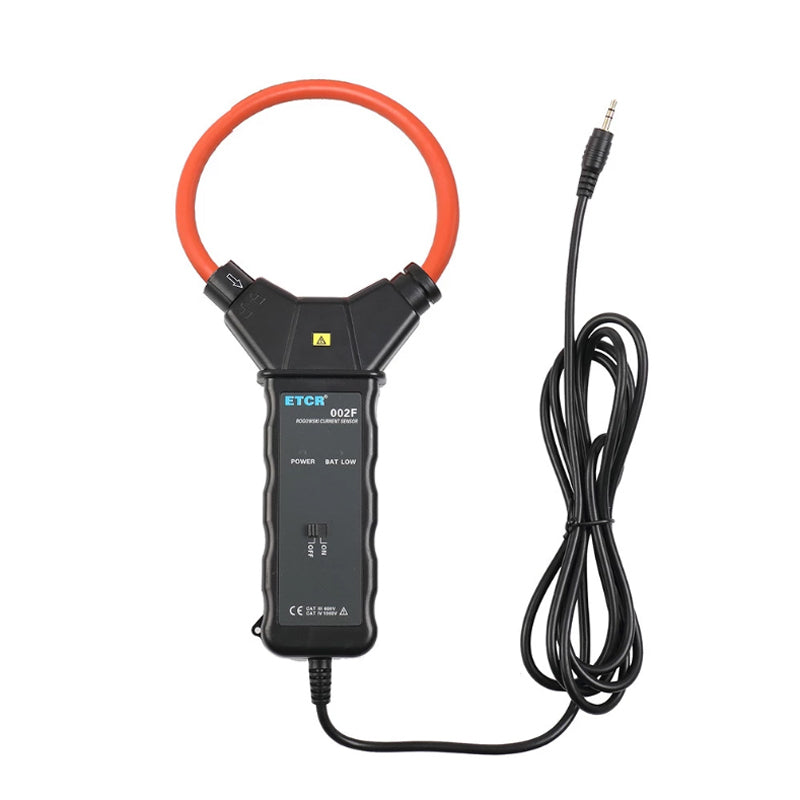

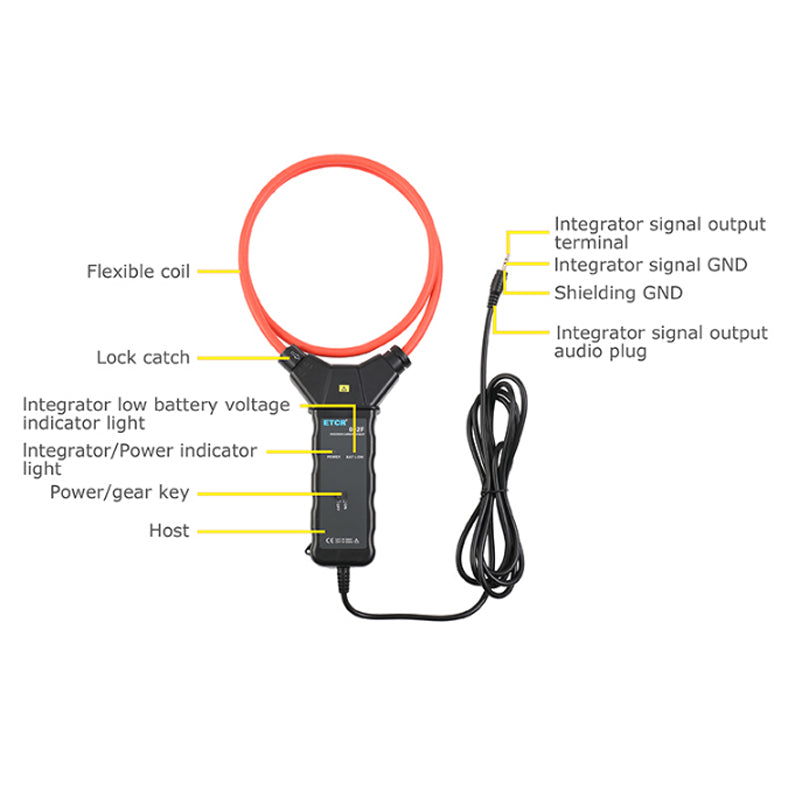

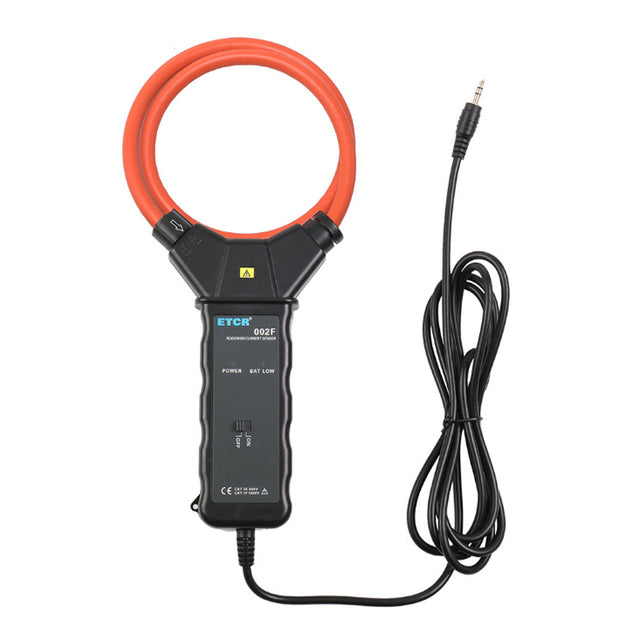

ETCR002F Flexible Current Sensor
Specifications:
Model
ETCR002F
Coil thickness
φ7.5mm
Coil Diameter
Φ150~φ3000mm (Optional)
Power Supply
6F22 9VDC Zinc-manganese dry batteries (external power supply)
Range
AC 0A~3000A/6000/10000A (Optional)
Resolution
1A/2A/3A
Accuracy
±1%FS (50Hz/60Hz;23℃±2℃,Below 70%RH, the wire is in the center of the coil)
Phase Error
≤1°(50Hz/60Hz;23℃±2℃)
Signal Output
AC 0~1V (Full scale corresponding output )
Integrator size
165mm×104mm×40mm
Integrator weight
230g
Integrator Output Interface
3.5mmAudio frequency plug/BNC plug (Optional)
Output line length
2m
Electric Field Interference
No hysteresis effect, no external electric field interference
Wire Position
The cable in the center of the coil and the position error affects ≤±0.5% FS
Current Frequency
45Hz~70Hz (Measured current frequency)
Response Frequency
0.1Hz~1MHz
Line voltage
Below AC 600V
Packing List
Flexible coil:1PCS; Integrator:1PCS;
