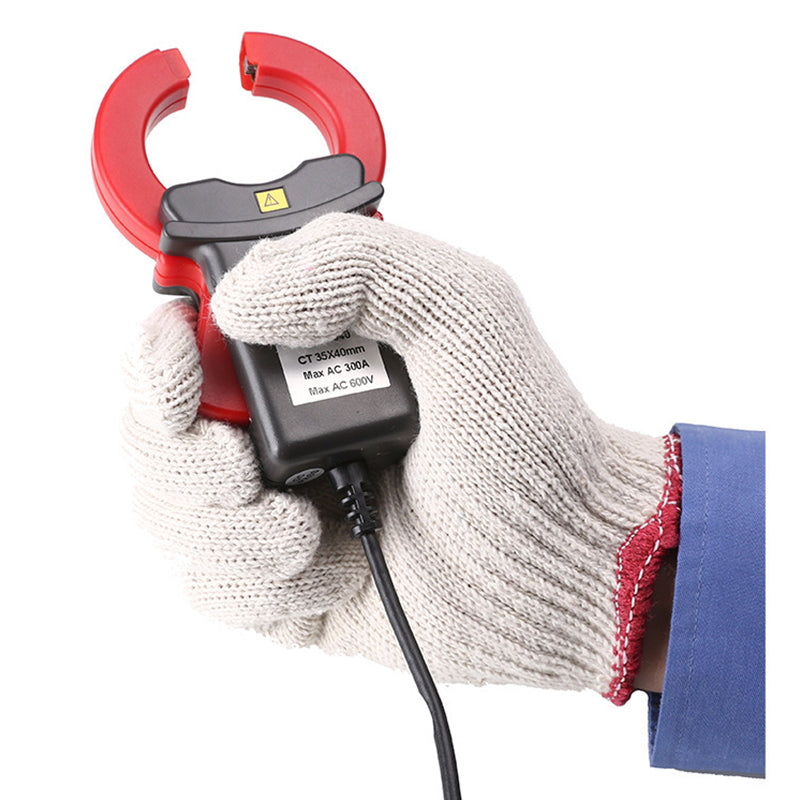

ETCR040B Power Factor Clamp Meter Of High Accuracy Clamp AC Leakage Current Sensor

Features:

ETCR040B High Accuracy Clamp Leakage Sensor is used for measurement of high accuracy AC current, leakage current, high order harmonic current, phase, power energy, power, power factor. Adopt the latest CT technology. It is portable, clamp design, no need to disconnect the measured circuits, non-contact, safe and fast. It can be connected with phase detection analyzer, industrial control equipment, data recorder, oscilloscope, harmonic analyzer, electric power quality analyzer, high precision digital multi-meter, etc. Widely applied in electricity, communication, meteorology, railway, oilfield, construction, measurement, scientific and

 research teaching unit, industrial and mining enterprises.

 ETCR040B High Accuracy Clamp Leakage Sensor’s clamp core is made of special alloy, adopt the double magnetic shielding techniques, can almost shield the influence from external magnetic field, to ensure the high precision, high stability and high reliability of perennial uninterrupted measurement.

Specification:

      Model

      Range

       Resolution

   Coils Turn

   Shield

   Remark

       ETCR040B

       0～500A  AC

   1mA

   1:4000

     no

     Suitable for the harmonic, phase, power test

      Technical Specifications:

       Function

   Measurement of AC current, leakage current, high order harmonic current, phase, power energy, power, power factor

       Test mode

   Clamp CT

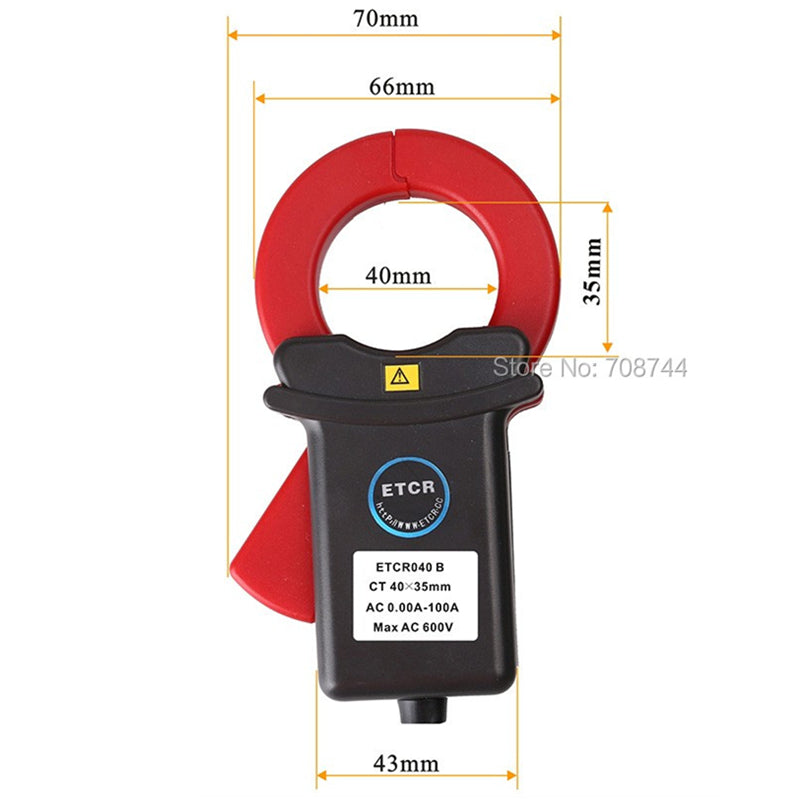

       Clamp Size

   35mm×40mm

       Range

   0-300A/600A/500A  AC (Optional)

       Resolution

   0.01mA/0.1A/1mA AC (Optional)

       Accuracy

   ±1.0%FS(50Hz/60Hz; 23°C±2°C, below 70%RH, keep the wire be in the center of clamp)

       Coils Turn

   1:2400;1:4000;1:4000(Optional)

       Phase Error

   ≤3°(50Hz/60Hz; 23°C±2°C)

       Reference Load

   RL: 0-300mA≤500ohm; 0-3A≤50ohm; 0-30A≤5ohm; 0-300A≤0.5ohm

       Output Mode

   Current induction output

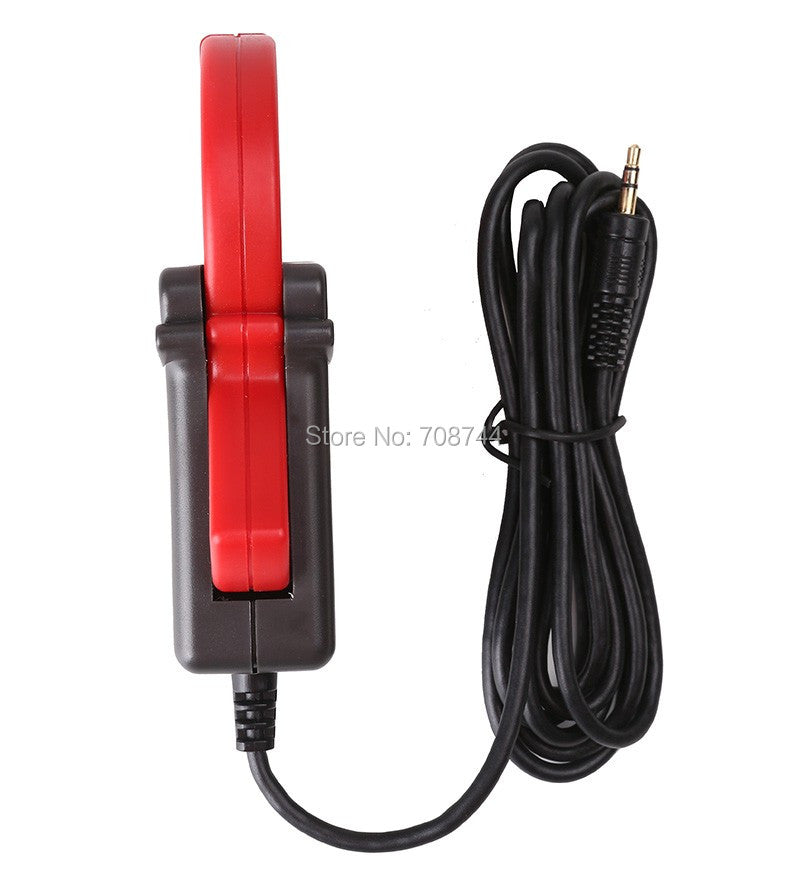

       Output Interface

   3.5mm audio plug or Choose two root welding thread or standard multi-meter pen plugs

       Output Wire Length

   2m

       Electric Field Interference

   About 10mA when the external electric field 100A, 10mm nearby

       Measured Wire Position

   Approximately in the geometric center of the clamp

       Current Frequency

   45H-60Hz(when measuring big current)

       Frequency Characteristics

   10H-100kHz

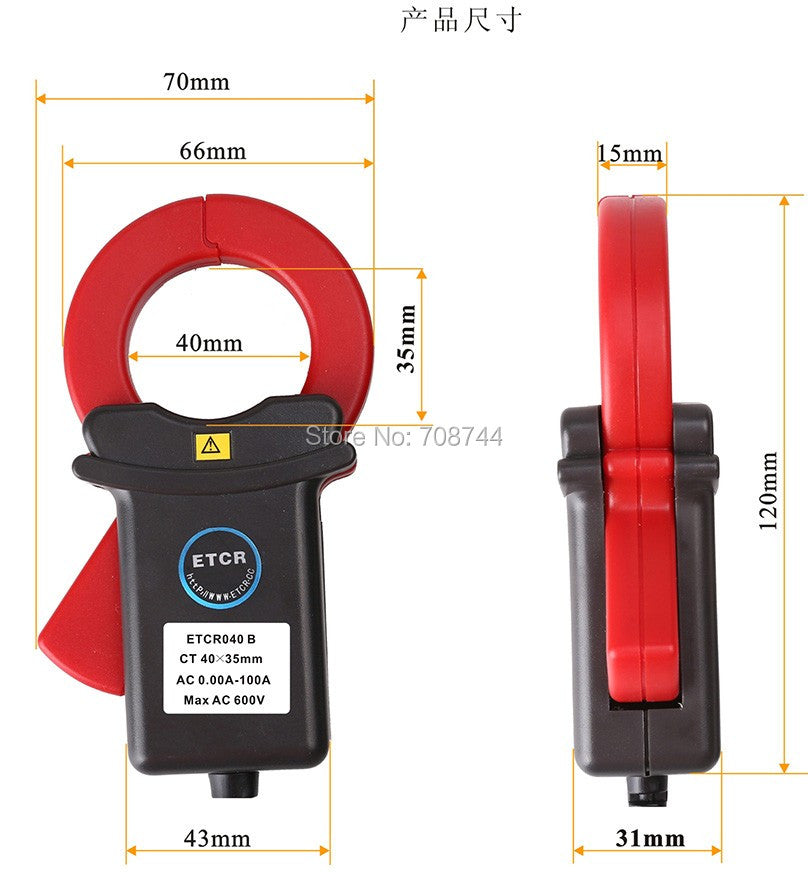

       Dimension

   120mm×70mm×33mm

       Weight

   190g

       Working Environment

   -20°C-50°C; below 80%rh

       Storage Environment

   -10°C-60°C; below 70%rh

       Insulation Strength

   AC3700V/rms (between core and shell)

       Safety Rules

   IEC1010-1, IEC1010-2-032, Pollution degree 2, CAT III (600V)
