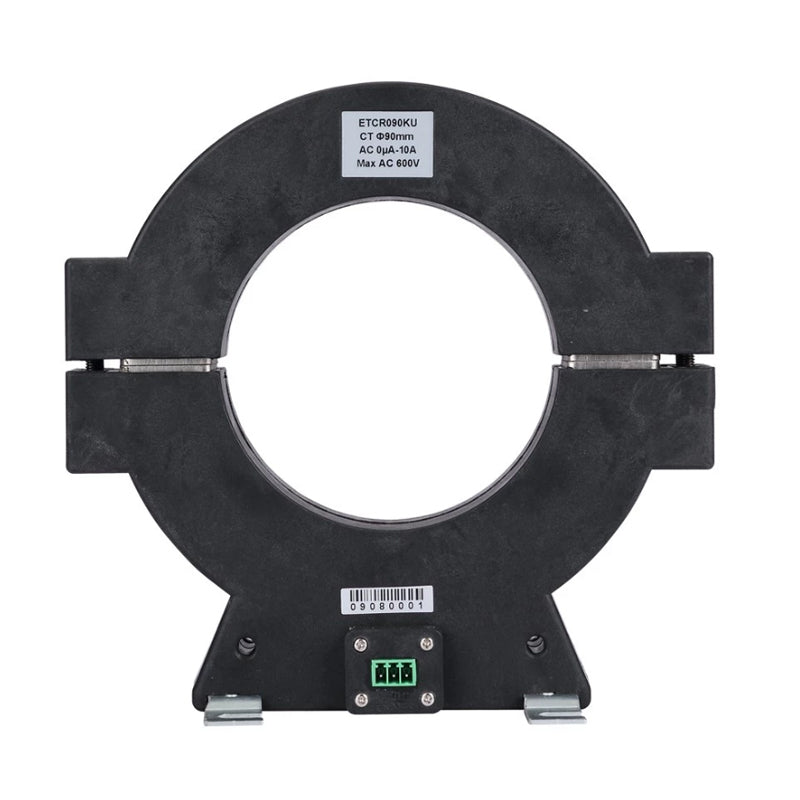

ETCR090KU AC Leakage Sensor Split Core Current Probe
Technical Specification:
Function
Detect AC leakage current, current, harmonic current, phase, power, power, power factor, etc.
Detection method
Split Type CT, suitable for online installation
CT size
φ90mm
Range
0.000mA~10A AC
Resolution
1uA AC
Accuracy Class
0.5
Turn ratio
1000:1(Can be customized on request)
Phase error
≤12°(50Hz/60Hz;23℃±2℃)
Reference load
RL:0~1000mA≤300Ω; 0~10A≤30Ω
Shield
Double shield suitable for complex interference environments
Output
The current sense output can be externally connected to the RL to take the voltage.
Output Interface
3P plug-in terminal output (S1, S2 coil tap , GND shield )
Wire position
The tested wire is at the center of the jaw
Response frequency
10Hz~100KHz
Line voltage
below AC 600V

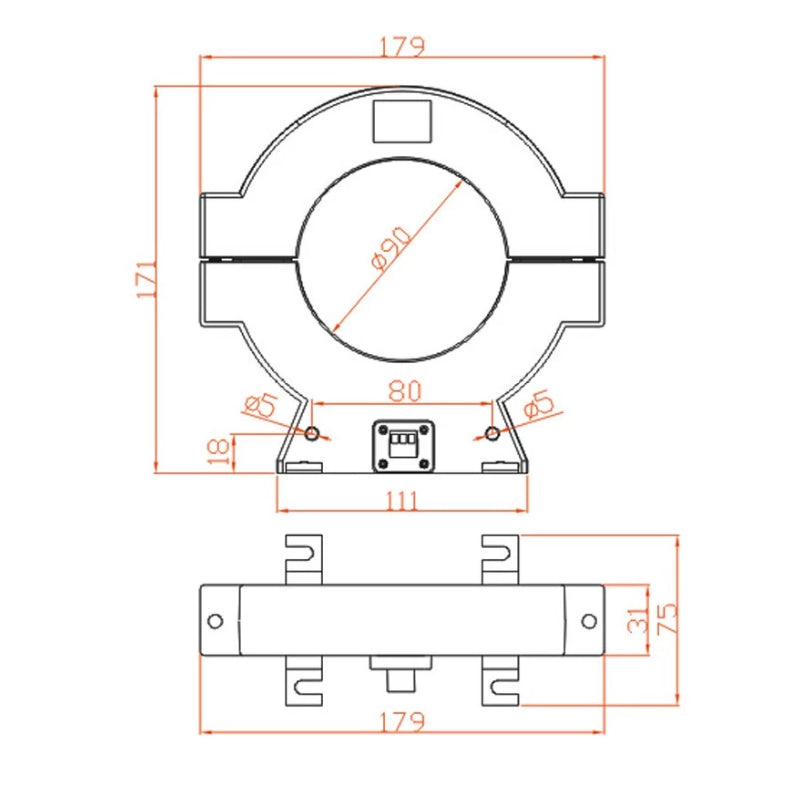

Dimensions
179mm×171mm×31mm
Weight
About 1350g
Working environment
-15℃~50℃; below 80%Rh
Storage environment
-10℃~60℃; below 70%Rh
Insulation
AC 3700kV/rms (Between core and shell)
Protection Type
IEC1010-1,IEC1010-2-032,Pollution 2,CAT Ⅲ(600V)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
