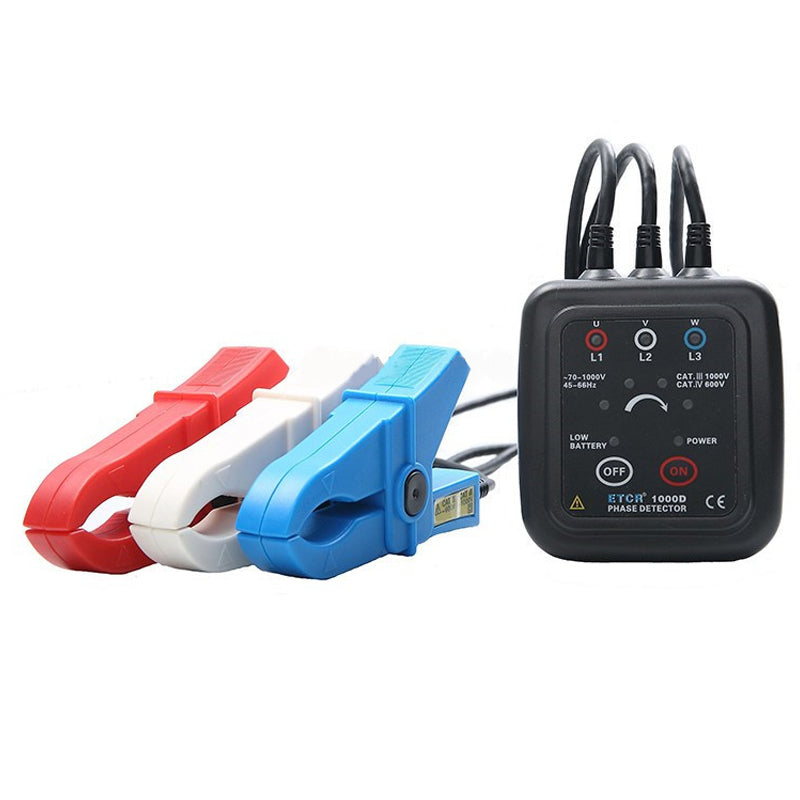

ETCR1000D 3 Phase Large Caliber Non-contact Phase Sequence Detection Phase Detector Meter,Phase Rotation Monitor Meter

 Features:

 1.Phase sequence detection and live line inspection, inspection, identification, electric wire simple phase judgment, break point search, DC line breakpoint detection, line maintenance.

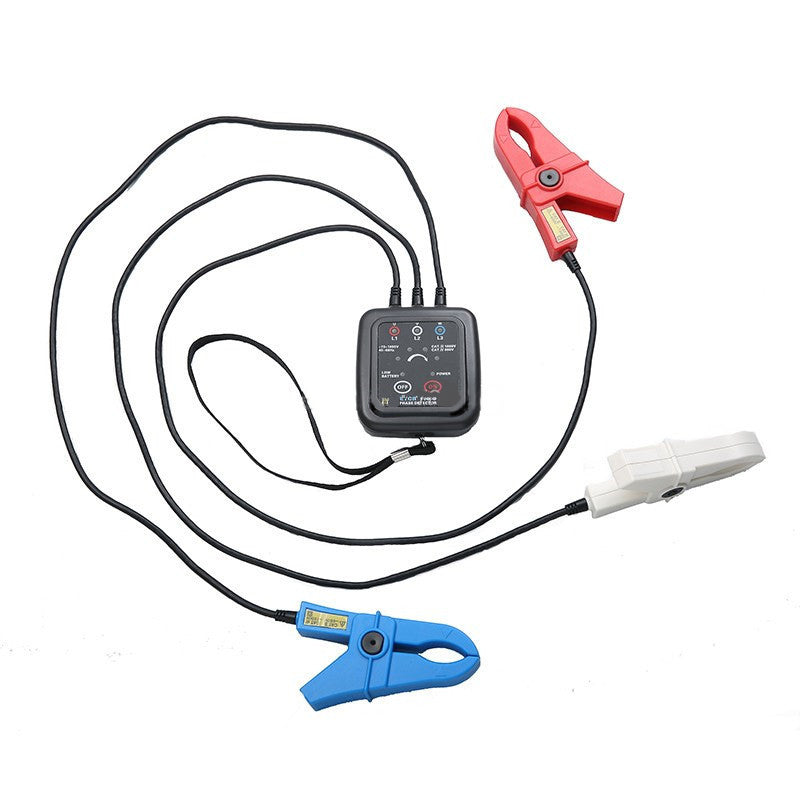

 2.Using non inductive contact measuring clamp, not through wires, no contact pressure directly to the bare wire, three ultra high insulation pliers are respectively clamped three-phase induction wire insulation sheath can be detected.

 3.Non contact detection, safe and rapid increase productivity.

 4.Dynamic acousto-optic three-phase power phase sequence is positive or reverse phase state, at a glance.

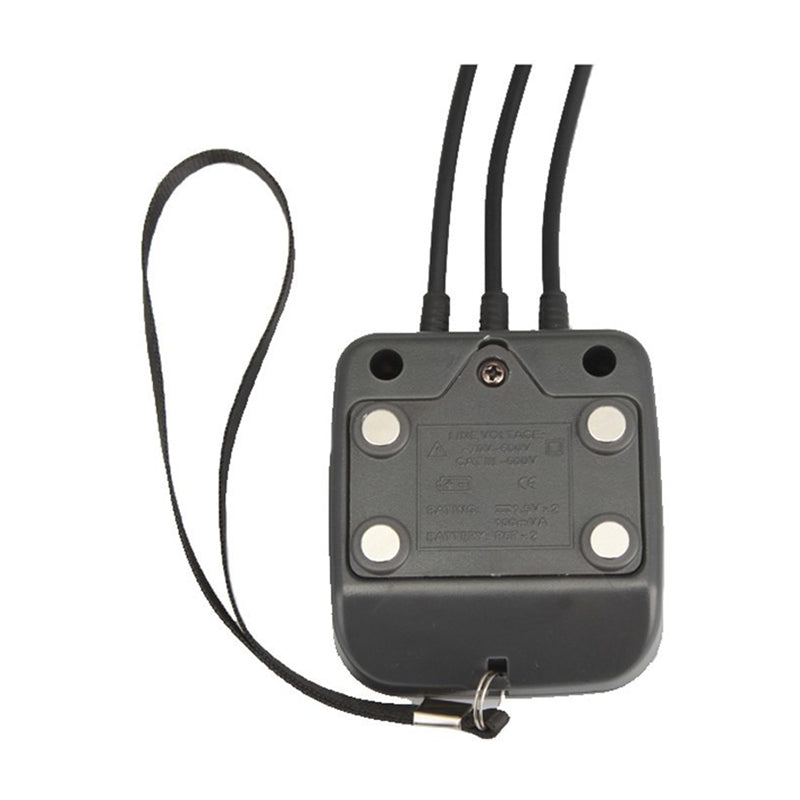

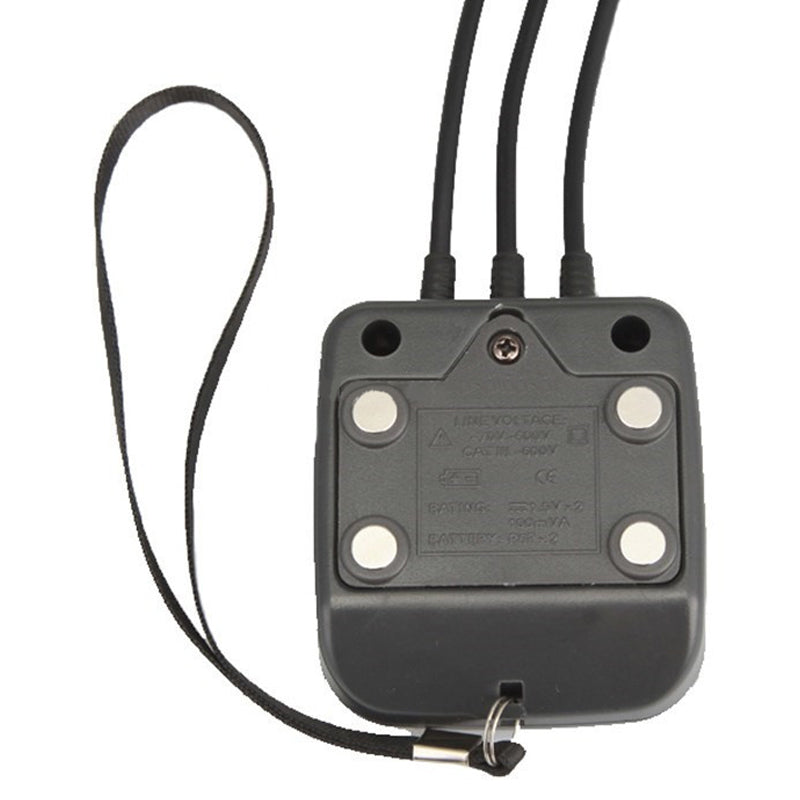

 FiveThe instrument is equipped with 4 magnets, the instrument can be adsorbed on the metal shell of the equipment, the operation is convenient and easy to use

 Specifications:

                     Functions

    Phase detection (normal phase, reverse phase and phase deficiency), Live wire examination, Simple Power detection, Breakpoint location and Line maintenance.

                     Power Supply

    DC3V AA Mn batteries (R6P) ×2 PCS, Continuously working for 200 hours(not included package)

                     AC Voltage Range(V)

    AC0-600V, 40-70Hz (Sine Wave Continuous Input)

                     Clamp Wire Size

    Diameter ø10-ø40mm

                     LED Display

               Positive Phase Sequence

           The four phase-sequence lamps blink in order (clockwise).

           Negative Phase Sequence

           The four phase-sequence lamps blink in order (counterclockwise).

           Line-voltage IndicationL1 L2 L3  lamp light up.

           Default Phase L1/L2/L3  lamp is off.

           Open Circuit L1/L2/L3  lamp is off.

                     Power On Indication

    Power On indication light turns on

                     Auto Power off

    After 5minutes, the meter automatically cut off power supply.

                     Meter Dimension

    Width, height, thickness 70mm*75mm*30mm

                     Clamp Lead Length

    0.5m

                     Meter Weight

    180g (with battery)

                     Working Temperature and Humidity

    -10c 55c  below 80%rh

                     Storage Temperature and Humidity

    -20c-60c; below 90%rh

                     Maximum Measured Voltage

    AC1000V

                     Dielectric Strength

    5.4kVrms

                     Maximum rated Power

    100mVA

                     Safety Provisions

    EN61010-1: 2001, EN61010-031: 2002, Pollution level 2, CAT iii(600V), Transient over-voltage 6000V

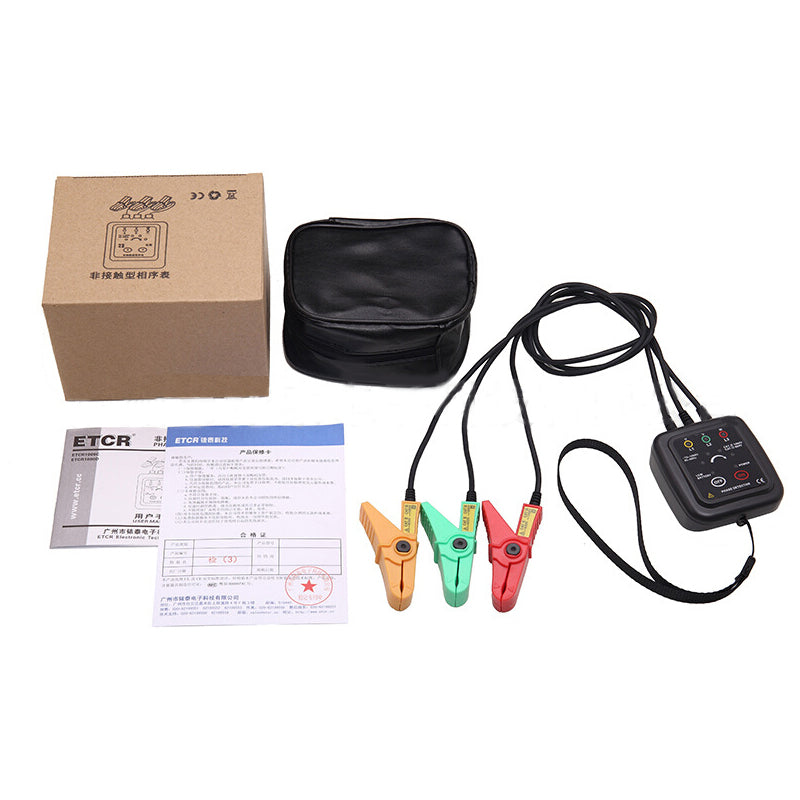

                     Accessories

    Meter: 1 Piece; Carrying case; 1 Piece.
