Features:

   ETCR3600 other potential intelligent tester is a potential link between the quality of special instruments, such as testing the building (with lightning, ground beams, construction, protection, floor Ligament, pipes, radiators, bathroom, kitchen and other objects) of metal structures, You can also measure a variety of electrical equipment and ground network earth connection resistance between conductors can also measure switch contact resistance socket contacts and other low resistance, with Microhmmeter function. Widely used in construction quality inspection stations, supervision companies, construction units, mine companies, power sector.

   ETCR3600 other potential intelligent tester from the host, monitoring software, test lines, communication lines and other components. Host LCD display, Chinese operation interface, at a glance. Also has large storage space, you can store 6000 sets of data. Monitoring software with online real-time monitoring and historical inquiry, dynamic display, with maximum, minimum, average indication with alarm value setting and alarm indication function, historical data read, access, preservation, reporting, printing and other functions.

   Specifications:

                     Features

               Potential connection between resistance testing and other metal components, low resistance testing, and network connection between the earth conductor resistance testing, contact resistance test, etc.

                     power supply

               DC6V 1.2Ah rechargeable battery

                     Power

               Measuring the power 10W; maximum operating current 1A

                     Detection method

               2-way A / D simultaneous detection

                     Range

               0.01 ~ 40

                     Display rate

               0.0001

                     Measurement accuracy

               0.1 ~ 40, 1% · Rx (Rx is the measured resistance value)

                     0.01 ~ 0.1, 10% · Rx

                     Measuring time

               3 seconds / times

                     data storage

               6000 group (down or replace the battery without losing data)

                     Alarm

               Test value exceeds the alarm set value, the "beep - beep - beep -" alarm

                     Test line length

               5 m / bar (which can be extended according to the site distance)

                     Display mode

               LCD: 128dots × 64dots; display field: 44mm × 27mm

                     Host size

               205mm × 200mm × 85mm

                     Mass

               1.2kg

                     Line Voltage

               Try to avoid

                     Overflow display

               Super Range overflow function: "OL"Symbol Display

                     Battery voltage

               When the battery voltage drops to about 5V, low battery symbol appears.

                     Working temperature and humidity

               -10 ~ 40 ; 80% rh or less

                     Storage Temperature and Humidity

               -10 ~ 60 ; 70% rh or less

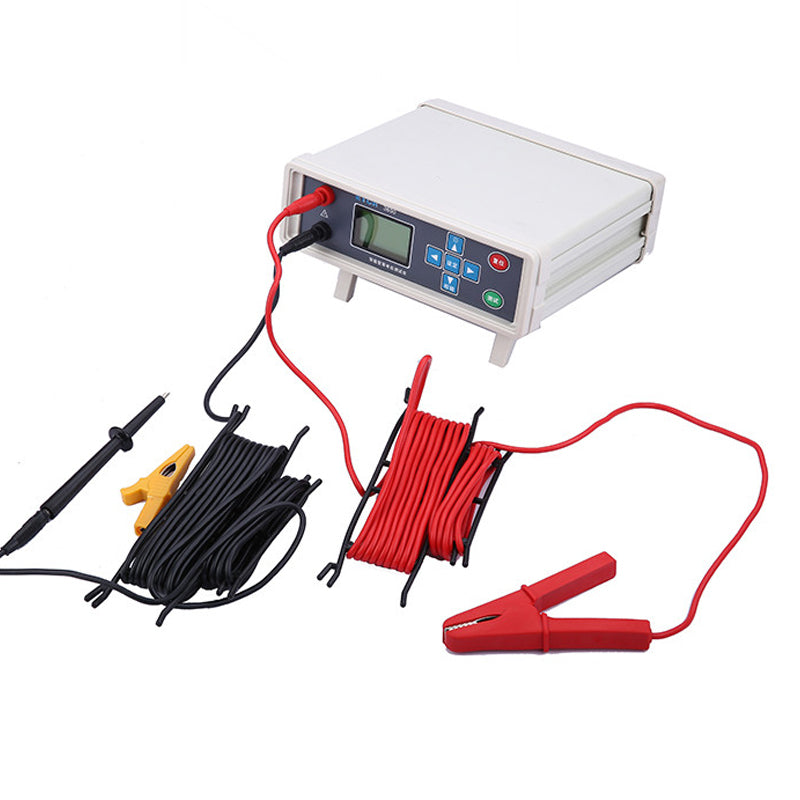

                     Supplied Accessories

               Tester: 1; Test line: 2; RS232 communication lines: one; monitoring software (CD-ROM): 1; charger: 1; bags: 1
