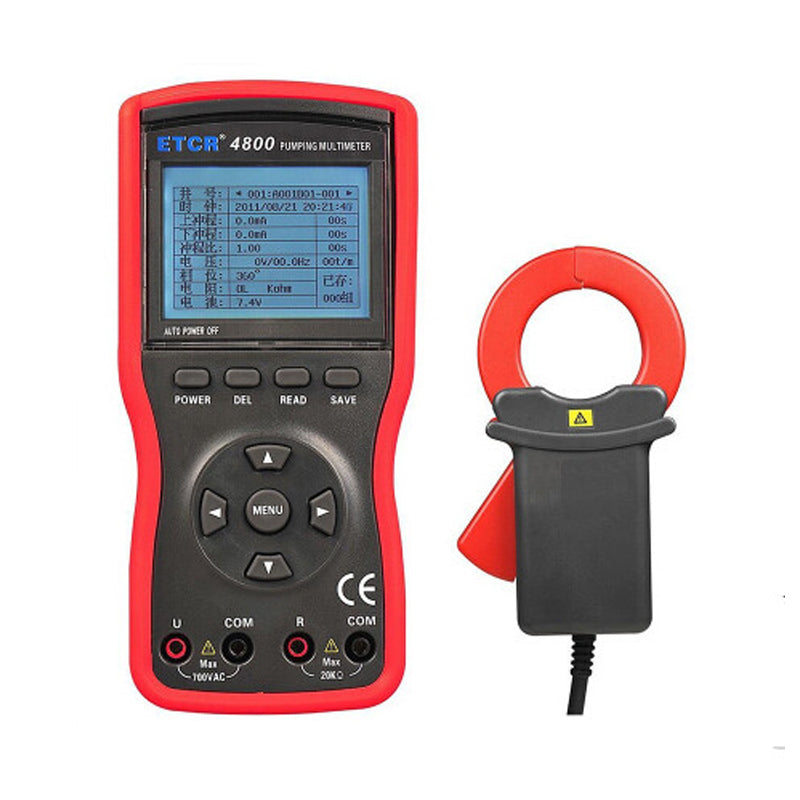

ETCR4800 Oli Pumping Multi-purpose Meter 0V~700V 0.0mA~300A

   Features:

 Measurement of oil electricity parameters: current, voltage, frequency, voltage and current phase, breaking resistance and pumping unit maximum current, the down stroke stroke ratio, stroke time, the strokes per minute frequency, and determining the working condition of the pumping unit, as the site of the pumping well the electrical parameters of power balance time monitoring, provides a safe and accurate instrument oil and convenient.

 2.Charging interface, configuration charger.

 3.The test line with power cable, rod plug and holder have insulation protection.

 4.Insulated anti slip jacket.

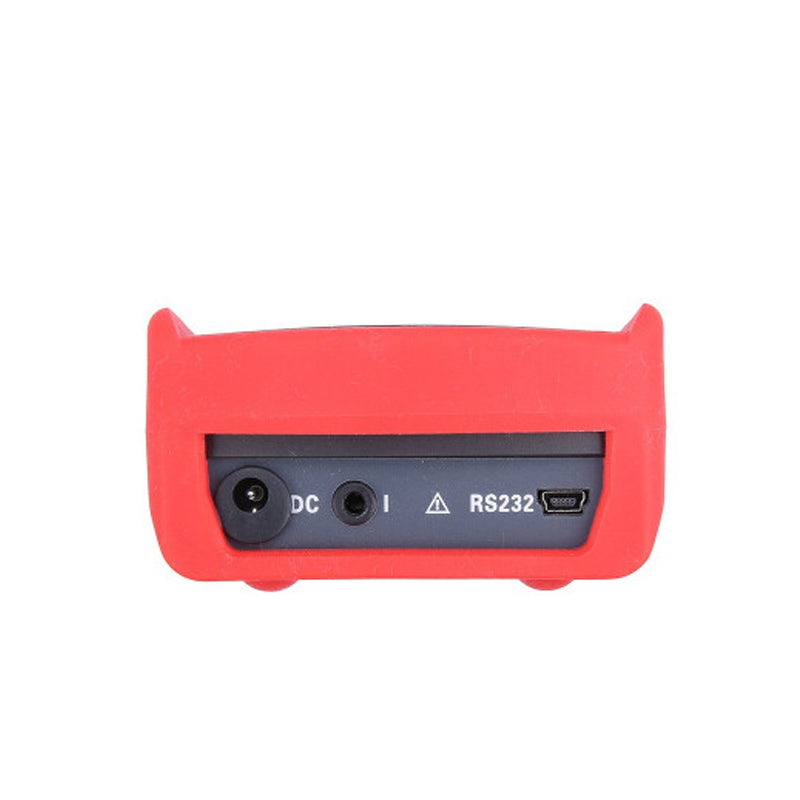

 5.RS232 interface, can store 1000 sets of data, upload data to the computer through the system software, to achieve historical data query, read, analyze, save, report, print, etc..

 6.Administrators set function, password access, including the clock settings, well number settings, password settings.

 technical specifications

               Function

            At the same time for the measurement of electric parameters of oil: current, voltage, frequency, voltage and current phase, breaking resistance and pumping unit maximum current, the down stroke stroke ratio, stroke time, stroke times per minute

                Power Supply

            DC7.2V (1.2V 5 section 6 rechargeable battery)

                Jaw size

            Circular current clamp: 35mm * 40MM.

                Voltage

            Quantity limit: 0V 700V ~ AC resolution: 1V precision: + (1.5%rdg+3dgt)

                Electric current

            Quantity limit: 0.0mA 300A ~ AC resolution: 0.1mA precision: + (1.5%rdg+3dgt)

                Phase

            Limit: 0 ~ 360 degree resolution: 1 degree accuracy: + 3

                Resistance

            Limit: 0.00Kohm ~ 20.0Kohm resolution: 10ohm precision: + (2.0%rdg+3dgt)

                Frequency

            Limit: 10.0Hz ~ 70.0Hz resolution: 0.1Hz precision: + (2.0%rdg+3dgt)

                Measured phase frequency amplitude

            Voltage: 30V ~ 700V

                Current: 30mA ~ 300A

                Number of well number

            No. 100

                data storage

            1000 groups

                RS232Interface

            RS232 interface, the stored data uploaded to the computer, easy to analyze and manage data, through the software to edit the well number

                Communication line

            RS232 communication line, 1.8 meters long

                Well number setting

            15 bit code, you can use the instrument or PC software to edit the number

                Clock function

            Yes

                Password settings

            Yes, 6 digit code.

                Backlight function

            There is, for the dark places and at night, no operation instrument backlight will automatically turn off after 3 minutes

                Automatic shutdown

            15 minutes after the boot does not operate the instrument will automatically shut down

                Power waste

            Turn on the maximum power consumption of the backlight 50mA

                Backlight off instrument power consumption 30mA

                display mode

            LCD display, 160dots * 240dots

                Meter size

            Length and width thickness: 196mm * 92mm * 54mm

                Testingrate

            About 2 seconds / time

                Battery voltage

            Instrument timely display battery voltage, when the battery voltage is lower than 6.5V, the battery voltage low symbol display, please charge in time

                Instrument quality

            1000g (including attachments)

                Test line length

            1.5m

                Current clamp length

            2m * 5mm.

                Working temperature and humidity

            -20 degrees Celsius to 40 degrees C; 80%Rh below

                Storage temperature and humidity

            -10 degrees Celsius to 60 degrees C; 70%Rh below

                Input impedance

            The input impedance of the test voltage is 2M

                Withstand voltage

            Meter line and the outer shell tolerance 1000V/50Hz sine wave AC voltage lasted 1 minutes

                Insulation

            Between the instrument line and the jacket shell is larger than 100M.

                Structure

            Double insulation, insulation and anti vibration sheath

                Suitable for safety

            CAT 600V III IEC61010-031, IEC61010-1, IEC61326, pollution level 2

                Random accessories

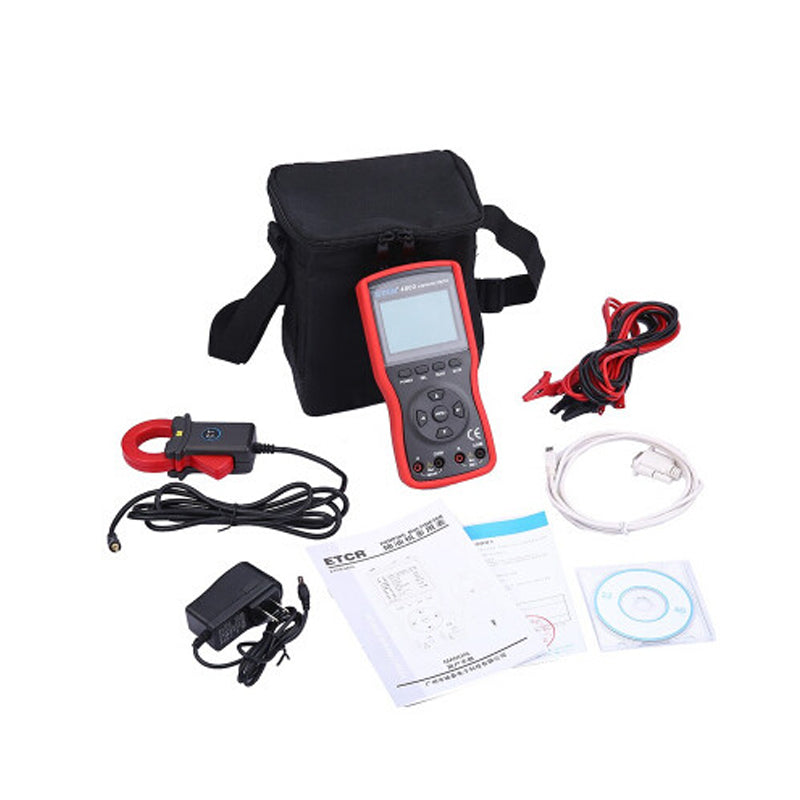

            Host: 1; current clamp: 1; test line: 4; RS232: 1; data line software CD: 1; cloth: 1; charger: 1; rechargeable batteries: 6 (1.5V 5)（not included ）
