1.Features:

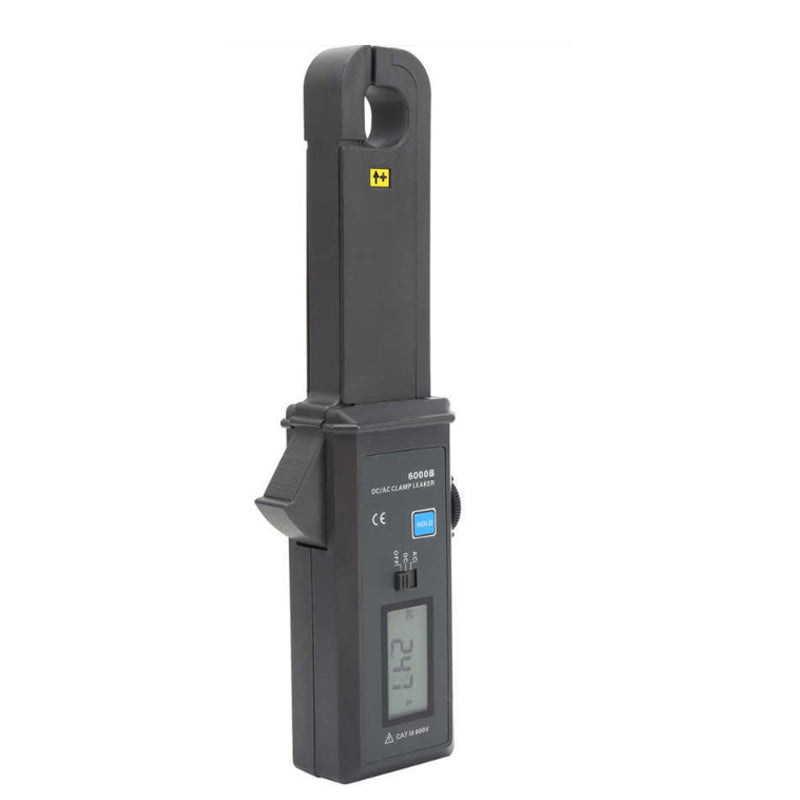

ETCR6000B AC/DC Clamp Leaker is specially designed for measurement of AC/DC current; by adopting up-to-date CT technology and digital integration technology. The small clamp is suitable for line densely places (electric power measurement system, the high speed rail system, car circuit overhaul, and so on), non-contact measurement, to ensure safe operation. It is a product with relatively small size, high accuracy and perfect function compared with similar leakers in the world. The leaker could be widely applied in those fields as electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining establishments. it is an essential tool for electrician safety testing.

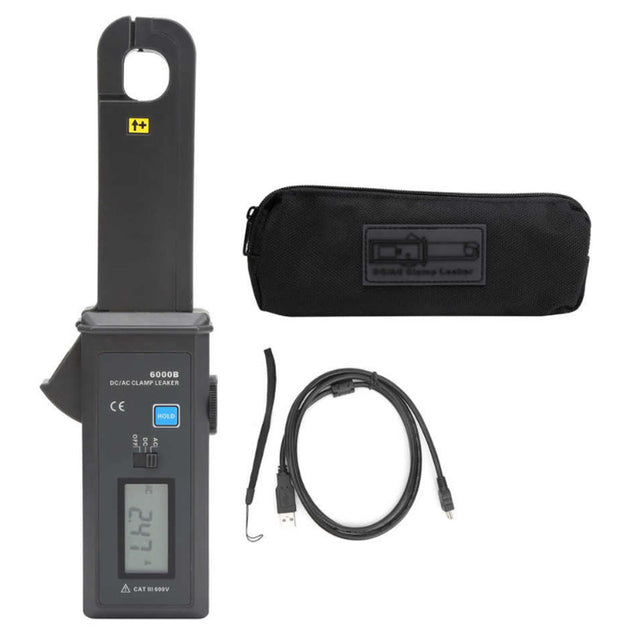

 ETCR6000B AC/DC Clamp Leaker also named: DC Leakage Current Clamp Meter, Car DC Leakage Current Clamp Meter, AC/DC Clamp Leakage Current Tester. It has those functions as data holding and data storage. It obtains one RS232 interface, communication cable and software, through which historical data inquiry is available, for reading, saving and printing.

   2.Product specifications:

          Function

    Measurement of AC/DC current, leakage current

          Power Supply

    Zn-Mn dry battery,6F22,9V(not included package)

          Test Mode

    Clip-on CT, integral mode

          Clamp Size

    16*18mm

          Measurement Range

    0mA-60.0A AC/DC

          Resolution

    1mA AC/DC

          Accuracy

    ±2%rdg±5dgt (23C±5C, below 75%rh)

          Display Mode

    Four digits LCD display

          Dimension

    LWH: 168mm×65mm×34mm

          LCD Dimension

    35mm×21.5mm; display domain: 32mm×15mm

          Sampling Rate

    2 times/s

          Frequency

    AC: 45Hz-400Hz

          Polarity Indication

    DC current auto identified and display“—”

          Test Position

    Tested wire in the jaw center

          Range Shift

    Automatically

          Line Voltage

    AC600V

          RS232 Interface

    Data stored in the memory of the meter via RS232 upload to PC

          Com-Configure

    Baud rate:9600, data bit:8, stop bit:1

          Data Memory

    99units, FULL blinks when the memory is full

          Reading Hold

    DH indicating the reading is hold

          Out of Range

    OL indicating the current is out of range
