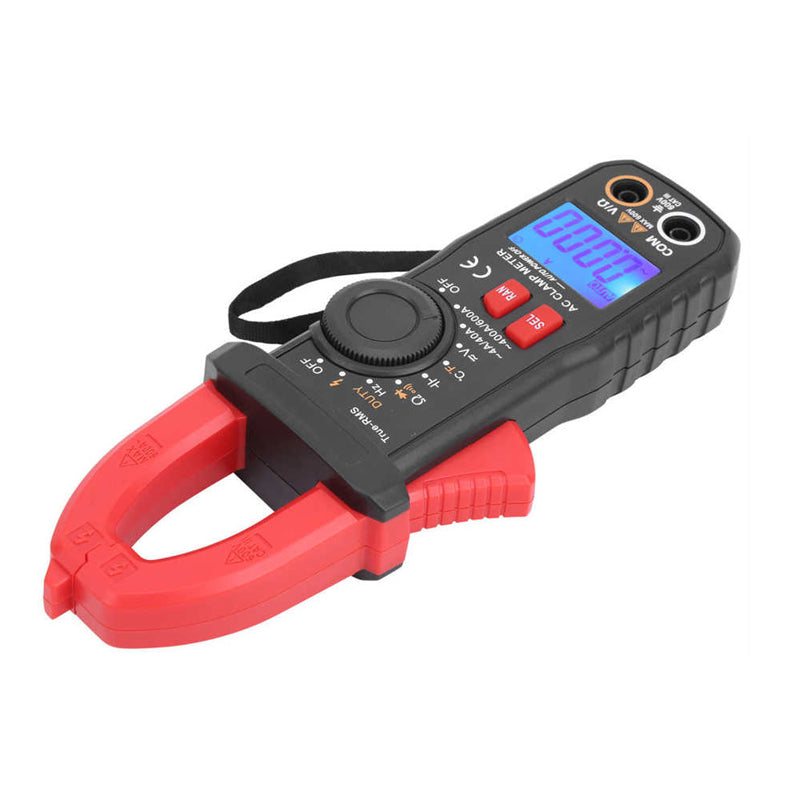

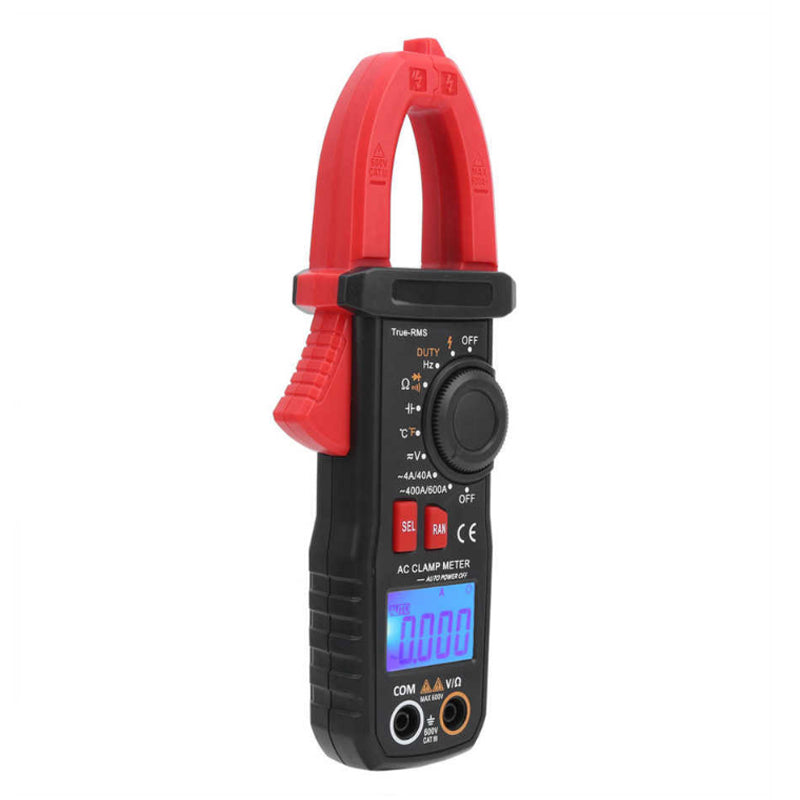

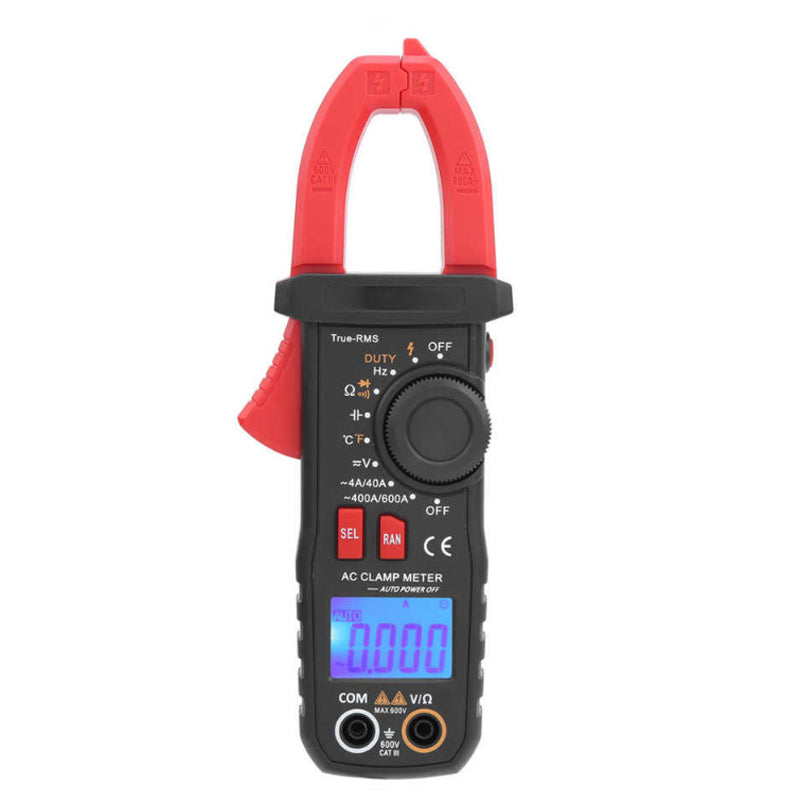

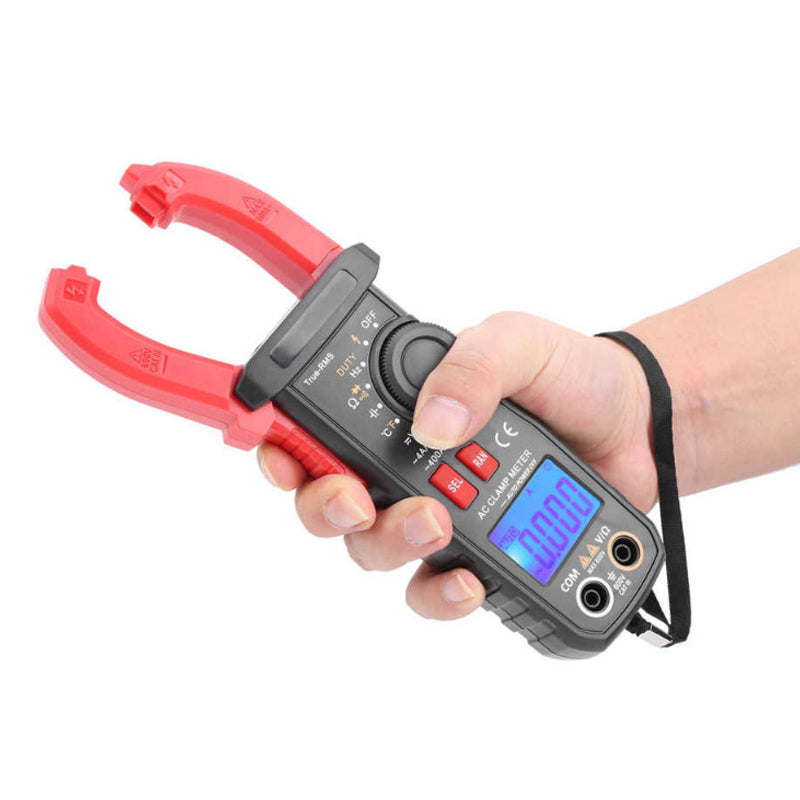

ETCR6420 ETCR6450 ETCR6470 Clamp Multimeter Auto Range Digital AC DC
Voltage True RMS Capacitance
Product Features：
1. The combination of manual gear and automatic gear makes it easy for novices or experienced electricians.
2. The capacitance measurement range is as high as 10mF, and the measurement speed of large capacitance is very fast.
3. The structure is small and exquisite, the operation is simple, and it is easy to carry with the lanyard. It is an ideal tool for electrical measurement.
4. It can measure AC and DC voltage, AC current, resistance, duty cycle, frequency, NCV, true effective value, temperature measurement.
5. Wide range and high measurement accuracy can meet the needs of basic electrical measurement.
Product Specifications：
Auto Range
√
AC Conversion Type
true RMS
Overload Protection
√
Auto Shutdown
√
Duty Ratio Measurement
√
Short Circuit Buzzer
√
Low Voltage Indicator
√
Input Impedance
About 10MΩ
Data Hold
√
Accessories

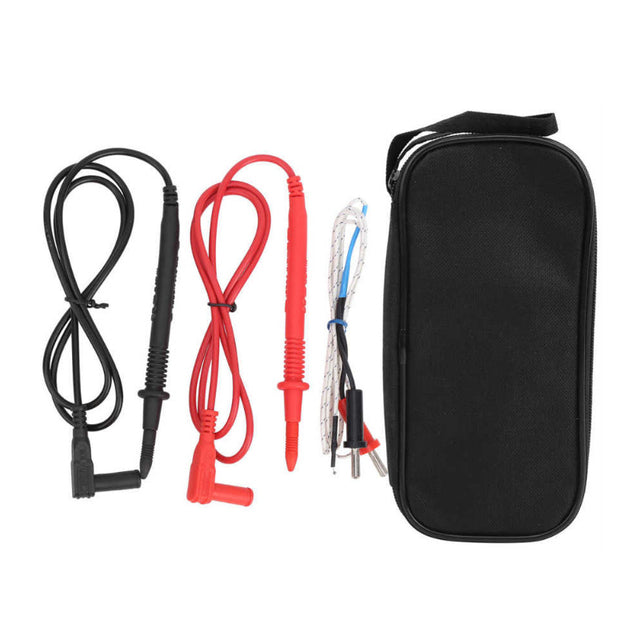

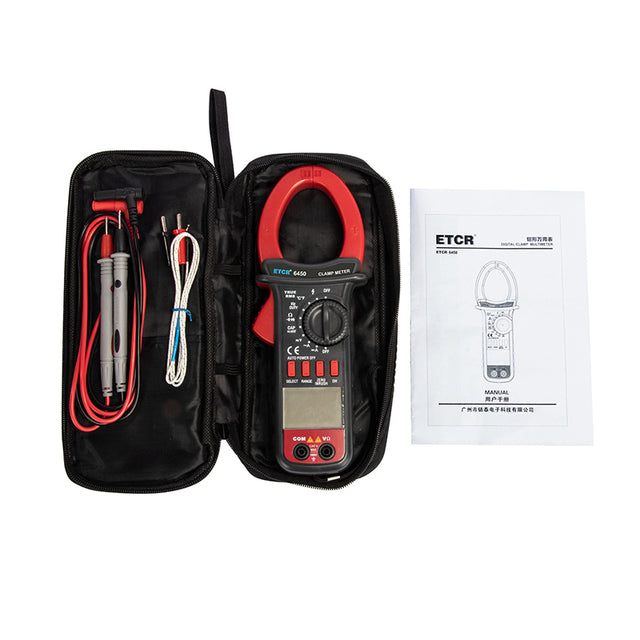

Meter: 1pcs; Pen probe: 1set: Temperature sensor:1pcs; Tester Bag:1pcs
DC Voltage
400m～600V
400mV～ 1000V
2V～2000V
AC Voltage
4V- 600V
400mV～ 700V
2V～ 2000V
DC Current
,--
40A～1000A
20A～ 2000A
AC Current
4A～ 600A
4A～ 1000A
20A～ 2000A
Resistance
100Ω ~ 40MΩ
400Ω ～ 40MΩ
200Q～ 20MQ
Capacitance
10n ～ 10mF
10nF ～ 10mF
20uF～ 200uF
Frequency
10Hz ~ 40MHz
10Hz～ 40MHz
AC Voltage:40Hz～ 400Hz
AC Current:50Hz～ 60Hz
Temperature
-50℃～ 1000℃
-50℃～1000℃
,--
CT Size
Ф27mm
Ф52mm
Ф55mm
Power Supply
LR03 X 2
6F22 9VX1
6F22 9VX1
Meter Dimension
213x80x35mm
249x89x38mm
27Ox100x46mm
VWeight
230g（with battery）
360g (with battery)
460g （with battery）
Diode Test
Can measure the LED work voltage below 3V
DC forward current about 0.5mA
DC reverse voltage about 3.2V
Open circuit voltage about 0.6V
Surge Current Measurement
-
√
√
NCV(Live line)Measurement
√
√
√
Manual Range
√
√
√
ETCR6420

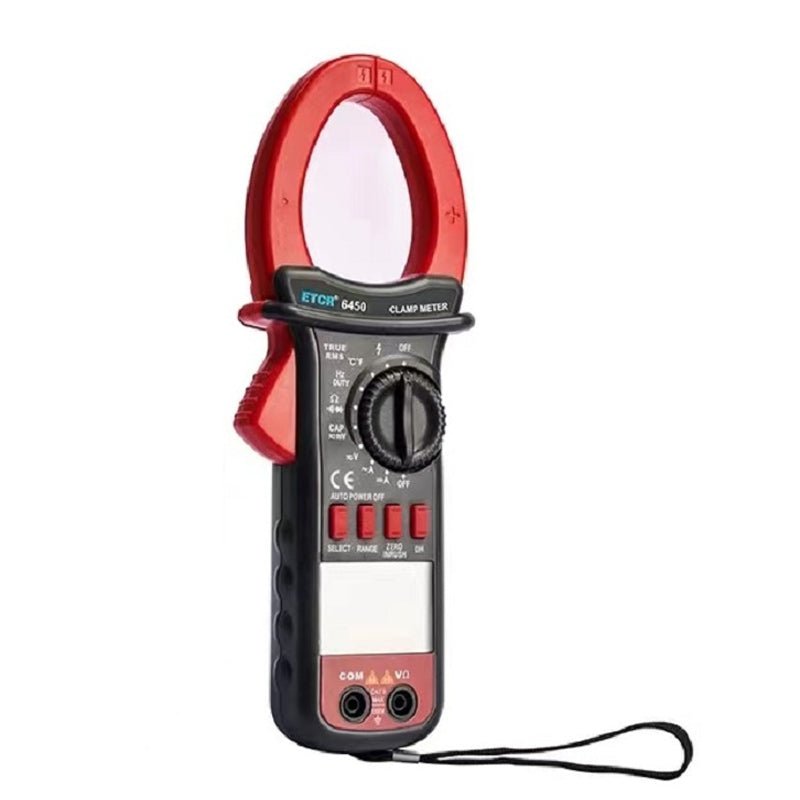

ETCR6450

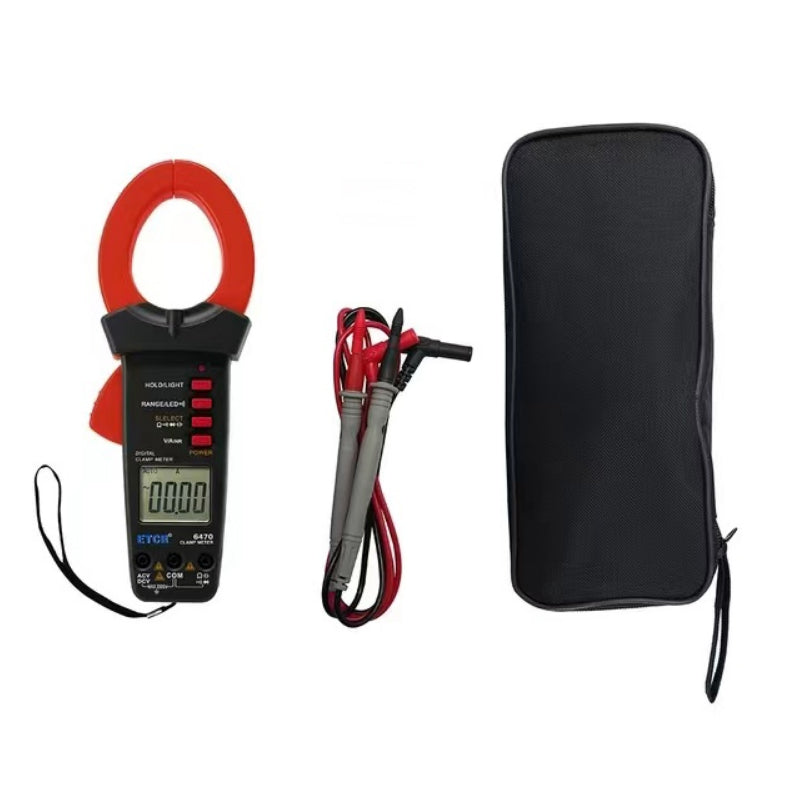

ETCR6470
