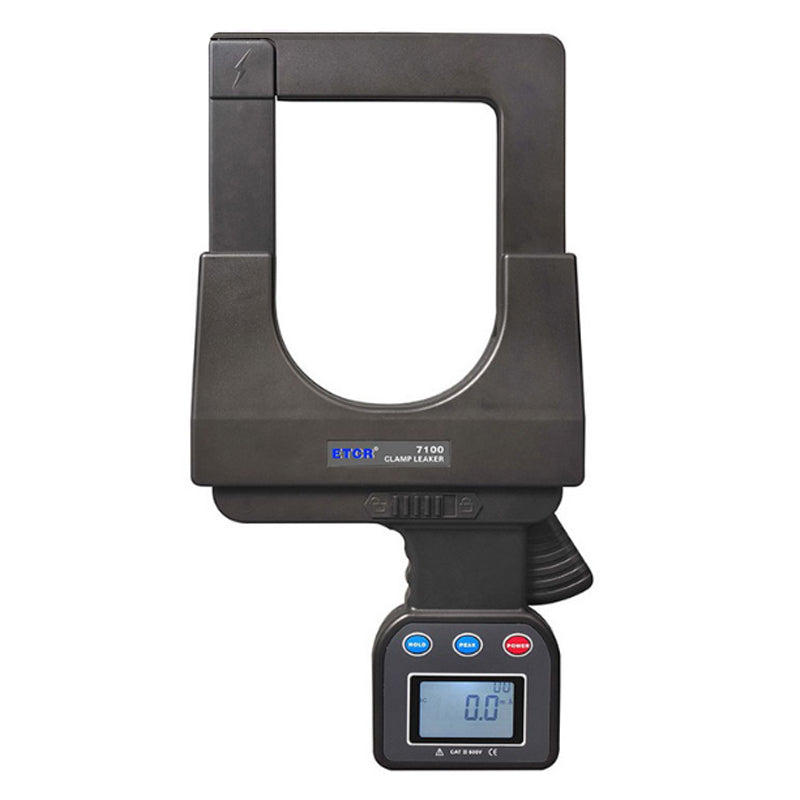

ETCR7100 Superlarge Caliber Leakage Clamp Meter AC 0.0mA-3200A \ RS232 \ Data Storage

 ETCR7100 Superlarge Caliber Leakage Clamp Meter is well designed and manufactured for measuring AC leakage current, current, voltage, adopt the latest CT technology and digital integrated technology. Its large caliber 108mm×148mm can clamp electric cable of 108mm diameter, or 160mm×4mm flat cable and steel earth wires. It has the biggest caliber and widest current range all over the world, particularly suitable for leakage current measurement of cable and transformer earth steel. Full automatically and LCD display, all the data are displayed in the screen, which is very clear and convenient. The meter is widely used in electric power, communication, meteorology, railway, oil field, architecture, measuring, teaching research unit, industrial mining enterprises, etc.

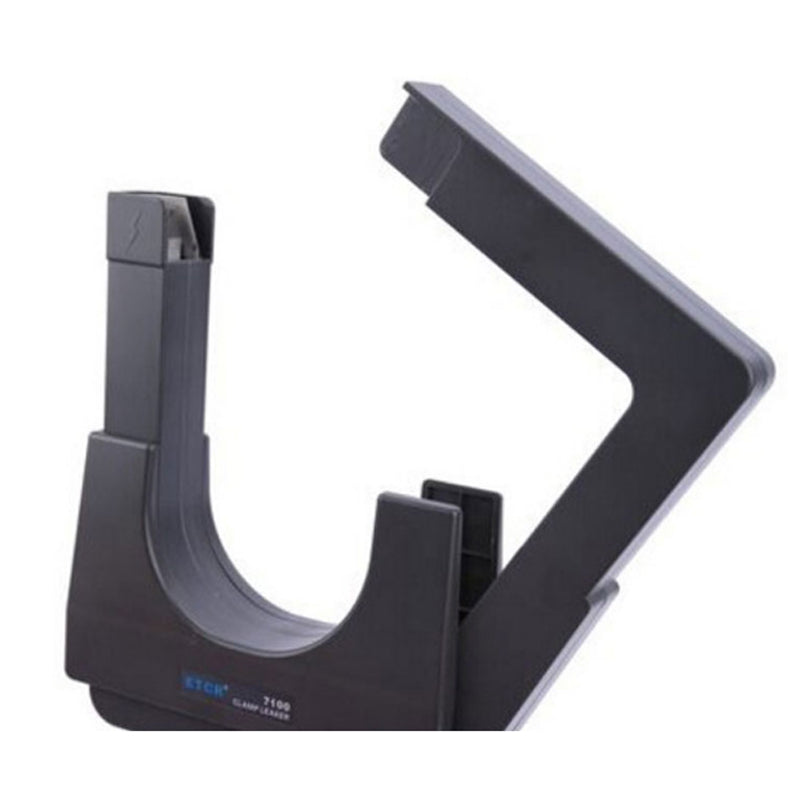

   ETCR7100 Superlarge Caliber Leakage Clamp Meter’s clamp core is made of special alloy, adopt the latest magnetic shielding techniques, to ensure the high precision, high stability and high reliability of perennial uninterrupted measurement. The meter can store 99 sets of data, with RS232 interface, upload stored data to the computer through the system software, implementing online real-time monitoring, historical inquires, dynamic display. With the function of historical data read, export, print, and backlight, data hold, etc. It is a necessary tool for electrical safety testing.

     Technical Specification

                                   Function

       Measure AC leakage current, big current (particularly suitable for leakage current measurement of cable and transformer earth steel)

                               Power

       6V DC(LR6×4 alkaline dry batteries, continuously working for 12 hours)

                               Test Mode

       Clamp CT, integral mode

                               Clamp Size

       108mm×148mm (can clamp electric cable of 108mm diameter, or 160mm×4mm flat cable and steel earth wires)

                               MeasurementRange

       AC 0.0mA-3200A

                               Resolution

       AC 0.1mA

                               Measurement Accuracy

               (23℃±3℃, below 70%RH, measured wire at the center of the clamp)

       AC 0.0mA～499A    ±2%±5dgt

                 AC 500A～999A     ±3%±5dgt

                 AC 1000A～2999A   ±4%±5dgt

                 AC 3000A～4000A   ±5%±5dgt

                               Measured Wire Position

       Measured wire at approximately the geometric center of the clamp

                               Data Storage

       99 sets,  “FULLthe memory is full ” symbol indicate

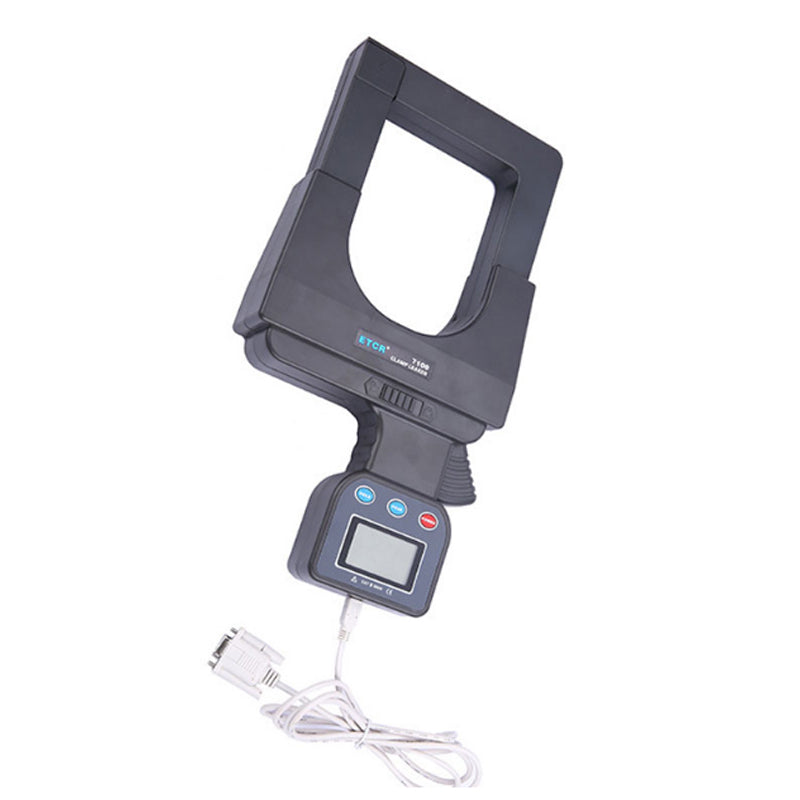

                               RS232 Interface

       With RS232 interface, download data to computer for analysis and management

                               Communication Wire

       RS232 communication wire, 1.8m

                               Frequency

       50Hz ,60Hz automatic identification

                               Gear Shift

       Automatic shift

                               Sample Rate

       About 2 times/second

                               Line Voltage

       Below AC 600V line measurement

                               Display Mode

       4 digital LCD display, length 47mm×width 28.5mm

                               Meter Size

       Length 350mm × Width 180mm × Height 55mm

                               Backlight

       Suitable for dim places

                               Data Hold

       "HOLD symbol appears”

                               Overflow

       "OL symbol appears”

                               Automatic Shutdown

       Automatically shutdown about 5 minutes after power on to reduce battery consumption

                               Voltage Detection

       Low battery symbol appears to remind the replacement of battery when the battery voltage drops below 5.2V.

                               Weight of Meter

       1.5kg (with batteries)

                               Working Temperature and Humidity

       -10℃-40℃; 80%rh

                               Storage Temperature and Humidity

       -10℃-60℃; below 70%rh

                               Insulation strength

       AC 2Kv/rms(between core and shell)

                               SafetySpecifications

       IEC1010-1, IEC1010-2-032, 2 class of pollution, CAT Ⅲ(600V)

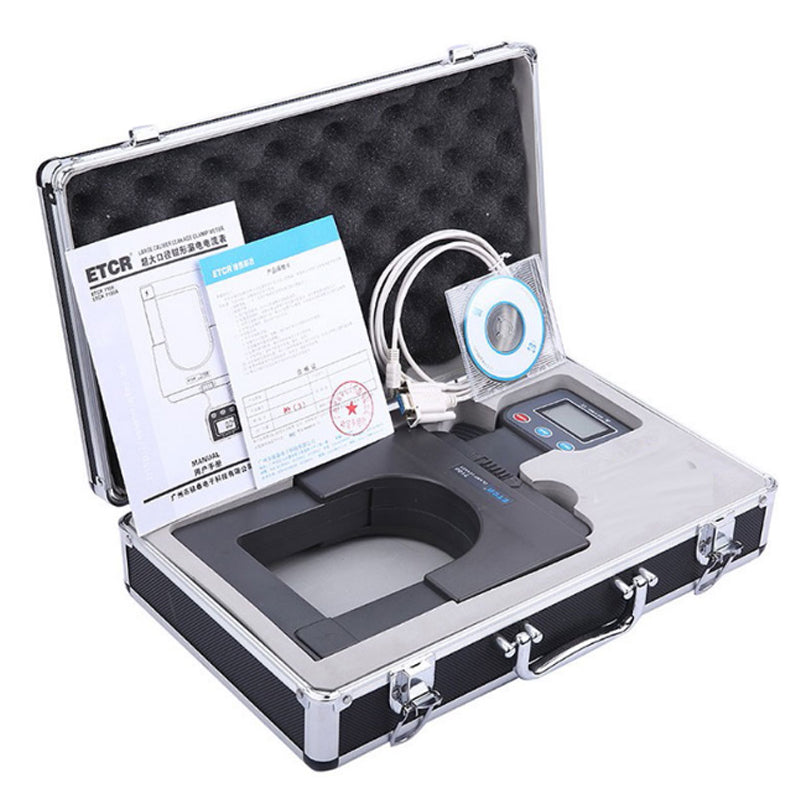

                               Accessories

       Meter: 1 PC; RS232 Data Line: 1 PC; Disk: 1 PC; Battery (LR6): 4PCS(not included package); Meter Box: 1 PC
