1.Technical Specifications:
Function: transformer core grounding current test; AC leakage current, current, frequency, line test
Power: DC6V alkaline dry battery LR6 1.5V × 4 (not included package)
Test method: clamping CT

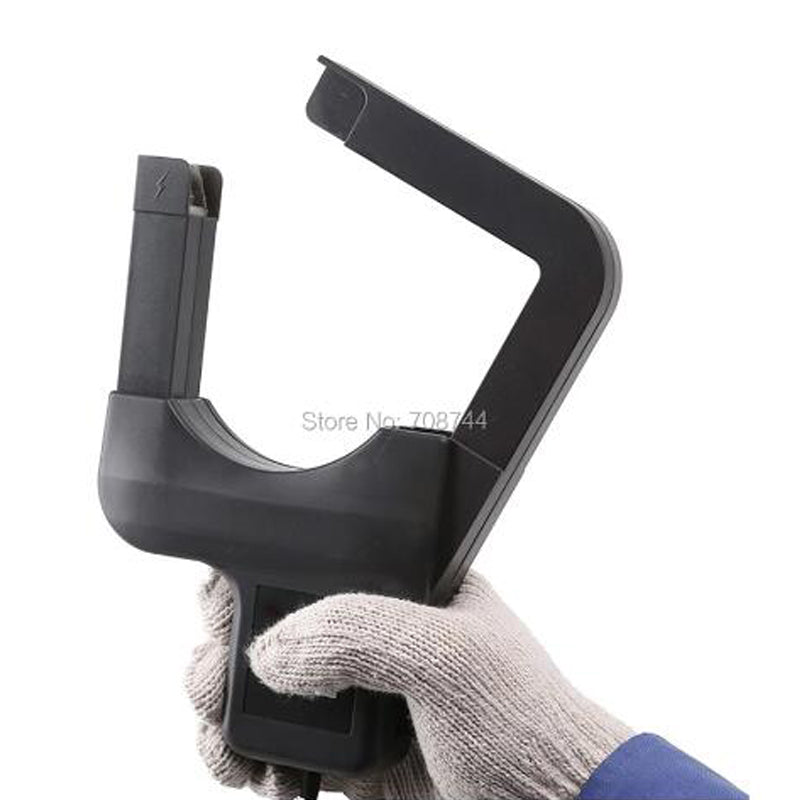

Jaw size: 80mm × 80mm (can be clipped φ80mm line, or 96mm × 4mm flat)
Range: AC 0.00mA~30.0A
Resolution: AC 0.01mA
Accuracy: ±1.5%±3dgt (50Hz / 60Hz, 23°C±2°C, wire in the center)
Frequency: 20Hz~200Hz
Display mode: LCD: 128 points × 64 points

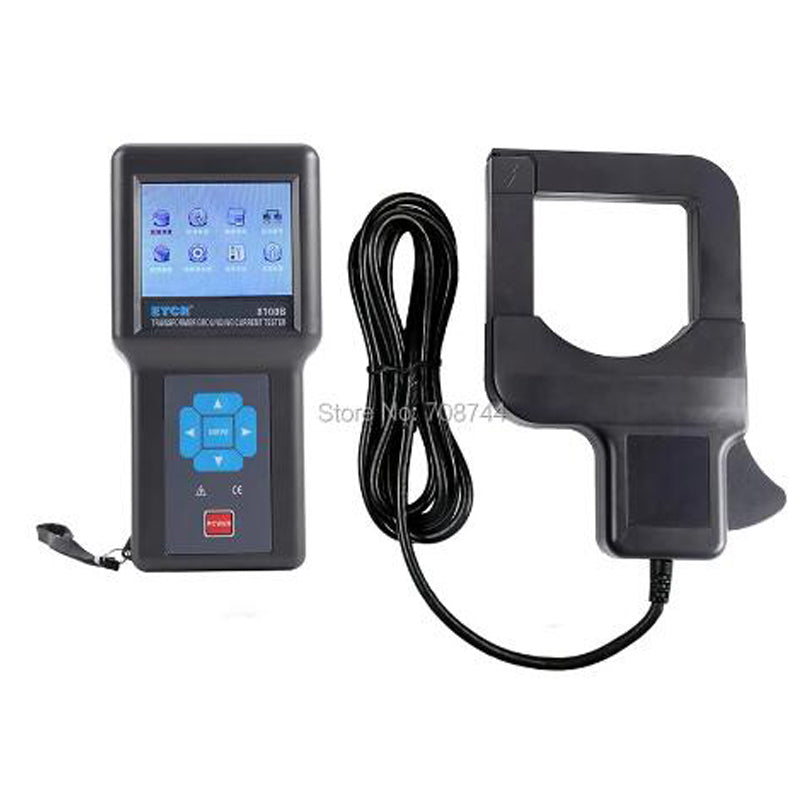

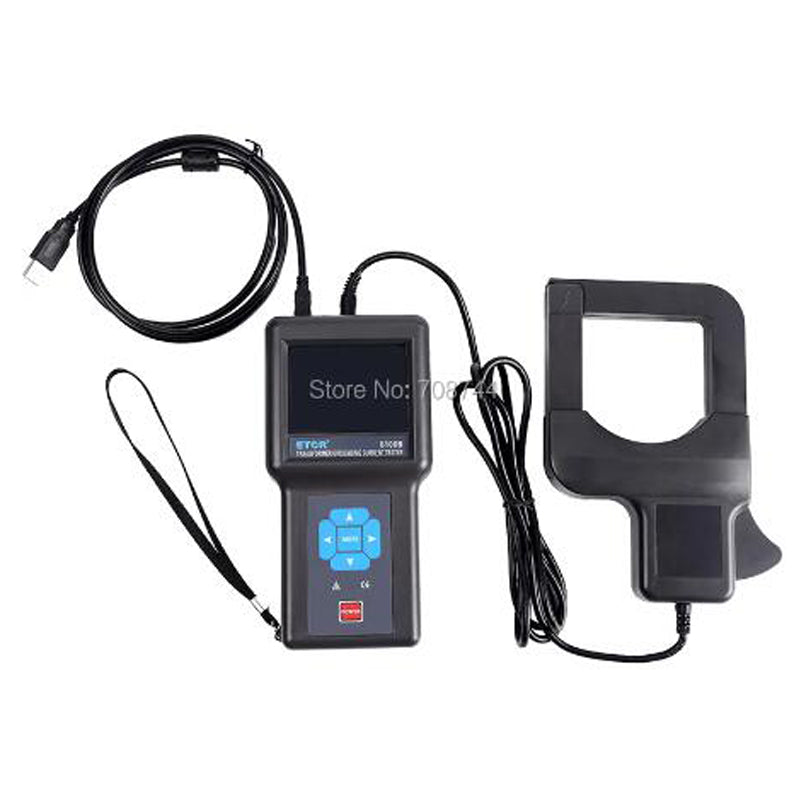

Instrument size: host 170mm × 75mm × 30mm; current clamp 194mm × 145mm × 40mm
Weight: host 240g (with battery); current clamp 780g
Display field: 44mm × 27mm
Electric field interference: about 10mA when the external electric field is close to 100A 10mm
Sampling rate: 3 times / sec.
Data storage: 100 groups (turn off or replace the battery without losing data)
Waveform indication: Yes, the display waveform is automatically amplified and cannot be judged based on the amplitude of this waveform.
Number setting: Test points can be numbered, for example: #001
Auto power off: The instrument has five minutes to work without automatically turning off and selecting the function. The default is auto power off mode.
Alarm setting: Alarm threshold setting range: 10mA~30.0A
Alarm indication: When the measured value exceeds the alarm threshold, the test data flashes.
Line voltage: AC 600V or lower line test
Overflow display: Overrange overflow function: "OL" symbol display
Battery voltage: When the battery voltage drops to 4.8V ± 0.1V, a low battery symbol appears, reminding you to replace the battery.
Rated current: 5mA in save mode, up to 20mA
Lead length: current clamp lead length is 2 m
Working temperature and humidity: -10 ° C ~ 40 ° C; 80% rh or lower
Storage temperature and humidity: -10 ° C ~ 60 ° C; 70% rh or lower
Dielectric strength: (between screw and housing) AC 2kV / rms
For safety: IEC1010-1, IEC1010-2-032, pollution degree 2, CATIII 600V, IEC61326 (EMC standard)

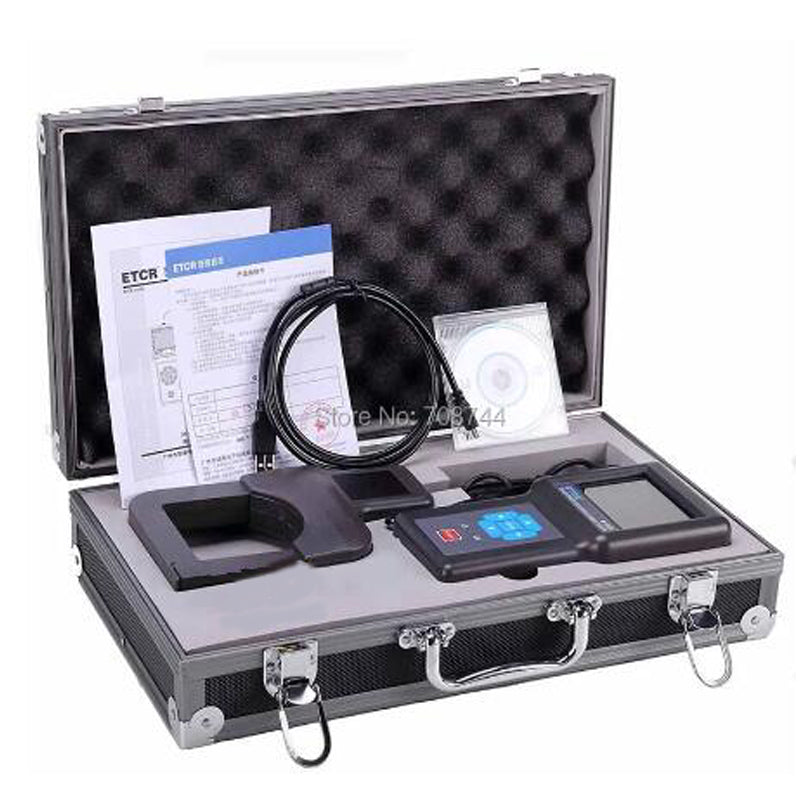

Accessories: host: 1; current clamp: 1; RS232 communication line: one; software CD: 1; cloth: 1
Notes:the batteries not included package
