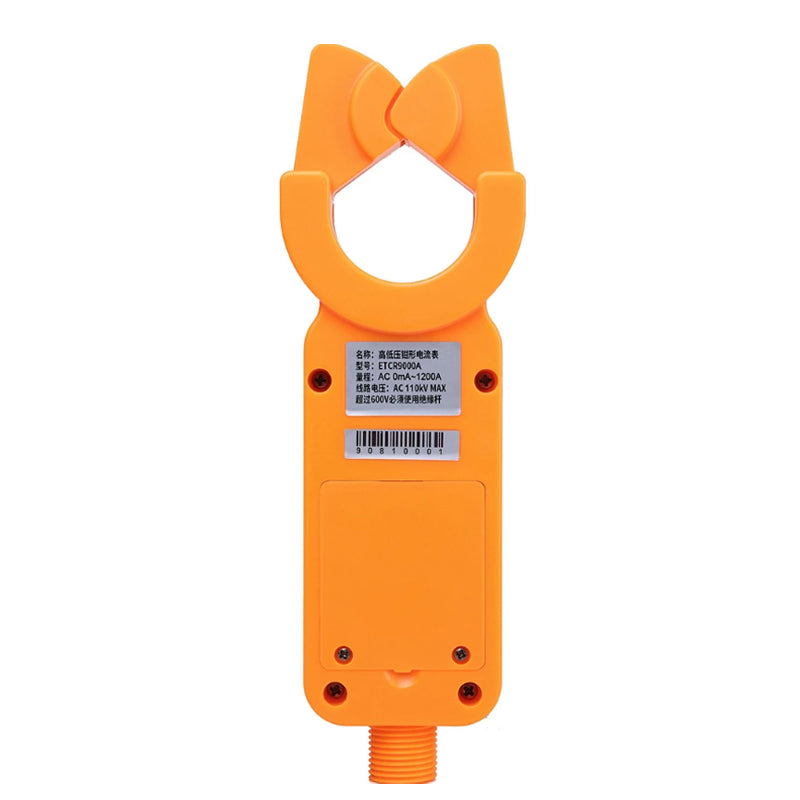

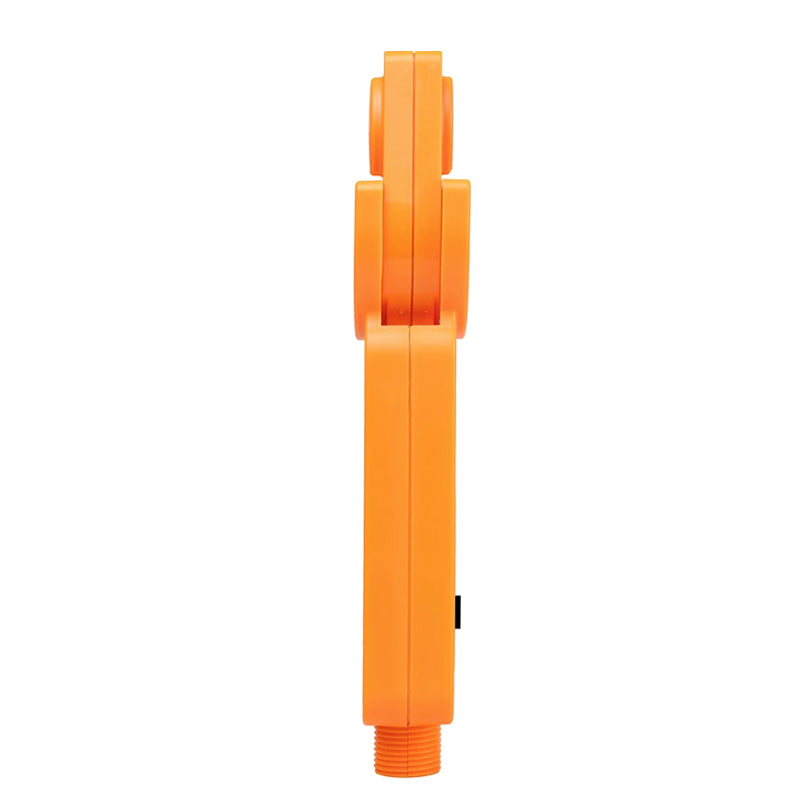

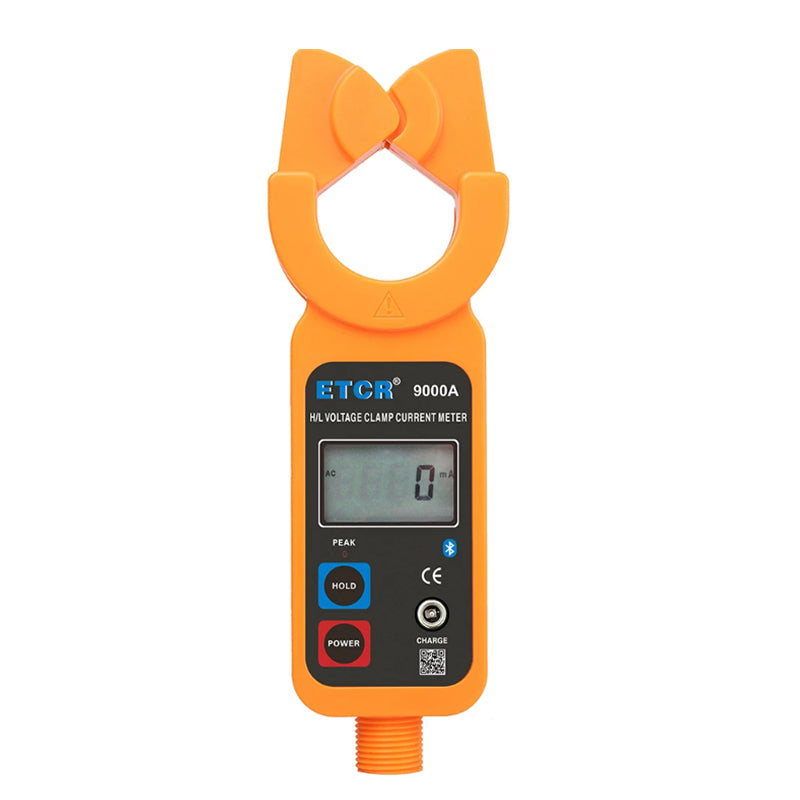

ETCR9000A Automatic H/L Voltage Clamp Current Meter Ammeter

Product Function:

Measurement of H/L voltage AC current below 110kV. (Above 600V, operate with insulation rod).

Product Features:

1.The current clamp adopts magnetic shield and CT digital integration technology, with strong anti-interference, high accuracy and stable test.

2. The innovative automatic plug and pull structure makes the meter easy to clamp or withdraw the tested wire by pressing or pulling the insulation rod, saving time and convenient.

3. With the bluetooth-compatible communication, after installation the APP(support android system)mobile terminals can be used to testing operations and view test records

 Technical Specifications:

               Model

            ETCR9000A H/L Voltage Clamp Current Meter

                Line Voltage

            Below 110kV ,operate with insulation rod

                Measurement Range

            AC 0mA ～ 1200A

                Max Resolution

            1mA

           Test Accuracy

(23℃ ±3℃ , below 80%RH )

            0mA～ 99.9A:±1%rdg+5dgt

                ±1.5%rdg5dgt100A～ 599A:

                ±2%rdgt5dgt600A～ 1200A:

                CT Size

            Ф48mm

                Meter Dimension

            76mmx255mm×31mm

                Meter WVeight

            6kg (include insulation rod)

                Power Supply

            lithium battery DC 7.4V 600mAH

                LCD Size

            47mm X 28.5mm

                Sampling Rate

            2 times/s

                Communication Mode

            Bluetooth-compatible     , straight distance 10m

                PEAK Hold

            Automatically hold the highest test value

                Data Hold

            In usual test mode, press HOLD key to keep data,"HOLD" symbol display

                Data Storage

            99 groups,stored process display MEM symbol,"FULL"symbol display indicate that storage full

                Data Access

            "MR"symbol indication, can access all storage data

                Overflow Display

            Exceed measure range overflow function:"OL A"symbol display

                Automatic Shutdown

            15 minutes after boot up, the meter shuts down automatically without any operation, to reduce batteryconsumption

                Line Voltage

            Below 110kV current test, operate with insulation rods

                Insulation Rod Dimension

            Ф32mm 1m×5 piece

                Insulation Rod Withstand Voltage

            110KV(5PCS insulation rod connection)

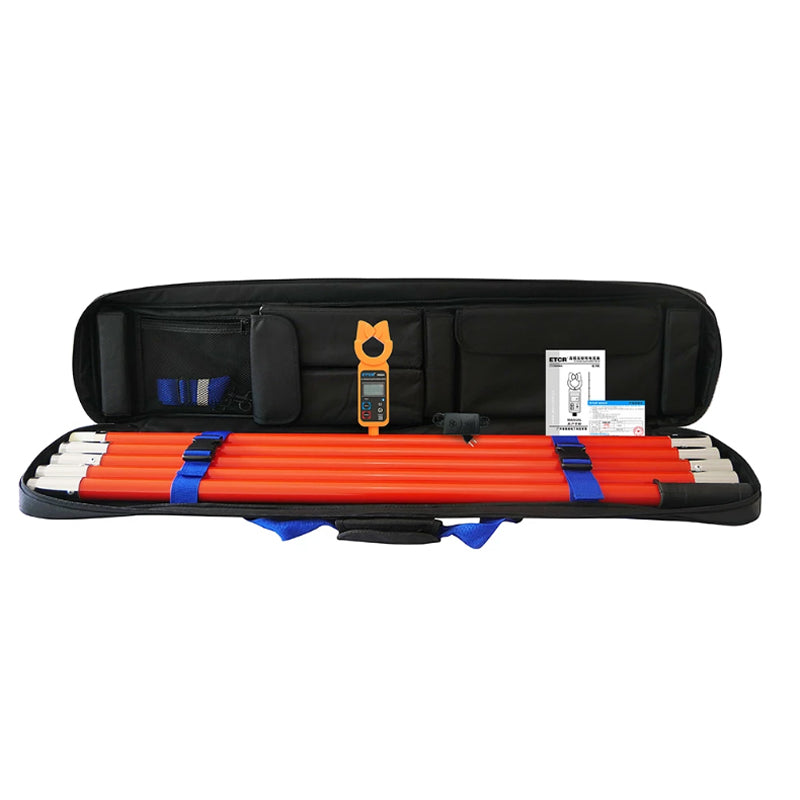

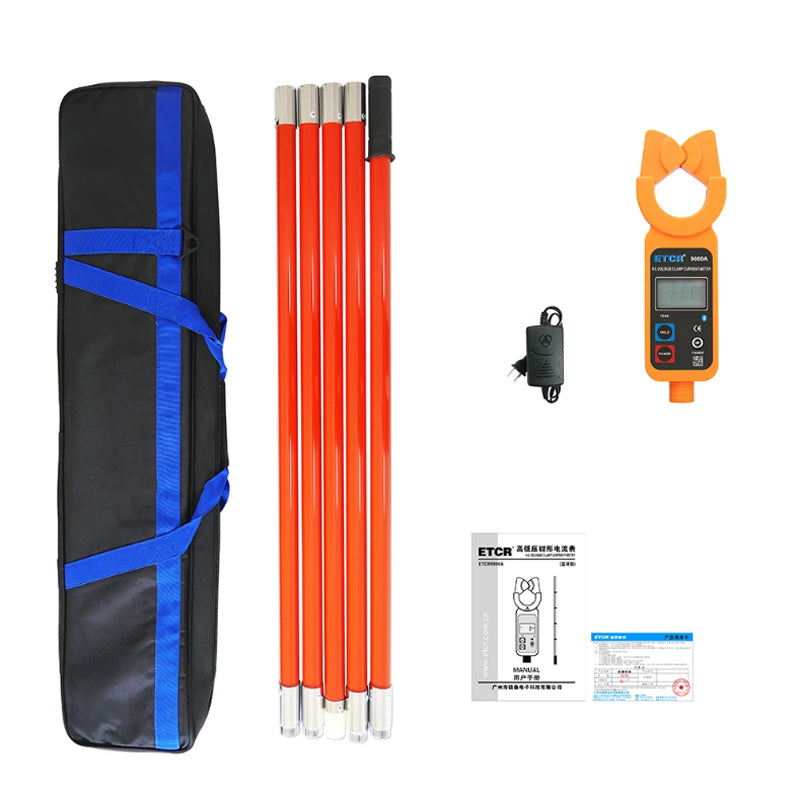

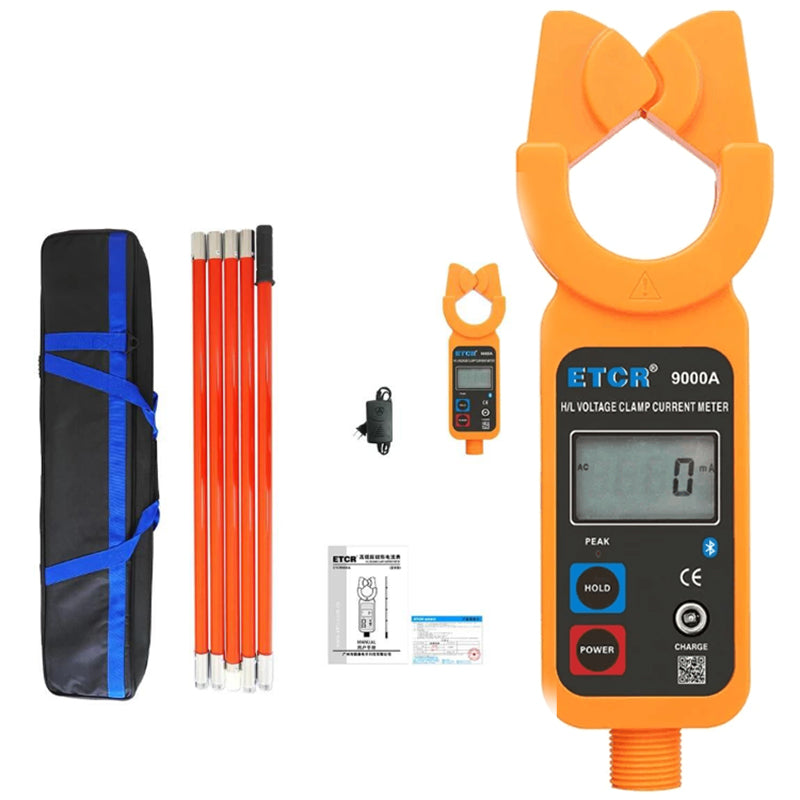

                Accessories

            Meter:1PCS;Charger:1PCS; Insulation rod(1m):5PCS; Tool bag:1SET
