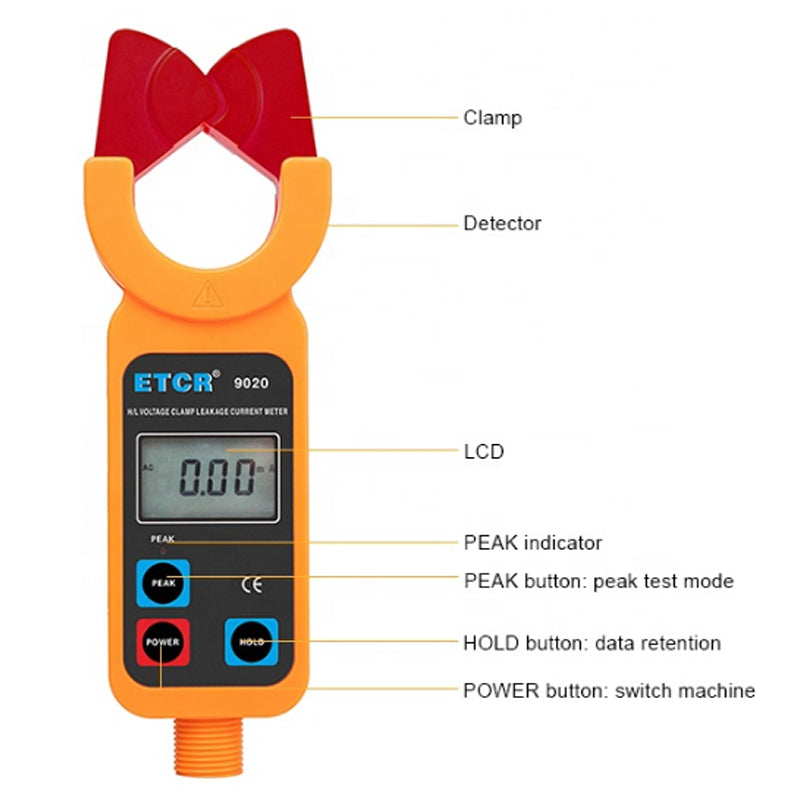

Product features:

 1. The current clamp adopts magnetic shield and CT digital integration technology, with strong anti-interference, high accuracy and stable test.

 2. The innovative automatic plug and pull structure makes the meter easy to clamp or withdraw the tested wire by pressing or pulling the insulation     rod, saving time and convenient.

 3. Peak hold, data hold and data memory function.

       Technical Specification:

                  Model

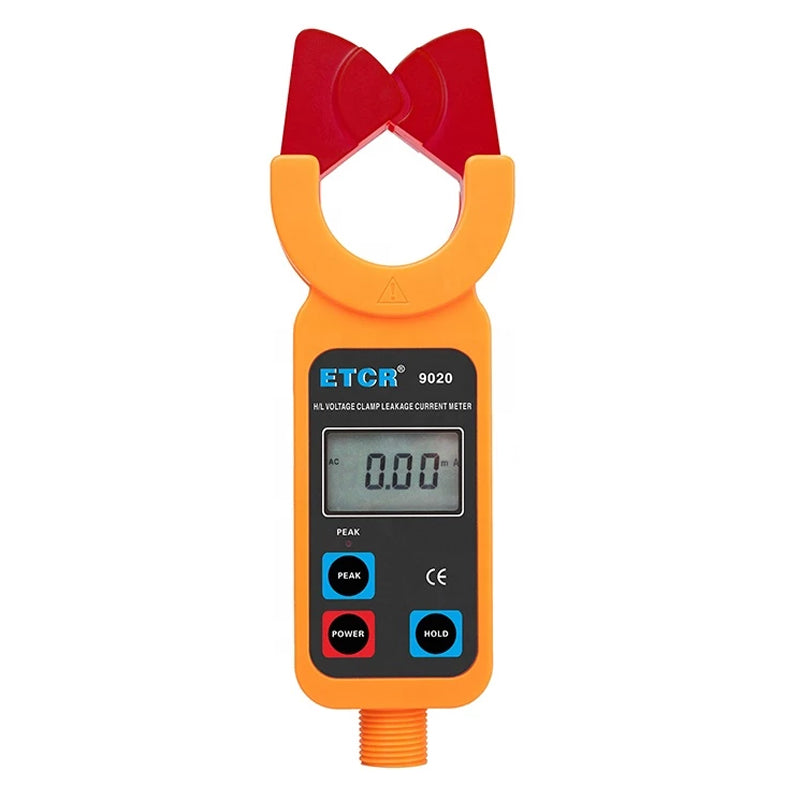

      ETCR9020 H/L Voltage Clamp Leakage Current Meter

                Measurement Range

      AC   0.00mA~60.0A

                Test Accuracy

      0.00mA~999mA:      ±1%±5dgt

                1.00A~60.0A:           ±1.5%±5dgt

                CT Size

      dia 48mm

                Meter Dimension

      76mm×255mm×31mm

                Meter Weight

      3450g (include insulation rod)

                Power Supply

      6V DC(LR03×4pcs alkaline dry batteries)

                LCD Dimension

      47mm×28.5mm

                Sampling Rate

      2 times/s

                Communication Mode

      Wireless transmission, straight distance 30m (only for ETCR9020B)

                PEAK Hold

      Automatically hold the highest test value (only for ETCR9020)

                Data Hold

      In usual test mode, press HOLD key to keep data, “HOLD” symbol display

                Data Storage

      99 groups , stored process display MEM symbol, “FULL” symbol display indicate that storage full

                Data Access

      “MR” symbol indication, can access all storage data

                Overflow Display

      Exceed measure range overflow function: “OL  A” symbol display

                Automatic Shut Down

      15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumption

                Battery Voltage

      When battery voltage is lower than 4.8V, low battery voltage symbol “” display and remind to replace battery.

                Line Voltage

      Below 60kV current test with insulated skin wire; below 35kV bare wire test (operate with insulation rods)

                Insulation Rod Dimension

      dia 32mm   1M x 5PCS

                Insulation Rod Withstand Voltage

      110KV ( 5PCS insulation rod connection)

                Working Temperature

      -10℃~50℃;below 80%Rh

                Accessories

      Meter: 1PCS; Insulation rod (1m): 5PCS; Tool bag: 1SET
