ETCR9220B Wireless H/L Voltage Clamp Leakage Current Meter

Functions:

Measurement of H/L voltage AC current (above 600V operate with insulation rod)

Features:

1.Current clamp adopts high performance Permalloy core and CT digital integrated technology, with strong anti-interference ability, high accuracy and stability for testing.

2.The innovative automatic plug and pull structure makes the meter easy to clamp or withdraw the tested wire by pressing or pulling the insulation rod, saving time and convenient.

3.Peak function, data hold and data storage function

 Specifications:

      Model

   ETCR 9200

   ETCR9220

   ETCR9200B

   ETCR9200B

                Measurement

         Range

            AC OmA～1200A

            AC 0.00mA～60.0A

            AC OmA～1200A

            AC 0.00mA～60.0A

                Max Resolution

            1mA

            0.01mA

            1mA

            0.01mA

                Test Accuracy

            0mA ~ 100A ; ±1%rdg±5dgt

                100A ~ 599A ; ±1.5%rdg±5dgt

                600A ~1200A ; ±2%rdg±5dgt

                CT Size

            Φ68mm

                Meter Dimension

            218mm×135mmx60mm

            218mm×135mm×60mm

Receiver: 78mm×165mm×42mm

                Meter Weight

            6320g (include insulation rod)

            3720g (include insulation rod)

            6565g (include insulation rod)

            3720g (include insulation rod)

               Power Supply

            6V DC(LRO3x4pcs alkaline dry batteries)

                LCD Size

            47mm X 28.5mm

                Sampling Rate

            2 times/s

                Communication

          Mode

            Wireless transmission, straight distance 30m (only for ETCR9200B/9220B)

                PEAK Hold

            Automatically hold the highest test value (only for ETCR9200/9220)

                Data Hold

            In usual test mode, press HOLD key to keep data,"HOLD" symbol display

                Data Storage

            99 groups, stored process display MEM symbol,"FULL"symbol display indicate that storage full

                Data Access

            "MR" symbol indication, can access all storage data

                Overflow Display

            Exceed measure range overflow function:"OL A"symbol display

                Automatic Shutdown

            15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumption

                Battery Voltage

            When battey voltage is lower than 4.8V, low battery voltage symbol"E"display and remind to replace battery.

                Line Voltage

            Below 60KkV current test with insulation skin wire, below 35KV current test with bare wire(operation with insulation rods)

                Insulation Rod

         Dimension

            Ф32mm 1m×5 piece

                Insulation Rod Withstand Voltage

            110KV(5PCS insulation rod connection)

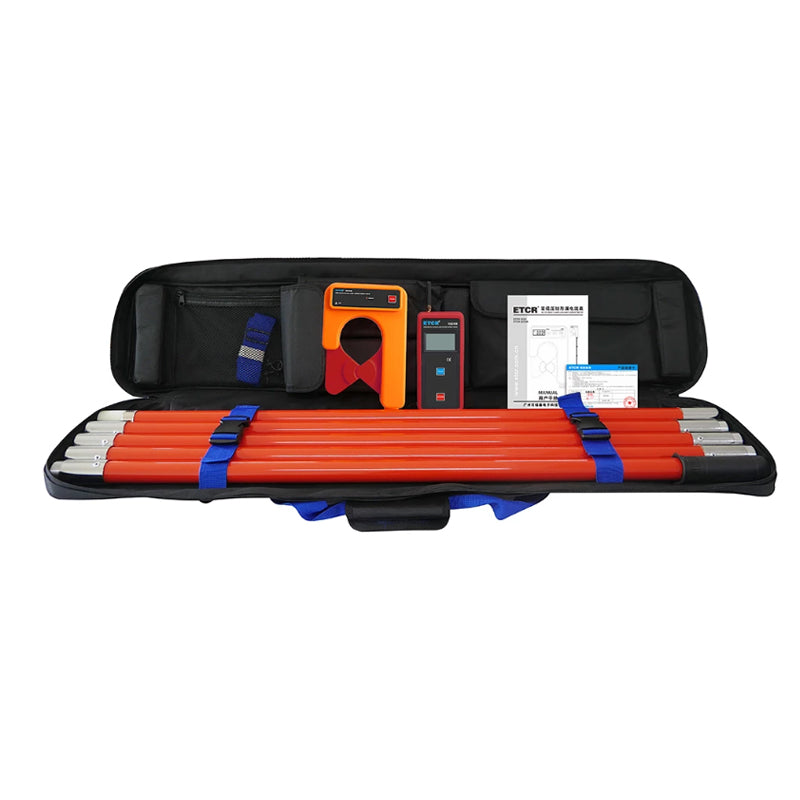

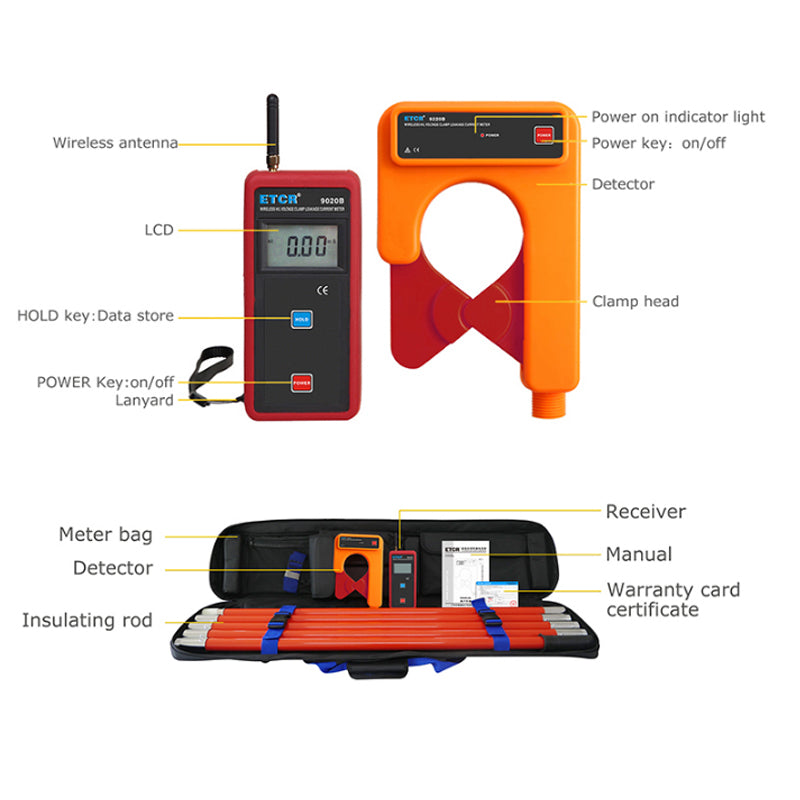

                Accessories

            Meter:1PCS;Receiver:1PCS; Insulation rod(1m):5PCS;Tool bag:1SET
