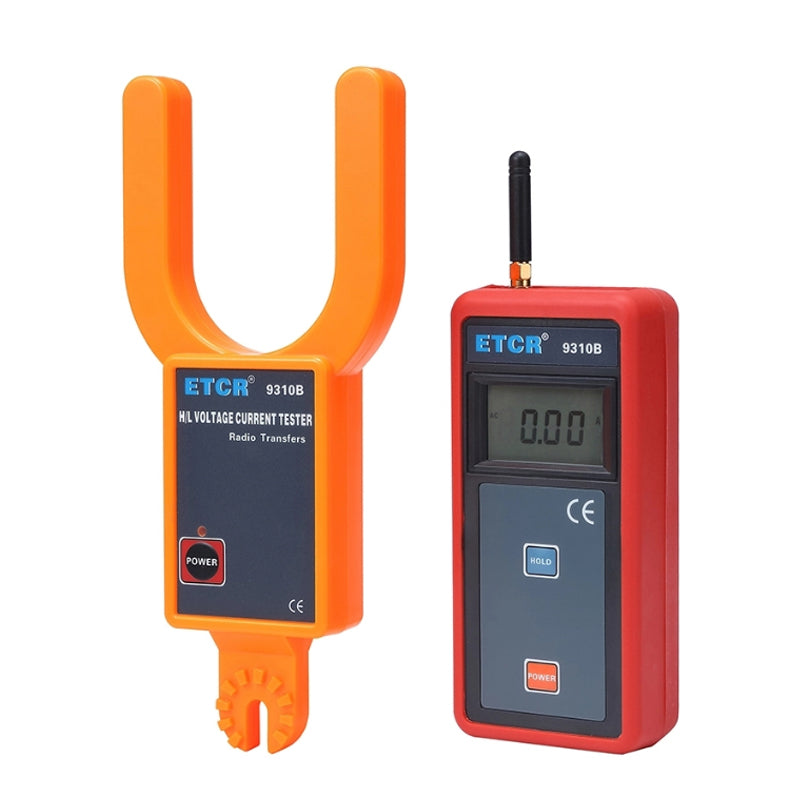

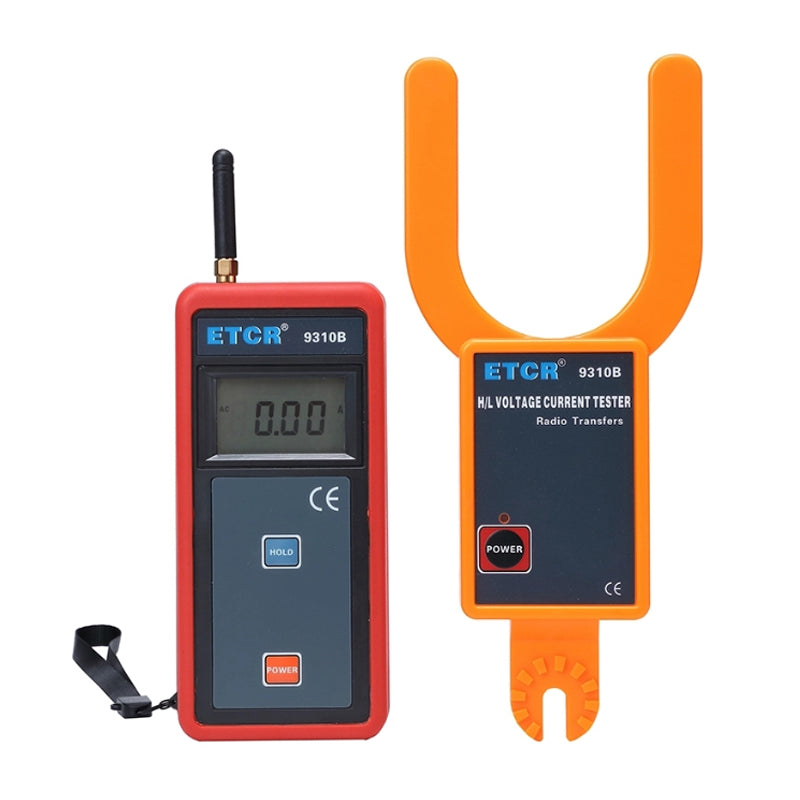

ETCR9310B / ETCR9330B Wireless H//L Voltage Forked Current Meter

Product Function:

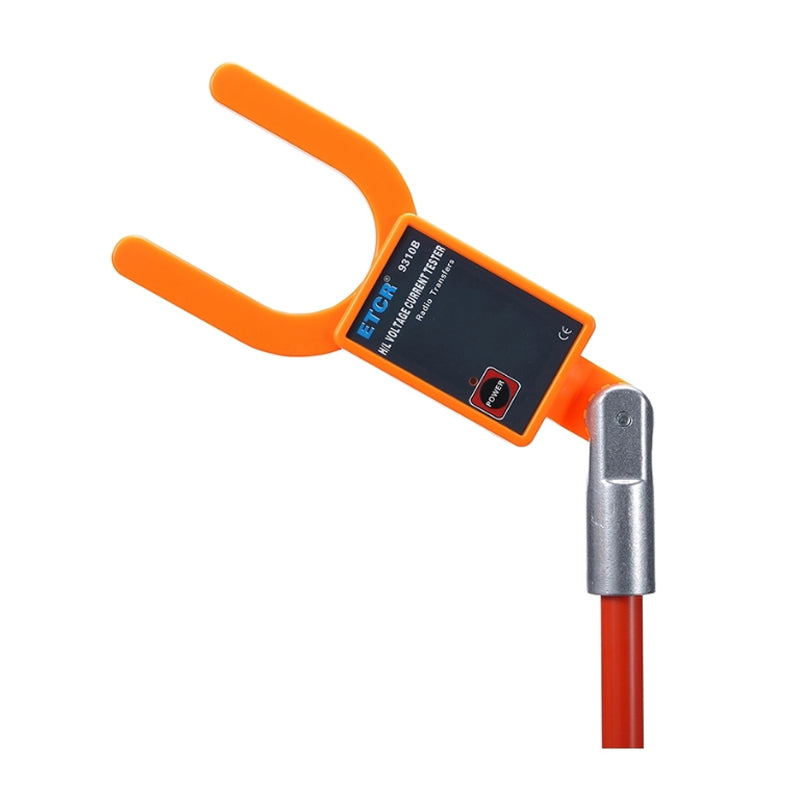

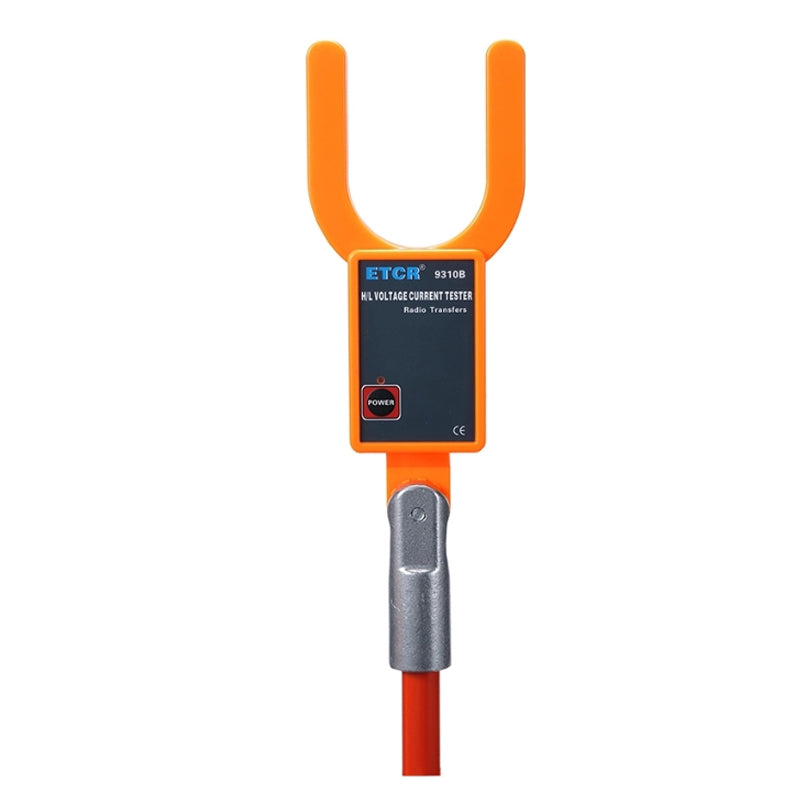

AC current measurement below 500kV (operating with insulating rod above 600V).

Product Features:

1. The unique U-shaped opening structure realizes unobstructed measurement, which is particularly convenient for on-site measurement.

2. Suitable for high current testing, range: 0.00A ~ 9999A

3. Using wireless transmission, the transmission distance is 100m.

4. Data retention function, data storage function.

Specifications:

      Model

   ETCR9310B

   ETCR9330B

                CT Size

            φ68mm

            Φ128mm

                Meter Dimensions

            Detector: 107 mm × 252 mm × 31 mm

Receiver: 78 mm ×165 mm × 42 mm

            Detector: 210 mm × 246 mm × 45 mm;

Receiver:78mm ×165mm ×42mm

                Weight

            about 5.82kg (including insulation rod and accessories)

            about 6.68kg (including insulation rod and accessories)

               Measurement Range

            0.00A~9999A(50/60Hz automatic)

                Resolution

            0.01A

                Shif

            0.00A~9999A automatic shift

                Test Accuracy

            ±2%rdg±5dgt (The wire is near the center of the bottom end of the U-type clamp,23℃ ±2℃ )

                Power Supply

            DC 6V(LRO3x4 alkaline dry batteries)

                Test Mode

            Non-contact U-type CT

                Transmission Mode

            433MHz wireless transmission, transmission distance is about 100 meters

                Display Mode

            4-digit LCD display, backlight function, suitable for measurement in dark place

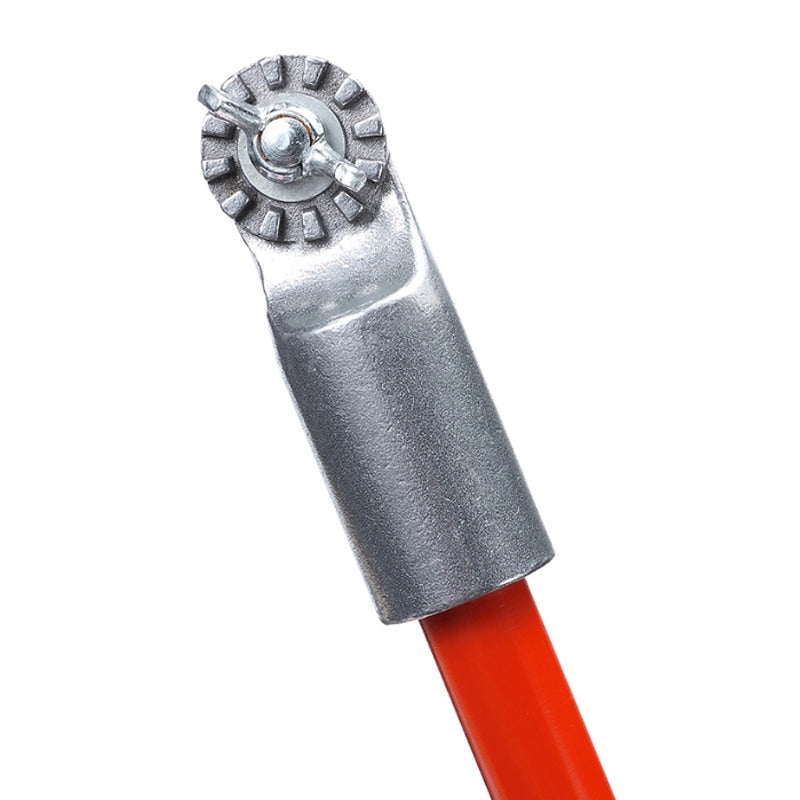

                Insulation Rod Dimension

            Max Diameter:p45mm; Length: Contraction state 850mm; Stretched state 4500mm

                LCD Size

            47mmx28.5mm

                Sampling Rate

            2 time/second

                Position Error

            The measured conductor should be located as close as possible to the center of the bottom end of the U-type clamp.

                Data Storage

            99 groups, in storage process "MEM"symbol display,"FULL"symbol flash display indicate storage is full

                Line Voltage

            Below 110kV current test, operate with insulation rods(below 50OkV can be customized)

                Data Hold

            In usual test mode, press HOLD key to keep data,"HOLD"symbol display

                Data Access

            "MR"symbol display, it can look over all he stored data

                Overflow Display

            Exceed measurement range overflow function:"OL A"symbol display

                No Signal Indication

            When the receiver has not received transmit signal, dynamic display "no-"symbol

                Automatic Shutdown

            15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumption

                Battery Voltage

            When battery voltage is lower than 4.8V+0.2V, low battery voltage symbol""will display and remind to replace battery.

                Working Temperature

            -10'℃～40℃;Below 80%Rh

                Interference

            Should try to avoid 315MHz,433MHz same-frequency signal interference

                Insulation Strength

            AC 220kV/rms(The telescopic insulation rod is full opened between the two ends)

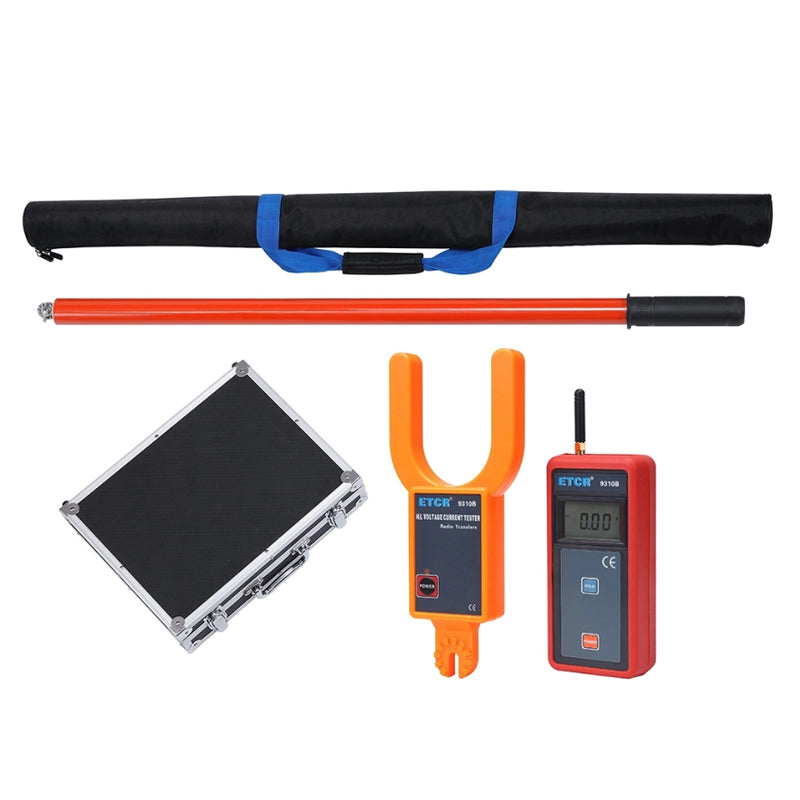

                Accessories

            Clamp meter:1PCS; Receiver: 1PCS; Telescopic insulating rod: 1PCS; Cloth bag: 1PCS

ETCR9310B

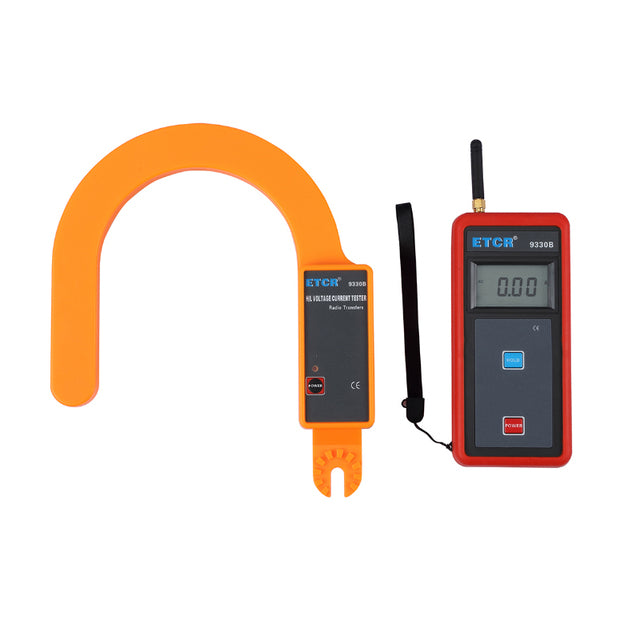

ETCR9330B
