ETCR9500B Wireless High Voltage Current Transformation Ratio Tester

Introduction

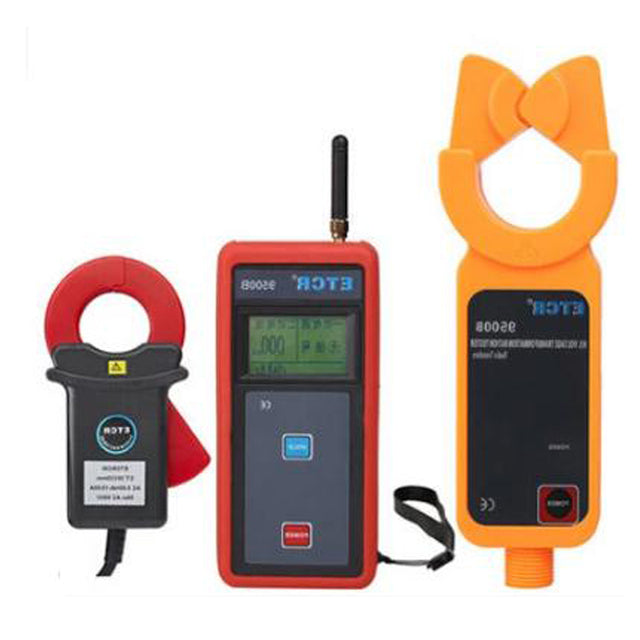

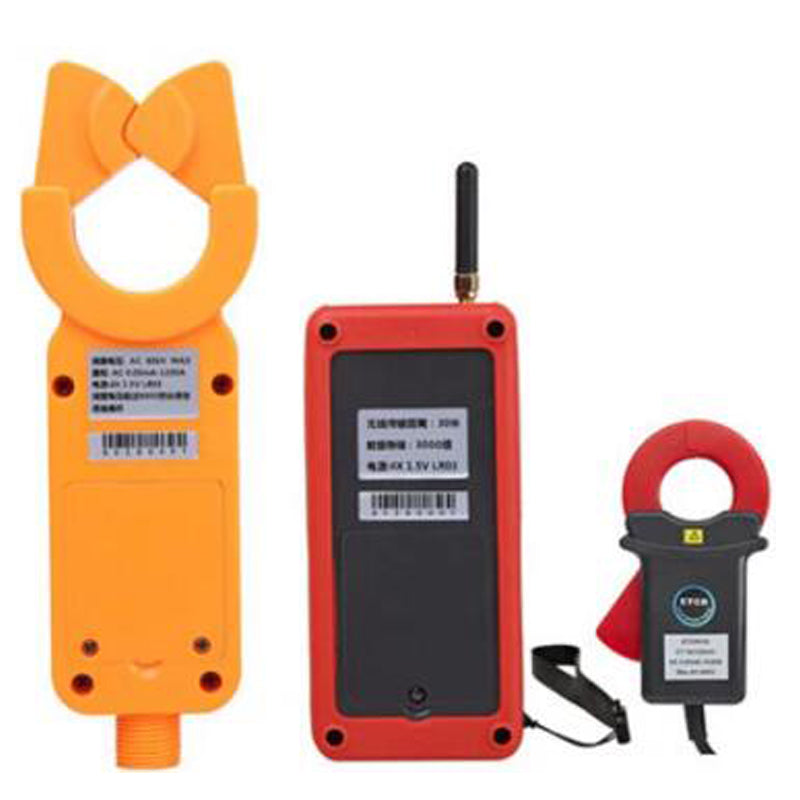

 ETCR9500B Wireless High Voltage Current Transformation Ratio Tester breaks traditional structure, specially designed for high and low voltage first and secondary loop current, variable ratio, phase, polar, ratio difference, angle difference and current leakage test; apply the latest CT technology and mask digital integration technology, composed of special high-voltage clamp, low voltage clamp, host, high voltage insulation rod and monitoring software, etc; its wireless transmission test data can penetrate multiple building obstacles with a straight-line distance of 30 meters.

 Monitoring software has online real-time monitoring and historical query function, with dynamic display, wave direction, variable ratio, frequency indication, with maximum, minimum, mean value indication; alarm setting and alarm indication functions, functions of historical data reading, access, saving, analysis, processing, sorting, fitting curve, report and printing.

 High-voltage detector connected rod can be used in the measurement of high voltage line current, currents on both sides of transformer, variable ratio test, online current monitoring below 60KV; The special clamp ammeter can facilitate clamp to exit the tested lead by pressing or pulling back insulation bar, which is time efficient and convenient; widely used in power plant, substation, industrial and mining enterprise, inspection station, electrician maintenance department for current sensing, power audit and field working.

   Technical Specifications

                     Function

    High and low voltage first and secondary loop current, variable ratio, polarity, phase difference, current leakage online test; current on both sides of transformer, variable ratio online monitoring

                     Power supply

    DC6V alkaline dry battery (1.5V AAA×4), continuous working for 30 hours

                     Test mode

    Clamp CT

                     Transmission mode

    Wireless transmission, the maximum distance of straight line transmission is about 30m

                     Display mode

    LCD: 128dots×64dots; blue backlight function

                     LCD dimension

    Display domain: 44mm×27mm

                     Meter dimension

               Host: width, height, thickness75mm×170mm×30mm

           High voltage clamp: width, height, thickness 76mm×255mm×31mm

           Low voltage clamp: width, height, thickness 63mm×160mm×23mm

                     Clamp dimension

               High voltage clamp: φ48mm

           Low voltage clamp: φ30mm

                     Sampling rate

    About 2 times/second

                     Measurement scope

               High voltage clamp: 0.1mA-1000A

           Low voltage clamp: 0.01mA-10A

                     Resolution

               High voltage clamp: 0.1mA

           Low voltage clamp: 0.01mA

                     Shift

    Automatic shift

                     One loop testing accuracy

           23C±3C, below 80%RH

    0.1mA-10.0A:       ±1%±3dgt

          10.0A-49.9A:        ±1.5%±5dgt

          50.0A-199.9A:      ±2%±5dgt

          200A-600A:         ±3%±5dgt

          601A-1000A:        ±4%±5dgt

                     Secondary loop testing accuracy

    0.01mA-10A:       ±1%±3dgt (23C±3C, below 70%RH)

                     Variable ratio

    3 variable ratio displays: (first and secondary loop real-time current measurement ; calculate the variable ratio at 5A of secondary loop and 10kV-YY of transformer 10kV/380V); the maximum transformation ratio is 1:10 million (1.0K7)

                     Data storage

    3000 sets, press key HOLD to maintain data and automatically numbered storage (data won’t lose in power off or battery replacement)

                     Line voltage

    Below 60KV line test (with 5 insulation rods operation)

                     Data retention

    Press key HOLD key to maintain data, shown by HOLD , and then press HOLDto cancel maintaining.

                     Data access

    Enter data access mode by pressing key HOLD+ key POWER

                     Overflow display

    Over-range overflow function: shown in “OL A”

                     No signal indication

     “No signal” will be shown when the host fails to receive signal

                     Automatic shutdown

    15 minutes after boot, meter automatically shuts down

                     Battery voltage

    When battery voltage is lower than 4.8V, battery voltage is shown in low symbol to remind battery replacement

                     Meter mass

               Host: 240 g (with battery)

           High voltage clamp: 335g (with battery)

           Low voltage clamp: 170g (optional)

           the total mass of meter: 2.5kg (including insulation rod and battery)

                     External disturbance

    No particularly strong electromagnetic field; without 433MHz and 315 MHz interference

                     Working temperature and humidity

    -25C-45C; below 80%Rh

                     Storage temperature and humidity

    -10C-60C; below 70%Rh

                     Insulation rod dimension

    φ32mm, 1m/piece (5pieces,standard configuration)

                     Low voltage current clamp lead

    Standard 2m

                     Insulation strength

               High voltage clamp: AC100kV/rms (between the 5th insulation rod and high voltage current clamp core)

           Host and low voltage clamp: AC1000V/rms

                     Structure

    Anti-drip type II (high voltage detector)

                     Accessories

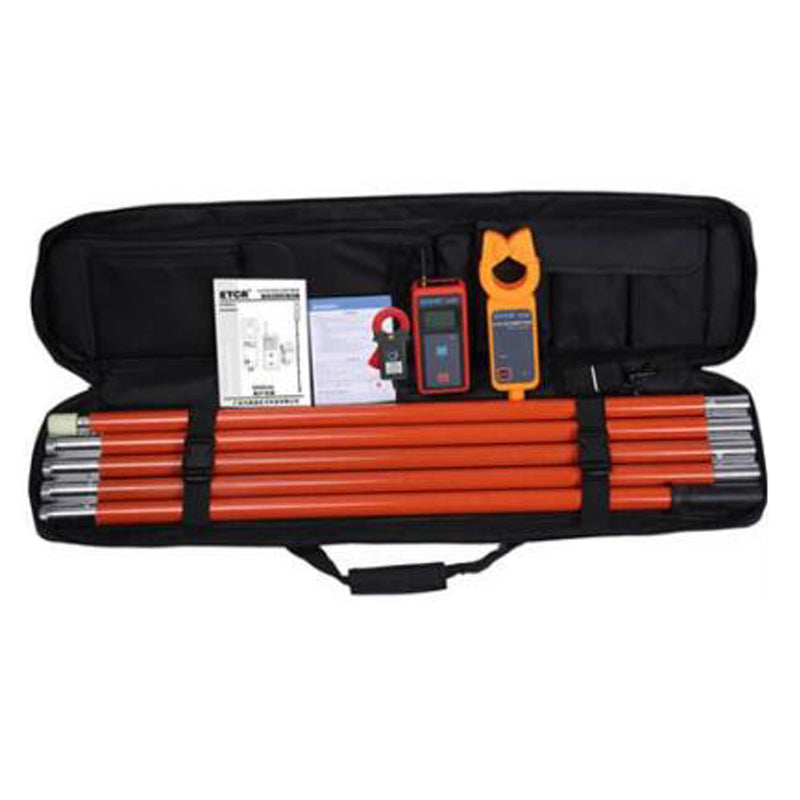

    Clamp: 1 piece; receiver: 1 piece; current clamp: 1 piece; disc: 1 piece; RS232 communication wire: 1 piece; meter box: 1 piece; insulation rod (1m): 5 pieces; battery (alkaline battery AAA not included package): 8 pieces
