Function:

Measurement of primary and secondary circuit current, transformation ratio, angle error, polarity and phase sequence of current

transformers and potential transformers below 35kV.

Features:

1.Current clamp adopts high performance Permalloy core, magnetic shield and CT digital integrated technology, with strong anti-interference ability, high accuracy for testing.

2.The primary high voltage clamp adopts innovative automatic plug and pull structure makes it easy to clamp or withdraw the tested wire by pressing or pulling the insulation rod, saving time and convenient.

3.The primary high voltage clamp adopts wireless transmission mode, transmission distance 100M.

4.The primary flexible current clamp is especially suitable for small space and flat cable dense places, more convenient and fast for testing.

5.Data hold function, data storage function, data upload function

 Specifications:

               Model

            ETCR9550B Wireless High/Low Voltage CT Transformation Ratio Tester

                Primary HV Current Clamp TestAccuracy

            Range:0.0A~ 800A; Resolution: 0.1A; Accuracy: ±0.5%FS(23℃ ±3℃，below70%RH，the conductor should be in the center of the clamp)

                Primary Flexible Current Clamp TestAccuracy

            Range:0.0A~ 3000A; Resolution: 0.1A; Accuracy: ±1.0%FS(23℃ ±3℃，below70%RH，the conductor should be in the center of the clamp)

                Secondary Current Clamp TestAccuracy

            Range: 0.00mA~ 5A; Resolution: 0.01mA; Accuracy: ±0.5%FS

                Transformation Ratio MeasurementRange

            1~ 500

                Angle Error Test Accuracy

            Range: 0~ 360°; Resolution: 1°; Accuracy: ±3°

                Power Supply

            DC6V alkaline batteries (1.5V AAA × 4)

                Host Dimension

            78mmx165mmx42mm

                Primary HV Current Clamp Size

            Jaw Size: Φ48mm ；Shape Size: 84mm×255mm×39mm

                Primary Flexble Curent Clamp Size

            Jaw Size: Φ200mm ；Shape Size: 200mm×245mm×13mm

                Secondany LV Current Clamp Size

            Jaw Size: Φ8mm ；Shape Size: 137mm×40mm×19.5mm

                Insulation Rod Dimension

            Ф32mm, 1m/pcs×5pcs

                Insulation Rod Withstand Vottage

            110KV

                Weight

            Total Weight: 5.5kg (include insulation rod and battery)

                Sampling Rate

            2 times/second

                Primary Current ClampTransmission Distance

            Wireless transmission distance 100m

                Current Clamp Connection CableLength

            2M

                Data Storage

            3000 groups, Press the left arrow key to keep the data and store automatically (Power down or replace the battery will not lose data)

                Data Hold

            Press the left arrow key to hold data, “HOLD” symbol display, press “HOLD” key once again cancel the hold function

                Data Access

            Press the right arrow key enter into data access mode

                Data Upload

            With USB interface, communication cable and software, storage data can be uploaded to computer for reading,saving, printing and so on.

                Overflow Display

            Exceed measure range overflow function:"OL"symbl display

                No Signal Indication

            When the receiver has not received transmit signal, dynamic display "no-symbol.

                Automatic Shut Down

            15 minutes after boot up,the meter shuts down automatically without any operation

                External Interference

            Should avoid extremely strong electromagnetic fields, avoid 315MHz, 433MHz same-frequency signal interference

                Working Temperature

            -15℃～50℃;Below 70%Rh

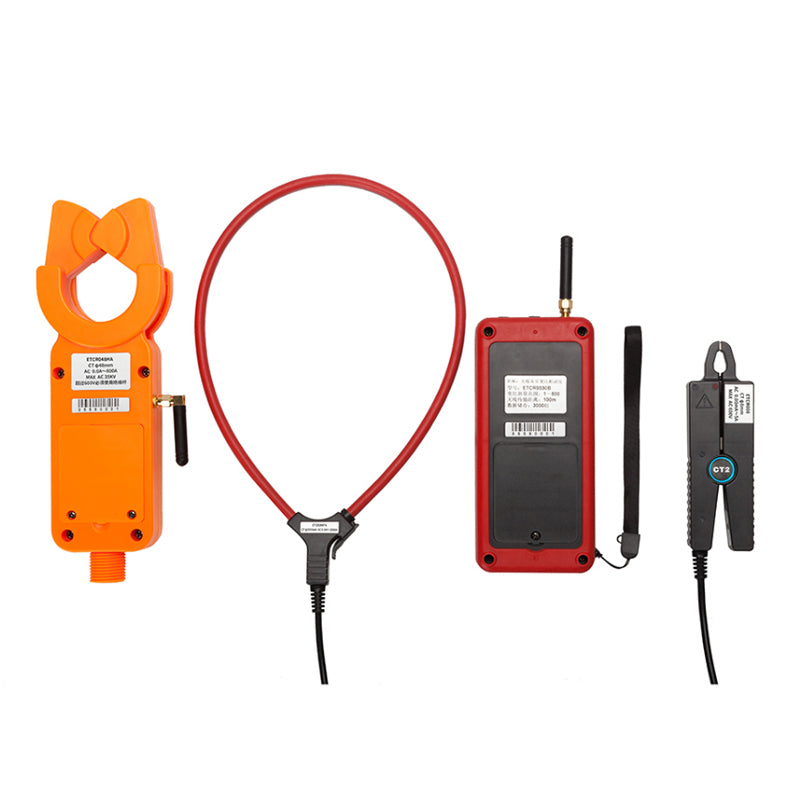

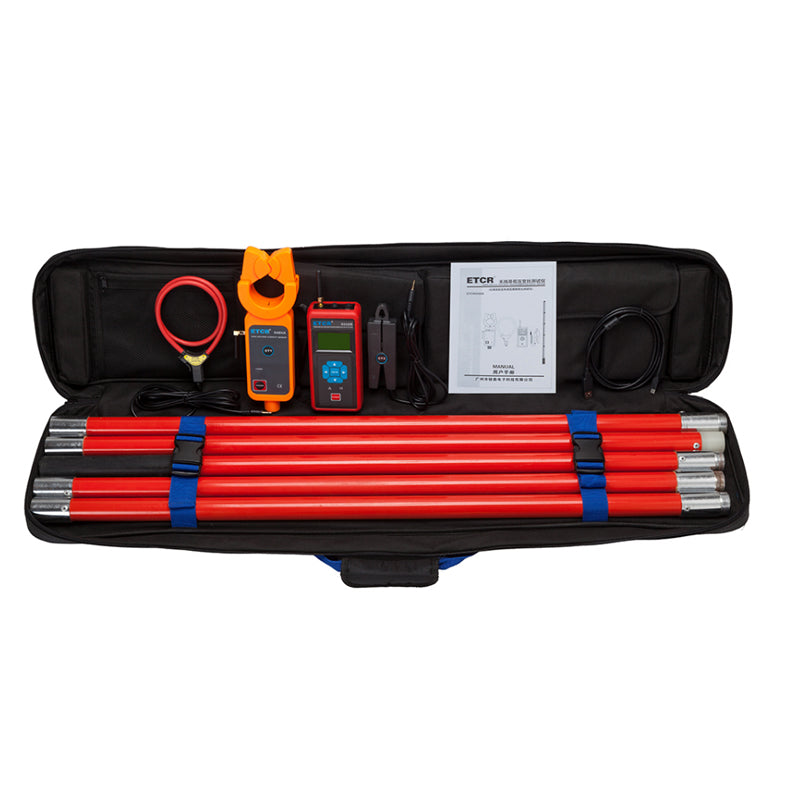

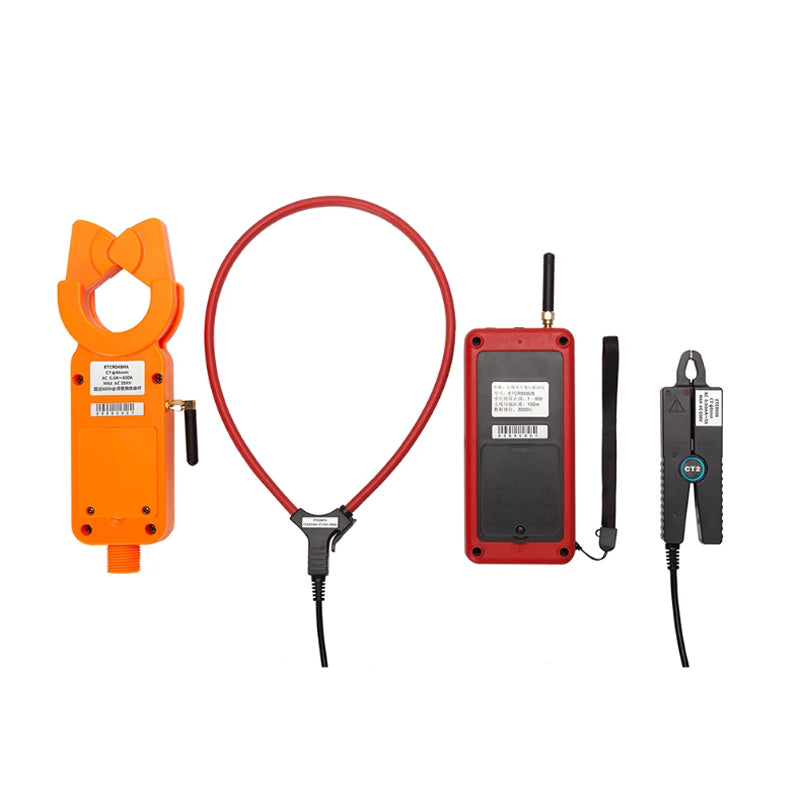

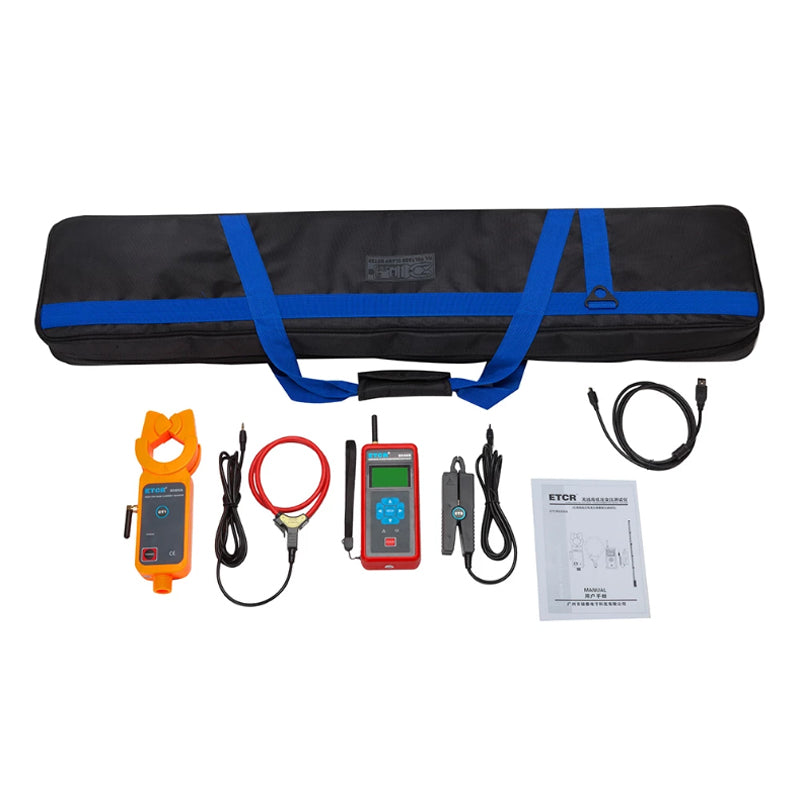

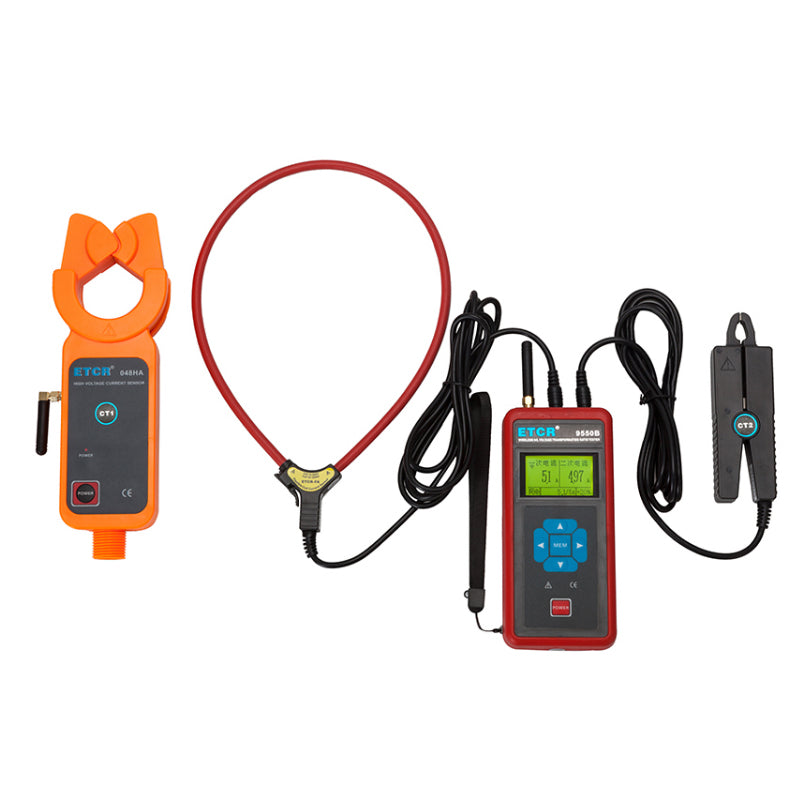

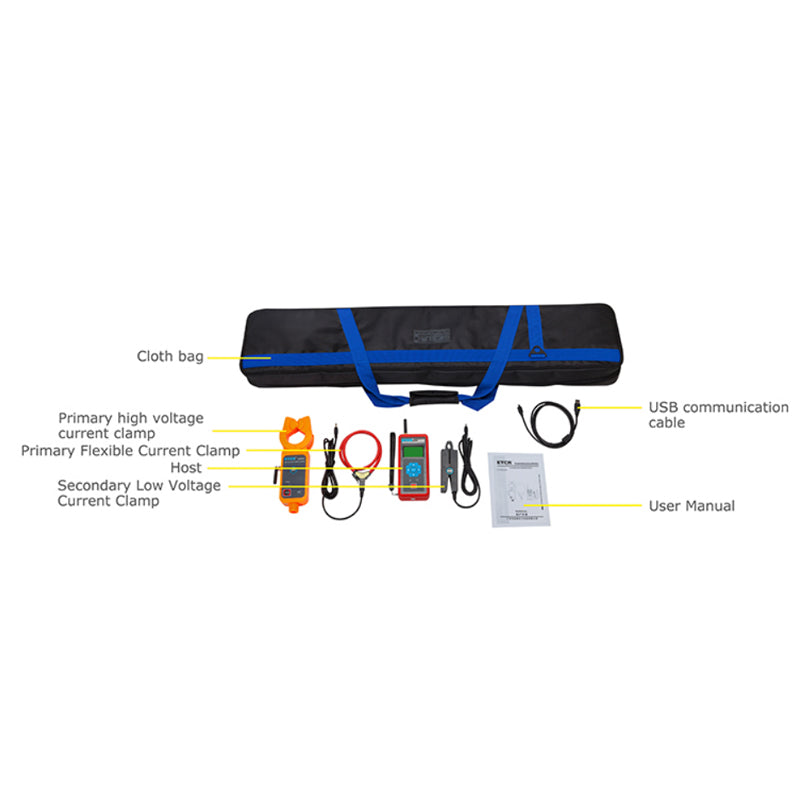

                Accessories

            Host: 1PCS; Primary HV current camp: 1PCS; Primary flexble current clamp: 1PCS; Secondary crrent camp: 1PCS; USBspecial communication cable: 1PCS; Insulation rod(1m): 5PCS; Tool bag 1PCS
