Specification:

  ESC and Motor was soldered with 3.5mm Female banana connectors, effectively avoid welding problems

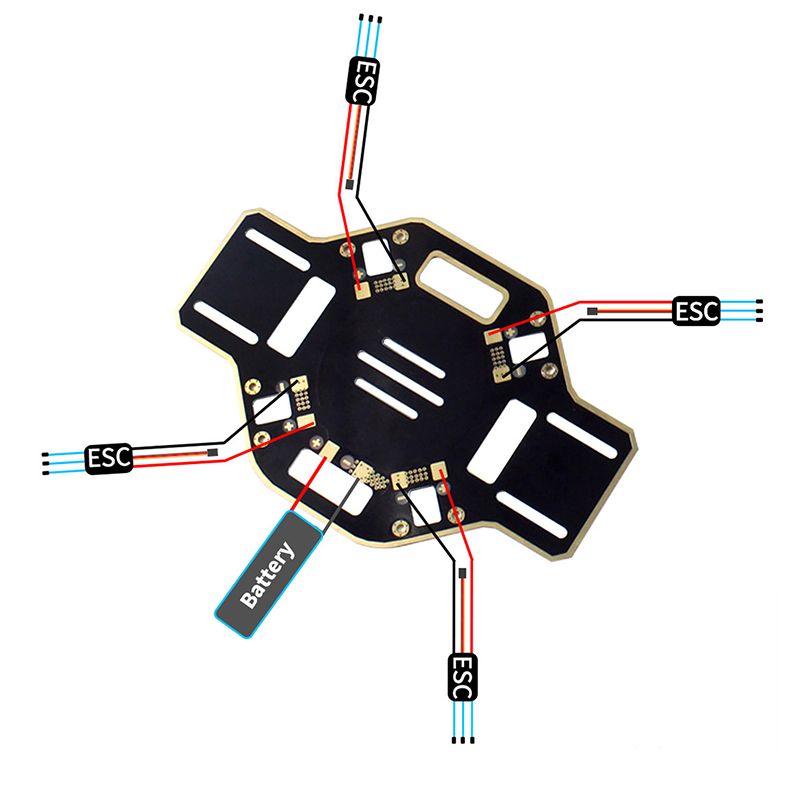

  Integrated PCB connections for direct soldering of your ESCs. Make your esc,power supply and other wiring more quickly and safely.

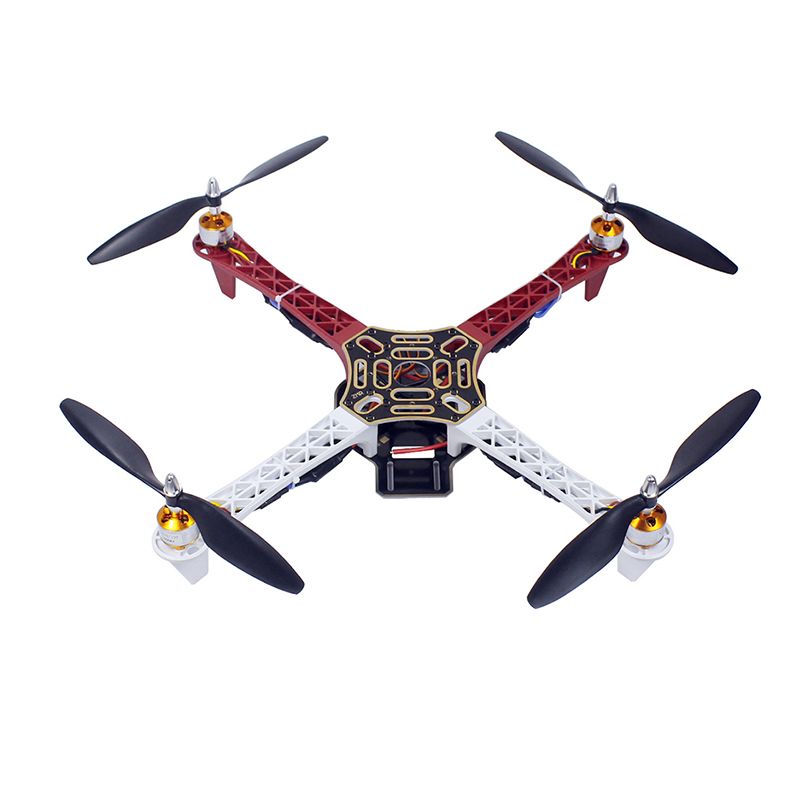

  High quality and strong ability of anti-fall, lower maintenance cost. This F450 airframe are built by advanced engineering material of glass fiber and polyamide nylon, very strong materials which provides better resistance to damage on hard landings.

  Colored arms for orientation to keep you flying in the right direction, and large mounting tabs on main frame bottom plate for easy camera mounting; Excellent quad-copter products using optimized design to provide adequate installation space for the flight control systems and accessories.

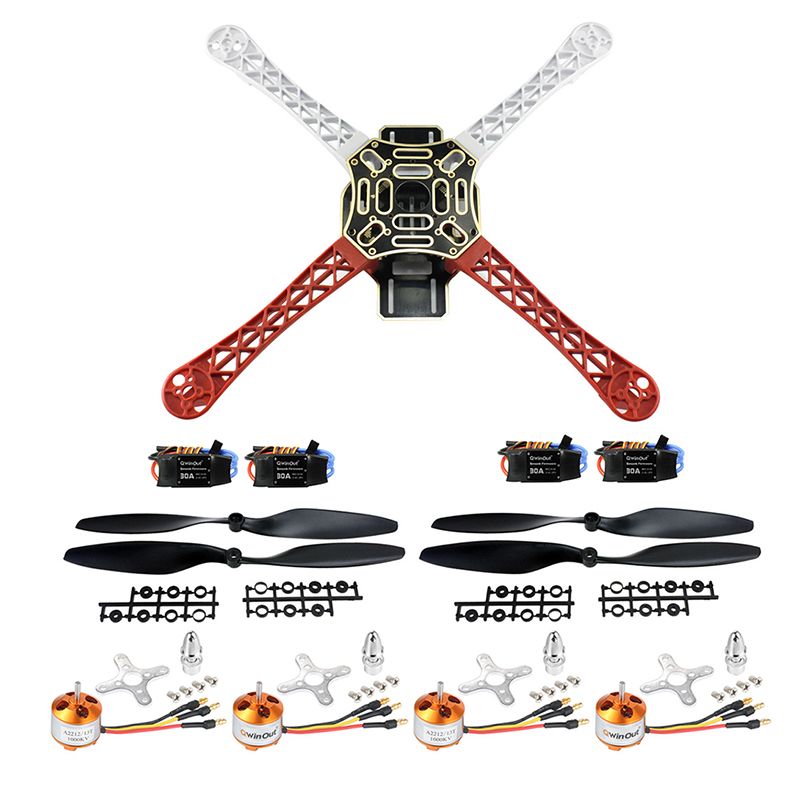

  Pre-threaded brass sleeves for all of the frame bolts. Compact design with small numbers of components, you can assemble it by youself quickly and easily, suitable for both beginners and senior players. It can achieve hovering, cruising, even rolling and other flight

  Frame:

  Width: 450mm

  Height: 55mm

  Weight: 280g (w/out electronics)

  Motor Mount Bolt Holes: 16/19mm

  G.Weight: 395g

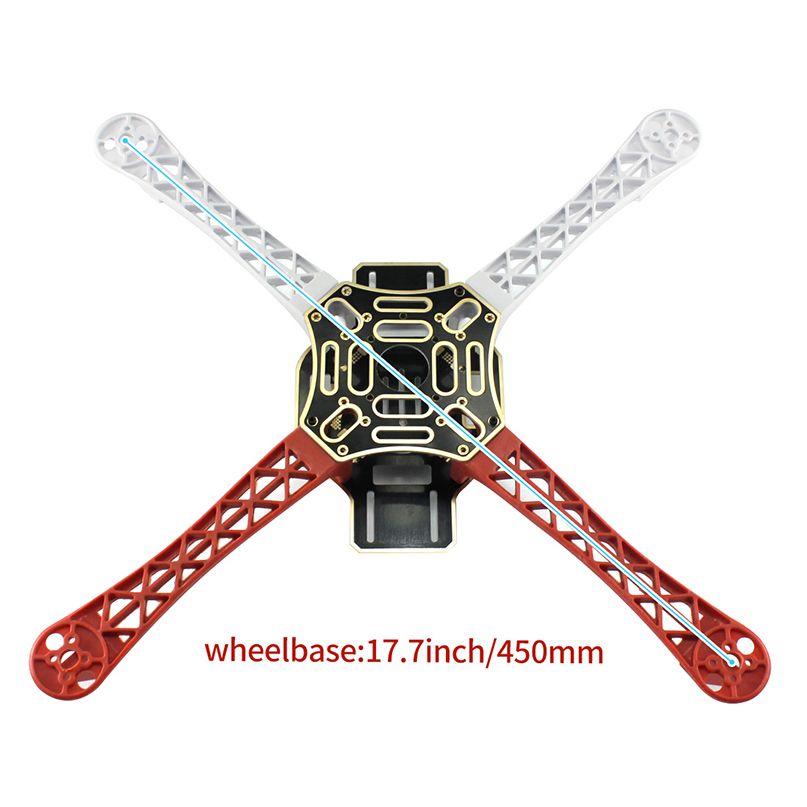

  Wheelbase: 17.7in/450mm

  Net weight: 272g

  100% Brand new

  Made by advanced engineering material, superstrong & smooth Kit

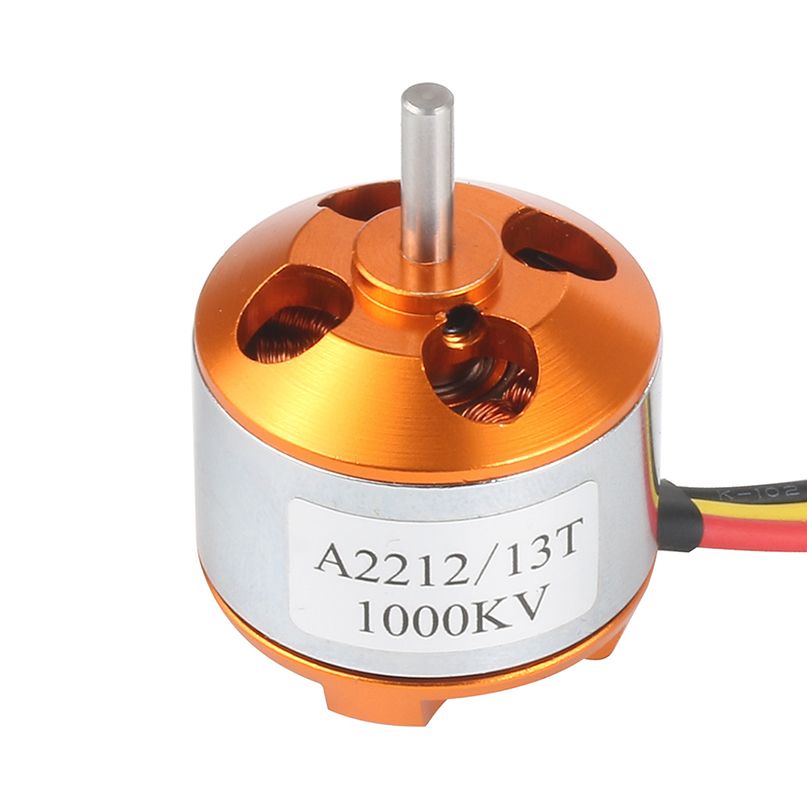

  A2212 1000KV Brushless Motor

  KV: 1000

  Max Efficiency: 80%

  Max Efficiency Current: 4-10A (>75%)

  Current Capacity: 12A/60s

  No Load Current 10V: 0.5A

  No. Of Cells: 2-3 Li-Poly

  Motor Dimensions: ?27.5 x 30mm

  Shaft Diameter: ?3.17mm

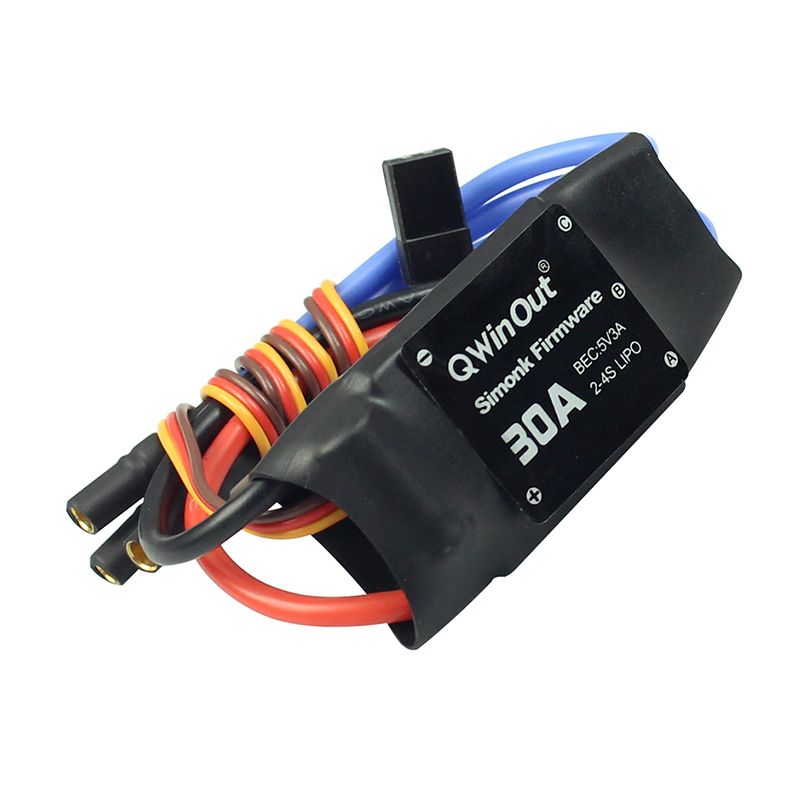

  2-4S 30A Brushless ESC

  NOTE: We have set up the program, the ESC do not need additional program.

  Working current: 30A

  Output: Continuous 25A, Burst 40A up to 10 Secs

  Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery BEC: 5V 3A

  Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)

  Features

  1.Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.

  2.Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.

  3. Programmable Items: Brake Setting: brake enabled / brake disabled. Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd). Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power. Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high. Start Mode: normal / soft / very soft. Timing: low / medium / high. Reset: reset all the programmable items to their default settings.

  4. Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.
