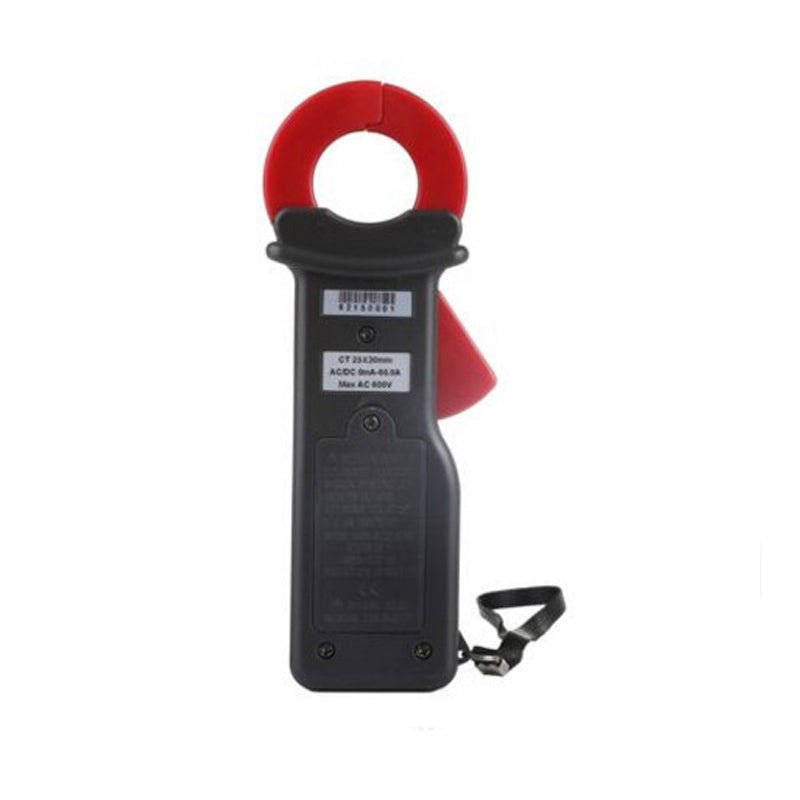

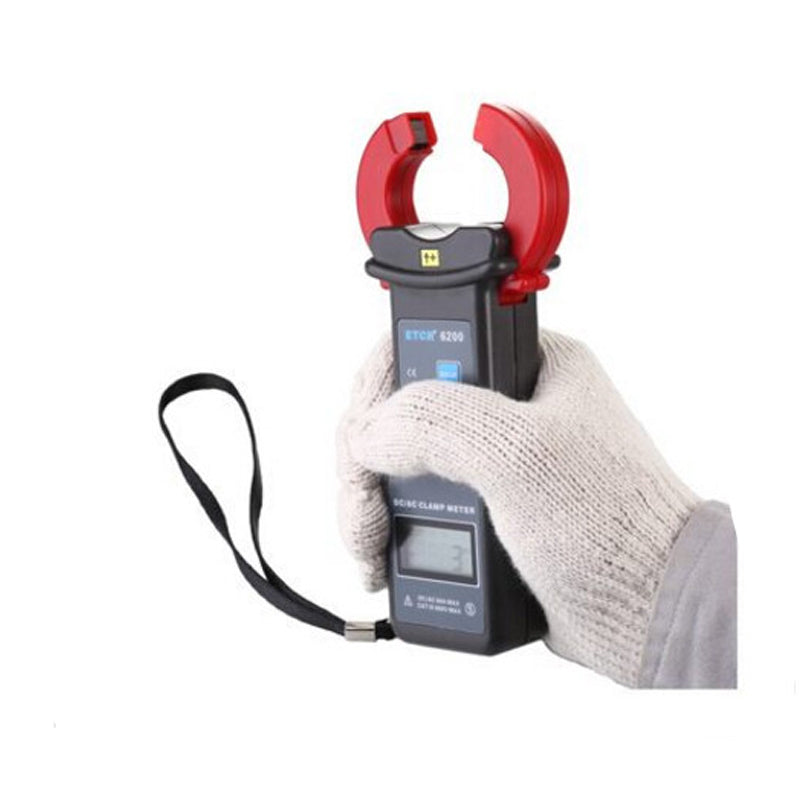

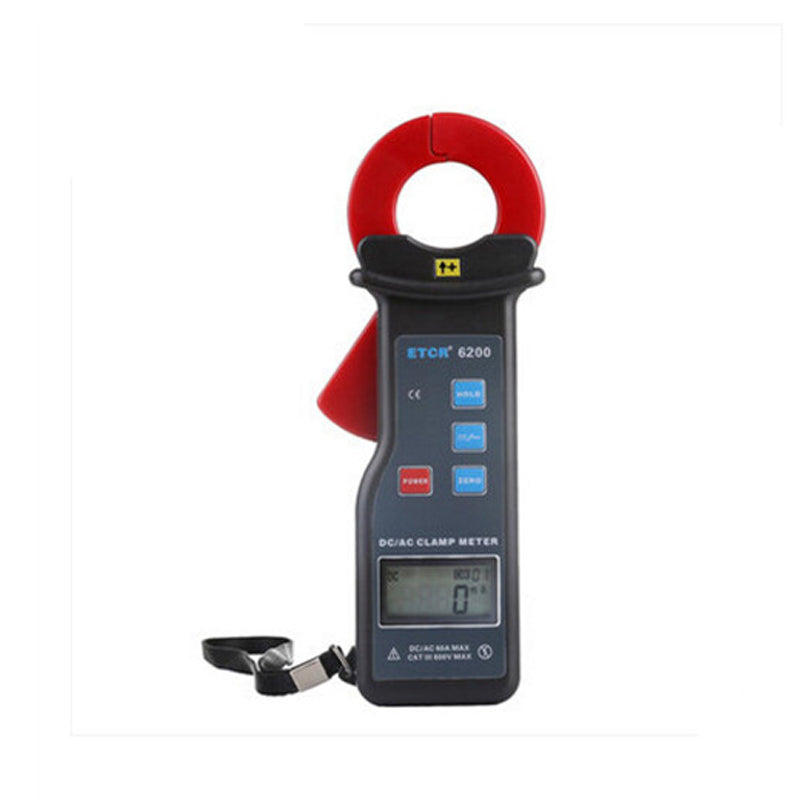

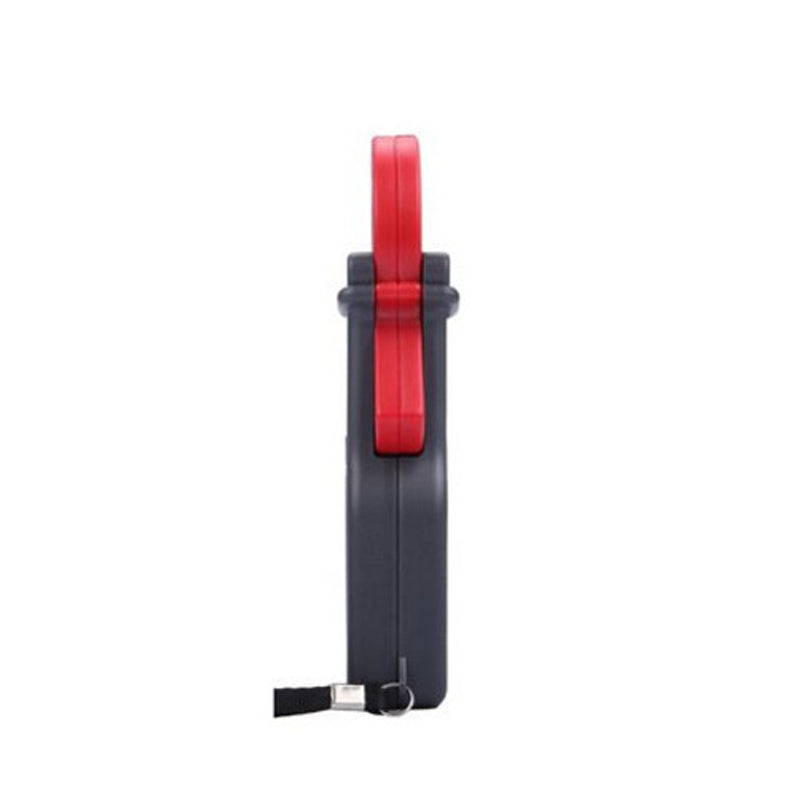

Factory Price ETCR6200 AC/DC Leakage Current Clamp Meter

   1.Measurement of DC leakage current, AC leakage current

  2.Especially suitable for repairing the car circuit

  3.Current range: DC/AC 0mA~60A

  4.Current resolution: 1mA

  5.Size of clamp: 25X35mm

  6.With RS232 interface

  7.Data storage: 99 sets

  ETCR6200 AC/DC Leakage Current Clamp Meter also named: Car Leakage Current Clamp Meter, Car Standby Current Clamp Meter, Car Inrush Current Tester, Car Charge Current Tester. It is specially designed for online measurement of DC, AC leakage current, current below 600V by adopting up-to-date CT technology and digital integration technology. It is specially suitable for measure car standby current, leakage current, inrush current. It is a product with the characteristic of relatively small size, high accuracy, strong anti-interference capability and automatic shifting. It is apply to car leakage rapid detection, consumed current detection, quickly find the fault of the wire broke leakage, equipment fled electric, line contact with iron, measuring the motor in-rush current and alternator charge current etc. It could be widely use in those fields as car repair, car leave factory test, car parts test, the cur-rent detection in telecommunication room, electric power overhauling, meteorology, oil detection, etc.

  It has those functions as peak hold-ing, data holding and data storage. It obtains one RS232 interface, communication cable and software, through the computer, it can online real-time monitoring, historical query, dynamic display, MIN-AVG-MAX indication, alarm setting and indicating, data reading, saving and printing.

  Technical Specifications

              Model

     ETCR6200

             Function

     Measurement of AC/DC current, leakage current, repairing the car circuit.

             Power Supply

     Zn-Mn dry battery,6F22,9V, continuous use for 30h

             Test Mode

     Clip-on CT, noncontact measurement

             Clamp Size

     25mmX35mm

             Measurement Range

     0mA~60.0A AC/DC

             Resolution

     1mA AC/DC

             Accuracy

     ±2%rdg±5dgt (23°C±5°C, below 75%rh)

             Display Mode

     Four digits LCD display

             Dimension

     LWH: 168mm×65mm×34mm

             LCD Dimension

     35mm×21.5mm; display domain: 32mm×15mm

             Sampling Rate

     2 times/s

             Frequency

     AC: 45Hz-400Hz

             Polarity Indication

     DC current auto identified and display“—”

             Test Position

     Tested wire in the jaw center

             Range Shift

     Automatically

             Line Voltage

     Do not exceed AC 600V

             RS232 Interface

     Data stored in the memory of the meter via RS232 upload to PC

             Com-Configure

     Baud rate:9600, data bit:8, stop bit:1, check bit: NONE

             Data Memory

     99units, FULL blinks when the memory is full

             Reading Hold

     DH indicating the reading is hold

             Out of Range

     OL indicating the current is out of range

             Auto Power-off

     5 Minutes after power on, it will power off automatically to lower the power consumption

             Battery Voltage

     Indicating the battery voltage is lower than 7.2V.Then the battery have to be changed.

             Weight

     180g(including the battery)

             Working Current

     10 mA

             Humiture

     -10°C-50°C,below 80%rh

             Limit Temperature Error

     -10°C-0°C and 40°C-50°C, within 2%rdg

             Humiture Storage

     -10°C-60°C,below 70%rh

             Insulating Strength

     AC 3700V/rms. (between the alloy of the clamp and the housing)

             Applicable safety rules

     IEC1010-1, IEC1010-2-032, pollution:2, CAT III(600V)

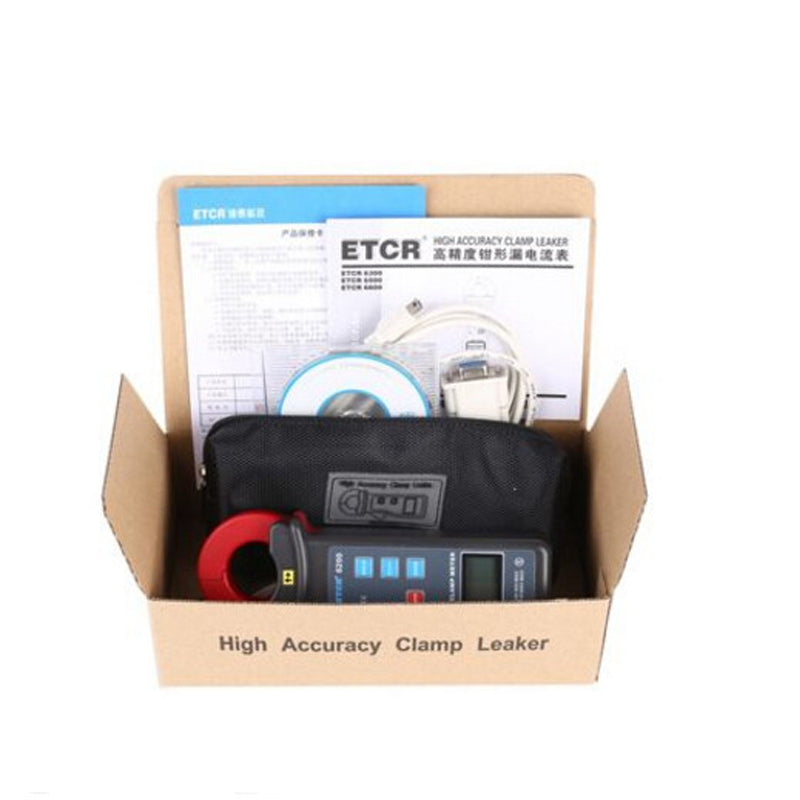

             Accessories

     Meter:1pc;toolkit:1pc;RS232 communication line;disk:1pc;case:1pc

     The batteries not included package
