Function:

1. Support polymer li-ion battery, NI-MH battery, Ni Cd battery, power, adapter

2. Supply for charging, discharging, battery testing, power/adapter testing, internal resistance testing, and voltage testing, capacity testing.

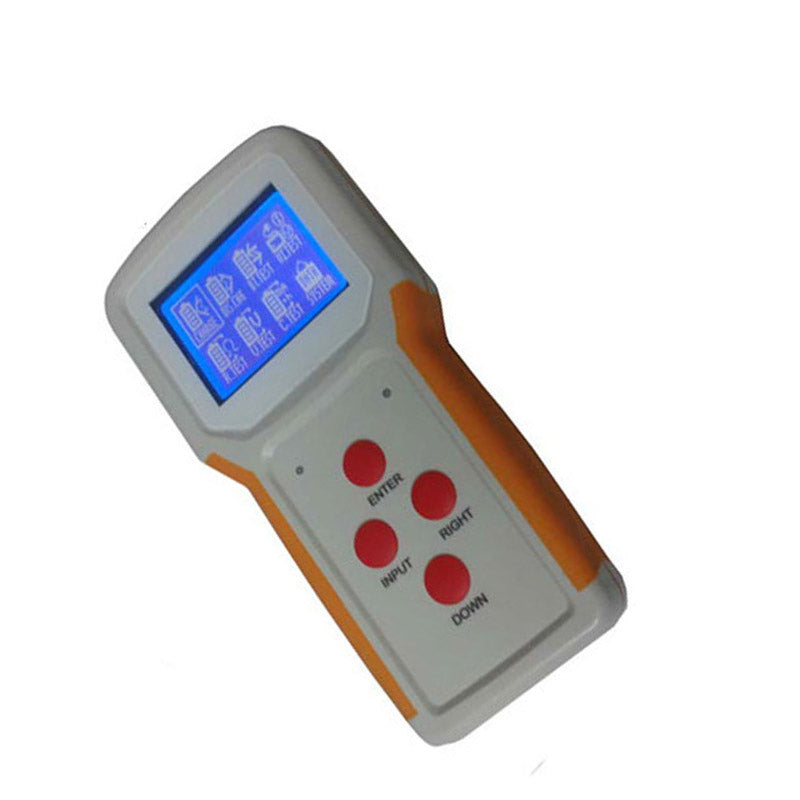

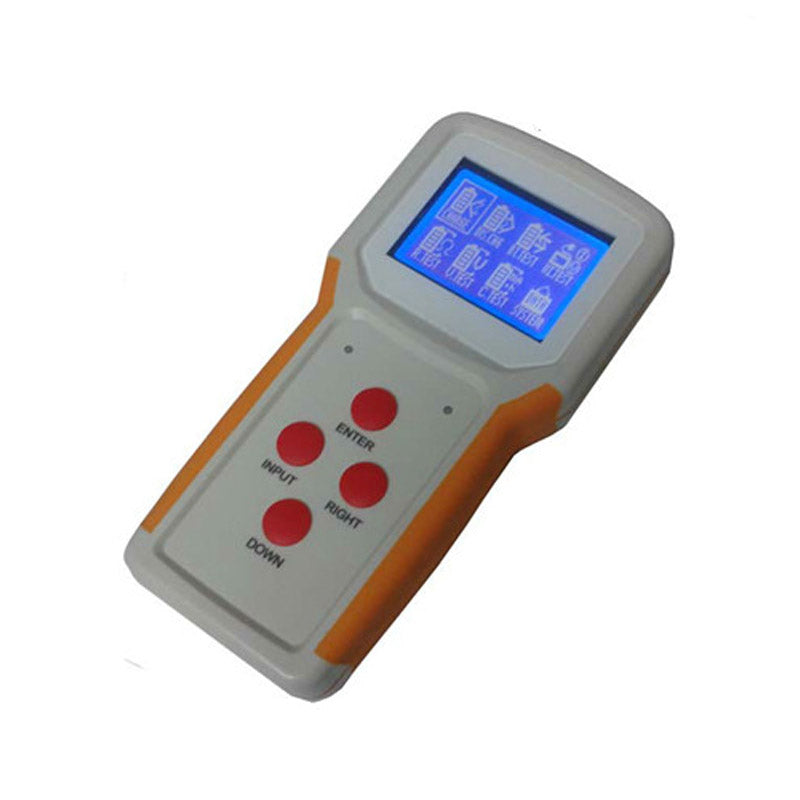

3. LCD screen display function information.

4. Enter, Down, Right, Adjust function keys.

5. Charging consists of activate, pre-charge, constant current charge, constant voltage charge, end of charge.

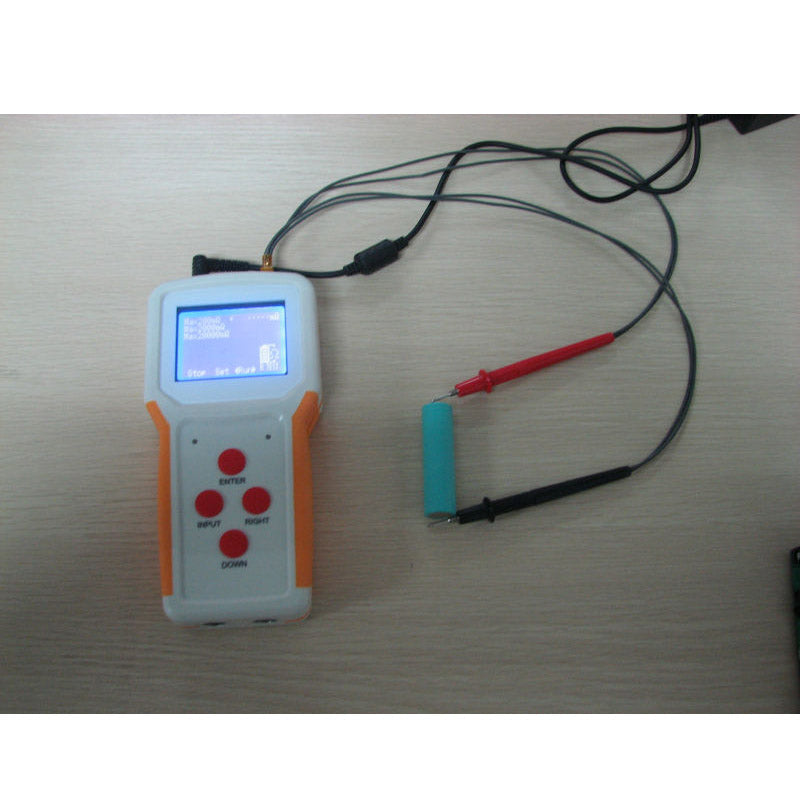

6. Discharging can adjust to constant current discharge, system support 1000mA Max, can set by DIS.CHG. External load, Max discharge current add to 4A

7. Internal resistance testing support 20000mΩ Max. Voltage testing support DC 50V Max.

8. Capacity testing support real time charge capacity and discharge capacity.

9. Warranty: One Year

Features:

 Size:201 x 99 x 35 mm

 Weight:383g

 Adapter Input 100~240V

 Output 24V/3A

 Display mode;

 Segment LCD with white backlight + LED in red and green

 Discharge mode

 Constant current discharge, system support 1000mA Max, can set by

 DIS.CHG.

 External load, Max discharge current add to 4A

 Charge mode

 Constant current and constant voltages are the main mode. Active charge and pre-charge are available according to different battery voltage.

 Active charge

 Tester may not recognize 0V-battery. Users should press the charge key to start up the active charge function. Being activated and going to normal charging status, when the battery establishes communication with the tester.

 Pre-charge

 Battery goes into pre-charge status when voltage of battery under setting pre-charge voltage.

 Constant current charge

 Battery goes into fast charge status when voltage of battery over setting pre-charge voltage. Fast charge time relates to the battery design capacity and fast charge current.

 Constant voltage charge

 Battery goes into constant voltage charge, when battery voltage up to battery saturation voltage, now current will be decreasing by battery saturation voltage

 End of charge: When the current reduced to terminate current, Or e capacity reaches 100%

 Charge current

 3000mA Max, set by CHARGE function

 Battery testing

 Testing battery charge and discharge function is good or bad,test time set by user, according to user demand, can set by BT.TEST item. Test passed will display “OK” otherwise display “NG”

 Standby power consumption ≤1W

 Working temperature

 0-40°C,20%-90% RH(Non Condensing)

 Storage temperature

 -20°C-65°C,10%-95% RH(Non Condensing)

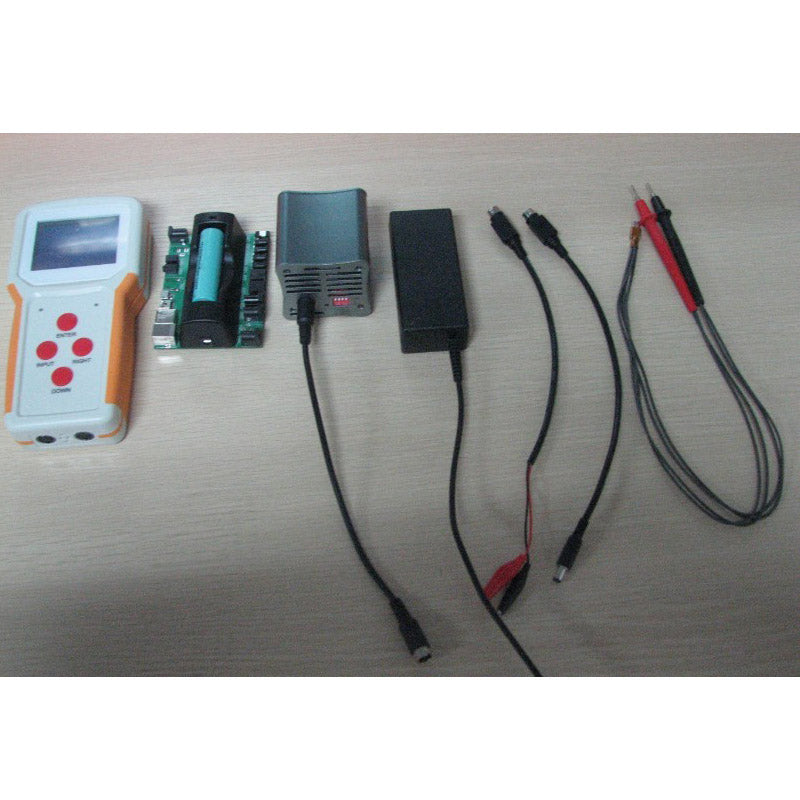

 Accessories:

 1 x loader

 1 x adapter

 1 x battery holder

 1 x connecting wire of battery holder

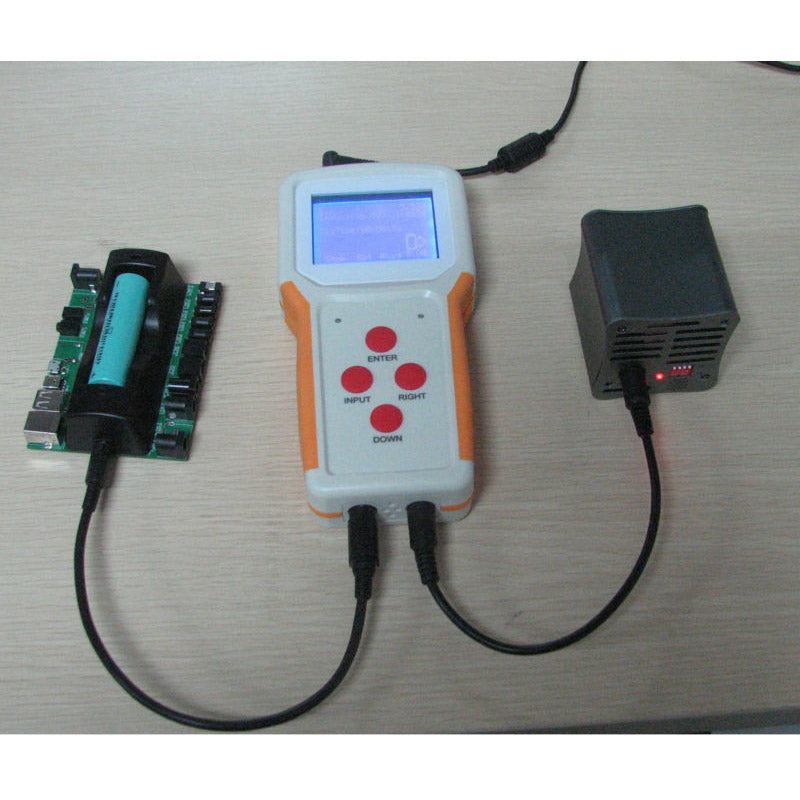

 1 x resistance testing wire

 1 x load connecting wire

 1 x  DC wire

 2 x Universal connecting wire

 1 x power wire
