Note：

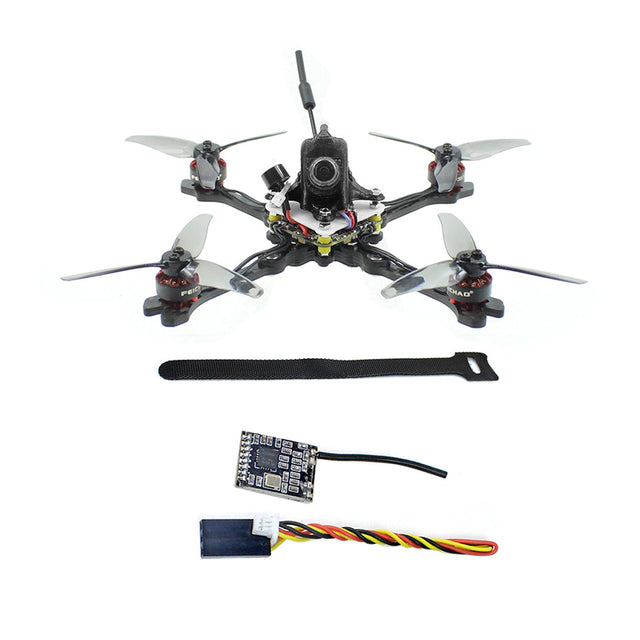

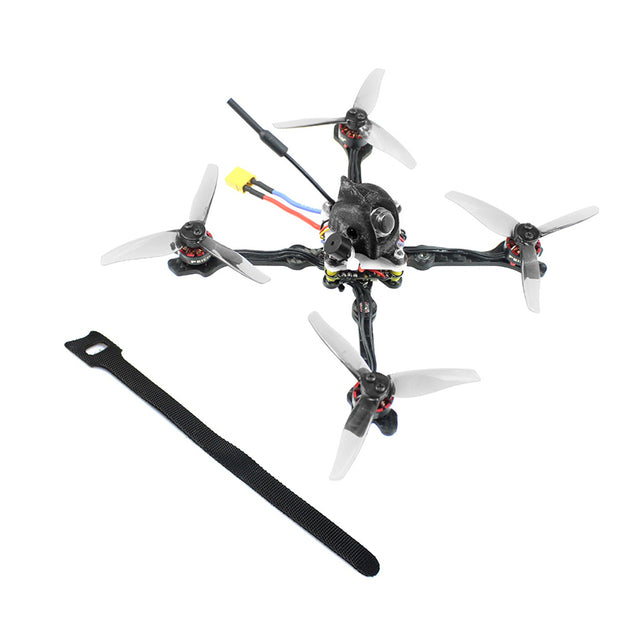

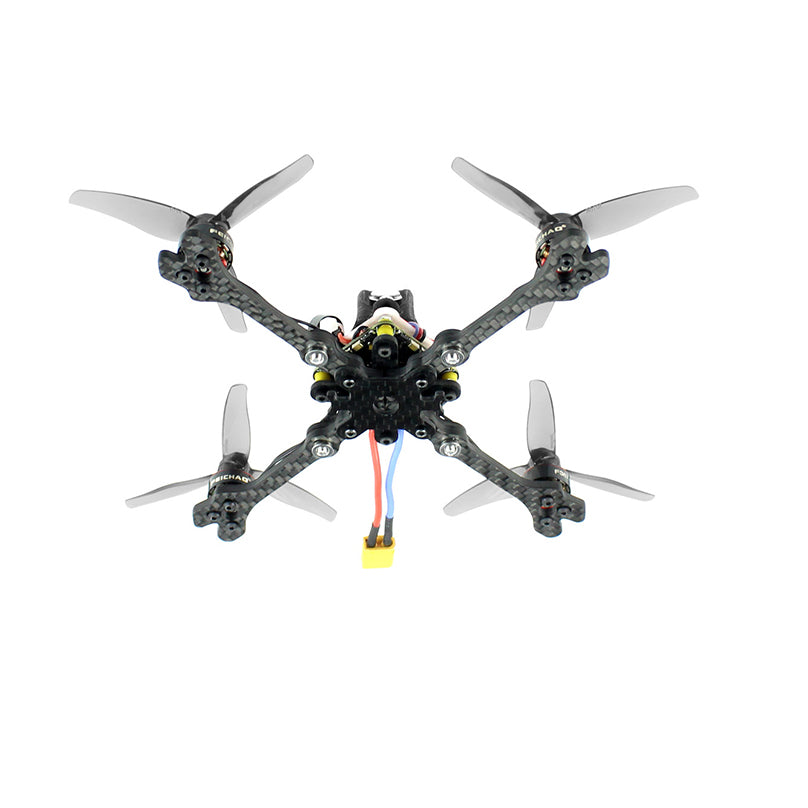

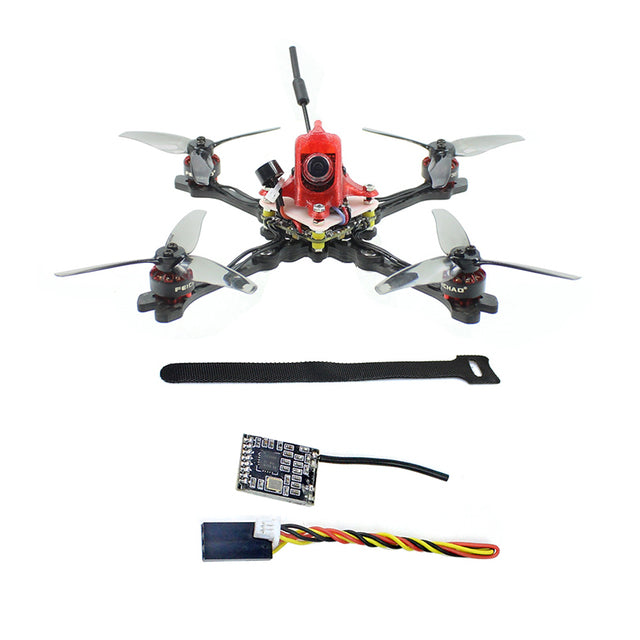

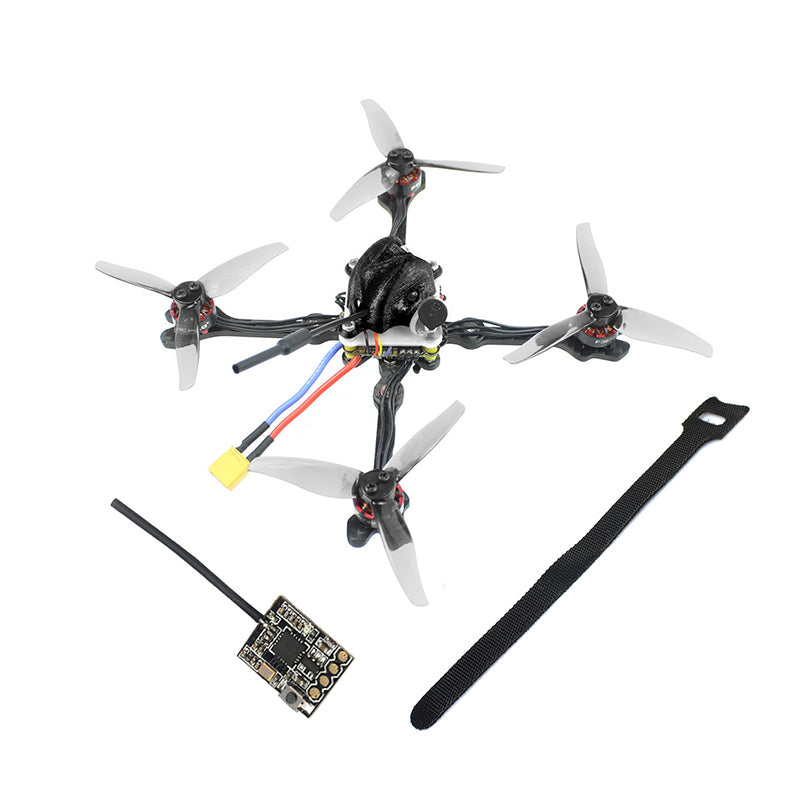

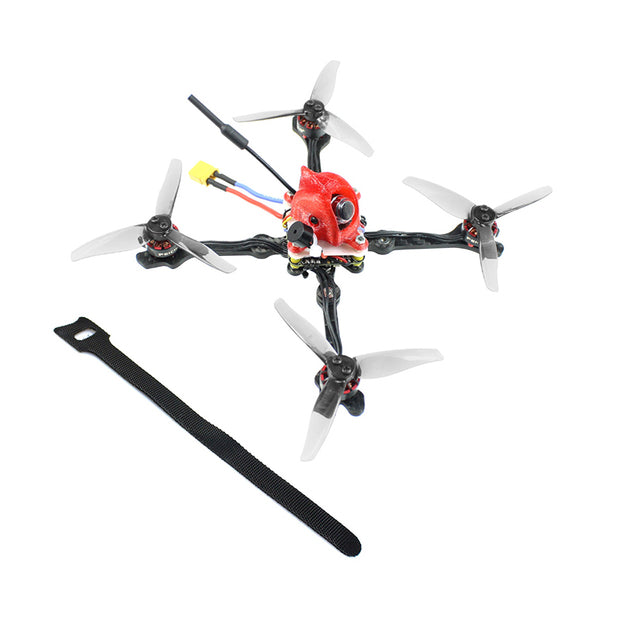

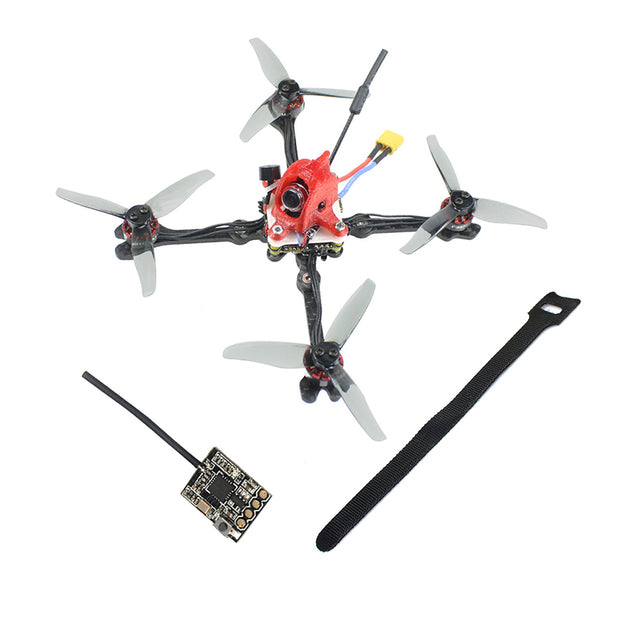

There are red and black color , pls see the corresponding picture and choose the version you need.
Package incuded:
1x Keel135 135mm carbon fiber Frame
1x screw accessory kit
1x Black or Red camera mount (Optional)
2 Pairs 3016 Three holes 1.5mm Props
4x MT1204 5000kv Motors
1x F411 20A AIO 2S-5S BLHELI_ S ESC
1x FE200T VTX
1x 1200 TVL FPV Camera
1x Buzzer
1x Cable organizer

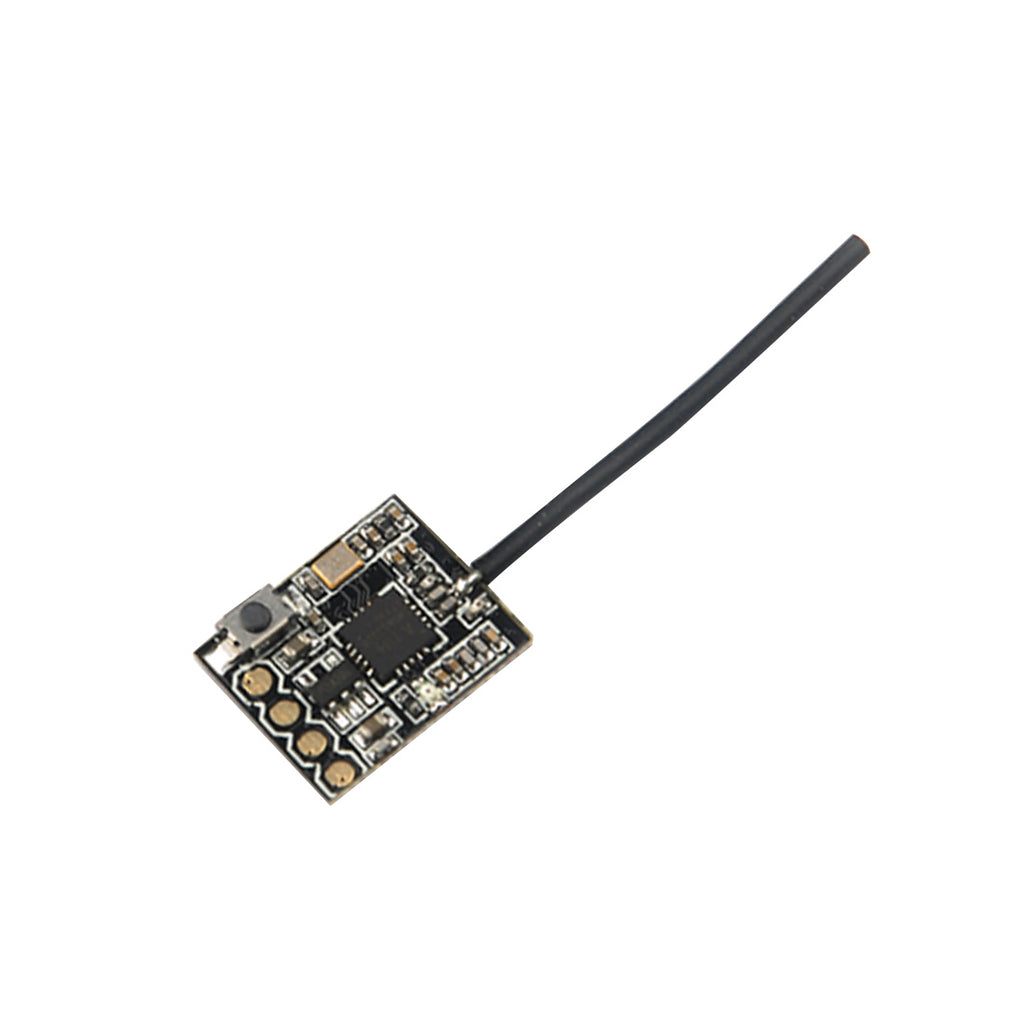

1x FS-RX2A Pro or FD800 receiver (Optional)
Functions and features

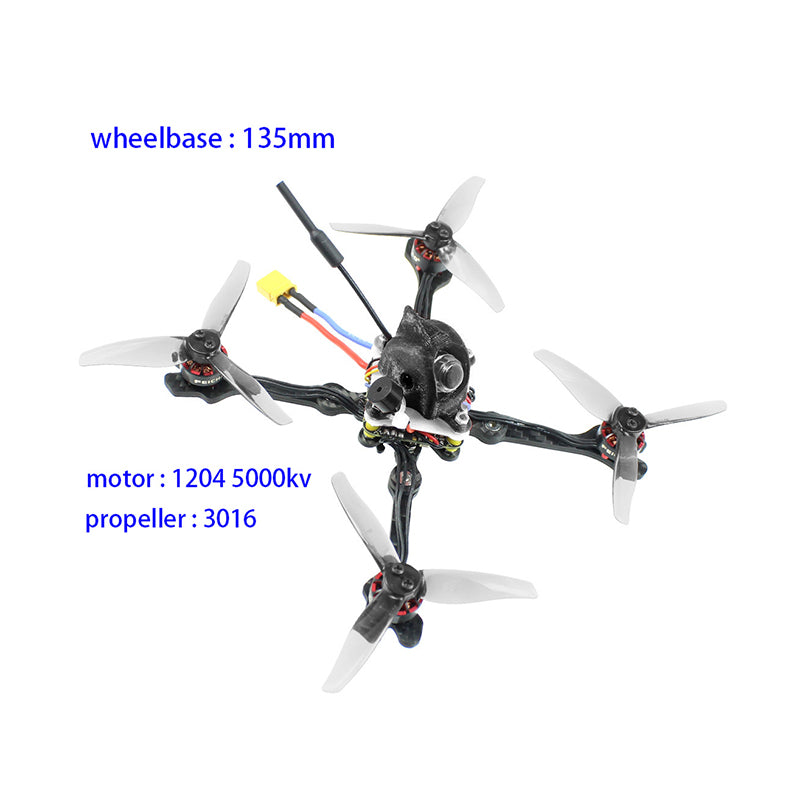

135mm wheelbase carbon fiber frame
Life time is about 6 minutes
Betaflight version F4 flight control
Support voltage 2-4S
Frame
Name:Keel135 Frame Kit for 3inch blades
Brand: FEICHAO
Wheelbase: 135mm
Weight: 53g
Material: carbon fiber + 3D printing
Color: red/black
Flight control mounting hole distance: 20*20mm, 25.5*25.5mm
Applicable motor: 1104-1506
Applicable blade: 3inch
Camera installation size: 14mm
Paddle
Type: 3016
Pitch: 1.6 inches
Material: PC
Weight/g: 1.18g
Inner diameter of center hole: three holes / 1.5mm
Maximum support width: 8.84 mm
ESC and flight control integrated
Flight control parameters:
CPU: STM32F411CEU6
IMU: MPU6000
OSD: AT7456E
Barometer: BMP280
LED: Support WS2812 and other programmable
Sensor: Built-in current sensor
Firmware version: betaflight_4.1.1_MATEKF411
Receiver: for Frsky/ Futaba/ Flysky/ TBS Crossfire/ DSM-X: DSM-2 receiver
ESC parameters:
Firmware support: BLHELI_ S
Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-5S Lipo
Continuous current: 20A
Peak current: 25
Firmware version: BLHELI _S (G- H-30)
Motor
Specifications: 1204
KV option: KV5000
Configuration: 9N12P
Stator diameter: 12mm
Stator length: 4mm
Inner shaft diameter: Φ2mm
Outer shaft diameter: Φ1.5mm
Motor size (diameter * lens): Φ15mm* 16.2mm
Weight (g): 5.9g
Support voltage: 2-4S
VTX
1. Input voltage: DC 4.5-5.2V
2. Input current: 200MW = 400ma
3. Power switch: three gears 25MW, 100MW, 200MW
4. Signal channels: 40
5. Frequency switching: manual button / OSD (IRC Tramp) (support at the same time)
6. Antenna interface: IPEX
7. Size: 16.5MM * 16.5MM
Camera
Model: Caddx Ant Nano FPV Camera
Horizontal resolution: 1200TVL
Lens: 1.8 mm
Voltage: 3.7-18V
Net weight: 2g
