Standard sharpening Guide

  The key to continuous and rapid grinding is to repeat constantly - this guide is like a shovel. Whether you are experienced or new to sharpening, it is easy to get started. It allows users to polish without worrying about the angle of the blade. The sharpening guide can help users Polish more accurately.

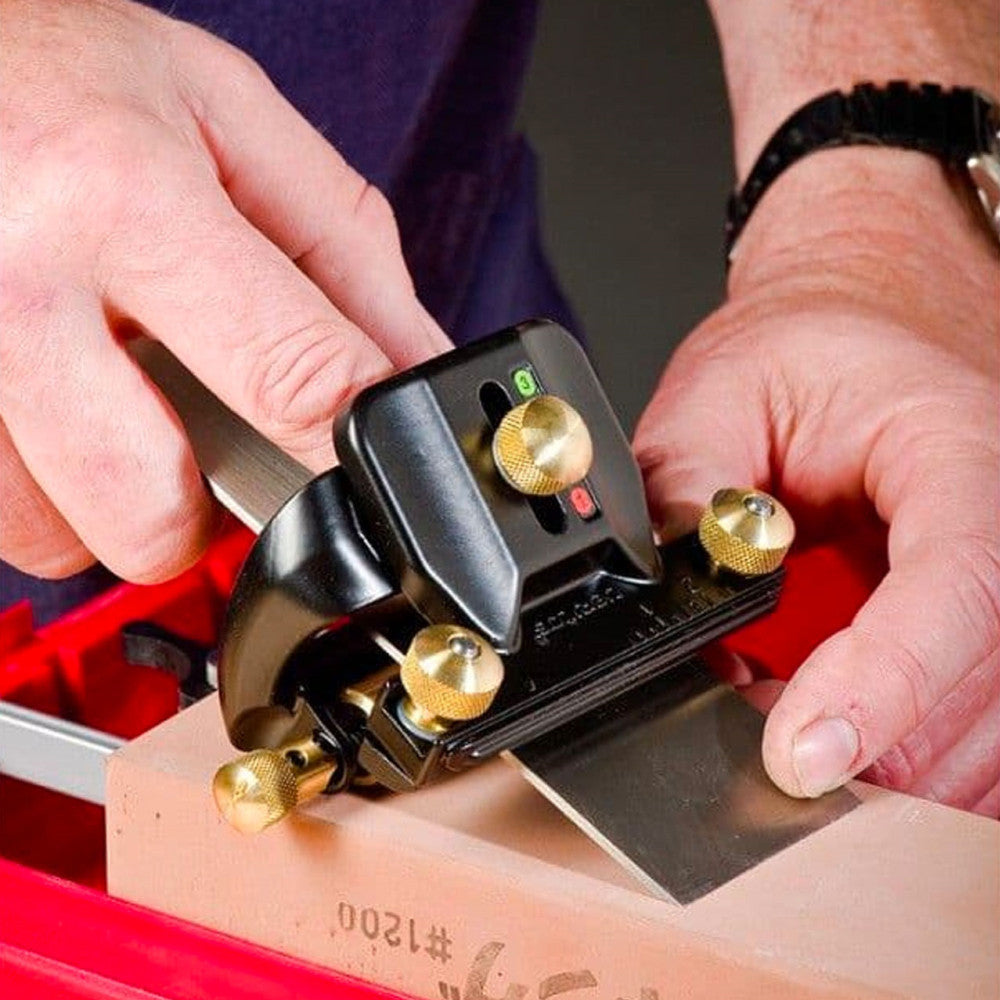

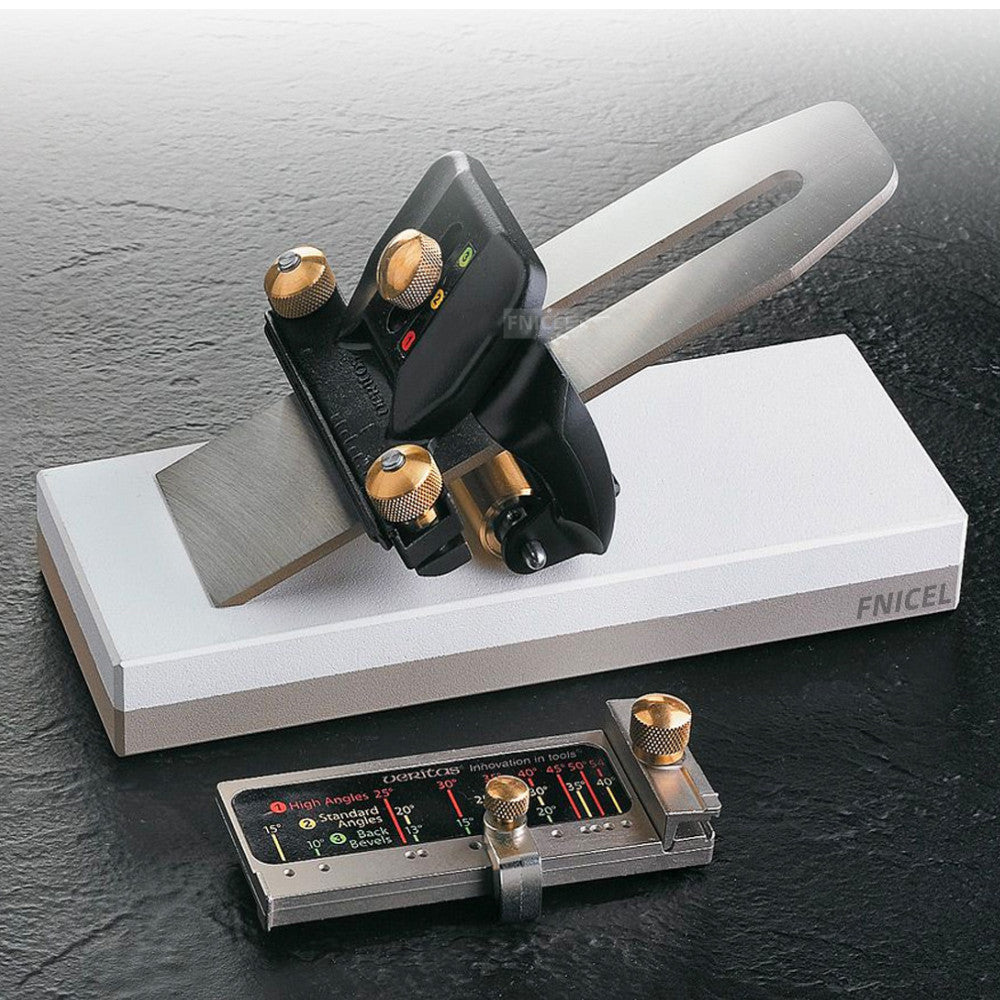

 The clamping strip of the standard sharpening guide fixes the planer by clamping the upper and lower sides of the planer. A plane or conical planer with a width of 12.7mm ~ 70mm is acceptable, and the upper limit of thickness is 11.91mm, including a beveled edge chisel. The main bevel angle of its grinding is 15 ° to 54 ° and the back bevel angle is between 10 ° ~20 °.

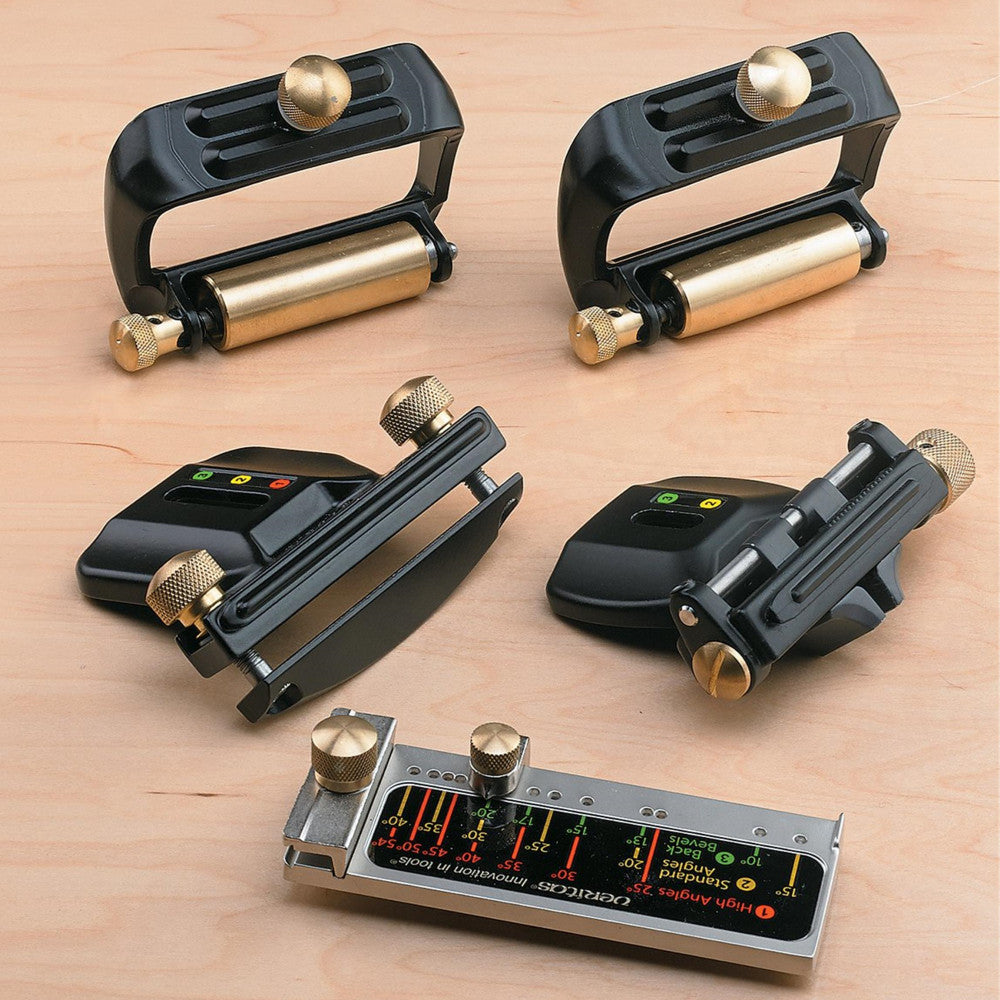

 The replaceable roller can be installed on the sharpener with one screw. The eccentric roller can be easily adjusted to the ideal micro angle. The horizontal roller can grind straight edges. The width of the drum is 50.8mm, and even a narrow planer or chisel can provide a stable base. The curved roller (optional) allows the user to slightly roll the guide, which can grind the edge of the blade into some curved surfaces, and also avoid the scratches left by the planer on the wood surface during planing.

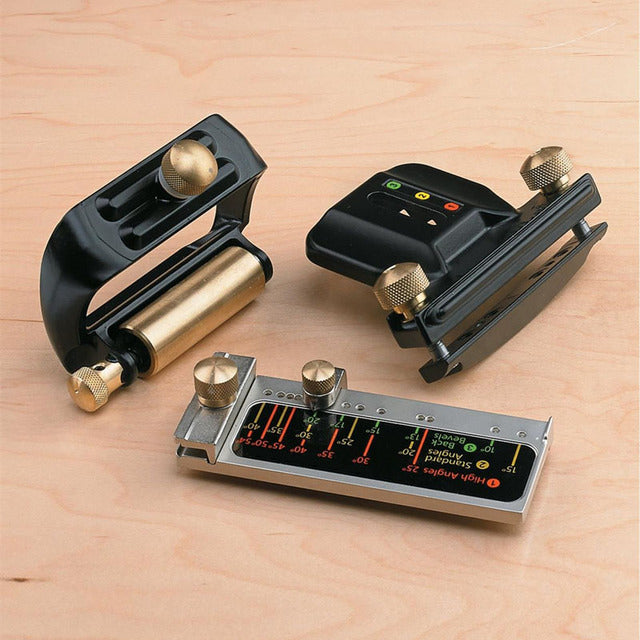

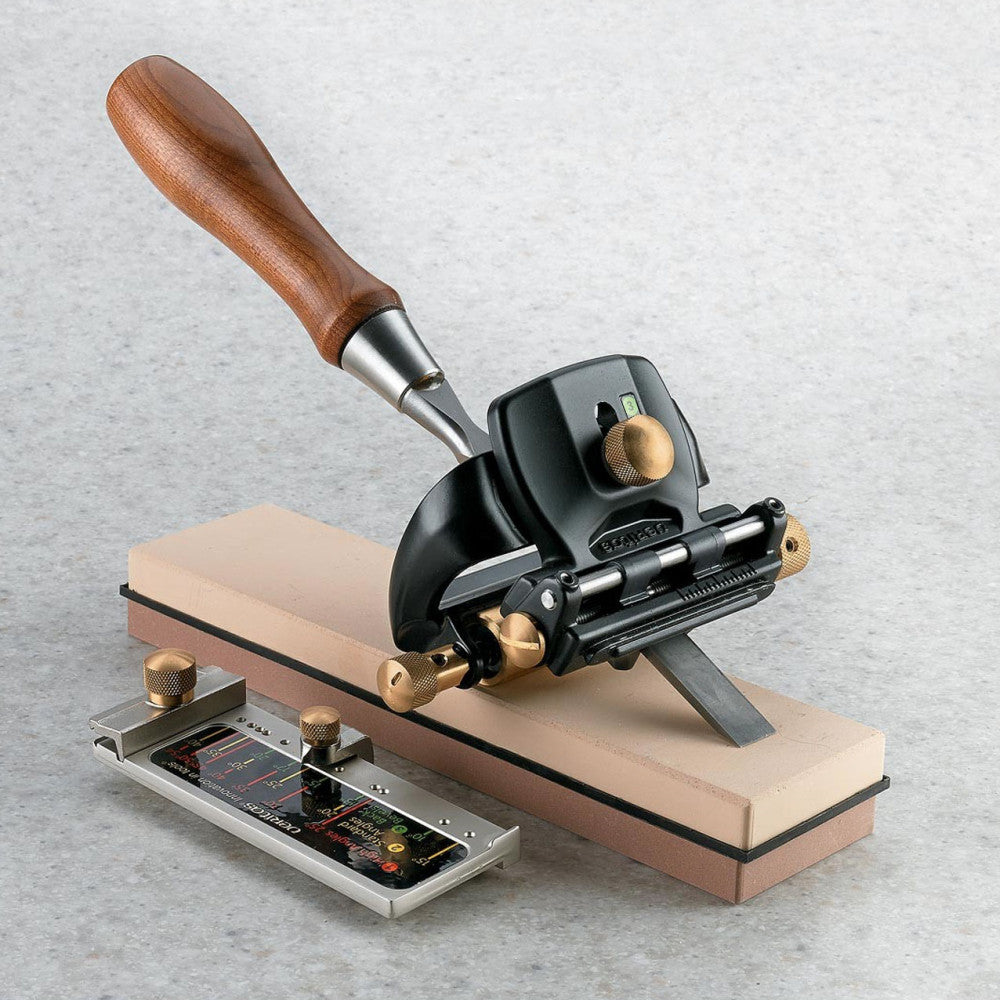

 The complete angle ruler can set a wide range of angles, and the ruler can accurately set the right angle of the planer and different main slope angles. When using the standard sharpener guide, the scale mark can help the planer to center. Once the blade is properly clamped, the angle scale can be removed.

 Narrow edge sharpener Guide

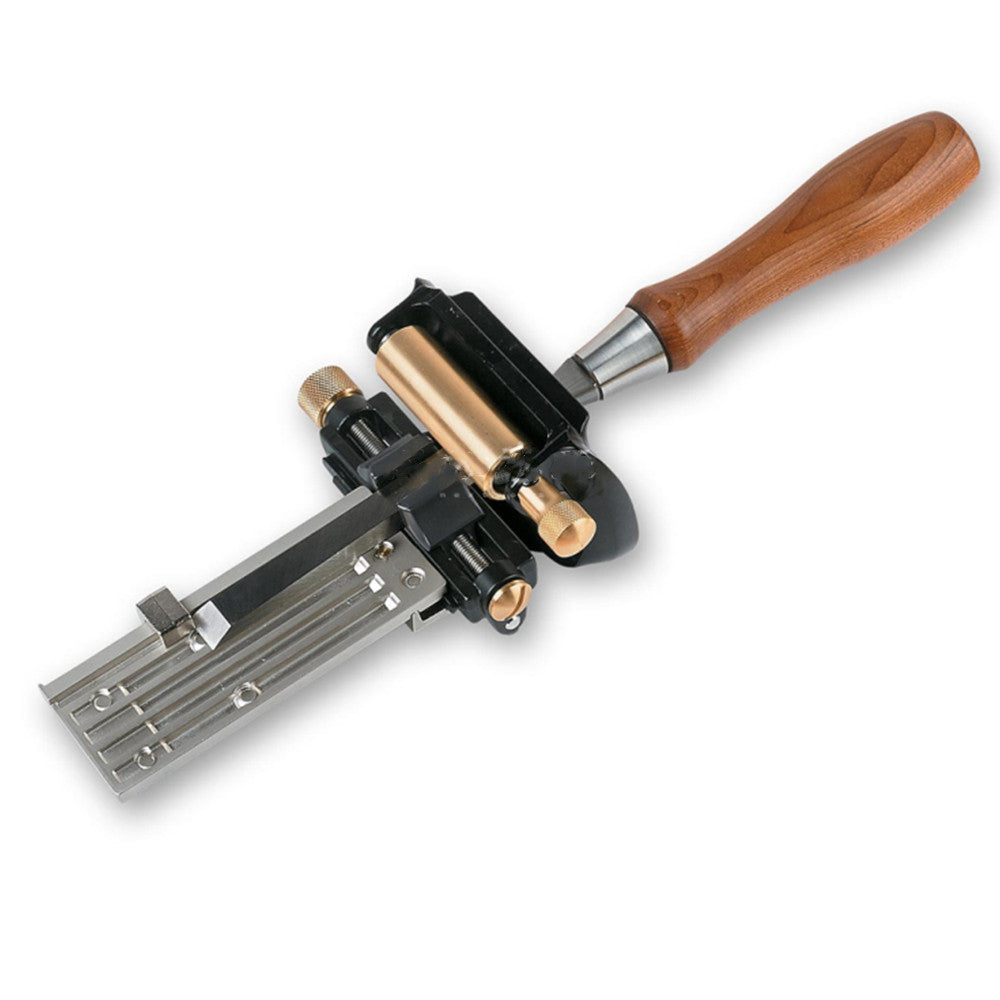

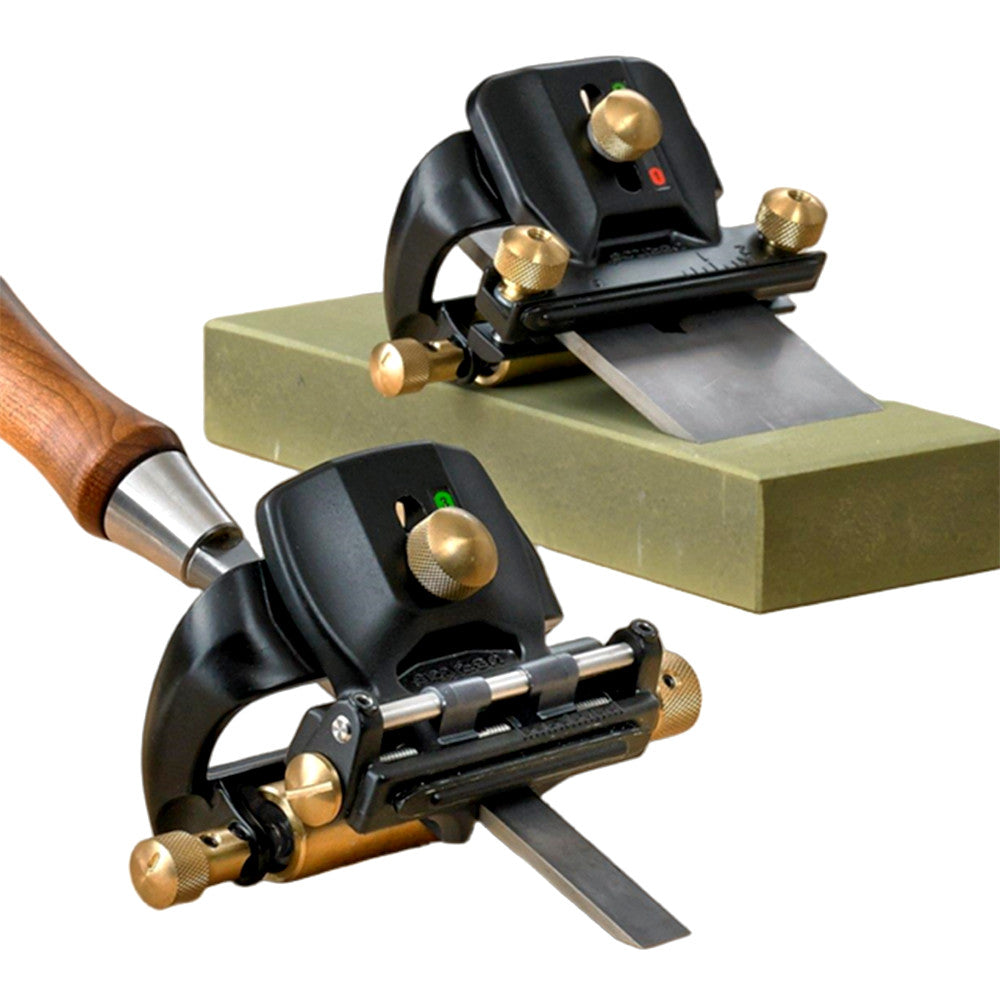

 We provides a narrow knife sharpening guide for users who often need to polish narrow chisels. This guide consists of a narrow knife clamping strip, a standard roller base, and a ruler guide. The width of the chisel that can be clamped is between 3.175mm and 38.1mm, and the parallel clamping mouth can keep the chisel vertical to the sharpener. Whether it is inclined or right angle, the chisel remains centered and close to the datum plane. The upper limit of the thickness of the beveled edge chisel it accepts is 17.91mm, the upper limit of the thickness of the mortise chisel is 8.73mm, and the main bevel angle of the grinding is between 15 ° and 40 °, and the back bevel angle is between 10 ° and 20 °.
