VERSATILE AND SONICALLY TRUE 18-IN/8-OUT AUDIO INTERFACE FOR THE COMPLETE CREATOR

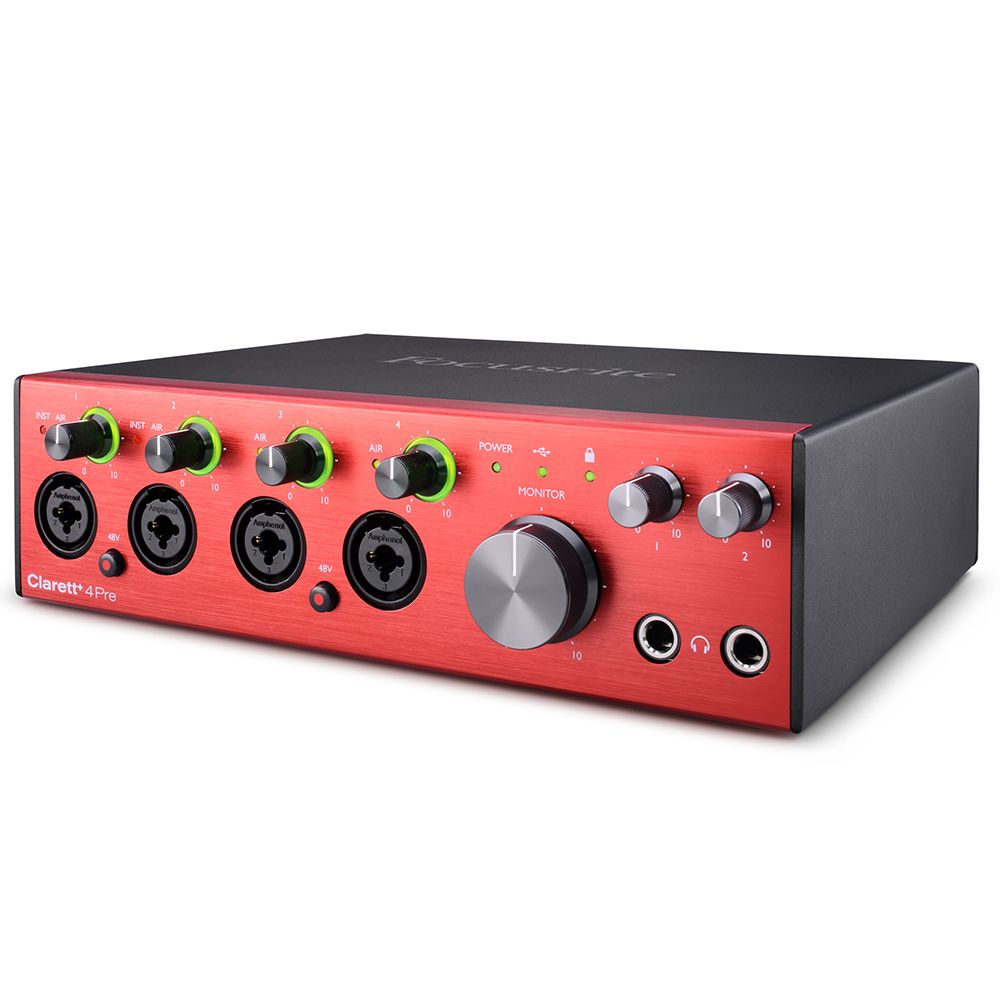

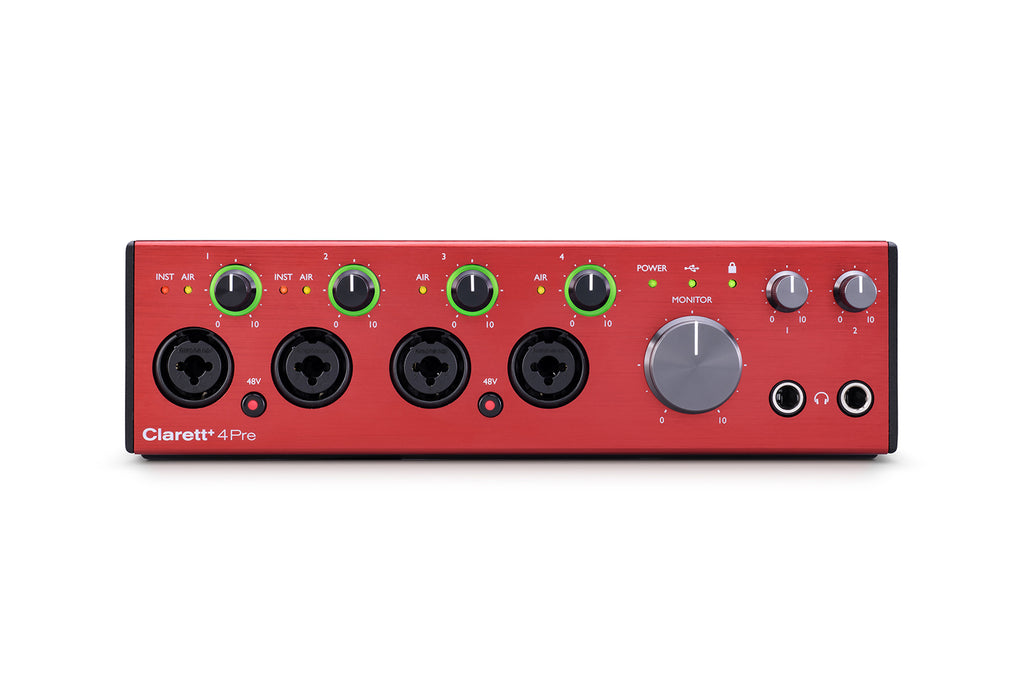

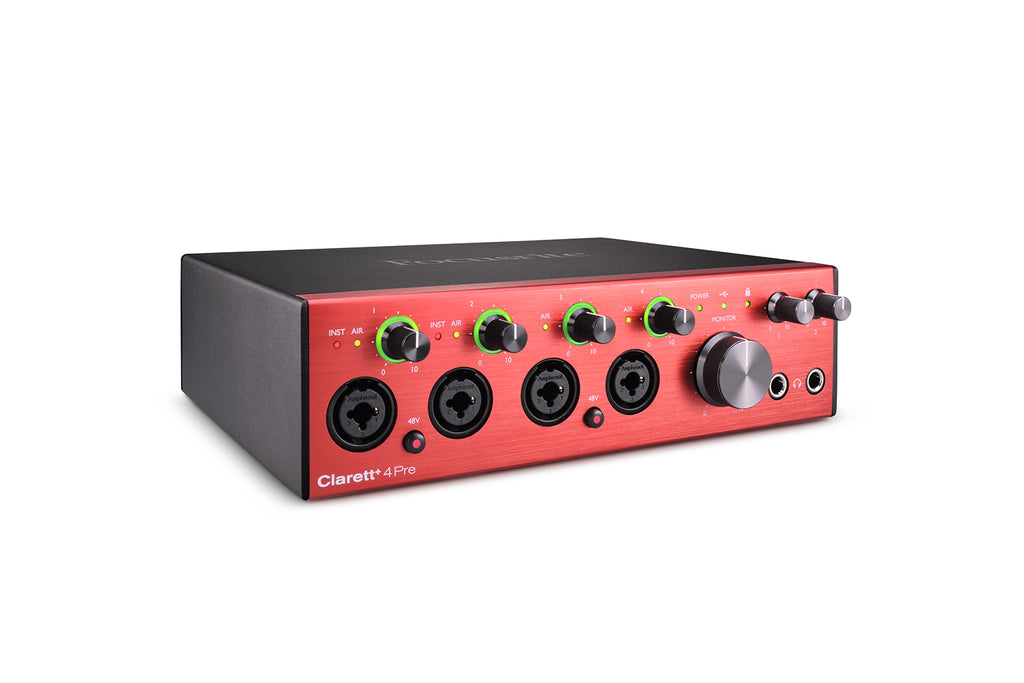

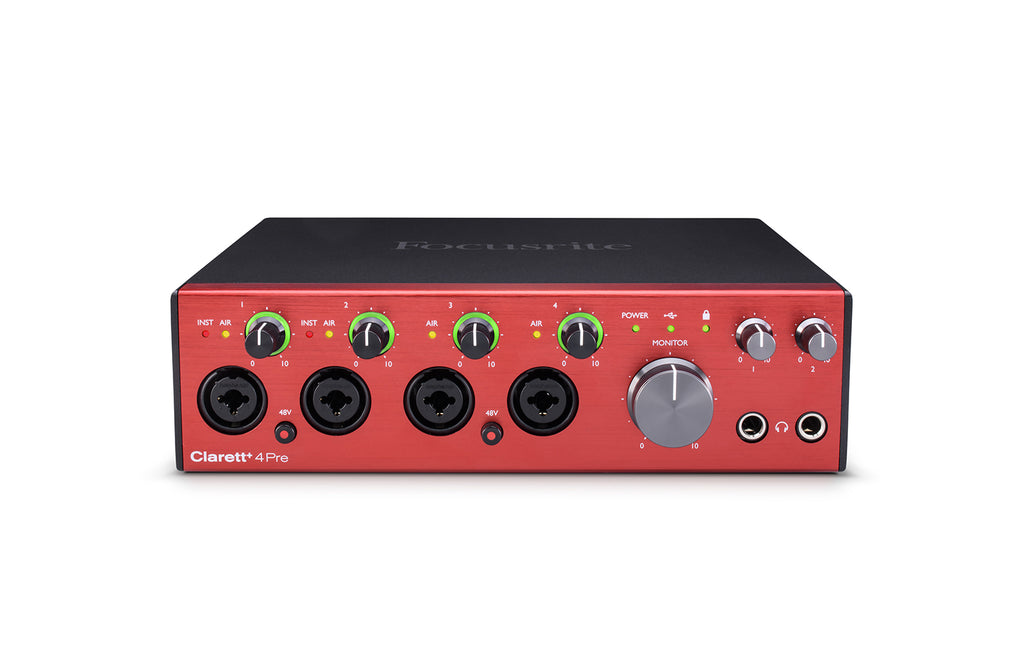

 Clarett+ 4Pre is the studio-grade audio interface for PC and Mac, designed for music makers who demand the highest quality while recording and mixing their audio creations.

INDEPENDENT A-D AND D-A CONVERTERS

Independent A-D and D-A converters bring creators and collaborators closer than ever to their music, with extremely wide dynamic range and low distortion. Greatly improved D-A dynamic range enables you to hear every detail and have greater control over your mix. Incredibly low A-D converter distortion lets you capture signals with more clarity, for greater transparency and sonic accuracy. Two powerful and true-to-life headphone outputs inspire artists to hear every nuance, customise their foldback mix, and perform their best.

ANYTHING, ANYWHERE

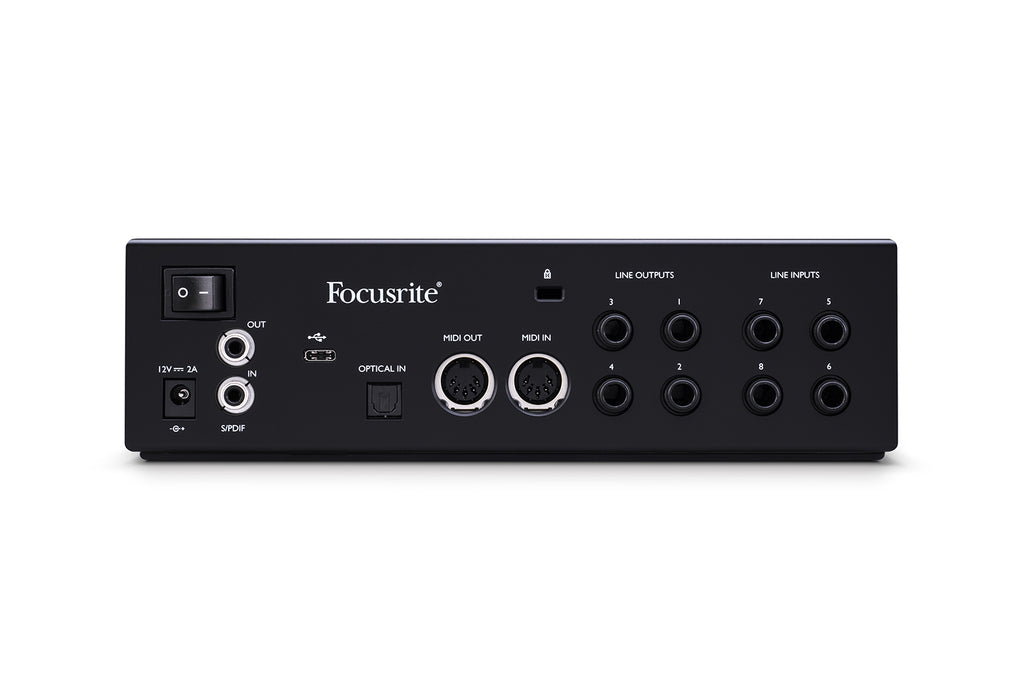

Clarett+ 4Pre brings collaborators together, with options to record up to 18 input channels simultaneously. Expand via ADAT using the Clarett+ OctoPre or other outboard hardware. Four analogue outputs and MIDI input and output makes Clarett+ 4Pre the centrepiece of the evolving recording studio.

SPECIFICATIONS IN DETAIL

   MIC INPUTS

         Frequency Response 20-20kHz: ± < 0.03dB

    Frequency Response 20-35kHz: ± < 0.15dB

    Dynamic Range (min gain): 118dB

    THD+N (-1dBFS, +20dB gain): -110dB

    Noise EIN: -129dBu

    Max input level: 18dBu

    Gain range: +57dB

   LINE INPUTS (VARIABLE)

         Frequency Response 20-20kHz: ± < 0.05dB

    Frequency Response 20-35kHz: ± < 0.15dB

    Dynamic Range (min gain): 118dB

    THD+N (-1dBFS, min gain): -100dB

    Max input level: 26dBu

    Gain range: +57dB

   LINE INPUTS (FIXED)

         Frequency Response 20-20kHz: ± < 0.05dB

    Frequency Response 20-35kHz: ± < 0.15dB

    Dynamic Range: 118dB

    THD+N (-1dBFS): -100dB

    Max input level: +18dBu

   INSTRUMENT INPUTS

         Frequency Response 20-20kHz: ± < 0.04dB

    Frequency Response 20-35kHz: ± < 0.15dB

    Dynamic Range: 116dB

    THD+N (-1dBFS, min gain): -96.5dB

    Max input level: 15dBu

    Gain range: +57dB

   LINE & MONITOR OUTPUTS

         Frequency Response 20-20kHz: ± < 0.02dB

    Frequency Response 20-35kHz: ± < 0.02dB

    Dynamic Range: 124dB

    Max Output level: 18dBu

    THD+N: -106dB

   HEADPHONE OUTPUTS

         Frequency Response 20-20kHz: <0.06dB

    Frequency Response 20-35kHz: <0.07dB

    Dynamic Range: 118dB

    THD+N: -104dB

    Max Output level: 16dBu
