Food texture color analyzer machine large aperture color comparator colorimeter

          Brief Introduction :

 NR20XE with φ20mm extended aperture and stable end face can test surface stripe and wet products.

 3nh NR20XE is a handheld colorimeter based on 45°/0° optical geometry. Its measuring aperture is 20mm. NR20XE measuring aperture is the biggest one in domestic. Meanwhile, it also has high measuring precision. As a member of 3nh 45°/0° colorimeter, NR20XE is a colorimeter with unique performance. The color measurement results from NR20XE simulate human eyes but its accuracy is several times higher than human eyes. NR20XE 45°/0 ° optical geometry structures can reflect interactive effect between surface stripe and sample color more effectively than 8°/d colorimeter. NR20XE will eliminate the errors between human eyes and color tester caused by surface stripe when judging tolerance critical value of sample colors. Therefore,NR20XE is widely used in color field.

           Difference between NR20XE and Ordinary Portable Colorimeter

 When testing products such as meat by ordinary colorimeter, the whole instrument body has to be placed in the object which not only stains the instrument, but also will let the liquid/water enter the instrument directly and bring cross contamination. However, NR20XE is a vertical structure. When measuring, it can make sure only the aperture touches the object which will not stain the instrument body.

            QC Department

 NR20XE can meet quality control requirements in plastic (PET,PE,PP,PTA,ABS,EVA particles and powder), color steel plate, coating, textile, fluorescent material, denim, medicine and food industries, etc. It can help to control product color difference, improve product competitiveness, reduce enterprises' loss and control production cost.

            Applications

 Food, medicine, textile, non-woven fabrics, denim, dyeing and printing, color steel plate, paper, plastic, chemical, coating, ink, building material industries, etc.

           Technical Specifications                                      3nh

           NR20XE Precision Colorimeter

                        Illuminating/Viewing Geometry

          45°/0°

                        Measuring Aperture

          Φ20mm

                        Special Function

          Especially suitable for testing surface stripe and wet products

                        Locating

          Illumination Locating/Cross Locating

                        Detector

          Silicon photoelectric diode

                         Locating

          Illuminating Locating/Cross Locating

                         Color Space

          CIEL*a*b*C*h*; CIEL*a*b*; CIEXYZ

                        Color Difference Formula

          Δ E*ab;Δ L*a*b*; Δ E*C*h*

                        Light Source

          D65

                        Light Source Device

          LED blue light excitation

                        Errors Between Each

 Equipment

          ≤0.50ΔE*ab

                        Storage

          100pcs standards 20000pcs samples

                        Repeatability

          Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate

                        Weight

          500g

                        Dimension

          205×67×80 mm

                        Power source

          Rechargeable lithium-ion battery 3.7V@3200mAh

                        Lamp Life

          5 years, more than 1.6 million measurements

                        Charging Time

          First charging time is 8 hours--100% electricity

                        PC Software

          CQCS3 Software

                        Printer (optional)

          Miniature thermal printer

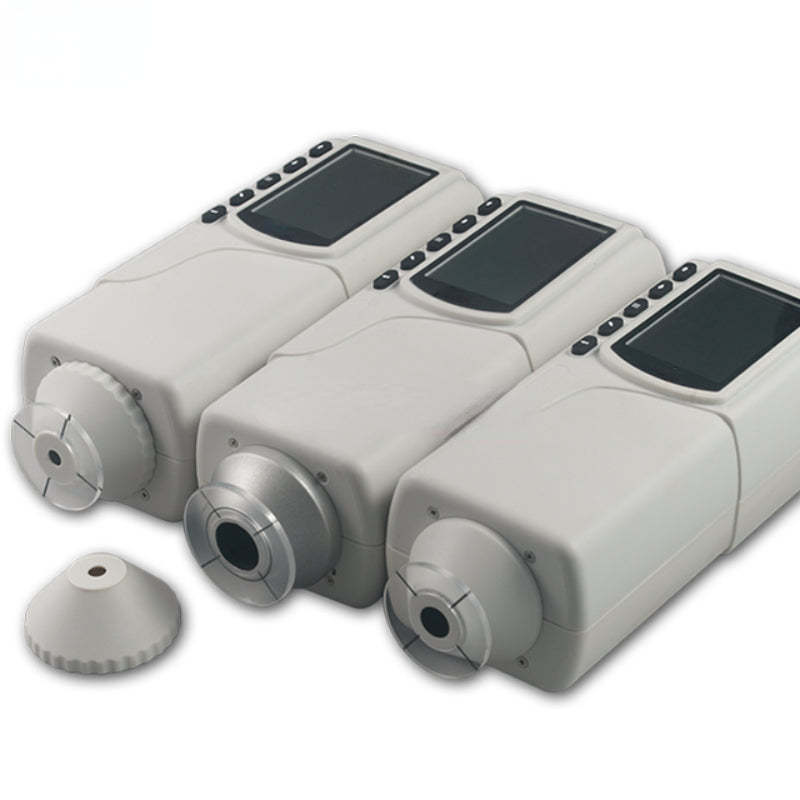

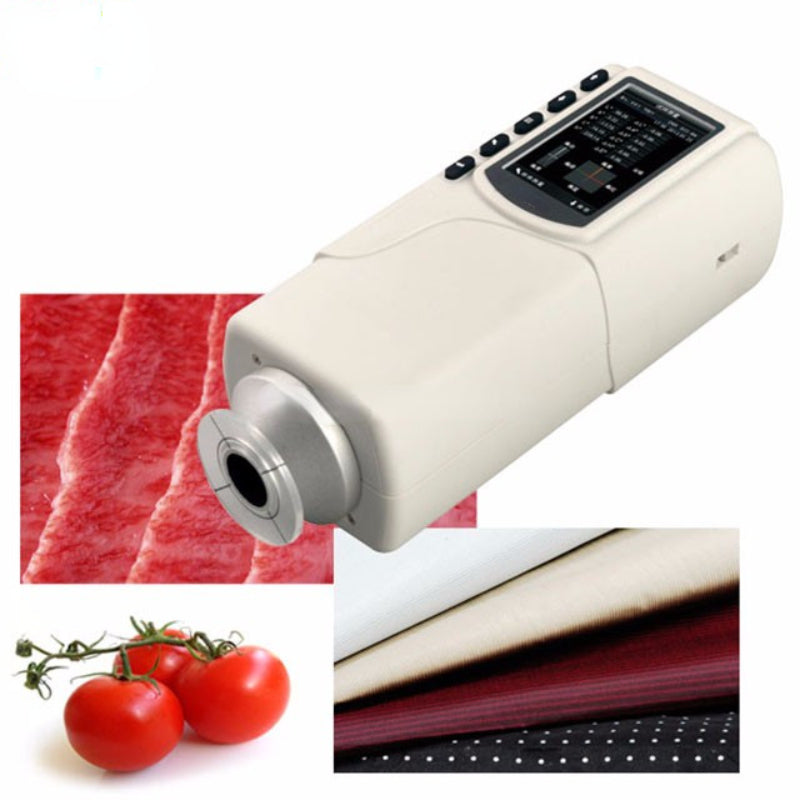

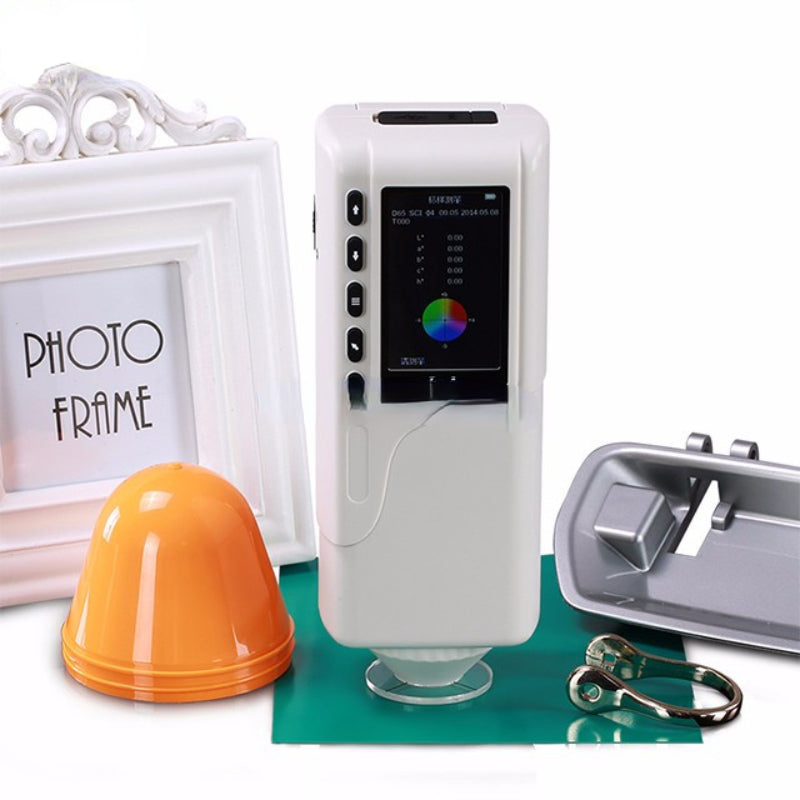

            Product Image :                                                                                      Why us ?          3nh analyzed the parameters from Japan,American and Germany spectrophotometers. The differences of L*ab absolute value between them are within ±1.5. Compared the L*ab value between NS800 and Japan spectrophotometer, when measuring any color objects, the biggest L*ab difference is within ±1.0. This is a breakthrough of 3nh high technology

 which realizes to be fully compatible with international market.          Our service :           NR20XE Colorimeter  is under warranty for 12 months from the purchase date. Customers must provide warranty card and valid proof of purchase.

           Related Knowledge about Colorimeter:           Color Space

 CIE LAB

 -L(Lightness)-0 is black,100 is white

 -a(Red-Green)-positive values are red; negative values are green and 0 is neutral

 -b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral

 CIE LCH

 L: Lightness,value is the same in each scale  C:Chroma   H:Hue Angle

 dE Total Color difference

 Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.

 The higher the dE, the more inaccurate the color.
