1. Advantage: This ECU progming tool is the only version for XPROG‑M that can decypte new version for CAS4. Including hard disk and USB Dongle, more convenient and secure.

2. Upgraded V6.50 Version: Professionally manufactured ECU chip progming tool, using the latest version of for XPROG‑M V6.50, more powerful and stable than previous versions.

3. Multiple Authorization: Support AUTH‑0001 for Motorola HC05 family authorization, AUTH‑0004 for Motorola HC12, 9S12 family authorization, AUTH‑0005 for Texas Instruments TMS37 0/TMS374 family authorization.

4. Strong Compatibility: Support a variety of progming adapters, such as ADP‑0001 TMS370 PLCC28, ADP‑0002 TMS370 PLCC44, ADP‑0004 for Motorola HC05B/X PLCC52, etc.

5. High Reliability: ECU chip tuning tool is made of metal material, exquisite and careful workmanship, strictly follows the factory quality control, dependable to use.

     Specification:

Item Type: ECU Progmer Tool

Material: Metal

Software Version: For XPROG-M V6.50 (can be installed with USB dongle and CD)

FW: V6.8

Compatible System: For WIN 7 64BIT (The antivirus software needs to be turned off)

For XPROG-M V6.5 Authorizations:

AUTH-0001 for Motorola HC05 family authorization (allows to read/write EEPROM)

AUTH-0002 for Motorola HC08 family authorization (allows to read/write EEPROM)

AUTH-0003 for Motorola HC11 family authorization (allows to read/write EEPROM)

AUTH-0004 for Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)

AUTH-0005 for Texas Instruments TMS37 0/TMS374 family authorization (allows to read/write EEPROM)

AUTH-0006 for Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.

AUTH-0008 EWS3 authorization

AUTH-0009 for ATMEGA family authorization (allows to read/write EEPROM and flash memory)

AUTH-0010 MB ZGS001 authorization

AUTH-0011 for Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and memory)

AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)

AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)

AUTH-0015 MPC5xx authorization (depending on device prog automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)

AUTH-0018 for Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)

AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage,chassis number (VIN), serial number and PIN code).

AUTH-0023-1 MAC7xxx

AUTH-0023-2 XC23xx

AUTH-0024-1 MC9S12Cxx

AUTH-0024-2 MC9S12XE

AUTH-0024-3 9S12XE SECURITY

AUTH-0024-4 MC9S12HA/HY/P

AUTH-0025-1 MPC/SPC5xxx Authorized 11/4/2014

For XPROG-M V6.5 Adapters:

ADP-0001 TMS370 PLCC28 progming adapter

ADP-0002 TMS370 PLCC44 progming adapter

ADP-0003 TMS370 PLCC68 progming adapter

ADP-0004 for Motorola HC05B/X PLCC52 progming adapter

ADP-0005 for Motorola HC05B/X QFP64 progming adapter

ADP-0006 ST M35080 in-circuit progming adapter

ADP-0008 TMS374 family in-circuit progming adapter

ADP-0009 MC68HC05V12 progming adapter

ADP-0010 TMS374 on-board progming adapter

ADP-0011 HC11EA9/E9 progming adapter

ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit progming/bypass security adapter

Additional adaptor for 5M48H P-Flash

1. This is the only version for XPROG-M can decypte new version for CAS4.

2. hard disk and USB Dongle, more convenient and secure.

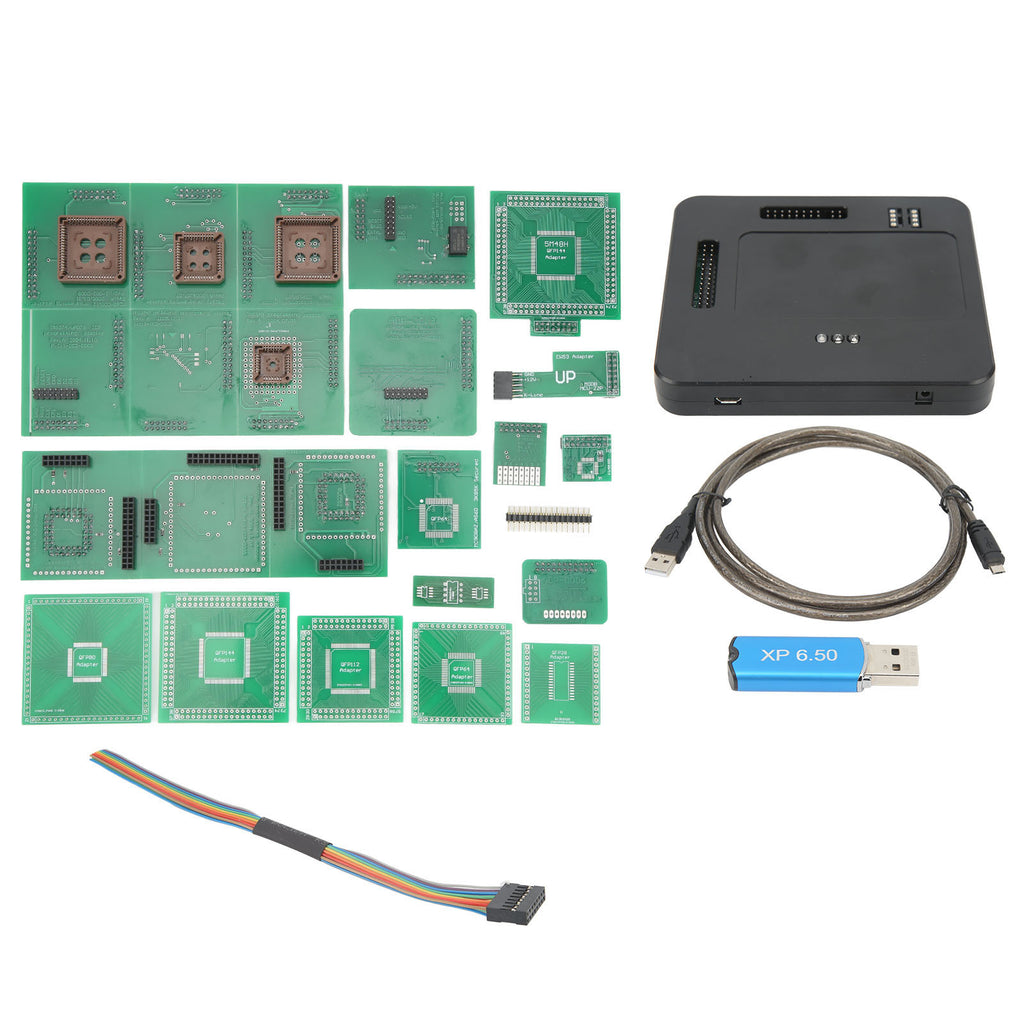

     Package List:

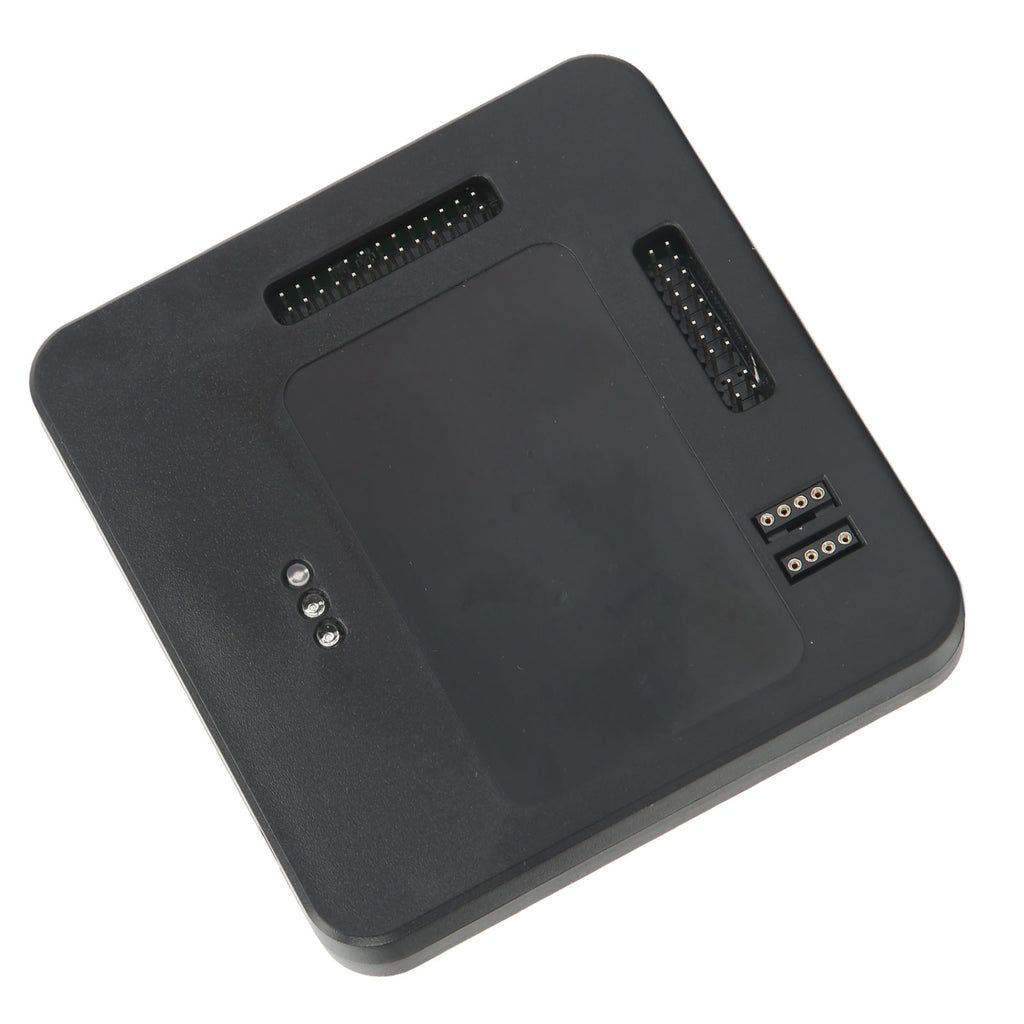

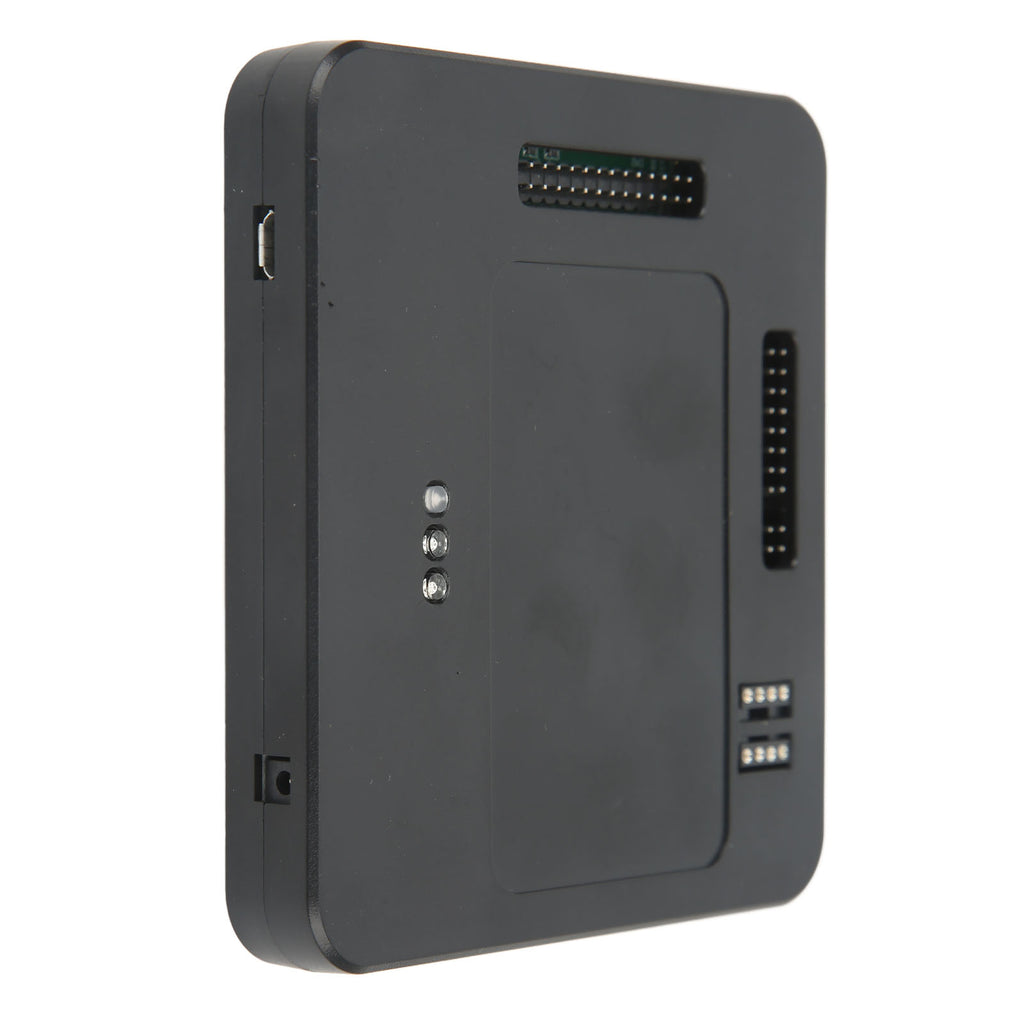

     1 x Main Body

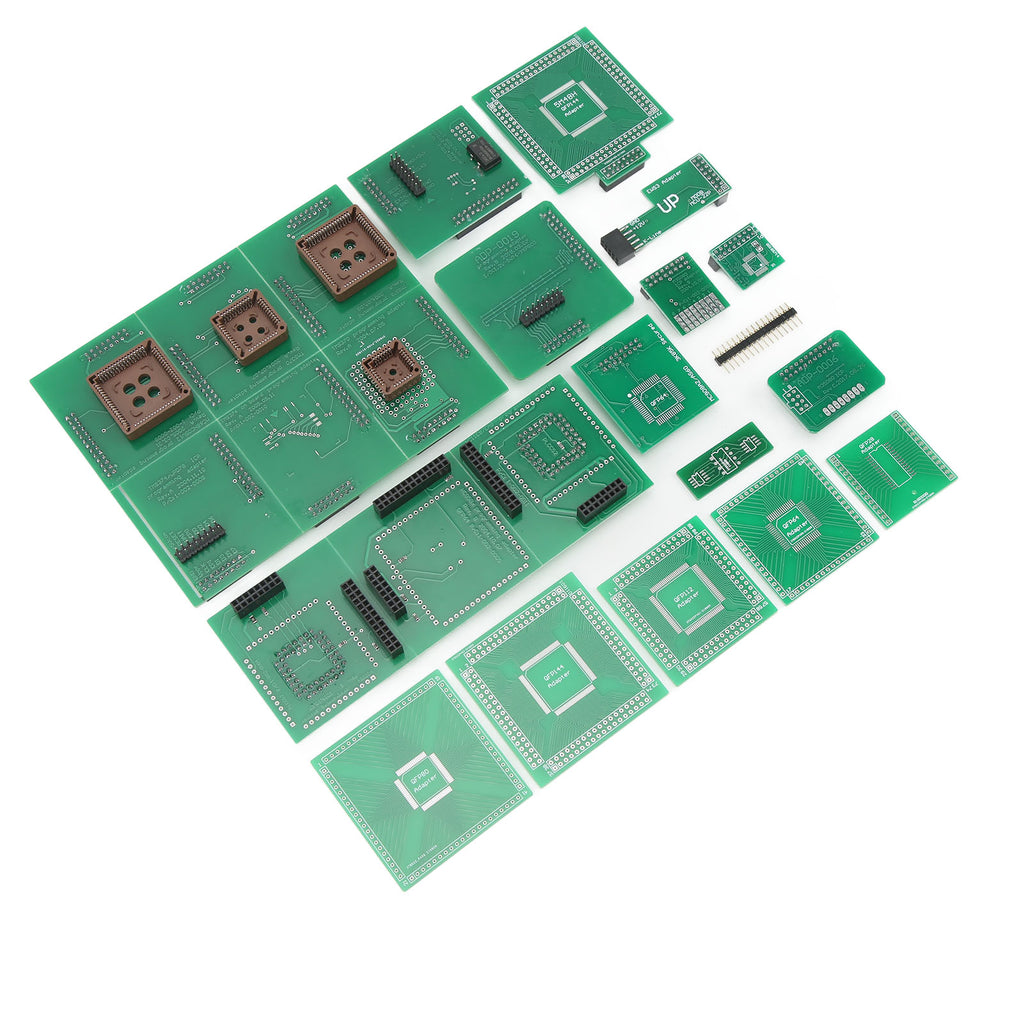

     16 x Chip Board

     1 x Copper Needle Plate

     1 x USB Dongle

     1 x CD

     2 x Data Line

     1 x Accessory
