Product Attributes
|
Item |

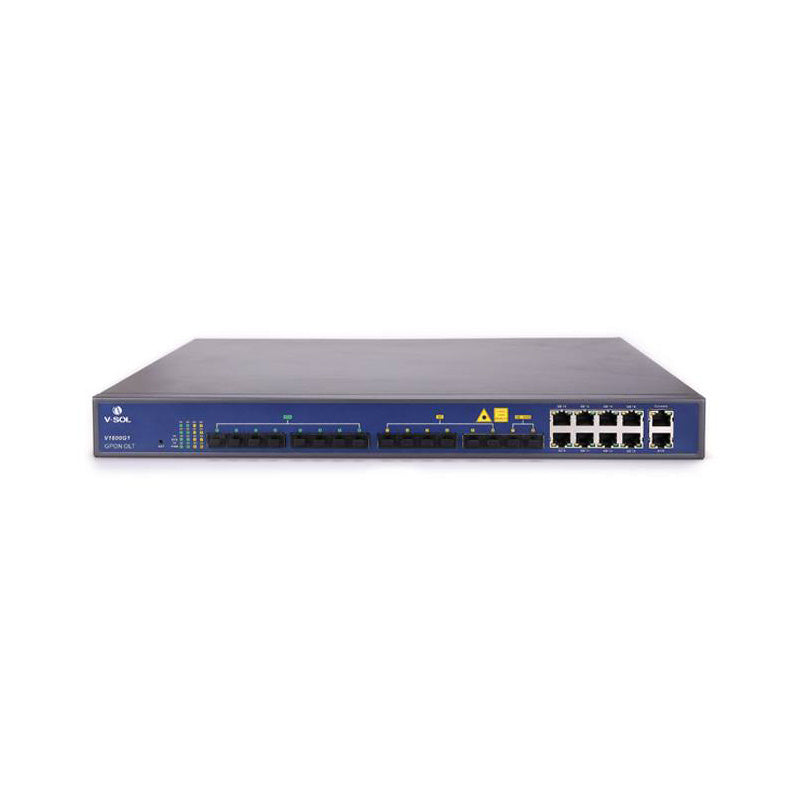

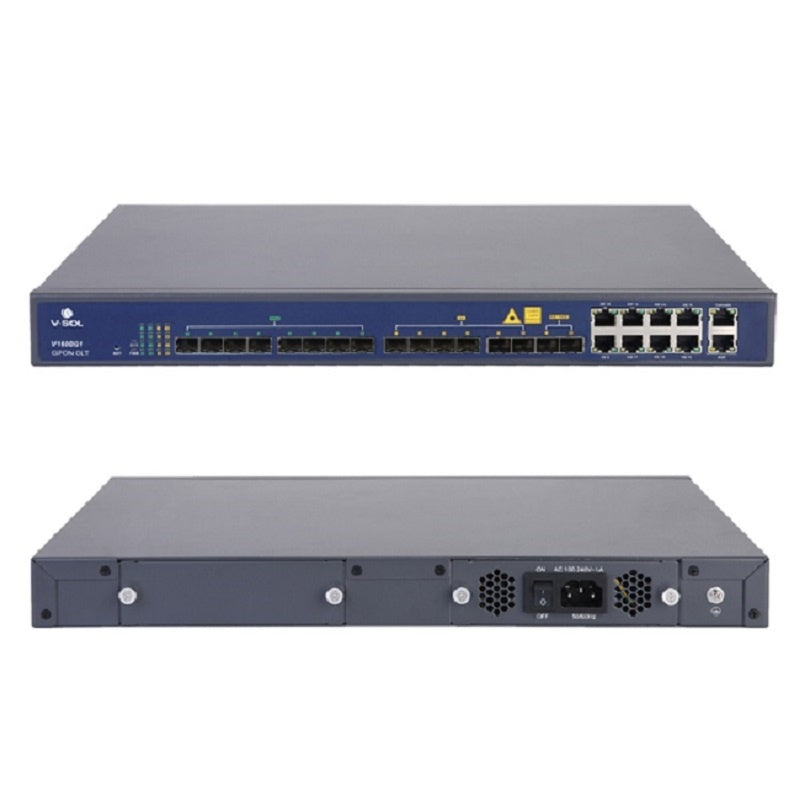

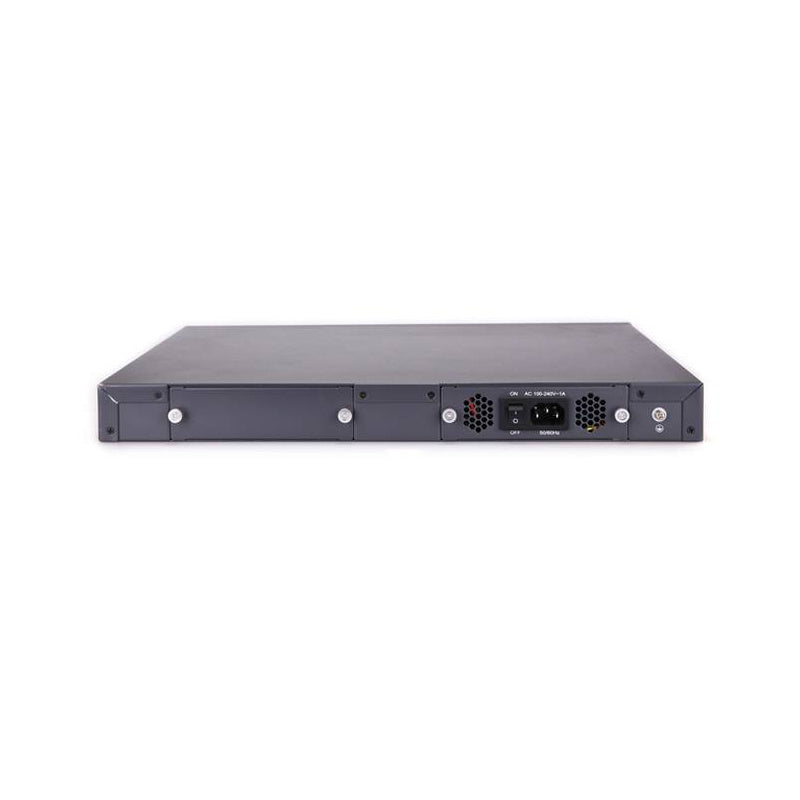

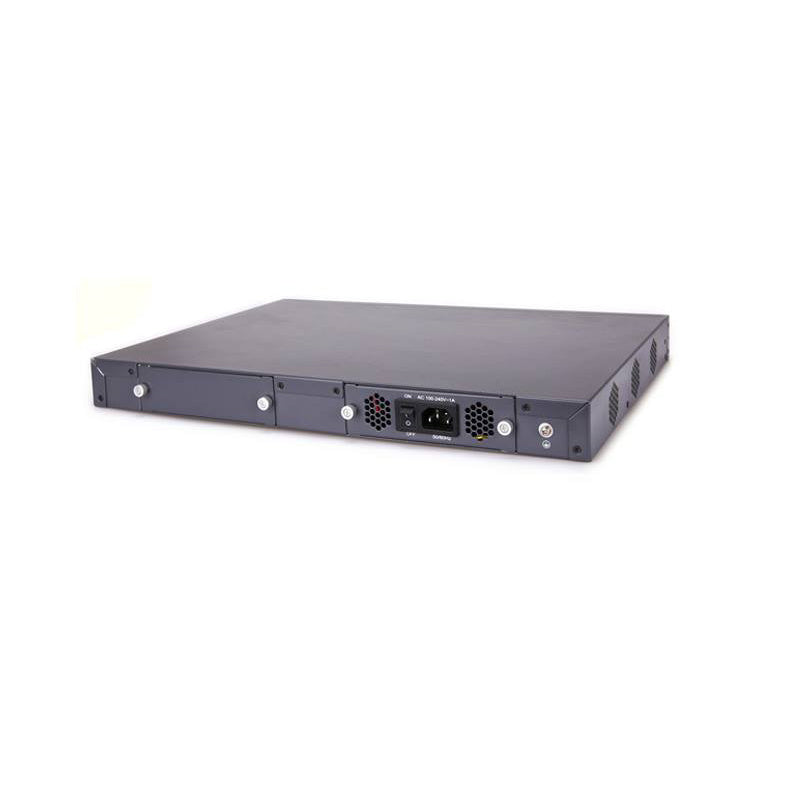

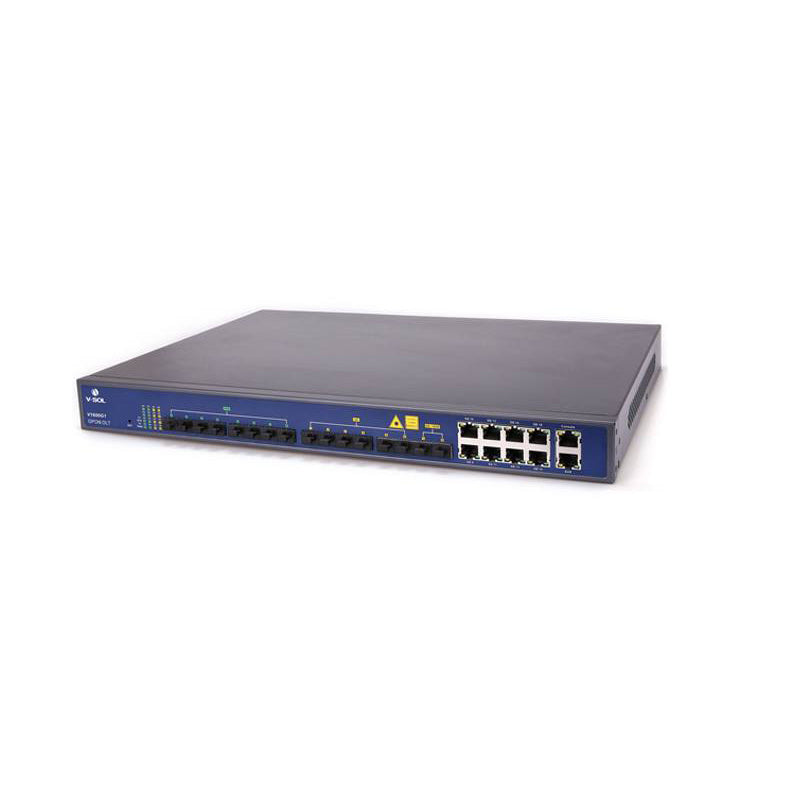

V1600G1 |
||||
|
Chassis |
Rack |
1U 19 inch standard box |
|||
|
1000M
|
QTY |
16 |
|||
|
Copper 10/100/1000M auto-negotiation |
8 |
||||
|
SFP 1000M,Duplex (independent) |
6 |
||||
|
SFP+ SFP+ is 10GE (independent) |
2 |
||||
|
GPON Port |
QTY |
8 |
|||
|
Physical Interface |
SFP Slot |
||||
|
Connector Type |
Class B+/C+ |
||||
|
Max splitting ratio |
1:128 |
||||
|
Management Ports |
1*10/100BASE-T out-band port, 1*CONSOLE port |
||||
|
PON Port Specification |
Transmission Distance |
20KM |
|||
|
GPON port speed |
Upstream 1.244G, Downstream 2.488G |
||||
|
Wavelength |
TX 1490nm, RX 1310nm |
||||
|
Connector |
SC/PC |
||||
|
Fiber Type |
9/125μm SMF |
||||
|
TX Power |
+1~+5dBm |
||||
|
Rx Sensitivity |
-28dBm |
||||
|
Saturation Optical Power |
-8dBm |
||||
|
Management Mode |
SNMP, Telnet ,CLI,WEB |
||||
|
Management Function |
Fan Group Detecting; Port Status monitoring and configuration management; Layer2 switch configuration such as VLAN, Trunk, RSTP,IGMP,QOS, etc; GPON management function: DBA,ONU authorization, ACL, QOS, etc;
User management; Alarm management. |
||||
|
Layer2 Switch |
16K Mac address Support 4096 VLANs; Support port VLAN and protocol VLAN; Support VLAN tag/Un-tag ,VLAN transparent transmission; Support VLAN translation and QinQ; Support storm control based on port Support port isolation Support port rate limitation Support 802.1D and 802.1W; Support static LACP;
Access control list;
Port stability statistic and monitoring. |
||||
|
Multicast |
256 IP Multicast Groups; |
||||
|
DHCP |
DHCP server DHCP relay
|
||||
|
Layer 3 Route |
Arp proxy Static route 1024 hardware Host Routes; 512 hardware Subnet Routes; |
||||
|
GPON Function |
Tcont dba; Gemport traffic In compliant with ITUT984.x standard; Up to 20KM transmission Distance; Support data encryption, multi-cast, port VLAN, separation, RSTP, etc;
Support VLAN division and user separation to avoid broadcast storm;
Support broadcasting storm resistance function; Support port isolation between different ports; Support ACL and SNMP to configure data packet filter flexibly; Specialized design for system breakdown prevention to maintain stable system; Support RSTP,IGMP Proxy. |
||||
|
Dimension(L*W*H) |
442mm*200mm*43.6mm |
||||
|
Weight |
3.1kg |
||||
|
Power Supply |
220VAC |
AC:90~264V, 47/63Hz |
Double Power Module Hot Backup |
||
|
Power Consumption |
25W |
||||
|
Operating Environment |
Working Temperature |
-10~+55℃ |
|||
|
Storage Temperature |
-40~+85℃ |
||||
|
Relative Humidity |
5~90%(non-conditioning) |
||||
