Applications:

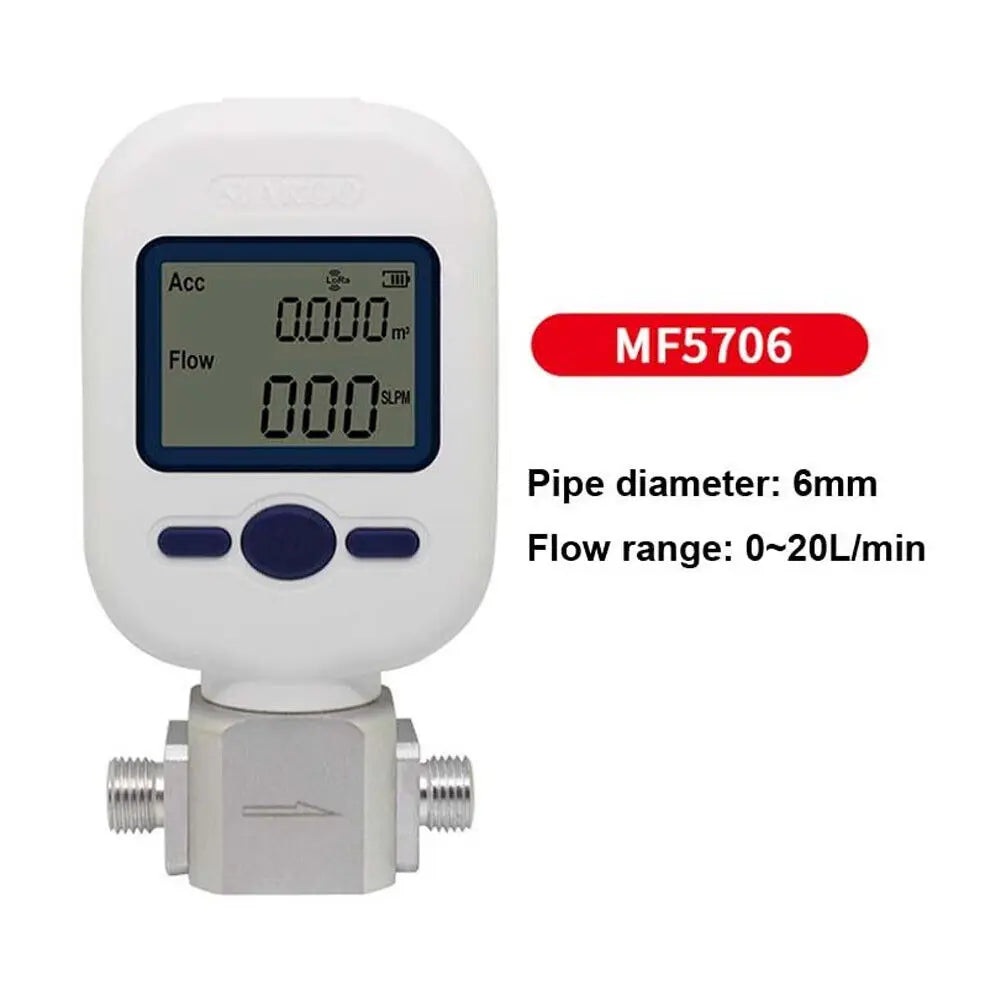

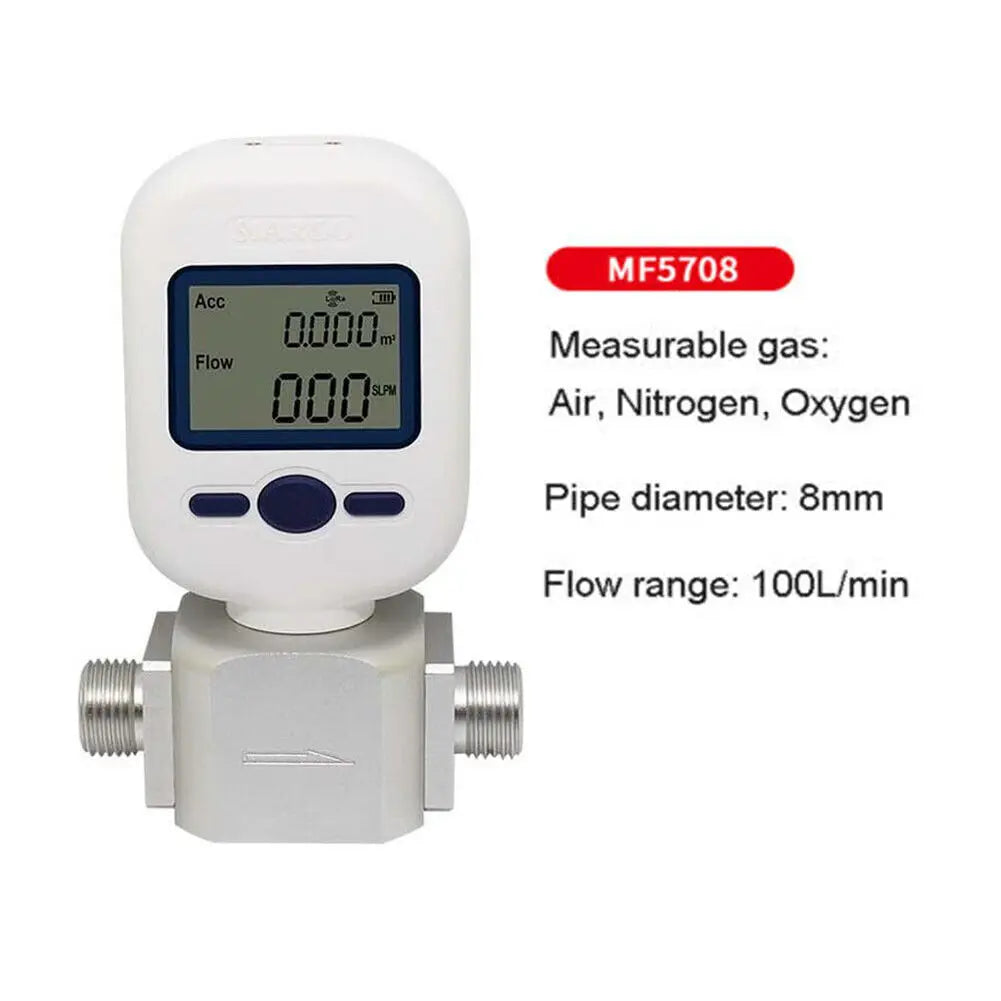

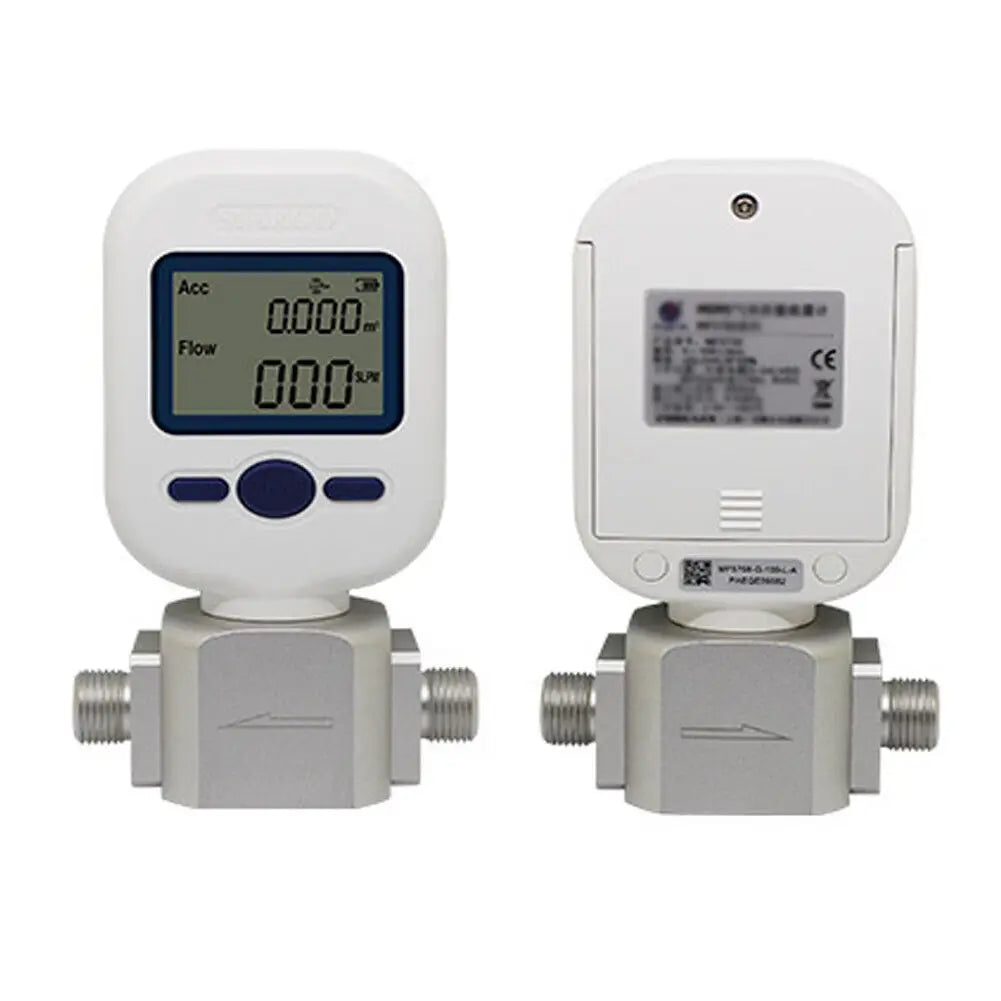

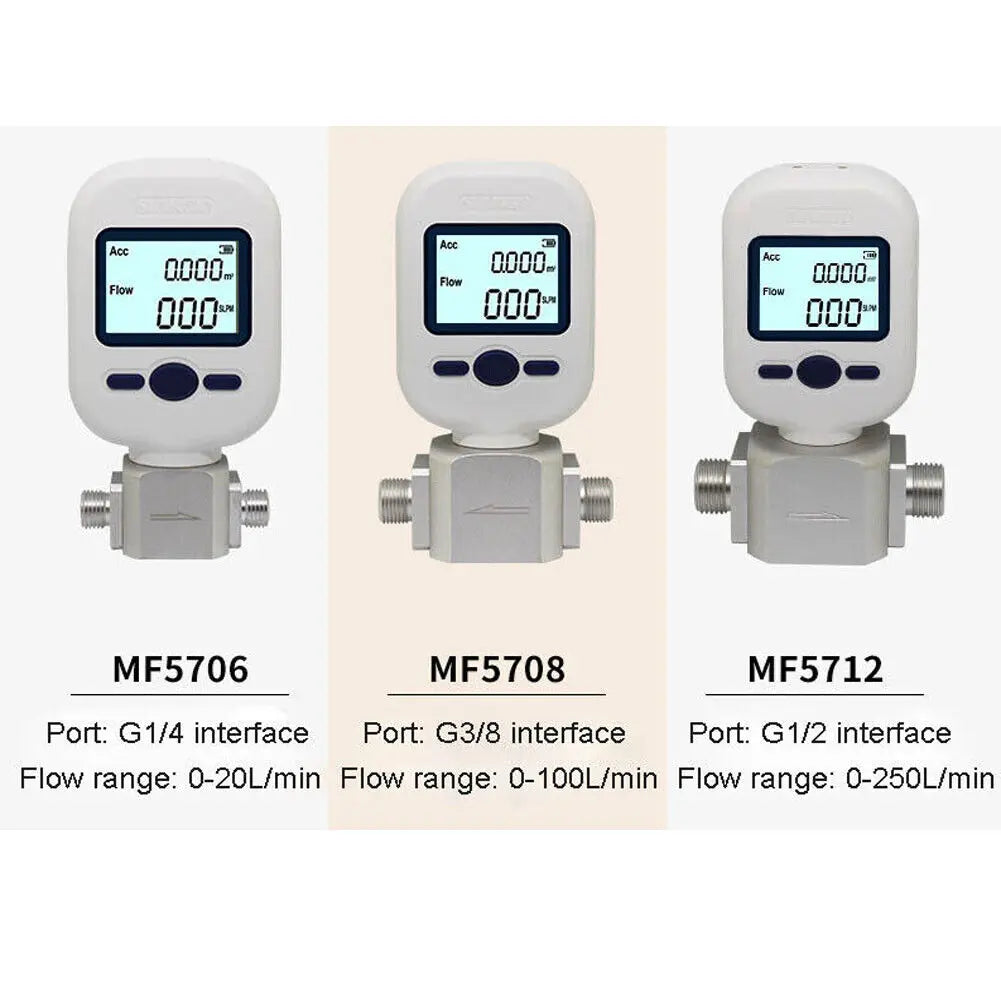

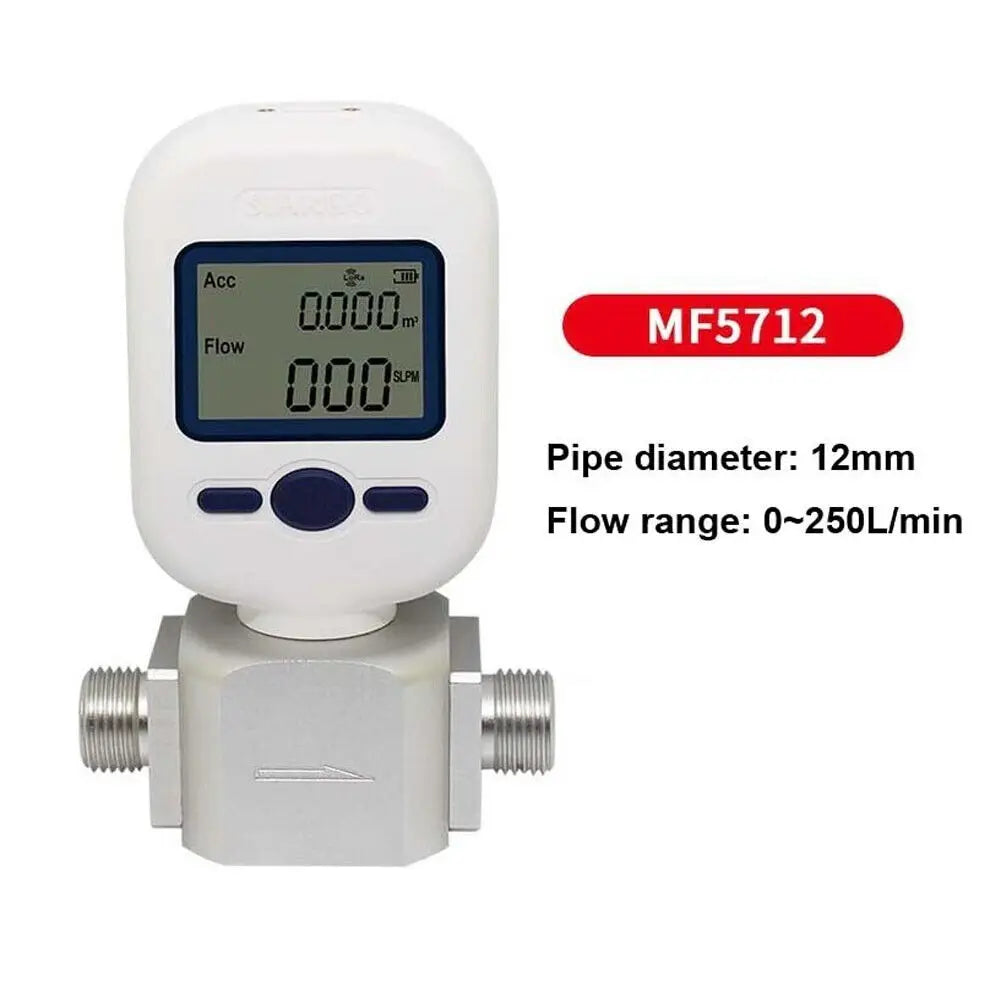

MF5706 (0-20L/min) /MF5708 (0-100L/min) / MF5712 (0-250L/min)
Gas mass flowmeters are suitable for Air Nitrogen Oxygen，
Instant flow test and flow accumulation calculation.
Features: - Ultra-low power consumption via battery or optional external AC adapter - Portable design, small size and easy installation - MEMS technology for small gas flow testing with high accuracy. - RS485 Modbus protocol available for networking - User programmable range alarms for safety and other monitoring/control functions Product Features ◆The sensor chip adopts thermal mass flow measurement without temperature and pressure compensation, which ensures the high-precision measurement of the flowmeter ◆High sensitivity, can start to measure very small initial flow ◆Multi-sensor integration is realized on a single chip, making its turndown ratio reach 80:1 or even higher ◆Full-scale high stability, high accuracy and excellent repeatability Supports the measurement of multiple gases, allowing customers to perform on-site calibration of some special gases quick response The output mode is flexible, providing LCD on-site display, and can also provide RS485 communication interface to query the output data from the host computer Parameters can be configured by key ◆With over-range alarm indication function ◆Portable design, battery power supply and external power supply mode can be switched arbitrarily ◆G thread or NPT thread connection, easy to install and use, other interfaces can also be customized according to customer needs Wide range of applications: mechanical and electrical industry. Food industry. Tobacco industry. Analytical instrument industry. Chemical industry. Beverage industry. Glass industry. Scientific research institutions. Pharmaceutical industry. Agriculture, forestry and fishery |
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
