Feature:

1. Self Starting: This generator controller is a stand alone self starting controller. It is a compact but powerful controller that can provide complete monitoring and protection functions for the generator set.

2. With LCD Display: The LCD display screen of the controller can display general alarm, electrical trip, shutdown and other alarm information, and can monitor the speed, oil pressure, water temperature, oil level of the engine as well as the frequency, voltage, current and power of the generator to provide complete engine and generator protection.

3. Parameters Set: Parameters can be set through DSE software or edited on the front panel. And it is made of premium ABS material that is durable.

4. Protection Functions: With multiple flexible input, output and protection functions, this generator controller replacement is suitable for a variety of application requirements.

5. Applicable: The generator controller panel support diesel, gas and gasoline EFI engines and non EFI engines, and generator frequency detection.

   Specification:

   Item Type:Generator Controller

Material: ABS

Gross Weight: 310g/10.9oz

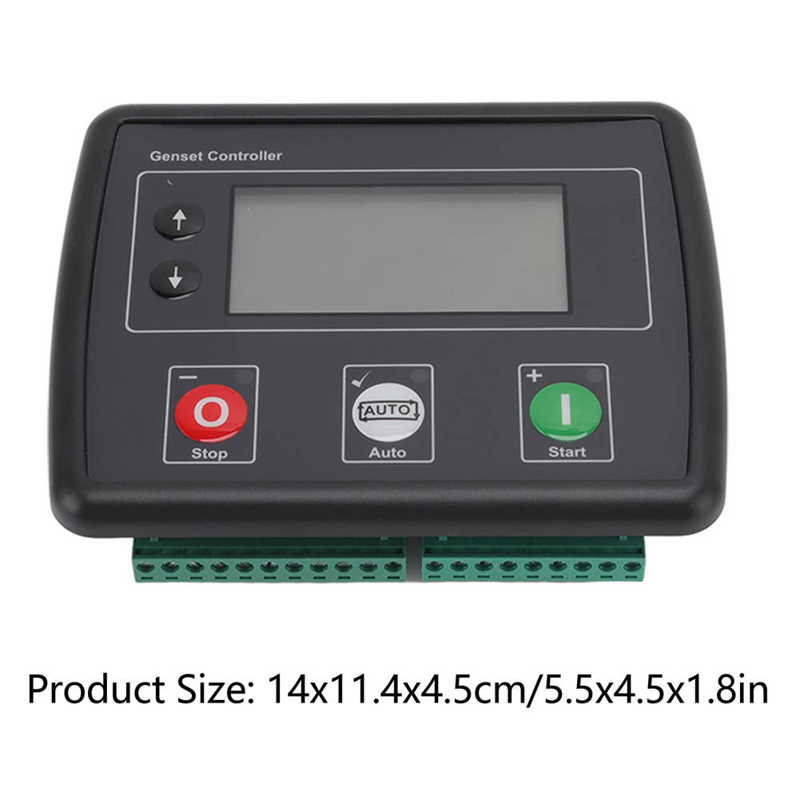

Product Size: 14x11.4x4.5cm/5.5x4.5x1.8in

Function:

Customizable self start mode

Support J1939 75 and shield CAN alarm

Generator frequency and CAN detection speed

Largest backlight graphic display in similar products

Real time clock

All parameters can be set through the front panel or computer

Power saving mode

3-phase generator detection

Support 600 V line voltage, L-L system

Unit/load force monitoring, KW, KVA, KVAR, pf

Cumulative power monitoring, KWh, KVAh, KVArh

overload protection

Unit/load current detection and protection

The fuel and startup output can be customized when connected to the EFI machine

Circuit customized DC output

3 way user defined analog, digital input

4 way user defined digital input

Customize Hierarchical Load Output

Maintenance of three engines

Engine speed protection

Engine running time timer

Engine warm up

Engine start stop cycle can be preset

Engine start idle speed and stop idle speed control

Tier4 standard engine instrument interface

Battery voltage monitoring

Start the unit when the battery voltage is low

Custom Remote Start Input

2 sets of protection parameters

Perfect alarm, electrical trip and shutdown protection

LCD alarm indication

50 event records

   Package List:

1 x Controller

   2 x Accessories

   1 x Instructions
