Glossmeter HG60 Digital Marble Gloss Meter Glossmeter for Stone Reading Range 0~300 GU

     Product Overviews

      HG60 Economic Gloss Meter

   HG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

   HG60 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.

   Features:

       1.       60° angle for semi gloss    2.       Concise appearance, feel good    3.       Display 5 sets of measurement data, good for comparison    4.       Built-in lithium ion rechargeable battery    5.       Basic model measurement can meet basic glossiness testing requirements    6.       Connect to PC, more extend functions    7.       One button for all angles measurement at the same location    8.       Comply with international standards    9.       Stable performance, easy to read data.

   GQC6 Software Introduction:

   GQC6 software is used with 3nh gloss meter for PC connection, measurement, data management, data export, print reports, etc.

   Specifications:

                   HG60 Economic Gloss Meter

                                          Model:

        HG60

                         Measuring Angle

        60°

 Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457

                         Measuring Area (mm)

        9x15

                         Measuring Range

        0~300GU

                         Division Value

        0.1GU

                         Measurement Range

 Repeatability

 Reproducibility

        0-10GU            10-100GU      100-300GU

 ± 0.1GU           ± 0.2GU           ± 0.2%GU

 ± 0.2GU           ± 0.5GU           ± 0.5%GU

                         Measurement Standard

        Conform with JJG696 first class glossmeter working requirement

                         Chromaticity Corresponding

        Corresponding with CIE 1931(2°)  under CIE C light source

                         Errors

        ±1.5 , ± 1.5%

                         Measuring Time

        0.5s

                         Dimension

        L*W*H : 160mm*75mm*90mm

                         Weight

        350g

                         Language

        Chinese/English

                         Battery

        3200mAh Li-ion Battery , >10000 times(within 8 hours)

                         Display

        TFT 3.5 inch

                         Interface

        USB/RS-232

                         Storage

        Basic mode: 1000

                         Software

        GQC6 Quality Control Software with QC report printing functions and more extended functions.

                         Operation Temperature

         0~40℃(32~104°F)

                         Storage Temperature

         -20~50℃(-4~122°F)

                         Humidity

        <85% relative humidity, no condensation

                         Standard Accessories

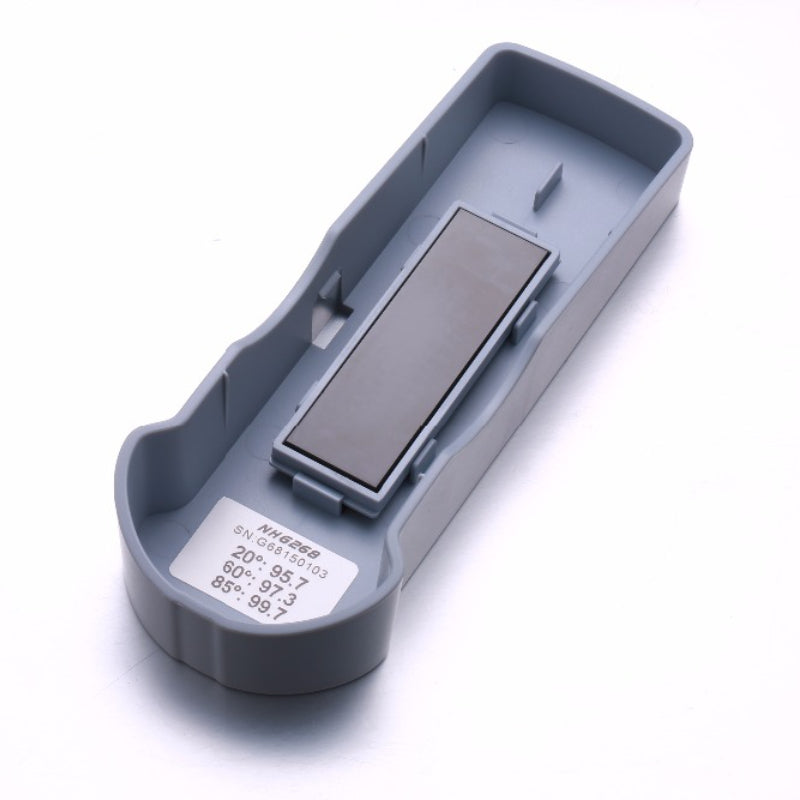

        Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate

                         Optional Accessories

        Miniature Printer

                         Note

        The specifications are subject to change without notice.

 Keywords: gloss meter, glossmeter, glossness meter

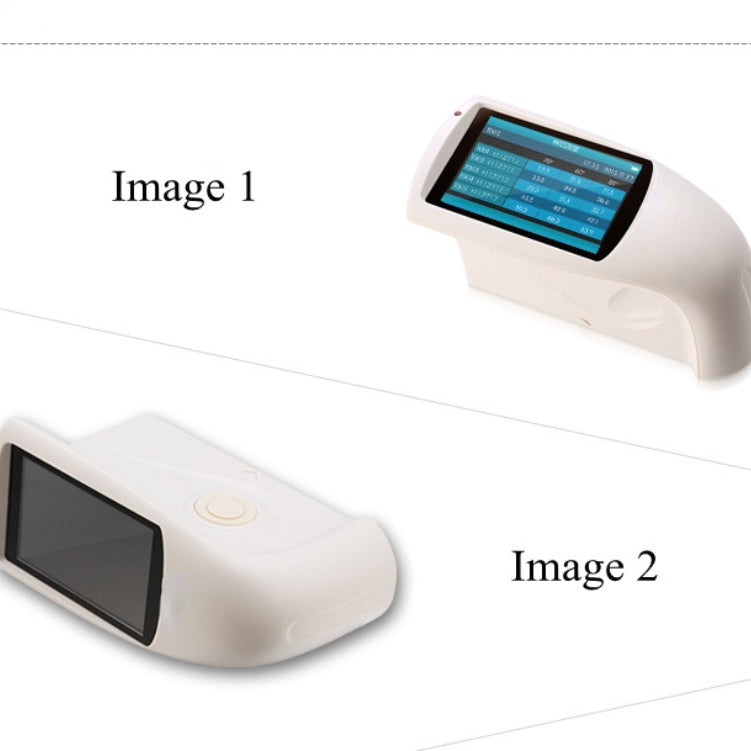

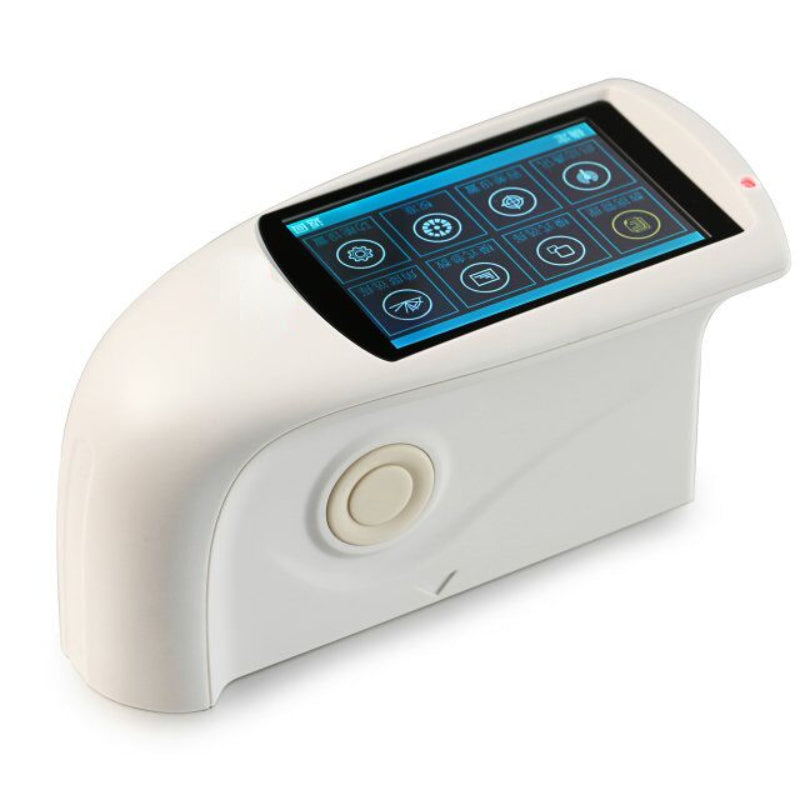

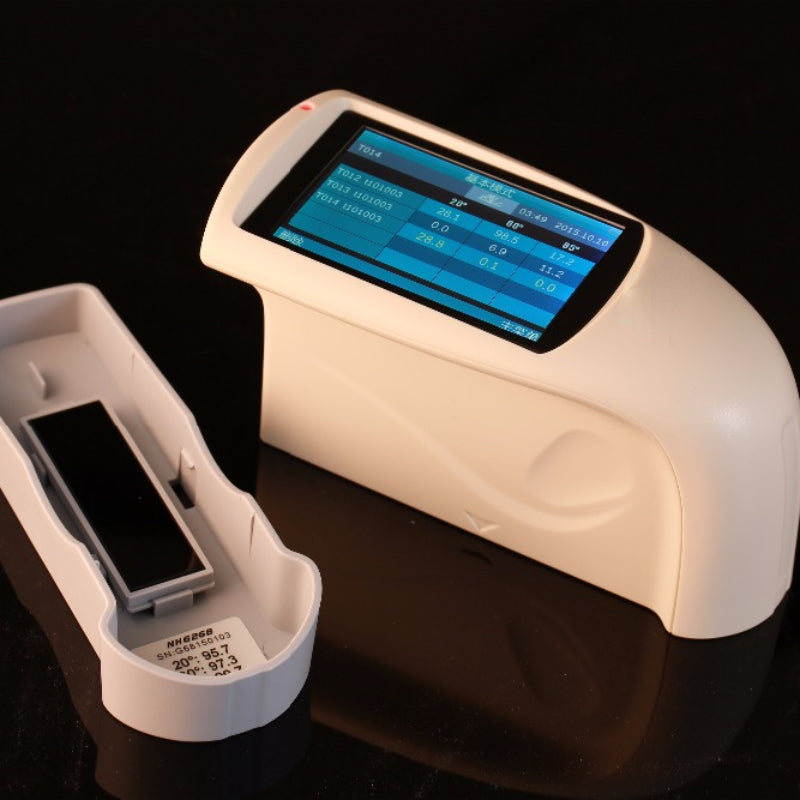

     Detailed Images

     Certifications

     Gloss meter glossness passed CE, FCC, ROHS, certifications
