GSP-6 Temperature & Humidity Data Logger USB Temp Data Logger Recorder Vaccine Temperature Recorder 16000 Points Detector 40% off

         Product overview:

    This data logger is mainly used to record the temperature and humidity of food,pharmaceuticals and chemicals,etc.in the storage and transportation.It is widely applicable to each link in storage and logistics of cold chain,such as refrigerated container,refrigerator truck,cooler bag,cool cabinet,medicine cabinet,cold storage,laboratory,etc.

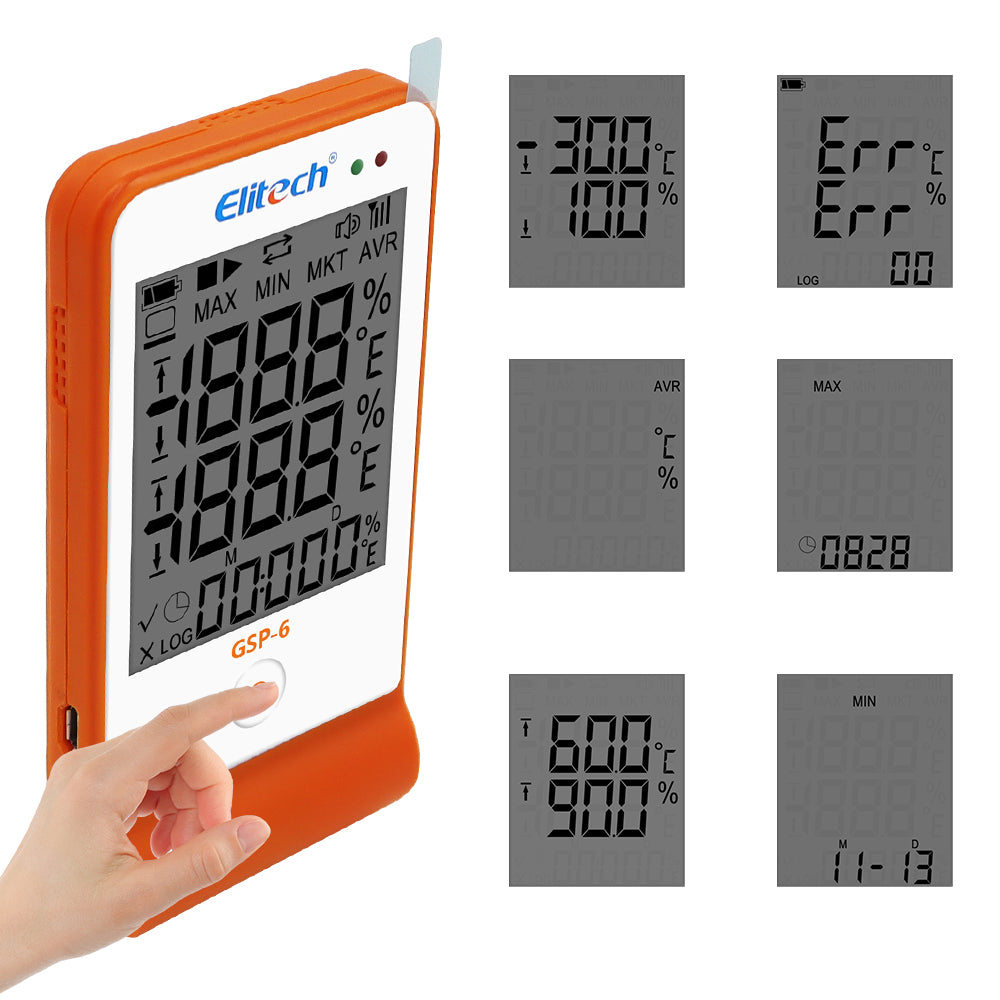

    This data logger conforms to GSP standard of new edition. It has one big LCD screen,a button,an external temperature sensor and an external humidity sensor. With two modes to save data: full record stop and cyclic record,the data logger has the functions of over limit sound-light alarm. It can also automatically shorten the record interval in case of over temperature and humidity limit. Two pieces of built-in magnets are convenient to fix the data logger onto metal material surface.

         Specification:

         Temperature measuring range:-40℃～85℃

     Temperature accuracy:±0.5℃(-20℃～40℃);±1℃(others)

     Humidity range:10%～99%

     Humidity accuracy;±3%RH(25C,20%~90%RH);±5%RH(others)

     Resolution: temperature 0.1℃,humidity 0.1%RH

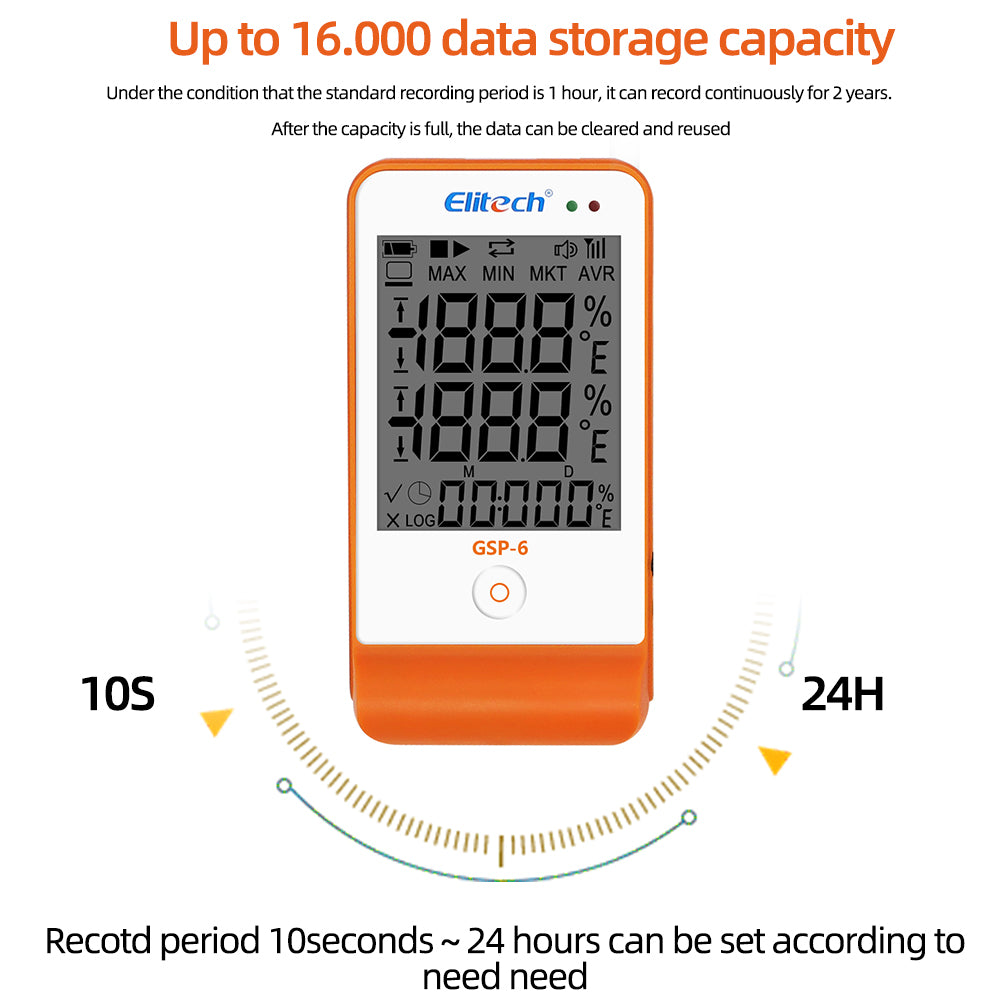

     Record capacity:16000 points(MAX)

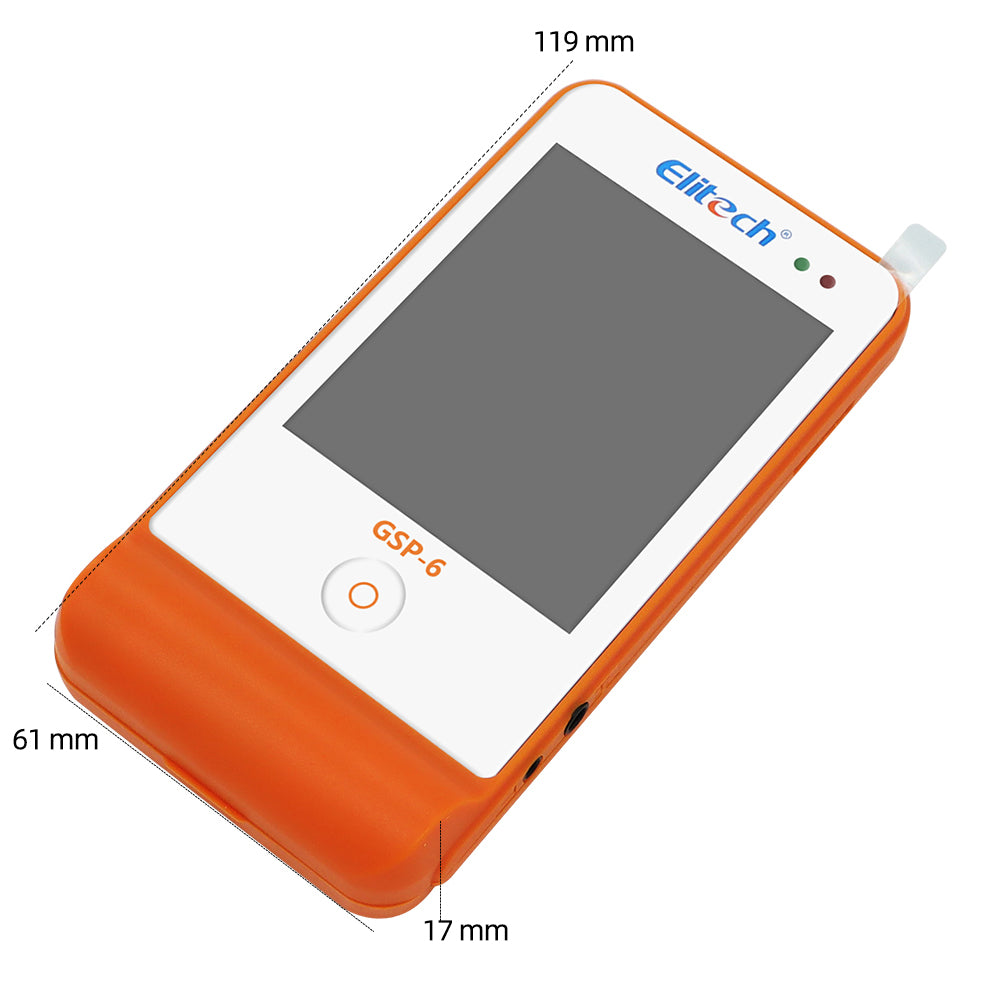

     Dimension;118 (length)*61.5(width)*19(height)(mm)

     Record interval:10 sec～24 hour continuously set

     Data interface:USB

     Power supply:single-use 3.6V lithium battery or powered via USB

     Battery life:two years at room temperature with 15 minute record interval and buzzer alarm disabled

     Ambient temperature:-30℃～70℃.At low temperature environment,the LCD screen displays normal record but a little slowly.It will display data normally when the ambient temperature returns to normal.

         Use the data logger for the first time

    1. Install the data management software for RC-61 data logger (referred to as the data management software).Insert the data logger to a computer USB port and install the setup software according to the prompt information.

    2. Open the software, and the data logger will automatically upload information after connected to the computer.

    3.Click the icon "set parameter"and set the parameters according to your desire. Click "save parameter"to exit from the setting interface.

    4.Press and hold the left button for more than 4 seconds,the symbol lights to start recording.Click the icon "upload data"to view the data.

    5. Log out the data management software.
