Specifications:

CPU: 770MHz Dual Core

Flash Memory: 64MB SPI Flash

DDR2 Memory: 1G RAM

TS Demux

Demultiplexer: ISO/IEC 13818-1

Input Bit Rate:Max 100Mbit/s

Video Decode

Video Decode: HEVC main profile @ level 4.1 and main10 profile @ L4.1,High tier MPEG-2 MP @ ML

H.264 BP,MPHP @ L3/L4.1/L4.2

AVS Jizhun profile and broadcast profile

MPEG-4 SP profile, advanced simple profile @ L5

VC1 SP @ ML, MP @ HL, AP @ L0-3

JPEG decoder

TV System: Automatic PAL/NTSC conversion

Aspect Mode: Auto, 16:9 Pillar box, 4:3 Pan Scan, 4:3 Letter Box

Video effects: Standard, Default, Vivid.

Video Resolution: 1080P, 1080I, 720P, 576P, 480P, 576I, 480I

Color Space: RGB, YUV422, YUV444, Auto

Audio Decode

Audio Decode: MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC,

D00BY AC73/AC03+, DRA CH/5.1CH

Sound Mode: LEFT/RIGHT/STEREO/M0N0

Audio Out: LPCM Out, BS Out

Hardware specifications

Panel display: 4-digit white LED display (Support function display)

LED Indicator: Power ON :Green; Standby :Red

Button: NOT

Wifi: Built in 2.4G WiFi  Support IEEE 802.1.1b/g/n

IR: Exit IR for 38KHz,Infra Remote control

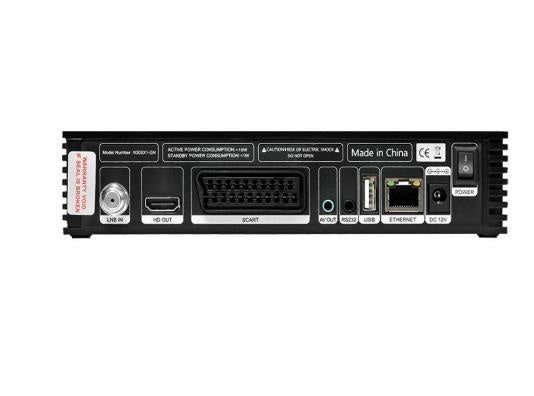

Rear Panel

LNB IN  (Frequency Range950MHz to 2150MHz)

HD OUT (up to 1080P)

SCART OUT

AV OUT (3.5MM*18MM Jack/4-Pin:Red-White-Yellow-GND)

1*CA card solt

1*USB HOST

1*RJ45

1*RS232 (3-pin 3.5 mm jack)

DC IN (DC12V/1.5A)

DVB-S/S2  specificati-ons

System standard: ETS 302 307

Frequency Range: 950~2150MHz for DVB-S/S2/S2X baseband demodulator

LNB Power and Polarization: DiSEqC1.0/1.1/1.2/USALS M0t0r fully support, Support Un0able, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone,Overload Protection

Input Level Range-80dBm ~ -20dBm (average power)

Symbol RatesDVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK,DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK

Forward error correction rate1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10

Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates

Symbol Rates2 ~ 90MSPS(Code Rate 1/2)

Roll-off factorsRoll-off factors for pulse shaping: 0.2, 0.25 and 0.35

Cde Rtes1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6,8/9,9/10 for DVB-S2,

DVB-S2X Normal Frame and Short Frame FEC cde rtes

ANT. ConnectorConnector:IEC TYPE F     Input Impedance:75 Ω

Sortware Features

Standard: Fully comply with DVB-S/S2/S2X (SCPC and MCPC  receivable from C/Ku band satllite), MPEG-2/4 and H.265 Standard

OSD Color: 32-bits OSD with anti-flickering

OSD Setting: Support OSD Timeout and Transparency, Subtitle Display, Channel list displays pages 1-3.

Other Setting:Sets up multiple habitual operation Settings

Parental Ctrl:Parental control for channels

Easy Menu:Plug and Play installation, with an easy to use Menu System

Subtitle: support DVB EN300743 and EBU

Teletext:support DVB ETS300472 by VBI

SoftUpgrade: Software upgrades through USB port, or FTP upgrade.

Time Set: Time set by GMT offset automatic and manual,Summer Time support

Timer: 5 event timers,off/Once/Daily/Weekly Mode

USB Decode

USB 2.0Support FAT/FAT32/NTFS big capacity hard disk

PVR Option: USB 2.0 for PVR,TIMESHIFT,media files plback

Media C0dec: TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files

Audio C0dec: WMA,MP3

Photo C0dec: JPG, BMP, PNG, GIF

Product Dimension193*125*40MML*W*H

Packaged Size: 264*170*55MM

Unit Weight: 0.68 Kg with gift box

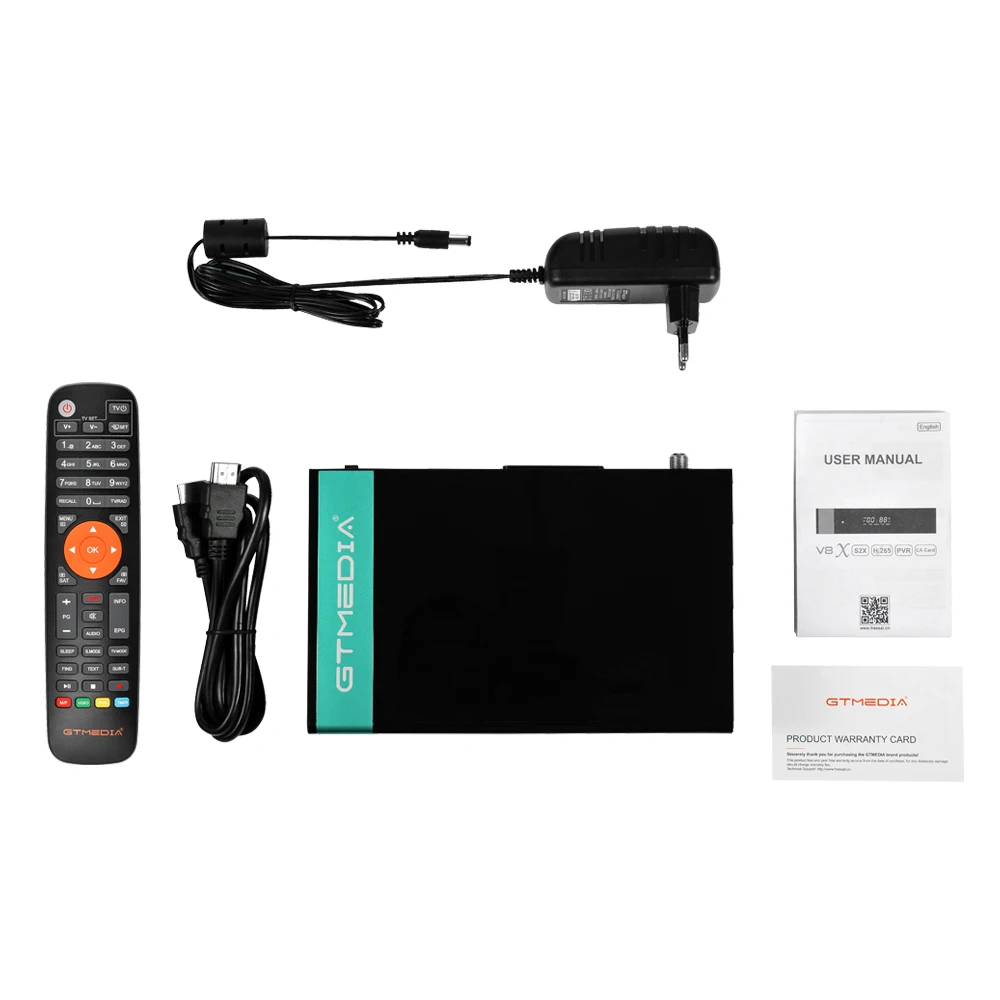

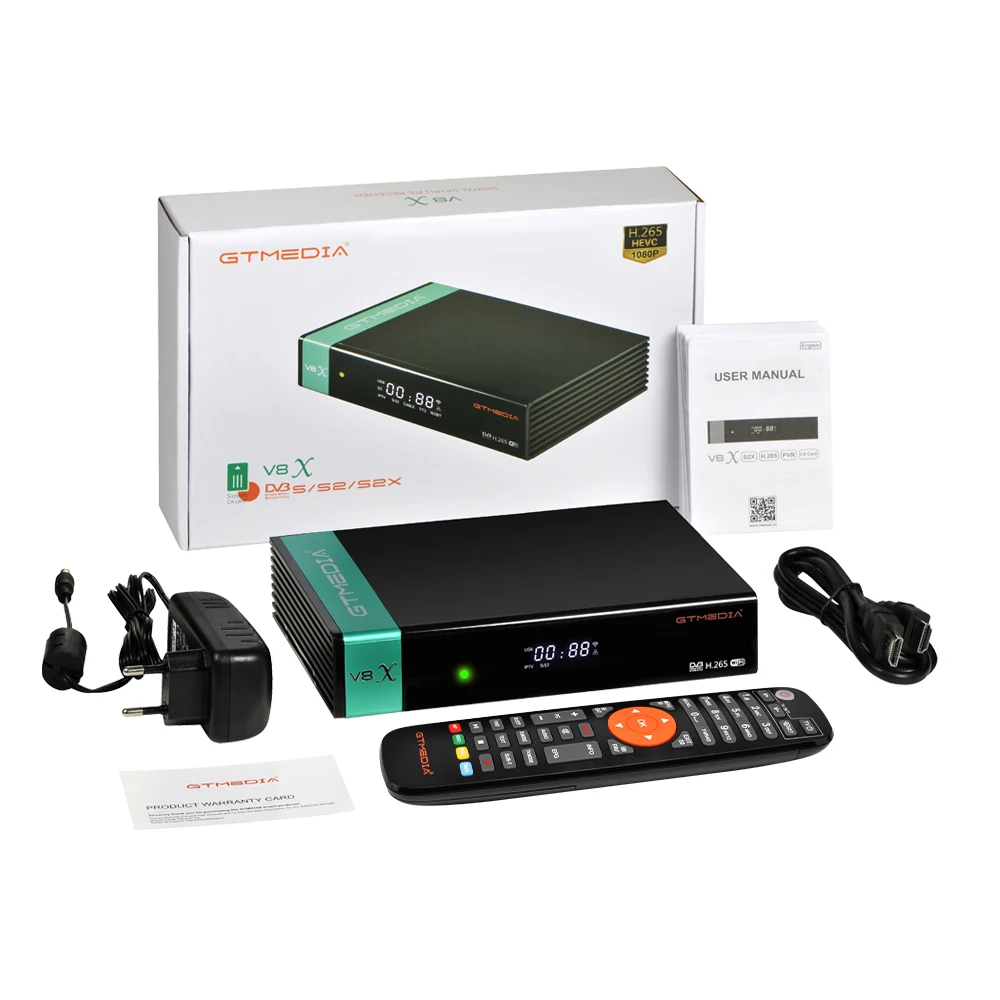

Package Included:

1 x GTMEDIA V8X Receiver

1 x Remote Controller

1 x Power Supply

1 x HD Cable

1 x User Manual
