Temperature (Stable Image):0℃ to 50℃
Assembly technique:SMT (ROSH)
Focus:Fixed
Object distance:30CM-infinity

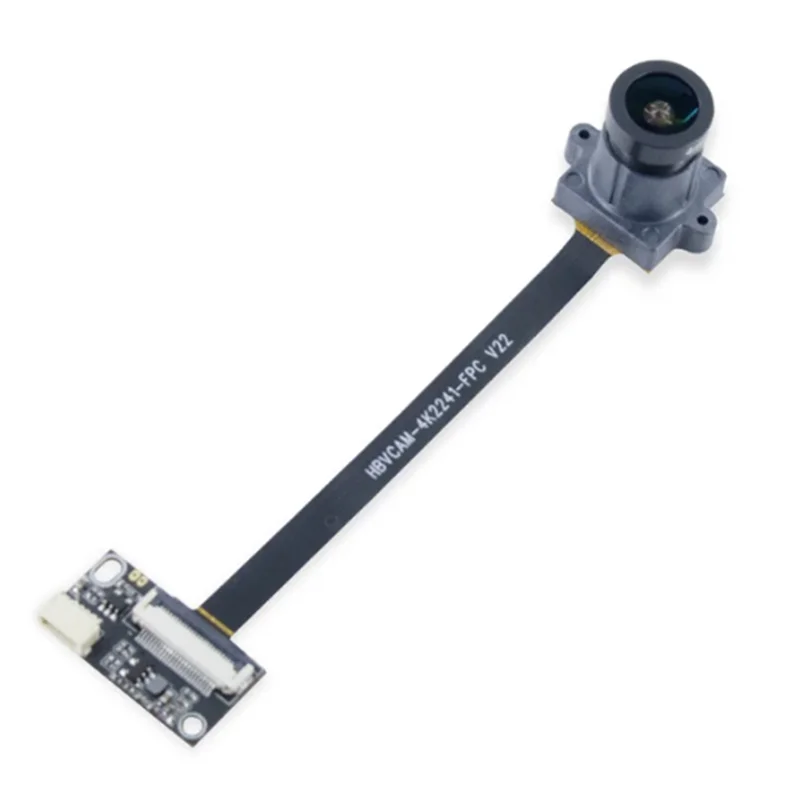

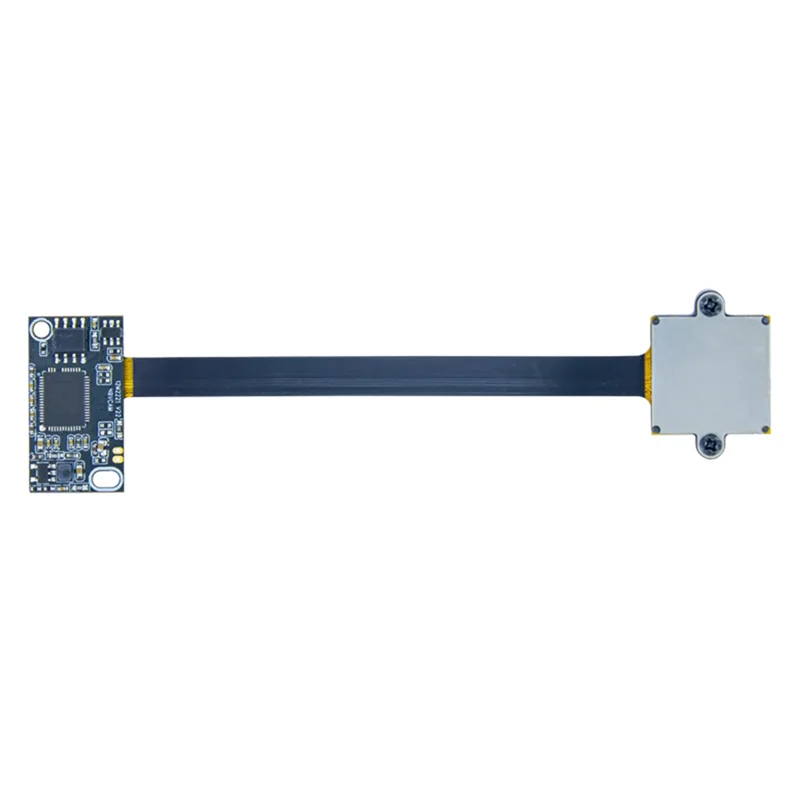

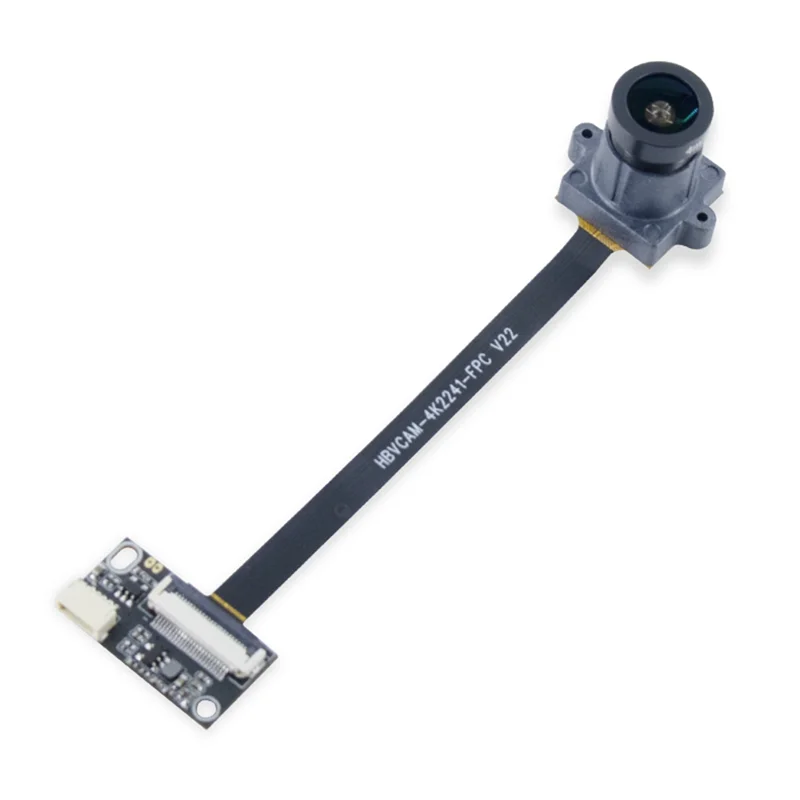

Module No.:HBVCAM-4K2241 V22
Resolution:600LW/PH (Center)
PCB printing ink:Black
interface:USB 2.0
Power suuply:USB bus power
Supply voltage:DC 5V±5%
Maximum Power consumption:1330 mW
Operating system request:Win XP/win 7,8/vista/android 4.0/ mac/Linux with uvc
Sensor:IMX415 (1/2.8Inch)
Seneor Package:PLCC,Bare Die
Maximum resolution:3840*2160
Sensitivity:2000mV/(lux-sec)
Pixel Size:1.0µm x 1.0µm
S/N Ratio:46db
Max Dynamic Range:72db
Shutter type:Electronic rolling shutter
AGC/AEC/Whiter balance:Auto
Output Formats:YUY2/MJPEG
Microphone:Support
Lens Construction:5G
F/No:2.2
EFL:1.9 mm
TV Distortion:Less than 8%
Relative Illumination (Sensor):70%
IR Filter:650±10nm
Module Package:Anti-electrostatic tray

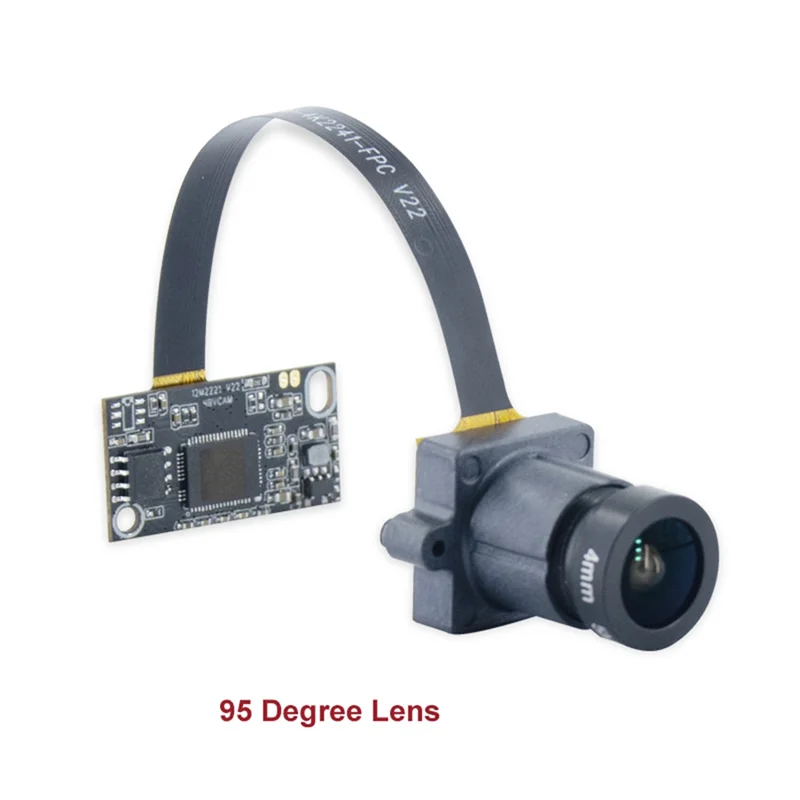

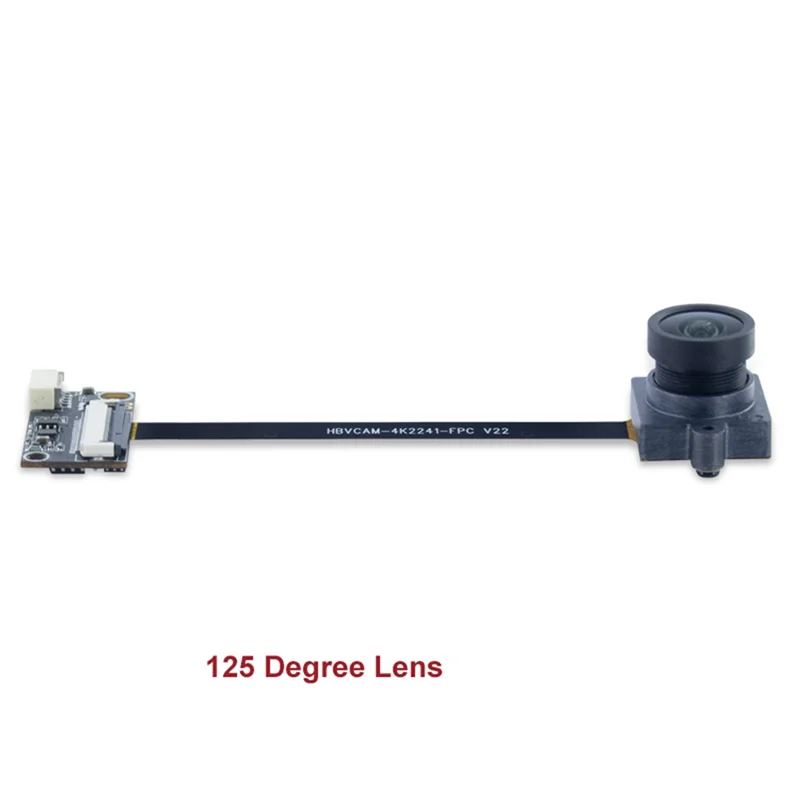

FOV:95°/125°
Colour:Black
Material:Plastic+Metal

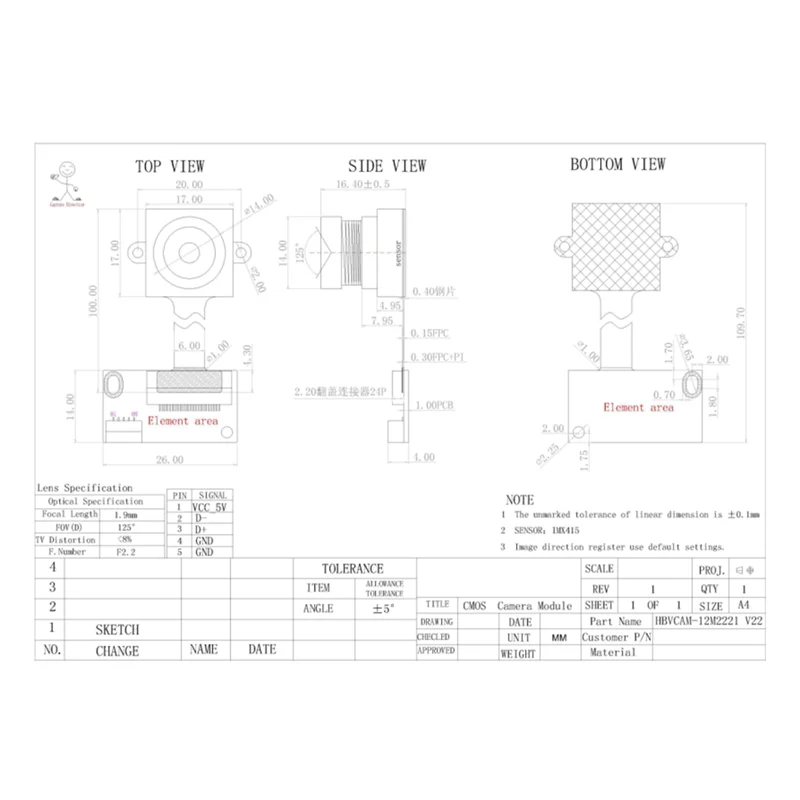

Size:Module Size:109.70mm x 26.00mm x 16.40mm±0.5MM
Package Contents:
1 * camera module
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
