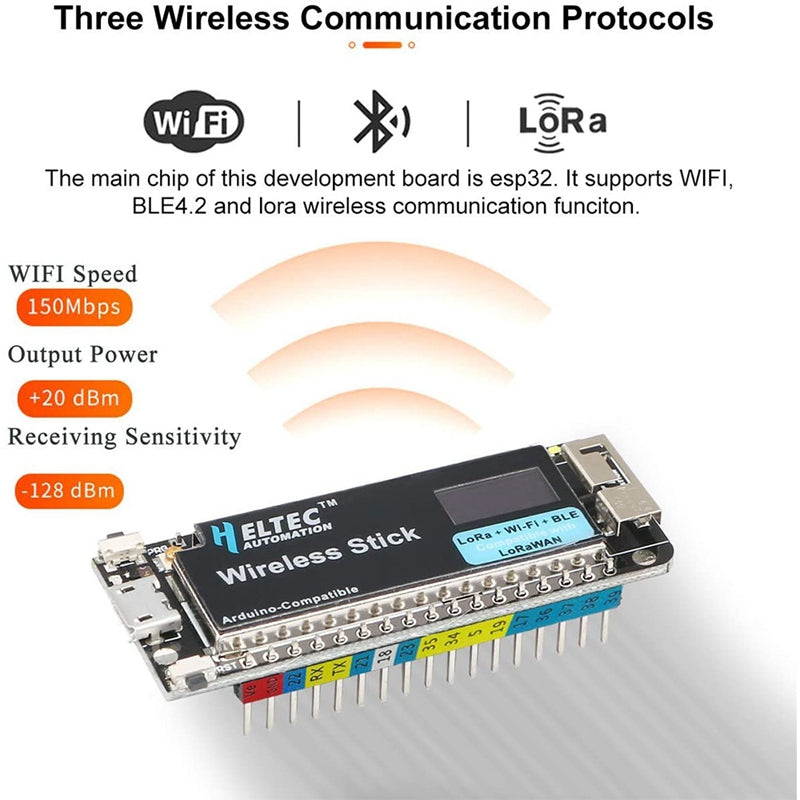

Using Lexin ESP32 chip. 32-bit dual-core, 240MHz frequency. Integrated WiFi and Bluetooth

The main processor is completely free to run user applications.

An additional ULP coprocessor is used to monitor GPIO, ADC channels, and control most internal peripherals.

Use Semtech's SX1276 chip. Support 868MHz, 915MHz dual frequency. Can be used as both a LoRa node and a micro gateway

Support LoRaWAN protocol. Node transmission distance: open up to 6KM. Output power: up to +20dBm (±2dBm)

Note: This item comes unassembled, soldering of headers is required. Lithium battery is not included.

wireless online

802.11 b/g/n/e/i

802 802.11 n (2.4GHz), speed up to 150Mbps

802 802.11 e: Realize the QoS mechanism of wireless multimedia technology

WMM-PS, UAPSD

MPDU and A-MSDU frame aggregation technology

Block recovery, fragmentation and reorganization

Beacon automatic monitoring/scanning

802 802.11 i security features: pre-authentication and TSN

Support WPA/WPA2/WPA2-Enterprise/WPS encryption

Infrastructure BSS Station Mode / SoftAP Mode

Wi-Fi Direct (P2P), P2P discovery, P2P GO mode and P2P power management

Support IPv6

Bluetooth

Bluetooth v4.2 complete standard, including traditional Bluetooth (BR/EDR)

And Bluetooth Low Energy (BLE)

Support standard Class-1, Class-2, Class-3 without external power amplifier

Enhanced precision power control

Output power up to +10 dBm

NZIF receiver, BLE receiving sensitivity is -128 dBm

Adaptive Frequency Hopping (AFH)

Standard HCI based on SDIO/SPI/UART interface

High-speed UART HCI up to 4 Mbps

Support BT 4.2 controller and host protocol stack

Service Discovery Protocol (SDP)

Generic Access Application (GAP)

Safety Management Protocol (SMP)

Bluetooth Low Energy

ATT / General Agreement on Tariffs and Trade

size: 60x23x8mm

Material:PCB+metal

colour:Black

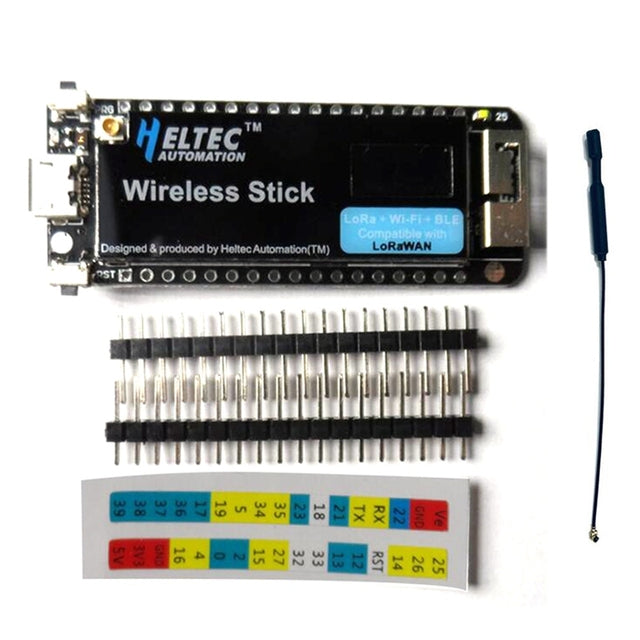

Package Contents:

1 x esp32 lora development board(Unsoldered)

1 x 868-915mHz Antenna

1 x Pin sticker

2 x Pin headers

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
