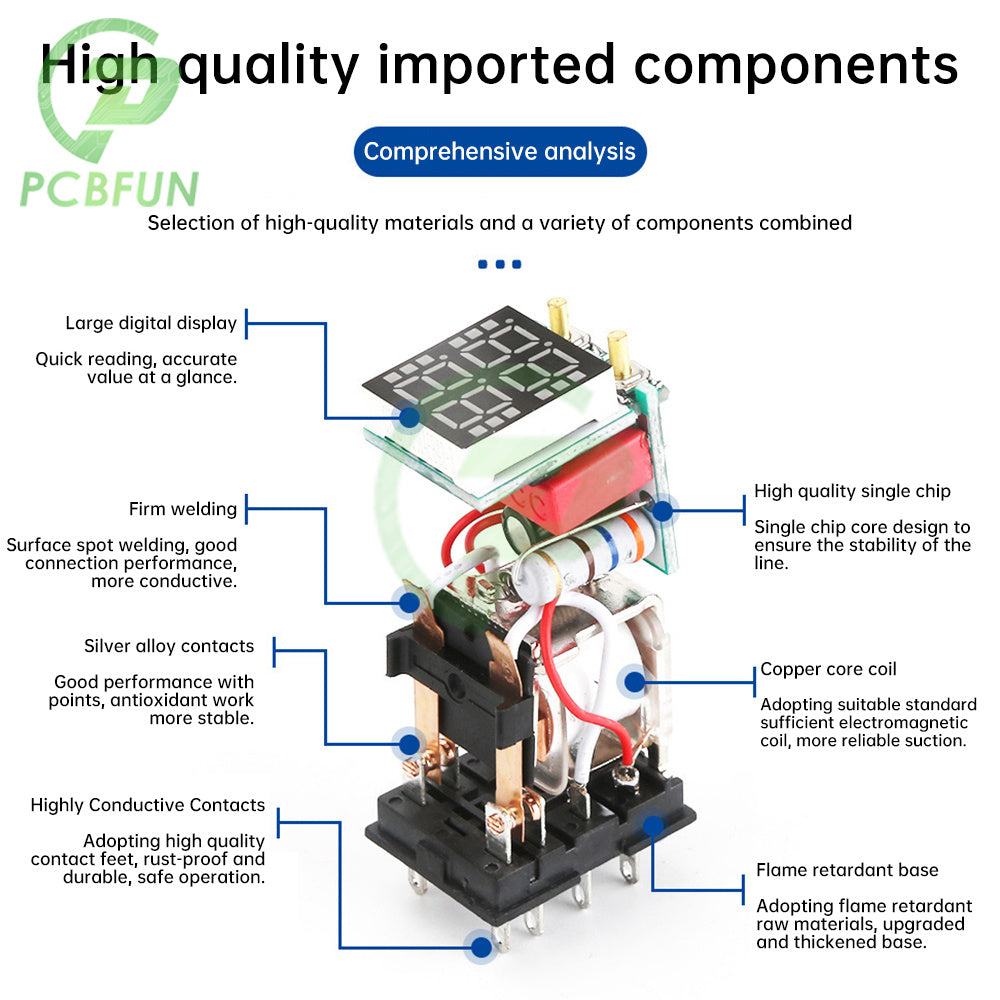

1.Pc casing, fire and high temperature resistant
2.Led high-definition screen, more intuitive digital display panel
3.Silver contacts, stable performance, oxidation resistance, and high work efficiency
4.Large capacity pins at the bottom, made of copper galvanized material, with high melting point, strong oxidation and corrosion resistance, and good conductivity
5.There are four delay modes: Power on delay mode, delay release mode, cycle delay mode, and cycle delay number setting
Parameters:

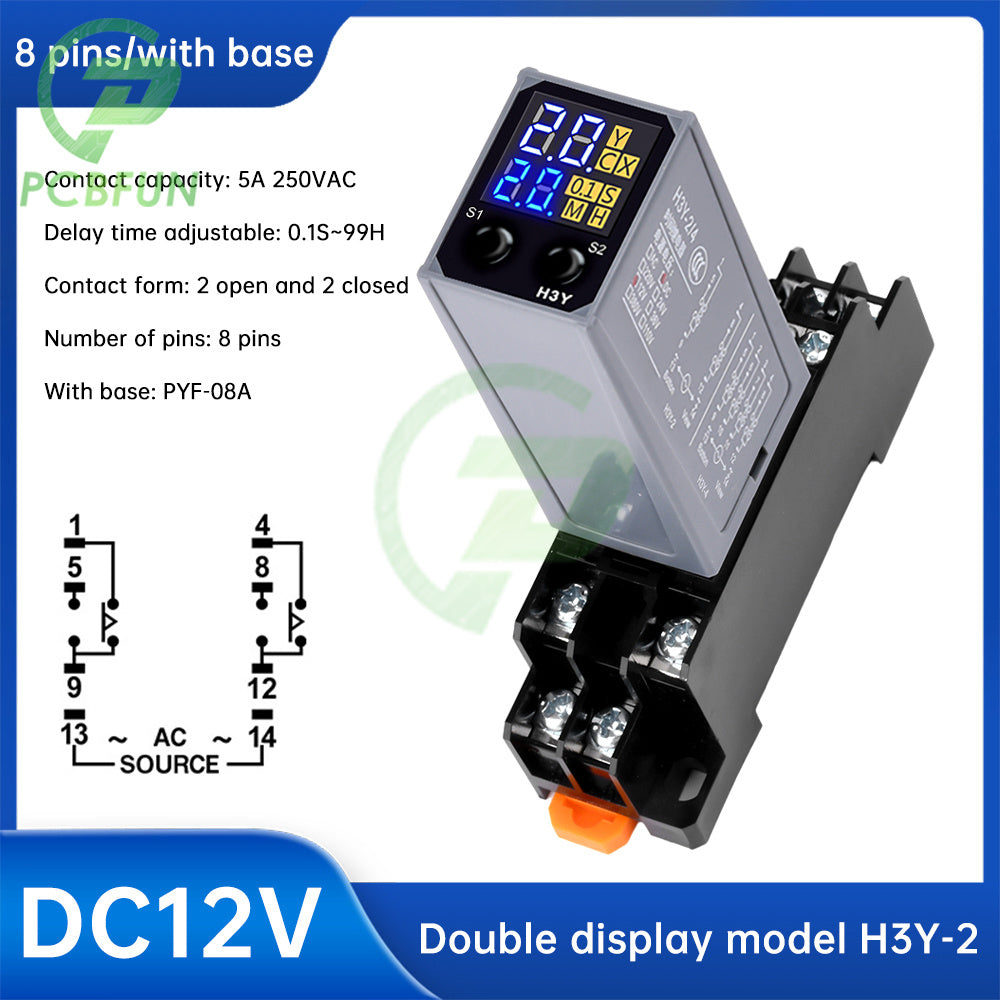

Product name: time relay (8 pins/2 open and 2 closed)
Voltage: dc12v 24v 220v (optional)
Time range: 0.1s-99h
Time error: 1%
Power consumption: max.1.5va
Environmental temperature: -25~75 ℃
Permissible voltage range: 90-110% of rated voltage

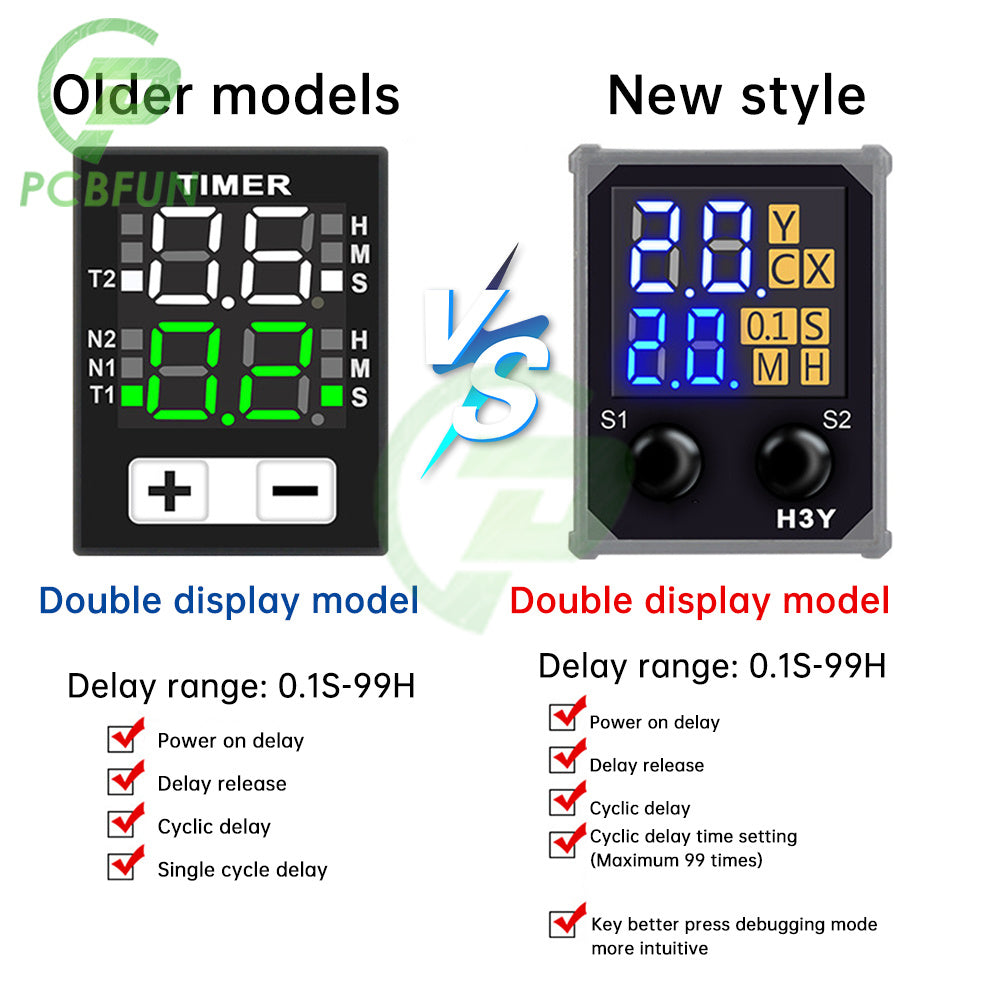

Working mode:
Y: power on delay
C: delayed release
X: loop delay
Lc: number of cycle delays
Mode setting: Long press and hold the s1 button on the left for 3 seconds. After the mode flashes, it will automatically cycle and switch. Stop at the desired mode and release the button. After 5 seconds, stop flashing and save
Time base setting: Press and hold the s2 button on the right for 3 seconds. After the time base flashes, it will automatically cycle and switch. Stop at the desired mode and release the button. After 5 seconds, stop flashing and save
Number setting: Press the left button to switch modes
Package include:
Time relay*1
Base*1
