Features:

▶ Handheld barcode scanner can scan and decode 1D/2D/QR barcodes, fast scanning speed, high accuracy.

▶ Support screen code scanning. High performance chip, super decoding capability, can scan paper and film barcode, high reflection and low brightness screen code.

▶ Plug and play, no need of driver, compatible with Linux, Android, Windows XP/7/ 8/ 10, MacOS.

▶ Built-in 2000mAh lithium battery, it has long standby time. No wires, transmission distance up to 60 meters (without barriers, more convenient.

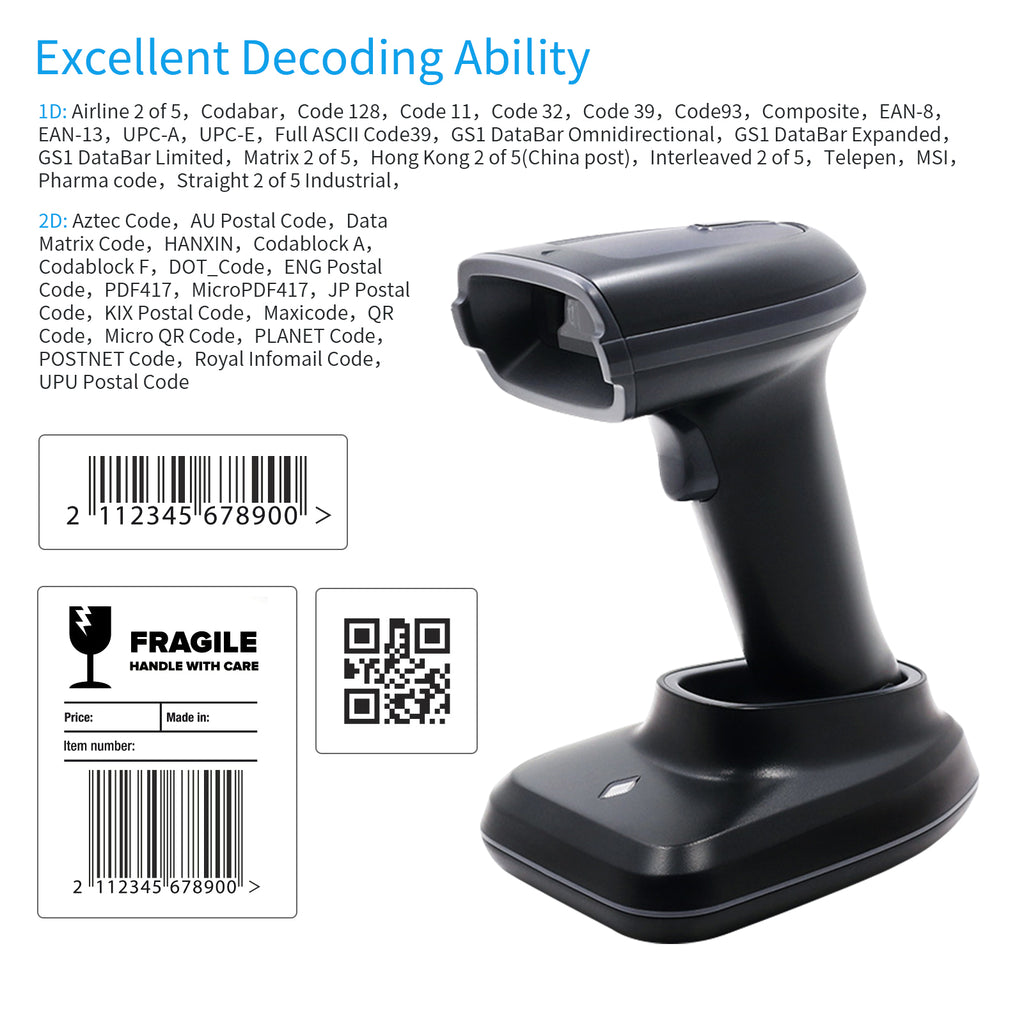

▶ Decode Capability: Smoothly scan and decode one-dimensional code (Airline 2 of 5, Codabar, Code 128, Code 11, Code 32, Code 39, Code93, Composite, EAN-8, EAN-13, UPC-A, UPC-E, Full ASCII Code39, GS1 DataBar Omnidirectional, Trioptic Code, etc)and two-dimensional code (Aztec Code, AU Postal Code, Data Matrix Code, HANXIN, Codablock A, Codablock F, DOT_Code, ENG Postal Code, PDF417, MicroPDF417, JP Postal Code, KIX Postal Code, Maxicode, QR Code, Micro QR Code, etc)

Specification:

Model: HS23

Size: 68x96.5x175mm

Weight: 200g

Image Sensor: 640x480 CMOS

Support System: Linux, Android, Windows XP/7/ 8/ 10, MacOS

Illumination: White Led

Aimer: Red 650nm

Decode Types:

2D: Aztec Code,AU Postal Code,Data Matrix Code,HANXIN,Codablock A,Codablock F,DOT_Code,ENG Postal Code,PDF417,MicroPDF417,JP Postal Code,KIX Postal Code,Maxicode,QR Code,Micro QR Code,PLANET Code,POSTNET Code,Royal Infomail Code,UPU Postal Code

1D: Airline 2 of 5,Codabar,Code 128,Code 11,Code 32,Code 39,Code93,Composite,EAN-8,EAN-13,UPC-A,UPC-E,Full ASCII Code39,GS1 DataBar Omnidirectional,GS1 DataBar Expanded,GS1 DataBar Limited,Matrix 2 of 5,Hong Kong 2 of 5(China post),Interleaved 2 of 5,Telepen,MSI,Pharma code,Straight 2 of 5 Industrial,Trioptic Code

Recognition Accuracy: 5mil

Depth of Field:

3-25cm UPC 13(13mil)

3-12cm PDF417 (6.67mil)

3-9cm Code39(15mil)

2.5-11cm Data Matrix (10mil)

2.5-15cm QR Code(15mil)

Mini Print Contact: ≥20%

Scan Angle: Skew±60° , Pitch±60°, Roll 360°

FOV: Horizontal 45.86°, Vertical 35.21°

Interface: USB

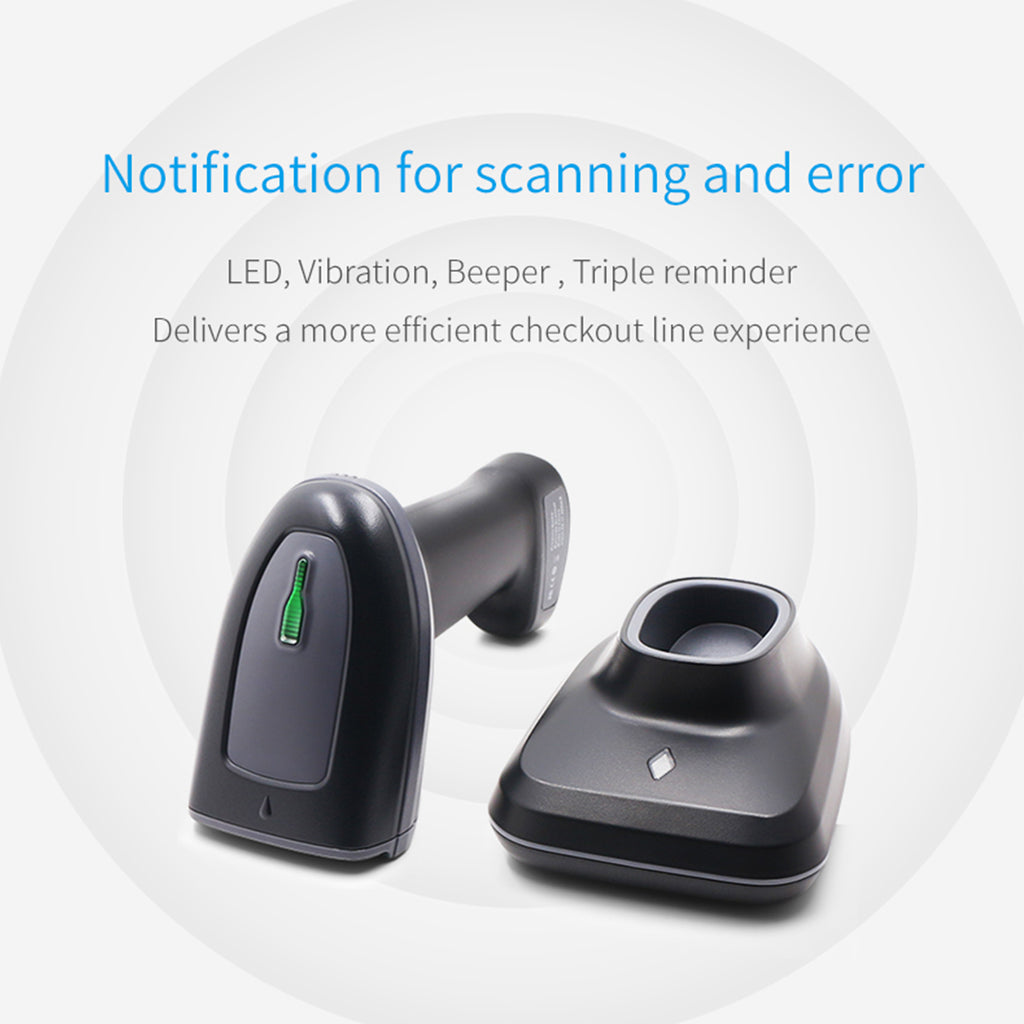

Tips: Buzzer,LED indication,vibrator

Communication mode: synchronous upload mode/manual batch upload mode

Wireless Standard: 2.4G

Transmission distance (open area): ≥60 meters (2.4G)

Storage capacity: ≥15000 pieces (20 bytes Code128)

Battery capacity: 2000 mAh

Battery charging time: ≤4.5 hours

Continuous working time: ≥13 hours (10 seconds/time) (2.4G upload mode)

Operating Voltage:  DC 5V ±5%

Operating Temperature Range: -10℃~+60℃

Storage Temperature Range: -20℃~+70℃

Operating Humidity Range: 5%~95%

Ambient Light Intensity: 0~100,000LUX

Package Size: 174x126x114mm/6.8x4.9x4.4in

Package Weight: 570g/20.1oz

Packing List:

1 x Barcode Scanner

1 x Charged Base

1 x Charge Cable
