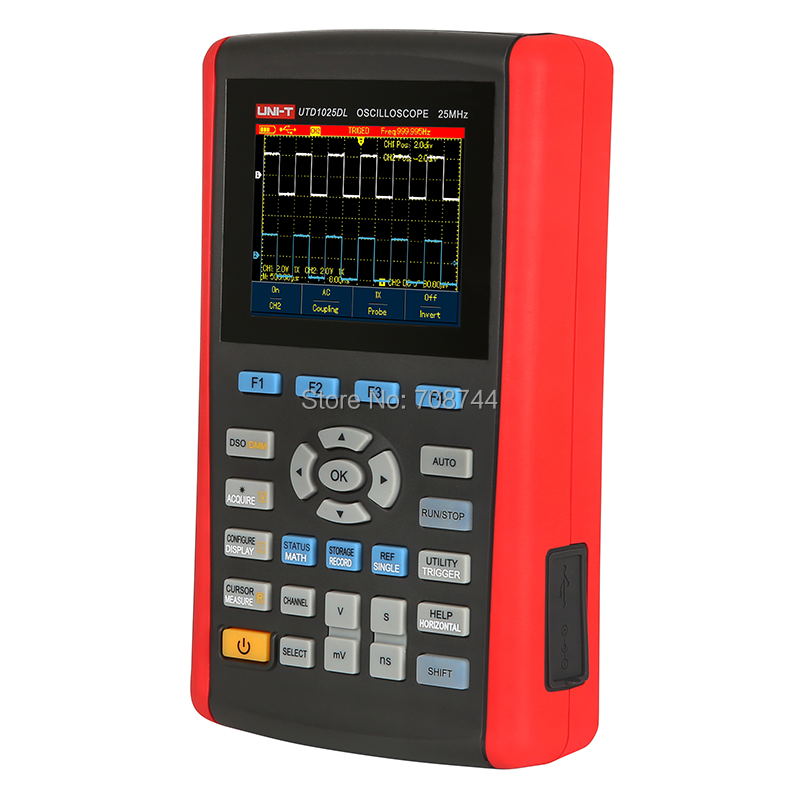

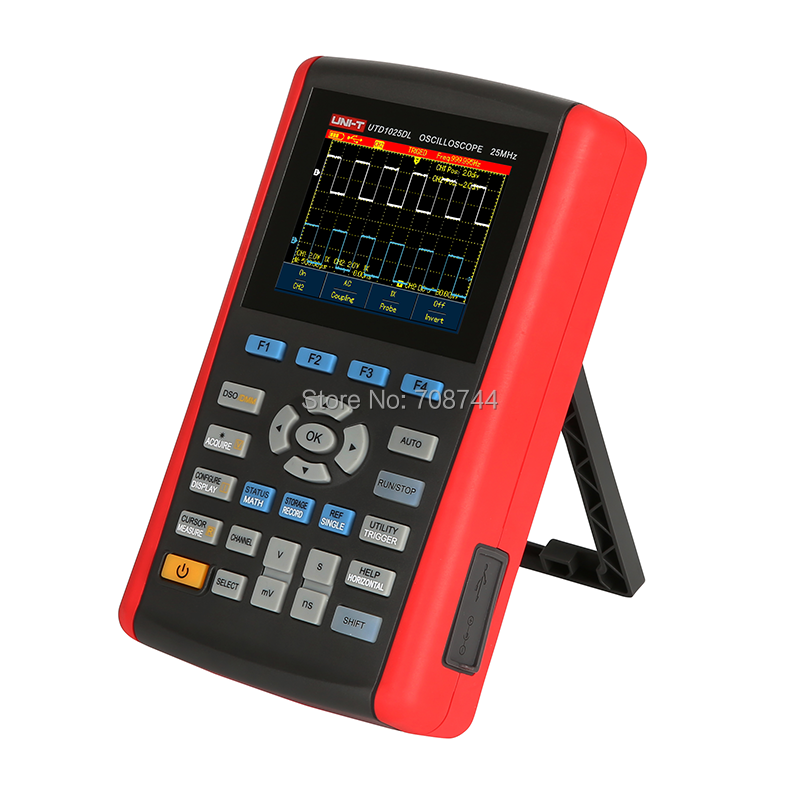

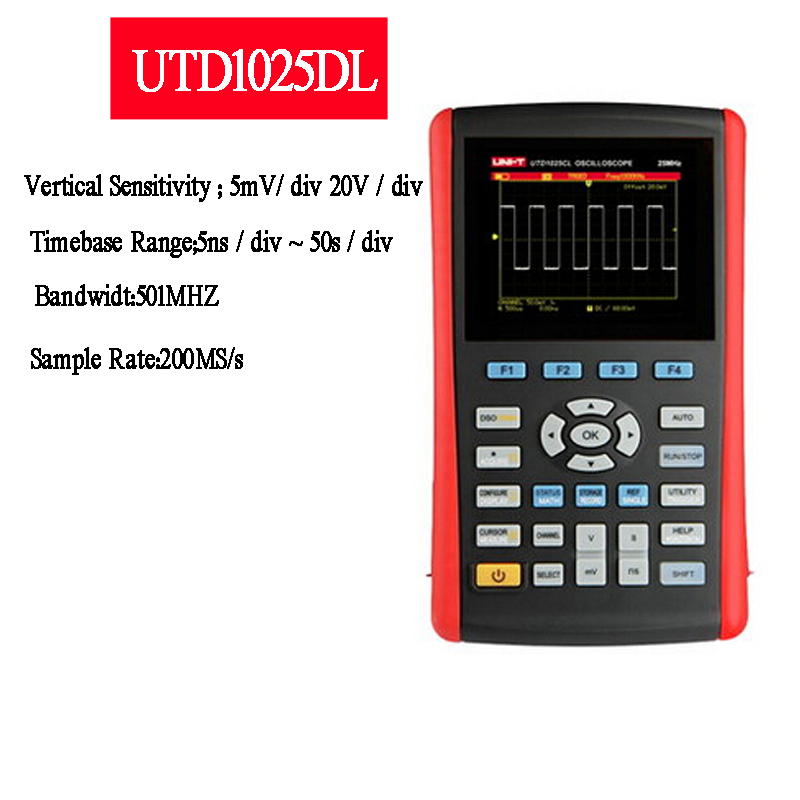

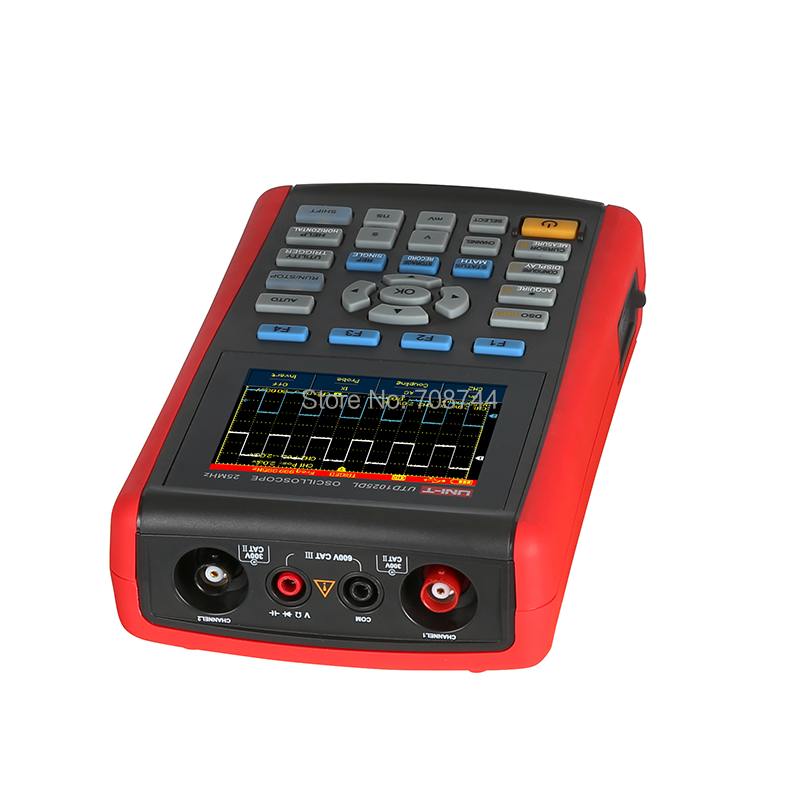

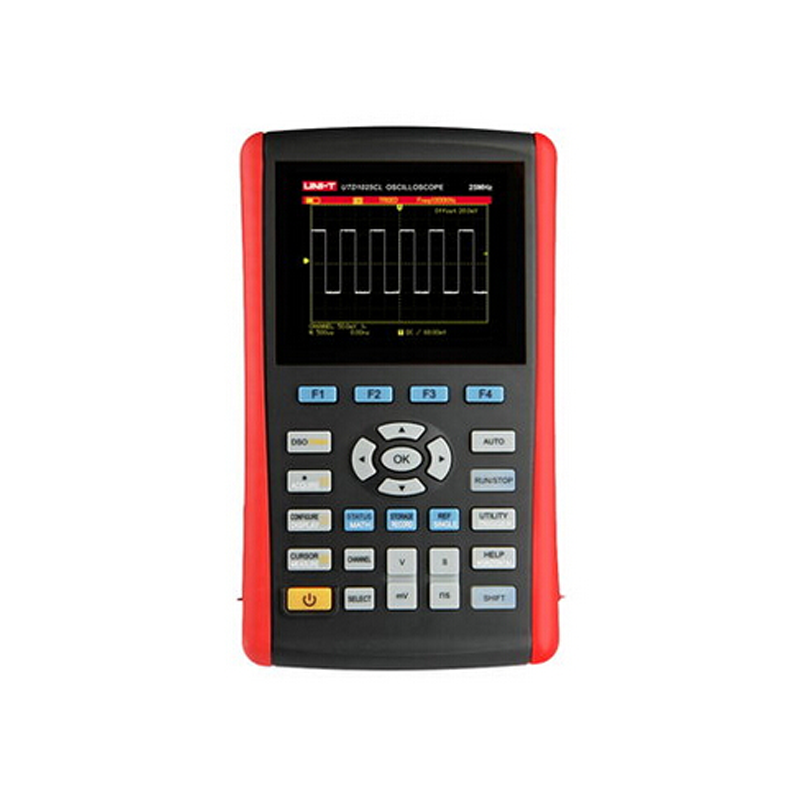

Handheld Digital Storage Oscilloscopes UNI-T UTD1025DL 2Channels 25MHz
Oscilloscope Scopemeter 250MS/s & Multimeter DMM 2in1 USD
Description:
1. Fully Auto Scale; Vertical Scale and Timebase automatically adjusted with the signal and without any manual interference
2. Unique and powerful Auto Setup, quick and accurate to set up for signals with any DC component
3. Wider voltage measuring range; Coupled with 10×probe with attenuation up to 200V/div
4. Isolated USB for much safer communication
5. White and black display for your option, perfect for use outdoors with strong light
6.Intelligent local or network software update
7. More than 6 hours of continuous battery operation
Parameter:
Specification
UTD1025DL
Channels
2
Bandwidth
25MHz
Sample Rate
250MS/s
Rise Time
≤14ns
Memory Depth
12kpts
Vertical Sensitivity
5mV/div~20V/div
Timebase Range
10ns/div~50s/div
Storage
Bitmap, Setup, Waveform
Trigger Modes
Edge, Pulse, Video, Slope
Interface
Mini USB
Multimeter Specifications
Range
Best Accuracy
DC Voltage (V)
400.0mV/ 4.000V/ 40.00V/ 400.0V
±(1%+5)
AC Voltage (V)
400.0mV/ 4.000V/ 40.00V/ 400.0V
±(1.2%+5)
DC Current (A)
(External Convertor)
400.0μA/ 4000μA
±(1.2%+5)
40.0mA/ 400mA
±(1%+5)
4A
±(1.5%+5)
AC Current (A)
(45Hz~400Hz)
(External Convertor)
400.0μA/ 4000μA
±(2%+5)
40.0mA/ 400mA
±(1.5%+5)
4A
±(2.5%+5)
Resistance (Ω)
400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ
±(1.2%+5)
40.00MΩ
±(1.5%+5)
Capacitance (F)
51.20nF/512.0nF/5.120μF/51.20μF/100μF
±(3%+5)
Display Count
4000
√
General Characteristic
Power

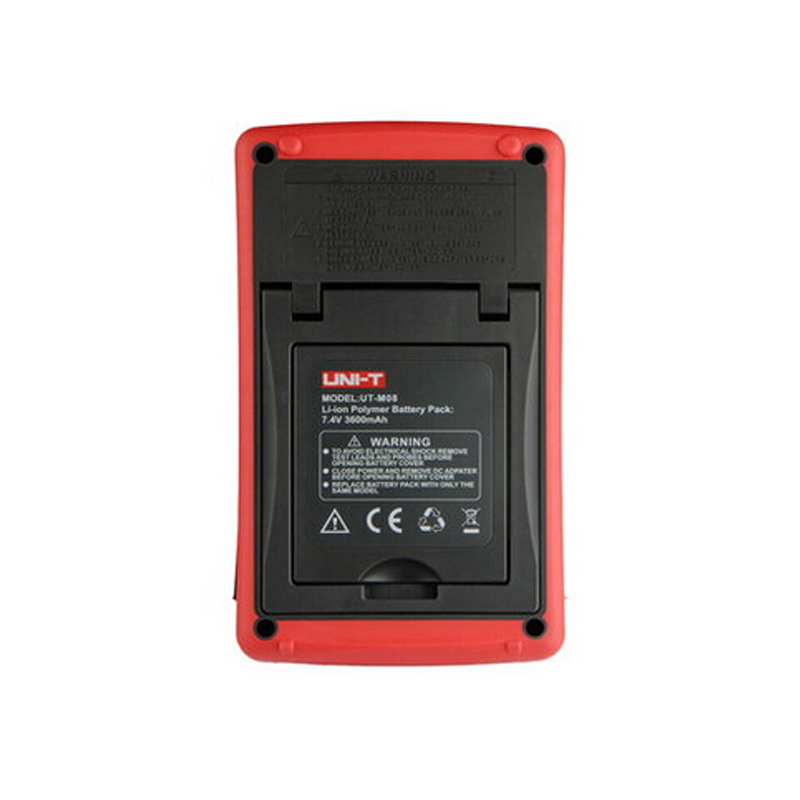

Lithium Battery: 7.4V 3600mAh;
DC Adapter: 100~240V 50/60Hz input, 9V 4A Output
LCD Size
3.5 Inches 64K Color TFT LCD, 320×240
Product Color
Red and Grey
Product Net Weight
0.9 Kg
Product Size (W×H×D)
199mm × 118mm × 49mm
Packege Included:
UTD1025DL Handheld Digital Storage Oscilloscopes
Manual
DC Adaptor
Test Lead
Probe×2 (1×,10× switchable)
High-current box
Small current box
Power Cord
USB Cable
PC Software CD
H.Q.S
