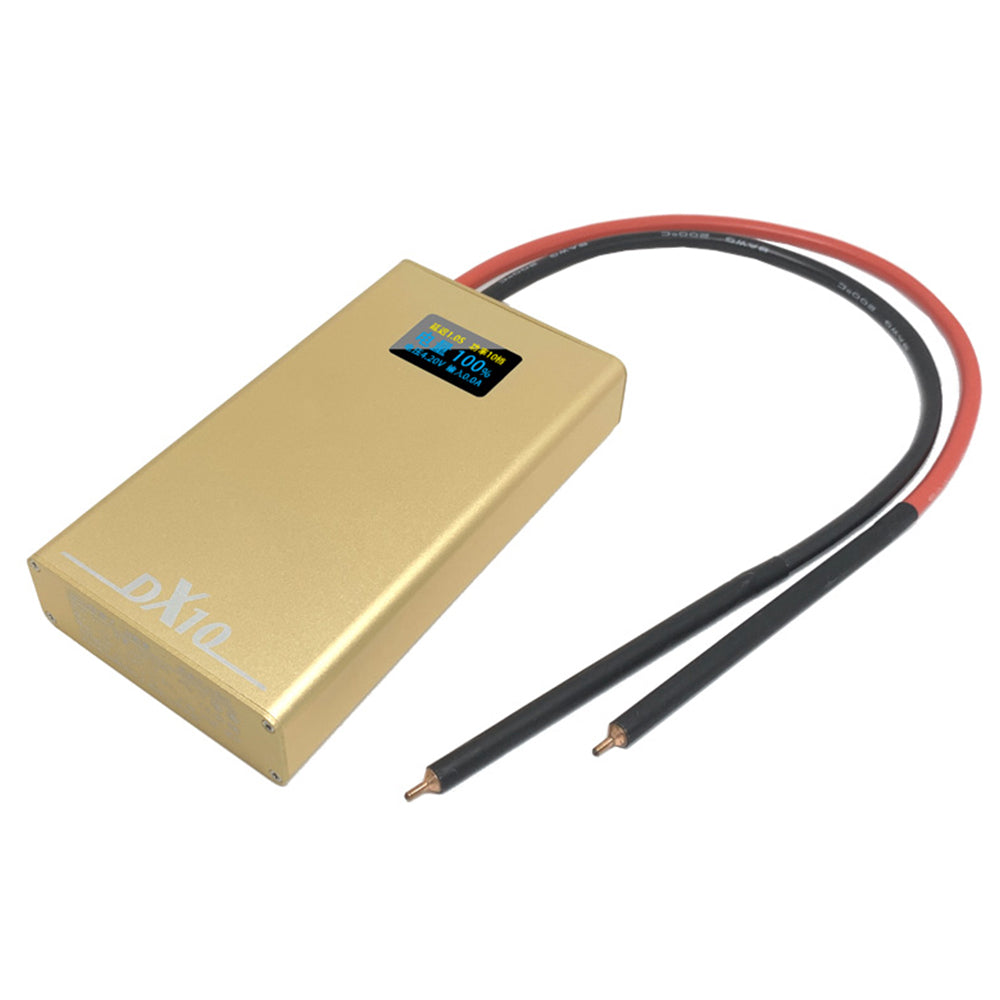

Handheld Portable Mini Battery Welder Spot Welding Machine 0.96'' OLED Touch welding Pen Lithium Battery Type-C Charging
Features:
1. Using high-quality materials, the quality is guaranteed
2. The latest DX10 handheld spot welder, the size of an ordinary power bank, aluminum alloy shell, two capacities are optional
3. The spot welding pen adopts ec5 plug, 30cm 8awg wire, 6mm diameter solid aluminum oxide copper rod and 10cm long, all welding without pressure, the internal resistance is lower than other hand-held spot welding machines on the market, and supports larger current and thick nickel strips Weld more firmly
4.20-speed delay time adjustment, 0.5s-2.5s, 20-speed power adjustment, with memory, automatic shutdown in 5 minutes
5. Built-in 6*300A high-power mos tube, the theoretical maximum current is 1800A, the margin is large, and the failure rate is very low
Parameter:
Built-in battery: high rate polymer lithium battery
Battery capacity: 5300/10600mAh
Battery internal resistance: 1.0/0.5 milliohms
Display screen: 0.96 inch OLED
Delay time: 31 levels adjustable, 0.5-3.5 seconds
Spot welding power: 101 level adjustable, 0-100%
Power compensation: automatically compensate according to the remaining power
Automatic shutdown time: 5 minutes
Power/Delay Memory: Yes
Power display: yes, percentage display
Built-in battery voltage display: yes, unit V
Spot welding buzzer: yes
Charging input: Type-C, 5V2A
Output interface: USB-A, 5V2.4A MAX
Spot weld joint: EC-5, 4.2V MAX
How to use:
Support Chinese and English switching, you need to adjust by yourself

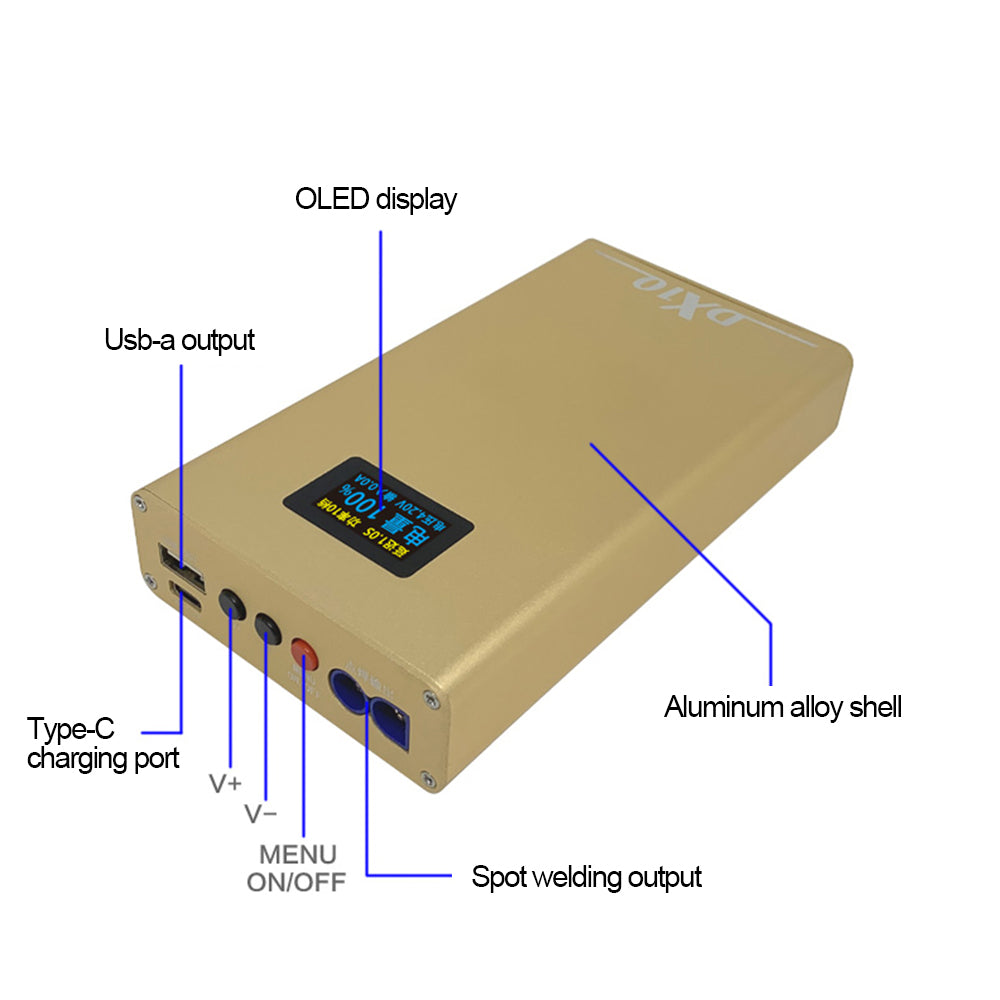

How to use: After power on, press the red button (MENU) 3 times, then press any black V+V- button to enter the setting page, the setting page can set the shutdown time, screen brightness, buzzer switch, temperature alarm value setting, language Select (this item needs to be shut down to take effect).

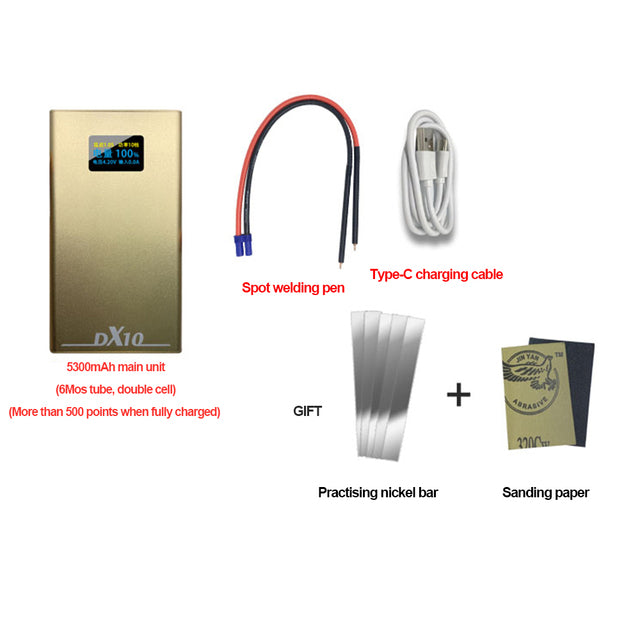

Package list:
Spot welding machine*1
Welding pen*2
Charging cable*1
Nickel sheet*1
Sandpaper*1
