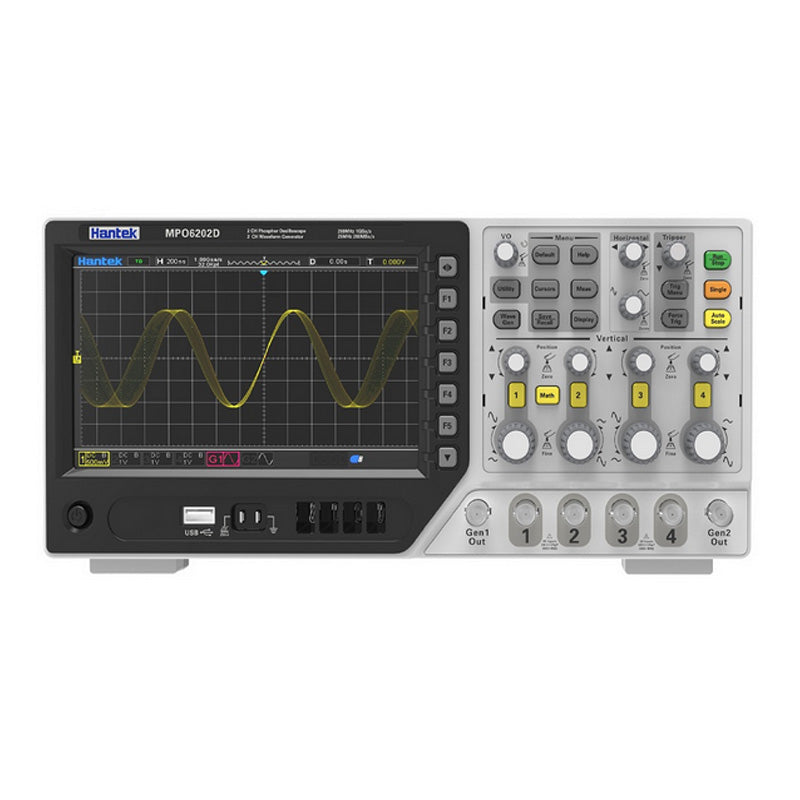

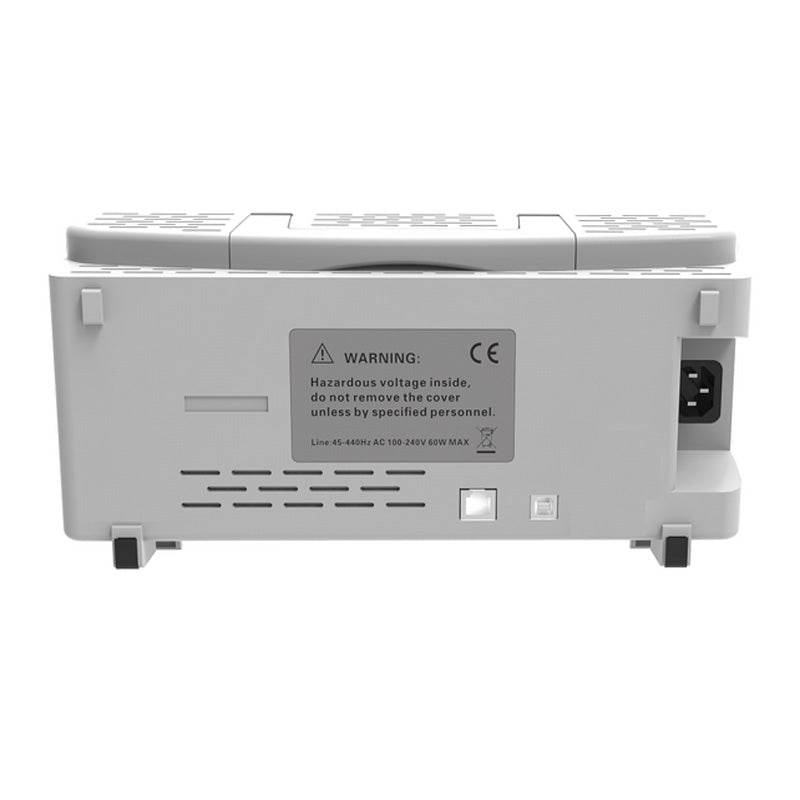

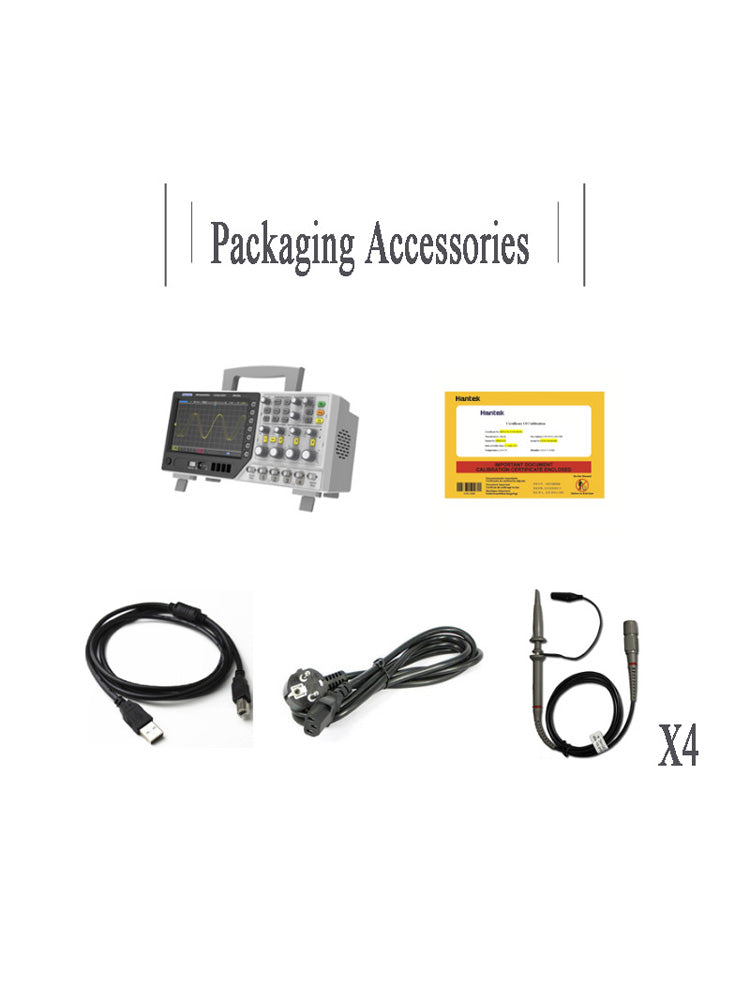

Hantek MPO6082D MP06084D MPO6102D MPO6104D MPO6202D MPO6204D Four Channel Digital Oscilloscope

DPO6004B(C)/MPO6004D Series

The waveform capture rate of DPO6000/MPO6000 Fluorescent oscilloscope is up to 400,000 FPS.It has 256 grade color and color temperature display.Standard equipped with up to 16 kinds of trigger functions, 5 kinds of serial decoding functions.It supplies 200 MHz, 100 MHz and 80 MHz bandwidth, its memory depth is up to 64M,16 channels logic analyzer plug and use, all standard equipped with 2 channels waveform generator, standard equipped with touch screen. it is a useful commissioning instrument for various fields such as communication,aerospace, defense, embedded systems, computers, research and education.

                            Model

   Number of channels

   Bandwidth

   Sampling rate

   Vertical resolution

   Storage depth

   Touch screen

   Refresh rate

   Signal source

   Logic analyzer

       DPO6084B

   4CH

   80MHz

   1GS/s

   500uV~10V

   64M

   Yes

   60000/1400000

       DPO6104B

   4CH

   100MHz

   1GS/s

   500uV~10V

   64M

   Yes

   60000/1400000

   一一

       DPO6204B

   4CH

   20oMHz

   1GS/s

   500uV~10V

   64M

   Yes

   60000/1400000

   一一

       Model

   Number of channels

   Bandwidth

   Sampling rate

   Vertical resolution

   Storage depth

   Touch screen

   Refresh rate

   Signal source

   Logic analyzer

       DPO6084C

   4CH

   80MHz

   1GS/s

   500uV~10V

   64M

   Yes

   60000/400000

   2CH

       DPO6104C

   4CH

   100MHz

   1GS/s

   500uV~10V

   64M

   Yes

   60000/400000

   2CH

       DPO6204C

   4CH

   200MHz

   1GS/s

   500uV~10V

   64M

   Yes

   60000/400000

   2CH

       Model

   Number of channels

   Bandwidth

   Sampling rate

   Vertical resolution

   Storage depth

   Touch screen

   Refresh rate

   Signal source

   Logic analyzer

       MPO6084D

   4CH

   80MHz

   1GS/s

   500uV~10V

   64M

   Yes

   60000/400000

   2CH

   16CH

       MPO6104D

   4CH

   100MHz

   1GS/s

   500uV~10V

   64M

   Yes

   60000/400000

   2CH

   16CH

       MPO6204D

   4CH

   200MHz

   1GS/s

   500uV~10V

   64M

   Yes

   60000/400000

   2CH

   16CH

                    Oscilloscope function

       Collection

   Real time sampling rate

   1 GSa/s

       Peak detection

   Analog channel 4ns

       Note: Digital channel does not support

       Average mode

   Analog channel

       After all channels reach N times of sampling at the same time, N times can be selected between 2, 4, 8, 16, 32, 64, 128, 256, 512 and 1024

       Note: Digital channel does not support

       High resolution

   Up to 12bit

       Note: Digital channel does not support

       Minimum detection pulse width

   8ns

       Storage depth

   Single channel 64M

       Dual channel 32M

       3、 Four channel 16M

       5678 channel 8M

       Input

   Number of channels

   4 analog channels

       Note: The data channel cannot be opened

       3 analog channels

       Note: Digital channel LA1/LA2/LA3/LA4/LA1LA2/LA3LA4

       2 analog channels

       Note: Digital channels are not restricted

       1 analog channel

       Note: Digital channels are not restricted

       0 analog channels

       Note: Digital channels are not restricted

       Input coupling

   DC, AC or GND

       Note: Digital channel does not support

       Input impedance, DC coupling

   Analog channel

       25pF±3 pF，1MΩ±2%

       Digital channel

       (300KΩ±2%) ，(8 pF±3 pF)

       Support probe attenuation coefficient

   Analog channels 1X, 10X, 100X, 1000X

       Voltage level

   300V CAT II

       Maximum input voltage

   Analog channel 300VRMS (10X)

       Digital channel - 25V~25V

       Level

   Waveform interpolation

   (sin x)/x

       Maximum record length

   64M maximum for single channel

       Dual channel maximum 32M

       Three/four channel maximum 16M

       Maximum 16M for five/six channels

       Horizontal scale range

   DPO6084 DPO6104

       2ns/div~100s/div 1, 2, 5 steps

       Time base mode

   Y-T、X-Y、Roll

       Number of X-Y

   12 channels 1 XY channel, 3 4 channels 1 XY channel

       Zero shift

   ±0.5 div × Minimum base gear

       Sampling rate and delay time accuracy

   ±25ppm

       Clock drift

   ≤± 5 ppm/year

       Incremental time measurement accuracy

   Single time, "sampling" mode

       (Full bandwidth)

   ± (1 sampling interval+100ppm × Reading+0.6ns)

       ＞ Average of more than 16 times

       ± (1 sampling interval+100ppm × Reading+0.4 ns)

       Sampling interval=seconds/division ÷ 200

       Vertical

   Bandwidth (- 3db)

   DPO6084

   DPO6104

   DPO6204

       80MHz

   100MHz

   200MHz

       Vertical resolution

   Analog channel 8bit

       Digital channel 1bit

       Oscilloscope vertical scale range

   500 at input BNC μ V/div~10V/div

       Location range

   500μV/div to 120mV/div，±1V

       122mV/div to 1.2V/div，±10V

       1.22V/div to 10V/div，±50V

       Optional analog bandwidth limitation

   Typical 20MHz

       Low frequency response (- 3db)

   ≤ 10Hz at BNC

       Rise time at BNC, typical

   DPO6084

   DPO6104

   DPO6204

       ≤4.4ns

   ＜3.5ns

   ≤1.8ns

       Vertical gain accuracy

   In the "normal" or "average" acquisition mode, the accuracy of 10V/grid to 10mV/grid is ± 3%.

       In the "normal" or "average" acquisition mode, the accuracy from 5mV/grid to 500uV/grid is ± 4%.

       DC offset accuracy

   ± 0.1 div ± 2 mV ± 1% offset value

       Channel isolation

   DC to maximum bandwidth:>40 dB

       Note: When using X1 probe, the bandwidth is reduced to 6MHz

       Vertical (digital channel) (for MPO6000D MPO600EDU and DPO6000B/DPO6000C to purchase digital probe LP104)
