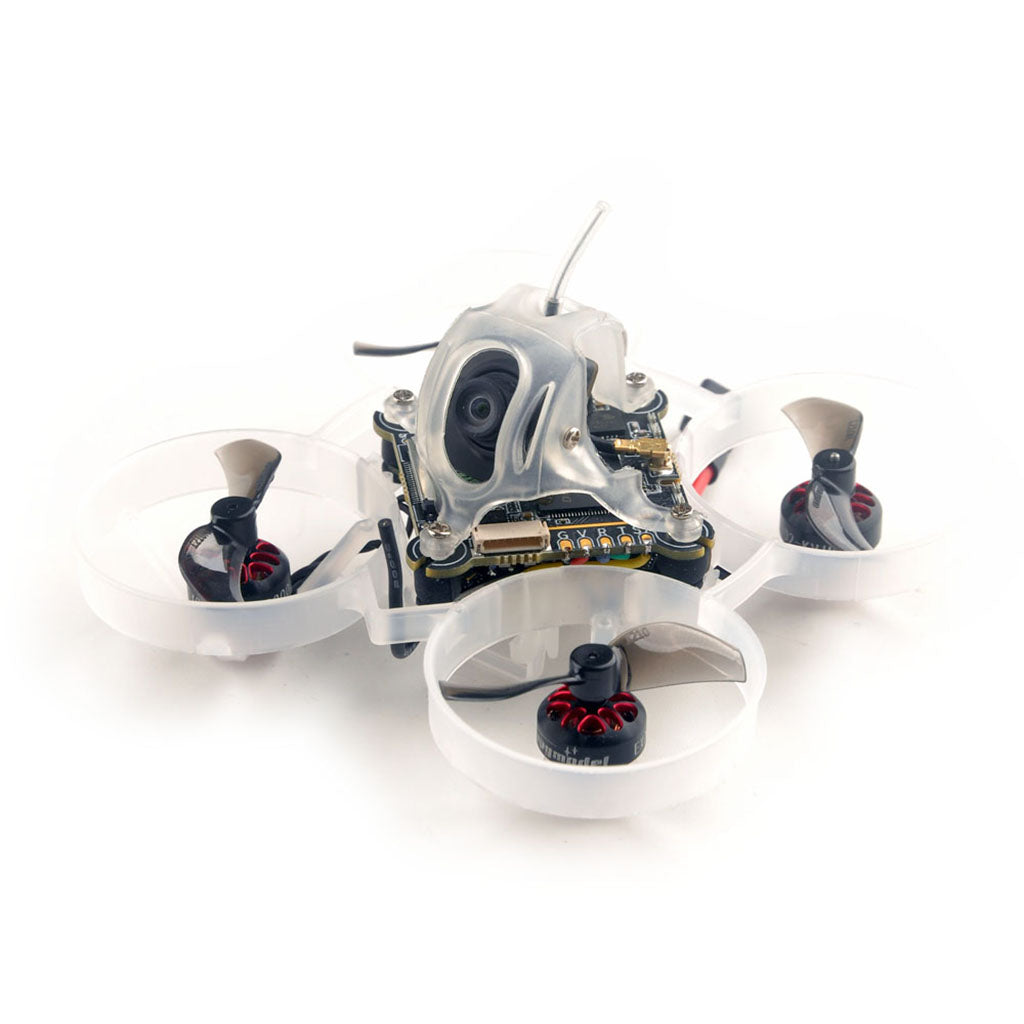

Happymodel Mobula6 65mm /Mobula7 75mm HDZero Drone 19000KV Flight controll SuperbeeF4 Lite ELRS/FRSKY 4in1 ESC HDZero BWhoop Lite VTX Drones

  This FPV Racing whoop is equipped with built-in ExpressLRS capabilities, as well as a RunCam HDZero Nano Camera and the all-new HDZero Whooop VTX for a smooth and powerful flight.

  Specifications:

Brand Name: HDZERO and HappyModel Co-branded

Model: Mobula7 HDZERO

Frame wheelbase: 75mm

Weight: 41gram without battery

Size: 98mm*98mm*50mm

Radio Link System required: ExpressLRS 2.4GHz TX module 2.0 ELRS firmware

Compatible with 2S-3S Lipo battery or Lihv battery

Recommend Battery: 2S 300/350/450/550/650 mAh

3s 300/350/450 mAh

Battery Plug: XT30

Battery holder tray size: 17mm*13mm

  AIO Flight controller firmware target:  Betaflight CRAZYBEEF4SX1280

  Model: Mobula6 HDZERO

  Frame wheelbase: 65mm

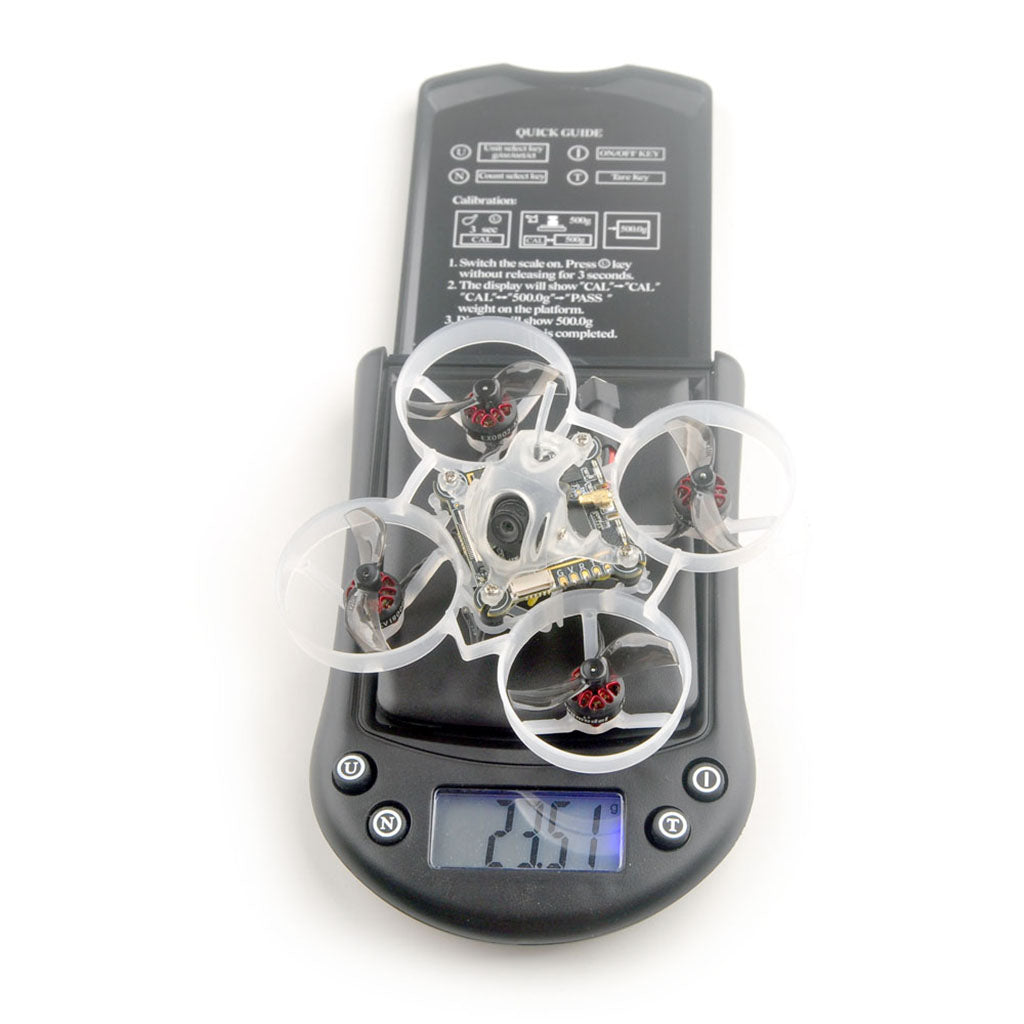

  Weight: 23.5 gram without battery

  Size: 80mm*80mm*50mm

  Receiver option:

  SPI ELRS 2.4GHz

  SPI FRSKY 2.4GHz

  Compatible with 1SLipo battery or Lihv battery

  Battery Plug: PH2.0

  Package includes:

              Item Name

     Qty

             Mobula6 65mm frame+Canopy

     1

             SPI Receiver Option1: SuperbeeF4 Lite FC built-in ExpressLRS SPI RX

     1

             SPI Receiver Option2: SuperbeeF4 Lite FC built-in FrskySPI RX

             EX0802 KV19000 Unibell brushless motor

     4

             Gemfan 1210 31mm propeller(4cw+4ccw)

     1

             HDZero Nano Lite Camera

     1

             HDZero Whoop Lite VTX

     1

             Spare Canopy

     1

             Propeller disassemble tool

     1

             Screw driver

     1

              Flight controller

SuperbeeF4 Lite ELRS/FRSKY

     SPI ELRS versionFirmware target: CrazybeeF4SX1280

SPI FRSKY version Firmware target: CrazybeeF4FR

MCU:STM32F411CEU6 (100MHz, 512K FLASH)

Sensor: MPU-6000or ICM20689 or BMI270(SPI connection)

Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)

Built-in SPI Frsky/ExpressLRS receiver

Built-in 5V 1A BEC

Built-in voltage detection

             Onboard 4in1 ESC

     MCU upgraded to EFM8BB21

Power supply: 1S LiPo/LiPo HV (2.8v~4.35v)

Currents: 5A continuous peak 6A (5 seconds)

Support BLHeliSuite programmable

Factory firmware: O_H_5_REV16_8.HEX

Default protocol: DSHOT150/DSHOT300/DSHOT600

             Onboard SPI ExpressLRS 2.4GHz Receiver

     Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz

RF Frequency: 2.4GHz

Antenna plug: IPEX

Telemetry output Power: <12dBm

Receiver protocol:  SPI ExpressLRS

Could bind with ELRS V2.0 firmware TX module

             Onboard Frsky SPI D8 /D16 2.4GHz Receiver

     SPI BUS receiverFrsky D8/D16compatible

Compatible Non EU transmitterD8 model and EU-LBT(Frsky_x_lbt)

Channels: 8chor 16ch

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

Based on CC2500 RF module Compatible with Futaba S-FHSS , Redpine protocol

             Motor

     Mode: EX0802 19000KV

Configu-ration:9N12P

Stator Diamter:8mm

Stator Length:2mm

Shaft Diameter:Φ1mm

Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm

Weight(g):1.7g

No.of Cells(Lipo):1S only

             Propeller Gemfan 1219 Bi-blades

     Weight:0.19g

Material: PC

Pitch:1 inch

Props Dia:30mm

Center Hole Dia:1mm

             HDZero Nano Lite Camera

     14x16x11 mm

1.5gram

0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor

Excellent low light performance

Fov:

4:3: D:130° H:108° v:84°

16:9:D:122° H:108° V:65°

              HDZero Whoop Lite VTX

     1S Input

25mW/200mW RF Output-SmartAudio Support

25.5x25.5 M2 Soft Mounting- Antenna Retention

Removable Shielding Box- 32.5x32.5mm(29x29mm inner)

4.5grams/4mm Thickness (without shielding)
