Parameter:

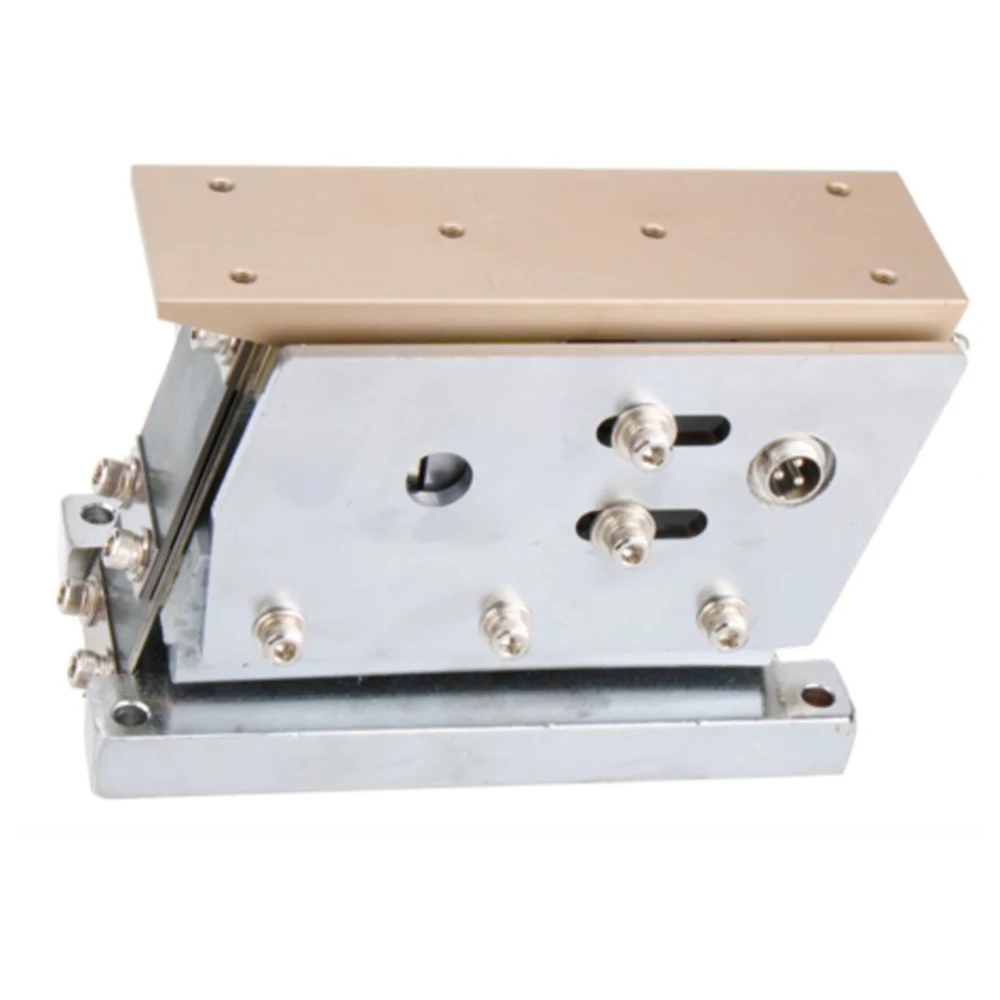

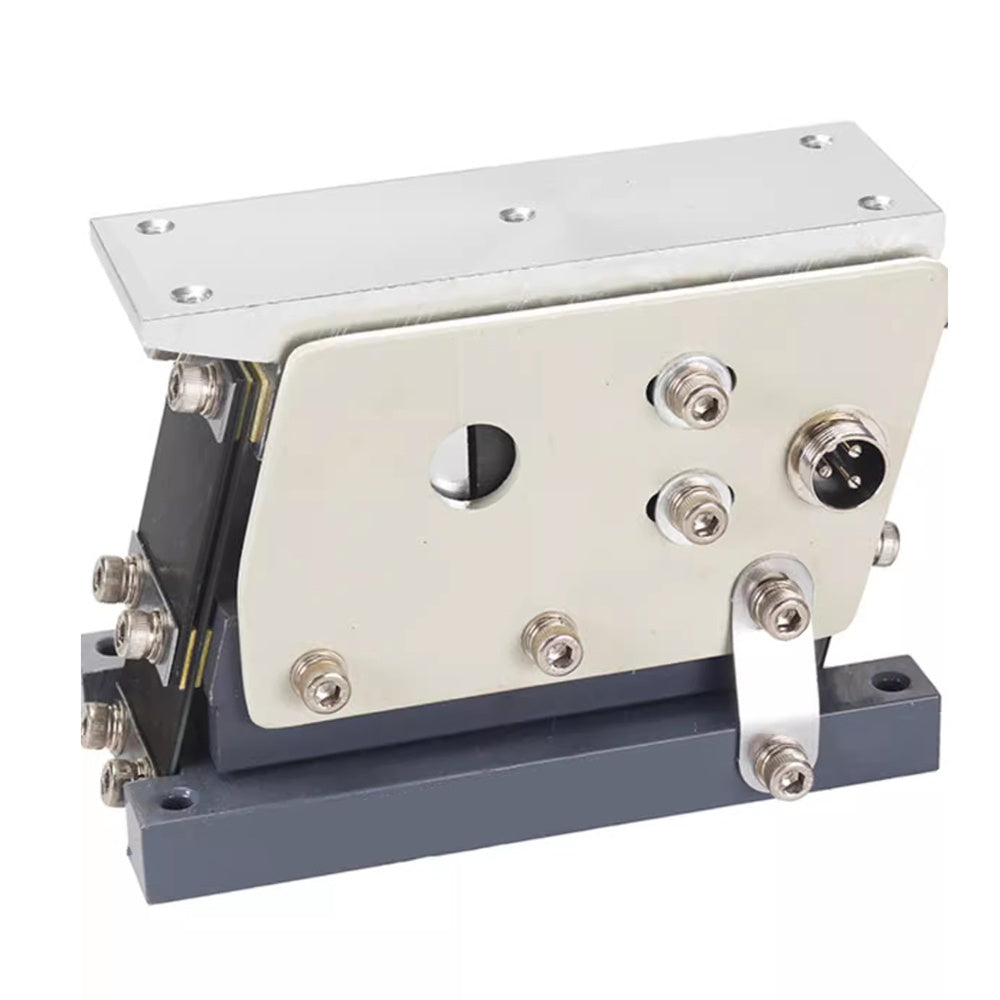

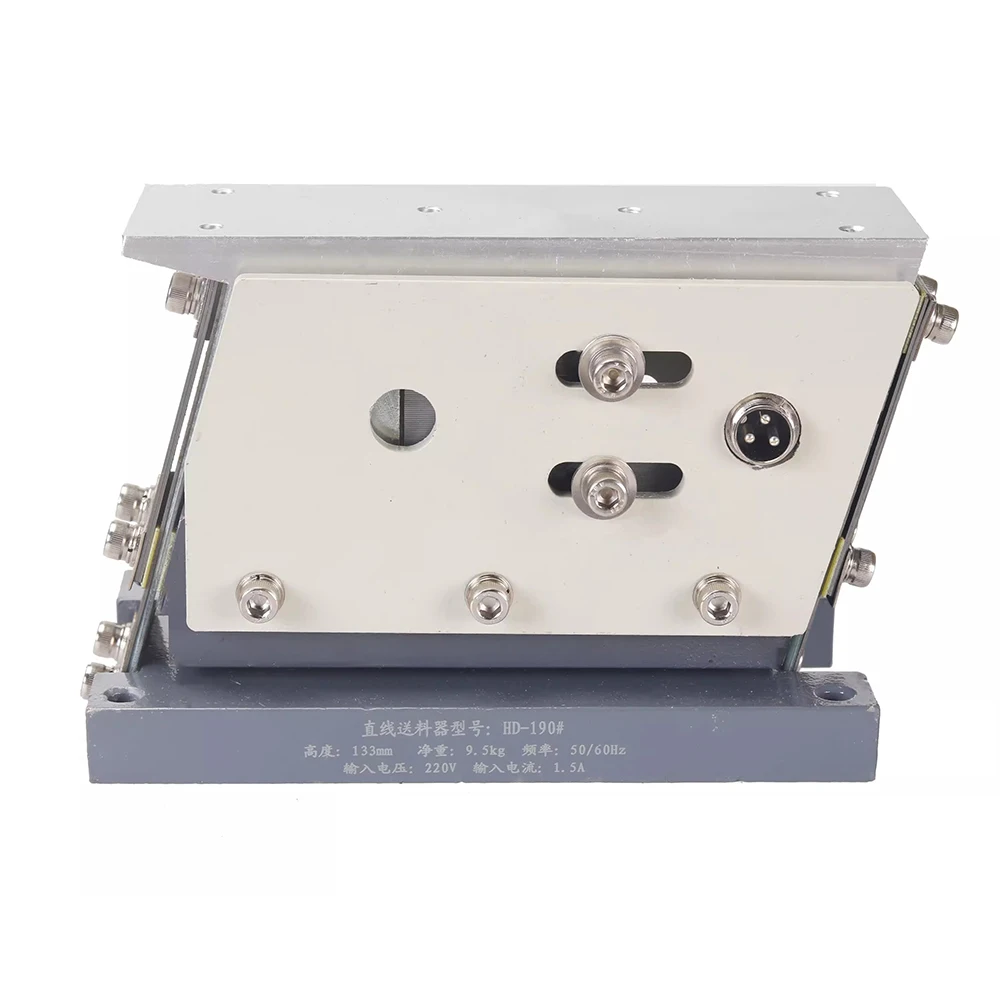

Product Name:Straight Vibration Linear Feeder
Model:HD-190#
Shrapnel Material: Manganese Steel
Input Voltage: AC 220V
Frequency: 50/60HZ
Input Current: 1.5A
Power: 80W
Maximum Load: 10KG
Conveying Distance:750W
Amplitude: 2.0MM

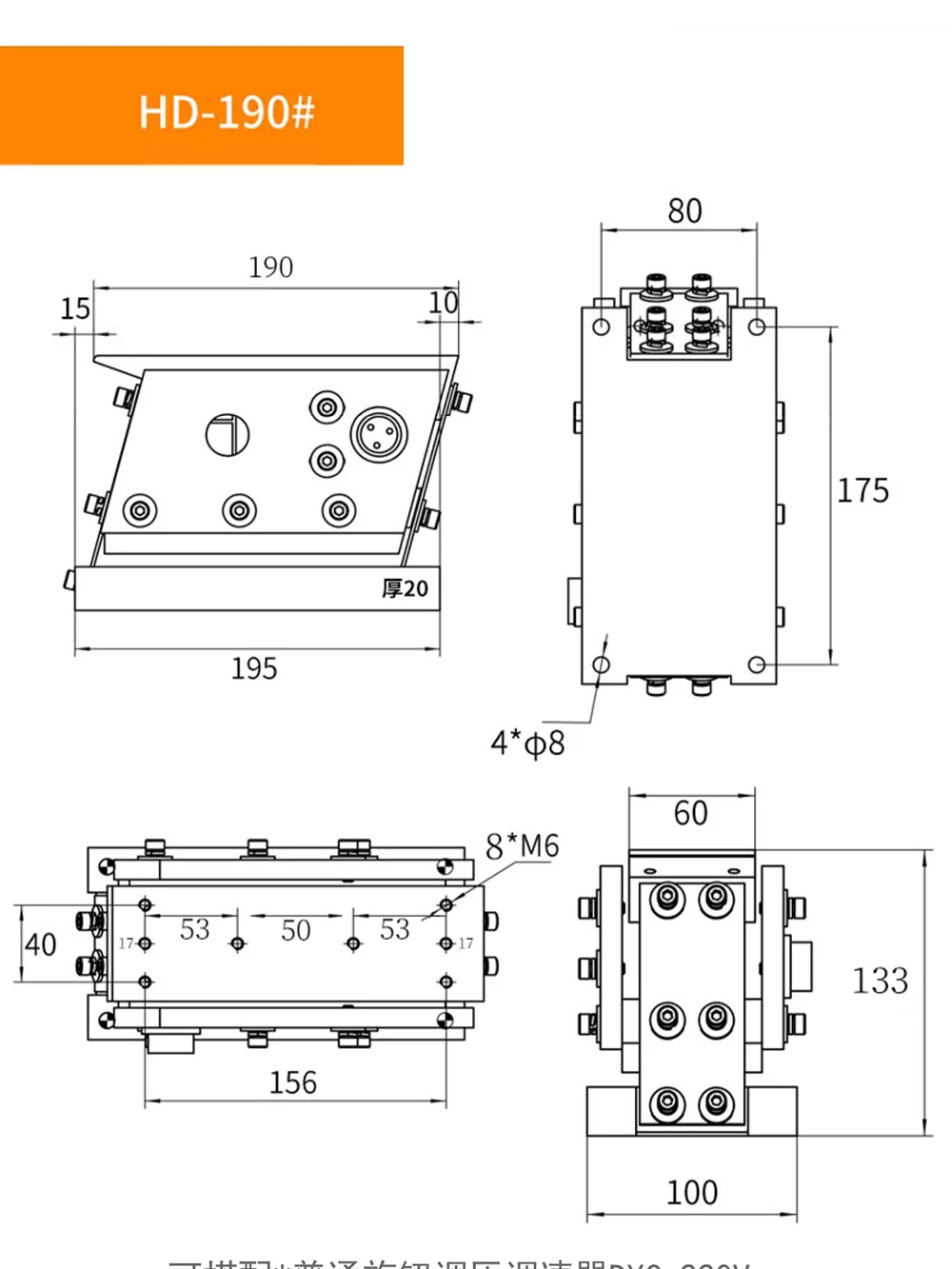

Product Size:195x100x133MM
Product Weight:9.5KG
Feature:

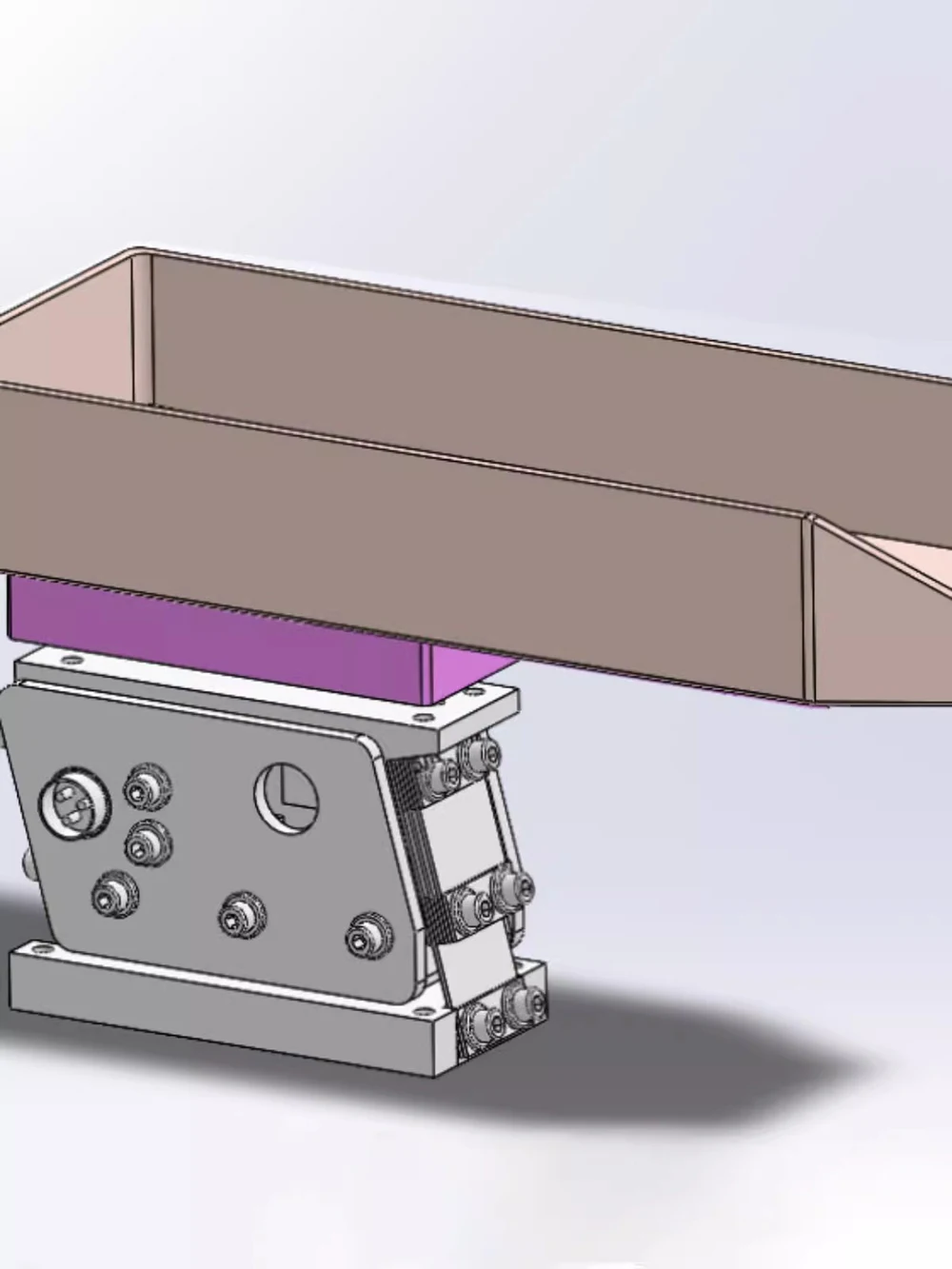

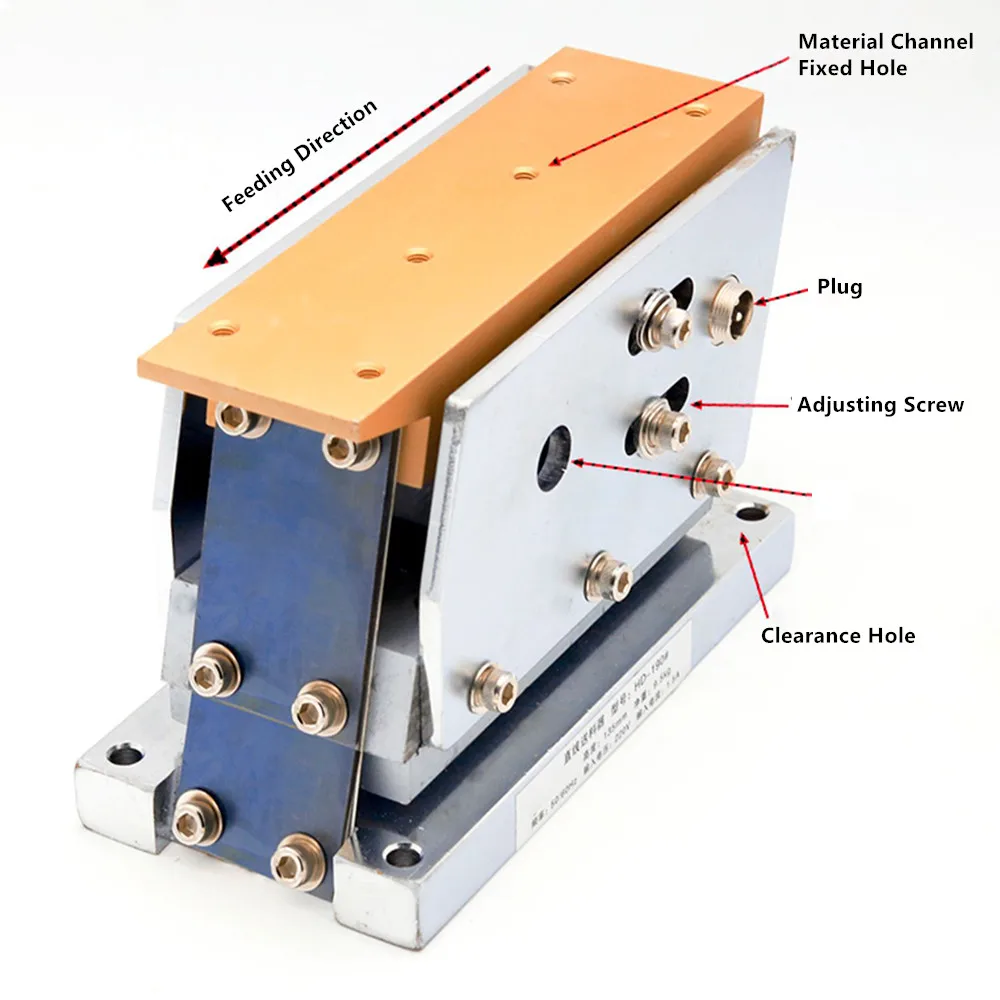

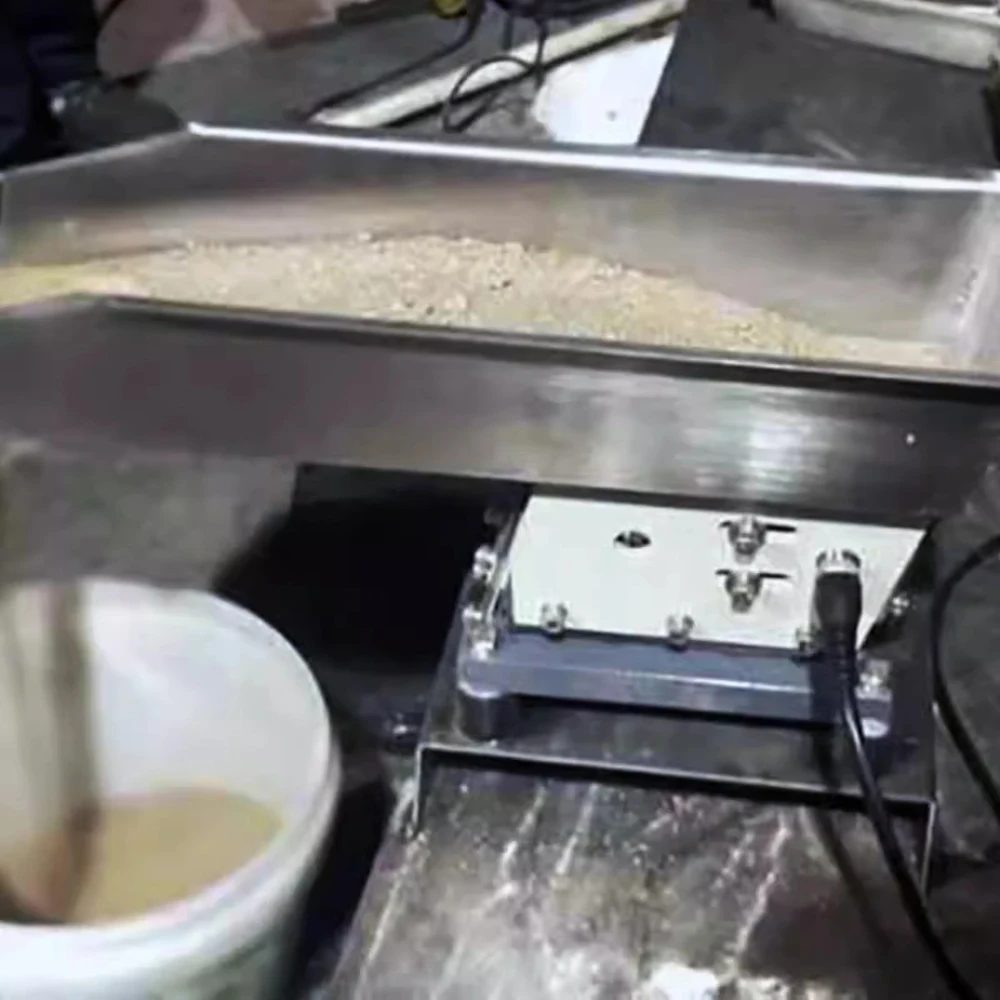

1. It consists of conveyor rail and vibration device, mainly used with vibration plate.
2. Stable and orderly conveying of workpieces.
3.Conveying the workpieces for a long distance.
4. Convenient for equipment space and connection.
5. Add material full stop, delay start device, extend the service life of the vibrating disk, reduce noise, etc..
6. Using high quality manganese steel shrapnel, has strong strength, good toughness, and is not easy to rust.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
