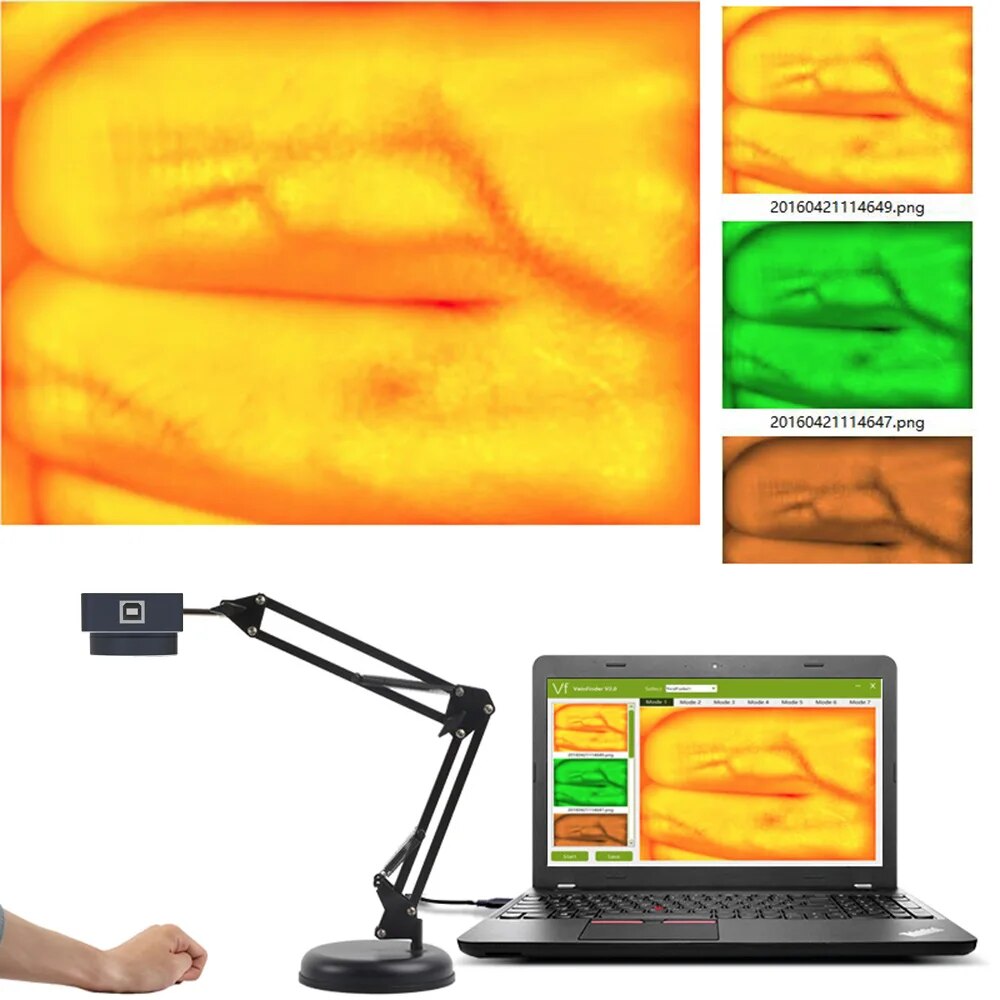

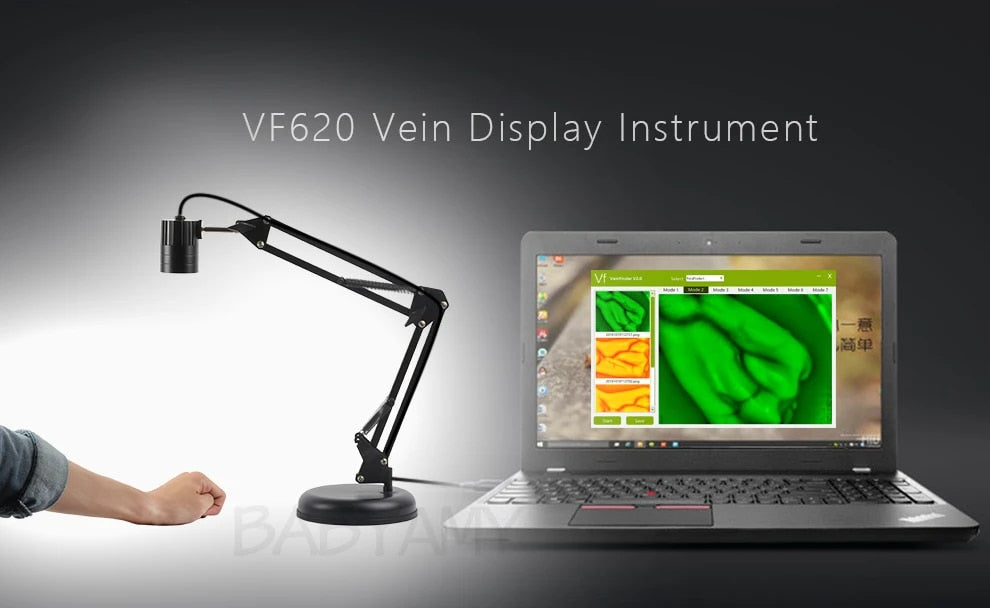

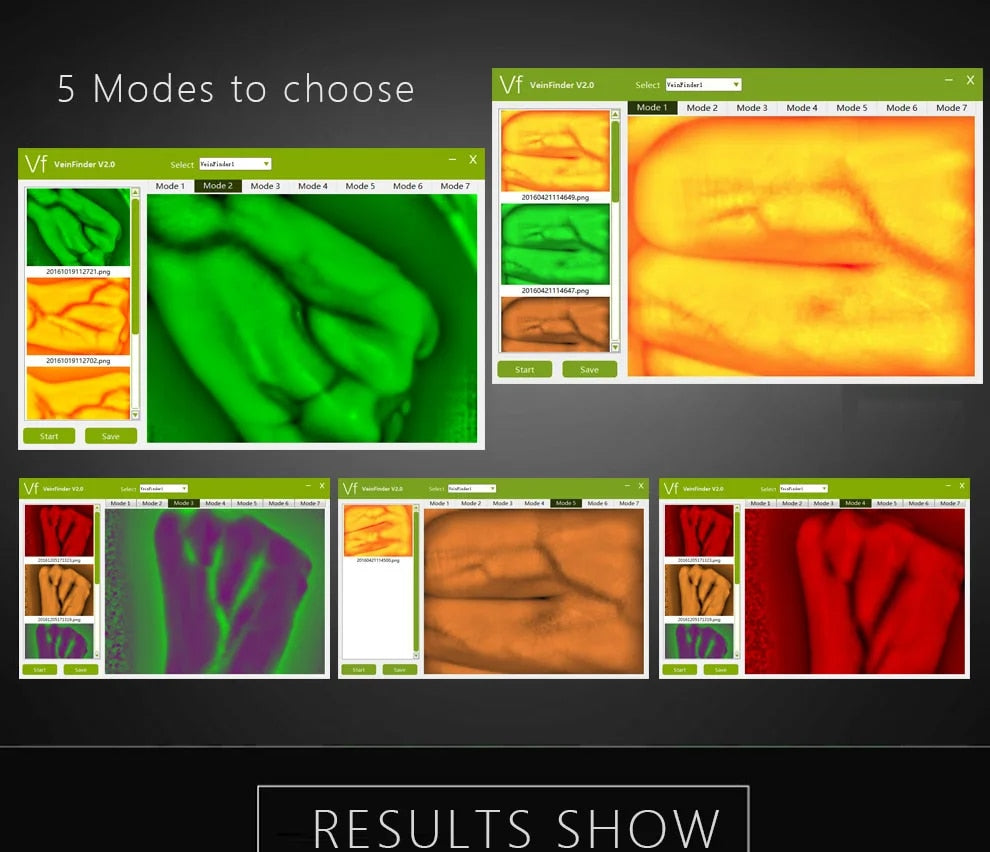

The camera center is a infrared lens with 12 pcs infrared LED light source,it has 5 different detection modes for different skin color, the holder can be adjusted 360 angle, working height reach to 35cm. when the power is on, we can see the faint red star point, the tail of instrument is connected to a computer via a USB line.

Parameter:
1. Input signal: 5V usb 2.0
2. Resolution: 200W pixels
3. Power: 5VA
4. Focal length: 270-300mm
5. Detection capability 8-10mm
6. Vascular recognition ability: >0.2mm
7. Shape color: silver white
8. Program: 1/3 inch CMOS infrared imaging
9. Applicable parts: forehead, arm, elbow, foot vein puncture, leg varicose surgery, etc.

Application Range

Children

The elderly

Edema patients

Obese patients

Dark-skinned patients

Hairy-skin patients

Patients with anemia, excessive hypotension, excessive bleeding.

Product package:

1 x Infrared vein finder device

1 x Software CD disk (Software installation serial number: 249-444-4255783535)

1 x User Manual


This vein display device can easily allow the medical staff to see the veins, greatly reducing the patient's fear of needle sticking, and assisting the medical staff to perform operations such as intravenous infusion and blood draw. We have developed this venous imager, which can easily allow the medical staff to see the veins, greatly reducing the patient's fear of needle sticking, and assisting the medical staff to perform intravenous infusion and blood draw.

This venous imager is designed based on the principle that hemoglobin absorbs infrared light. Hemoglobin has a strong ability to absorb infrared light relative to shallow skin and its tissues, so it can detect reflected infrared light through an infrared camera, collect it through a computer USB port, and then display it on the screen after image enhancement recognition processing. Qualified healthcare personnel can observe the displayed vascular distribution and assess their suitability for venipuncture.



The instrument is mainly used in the venous puncture department / varicose vein operating room to observe and find the subcutaneous superficial blood vessels, and assist the medical staff to perform venous puncture operation such as varicose vein surgery / spider blood vessel / infusion and blood drawing.
