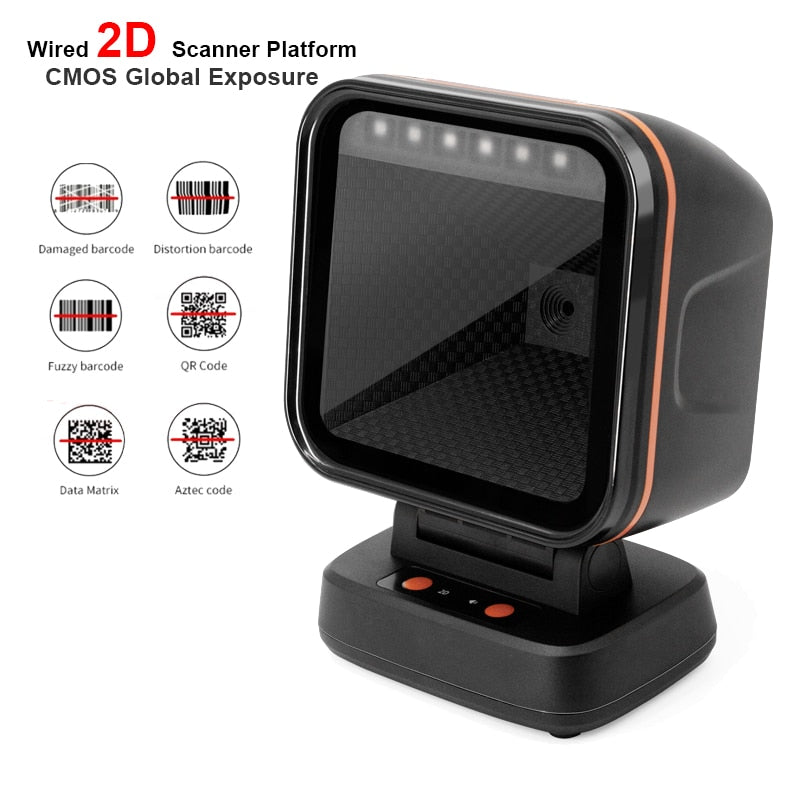

Product features:
1. Equipped with a new 500,000 global exposure CMOS scanning engine
2. Larger scanning window, easier to read barcodes
3. Adjustable angle, flexible and easy to use
4. Common function buttons, easier to setup
5. 5 different styles of prompt sound, soft and bright LED indicators
Multiple interfaces, strong compatibility, support a variety of systems and cash registers
Physical parameters:
Scan mode: Auto-sensing/continuous scanning
Communication interface: USB-HID keyboard, USB-COM virtual serial port, RS232 serial port
Interface type: USB TYPE-B
Prompt mode: Buzzers, LED lights
Set up way: Press the button to set, manually scan the setting code in turn
Shell material: ABS+PC
Cable standard: Straight line 1m

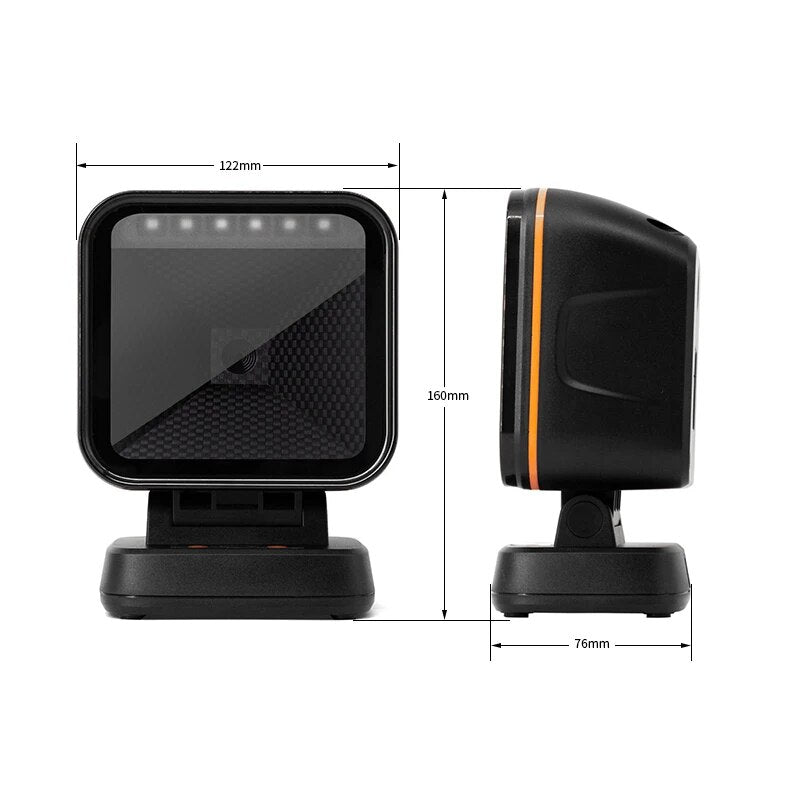

Exterior dimensions: 122mm×160mm×76mm
Weight: 312g (without cable)
Performance parameters:
Scan type: CMOS global exposure
Differentiation: 800*600
Light source: 617nm red LED
Scan angle: ± 60°, ±54°, 360° (left and right, front and back, rotation).
Scan rate: 20 cm/s
Field of view angle: 48° (H) x 30° (V)
Print contrast: Minimum 20%.
Decoding Types:
1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite
2D: QR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417, Micro QRCode, MaxiCode, Aztec Code, Code16K, support mobile phone screen reading
Minimum resolution: 4 mil
Electrical parameters:
Input voltage: DC 5V±10%
Current: Working: 240 mAh; Standby: 190 mAh
Environment parameters:
Temperature: 0°C-50°C (working); -20°C~+70°C (storage).
Humidity: 5%-95% non-condensing
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
