HobbyEagle A3 Super4 A3S4 Fixed Wing 6-axle Airplane Gyro stabilizer Flight Controller Balancer Programming Card for RC Wing

    New Firmware Update (V1.1) available for A3 Super 4

    The new firmware release supports JETI Duplex EXBus serial

protocol, and also includes several enhancements and fixes. It is

recommended to update the gyro to the latest firmware version as soon as

possible.

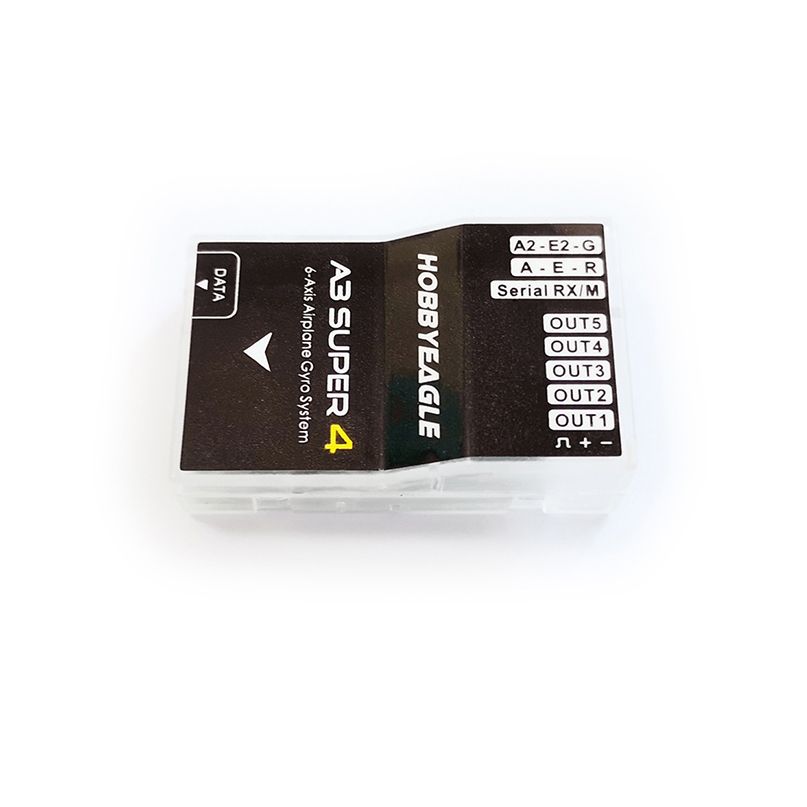

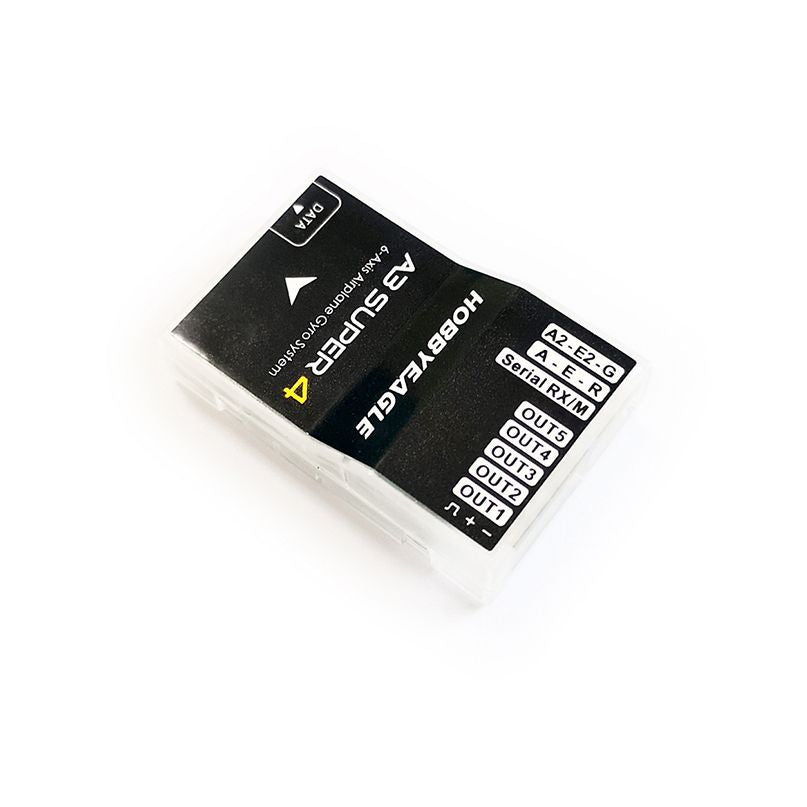

    A3 Super 4 is a high-performance, powerful

6-axis gyroscope and balancer specially designed for model aircraft

fixed-wing. On the basis of the previous generation, the hardware design

is further improved, and the full support for multi-protocol digital

serial receivers and the addition of customizable output interfaces make

it more user-friendly and more reliable in use.

    32-bit

processor, high-precision 6-axis MEMS sensor, perfect hardware design

and stable firmware, providing more reliable performance;

    6 flight

modes and 6-stage mode switching, including gyro off mode, normal

stabilization mode, lock mode, angle mode, balance mode and hoist mode;

    Full support for PWM, PPM and multi-protocol digital serial receivers;

    Flexible configurable output interface, providing 2 direct output channels;

    Dual ailerons, dual lift systems, built-in flying wing (delta wing) and V-tail mixing;

    Remote overall gain adjustment;

    Firmware can be upgraded, support setting card parameter adjustment

    Supported Serial Receiver Protocols

    PPM Serial Receiver

    Futaba S.Bus, compatible with FrSky SBus, JETI SBus, RadioLink SBus and WFLY WBus

     DSM2/X 1024 Satellite Receiver

     DSM2/X 2048 Satellite Receiver

     SRXL

    Multiplex SRXL / JR XBUS Mode B

    Graupner SUMD

    FlySky iBus

    JETI EXBus

    specifications：

    Main controller: 32-bit microprocessor

    Built-in sensors: High-precision MEMS 6-axis sensor

    Gyro range: ± 2000 dps

    Acceleration range: ± 4g

    PWM output: 800 ~ 2220uS, median 1500/1520uS, frequency 50Hz ~ 333Hz

    Working voltage:DC 4.8V ~ 8.4V

    Working temperature: -10℃ ~ 50℃

    Dimensions: 43×27×14mm (L×W×H)

    Weight: 10g (without connecting cable)

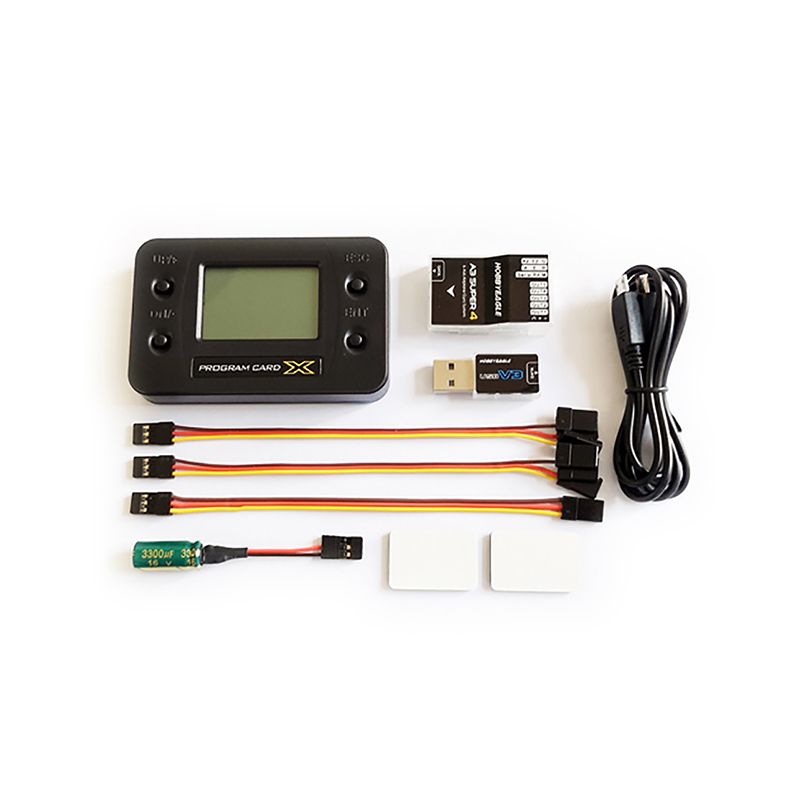

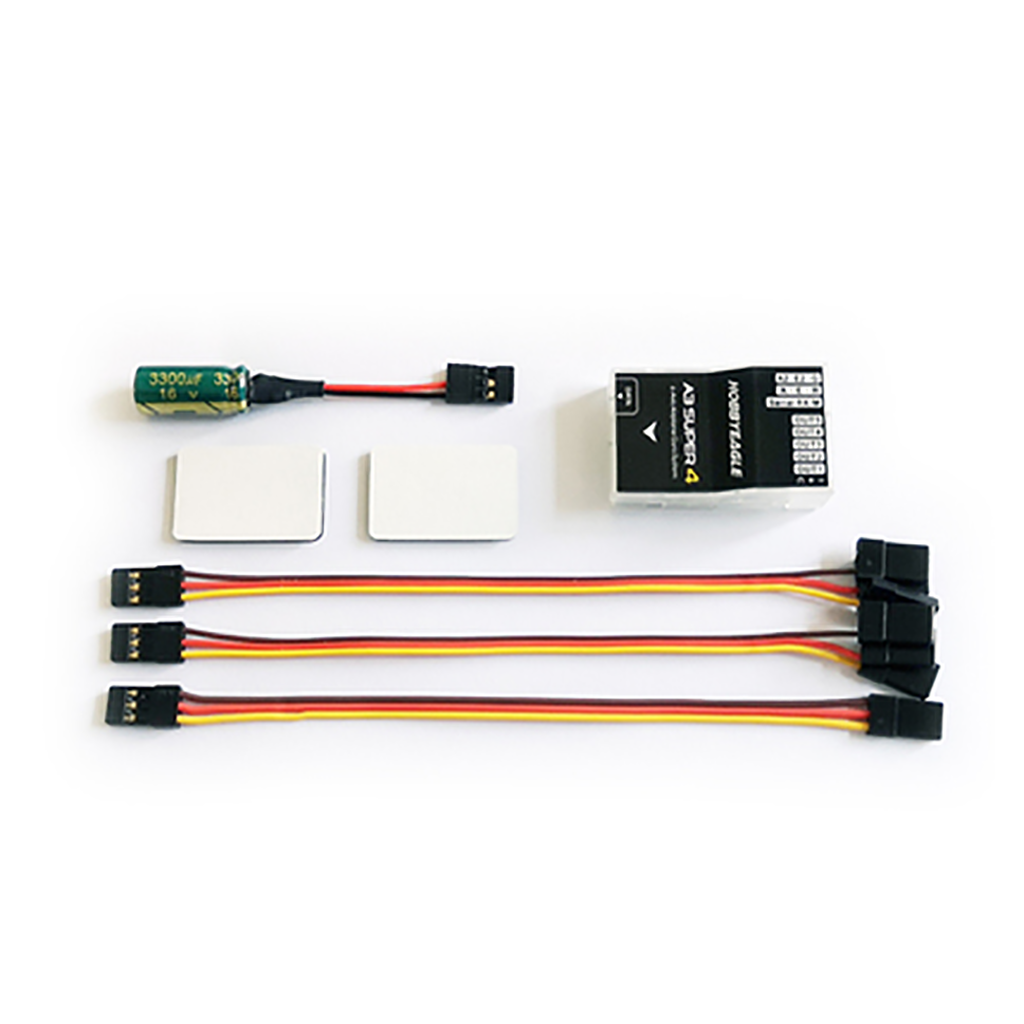

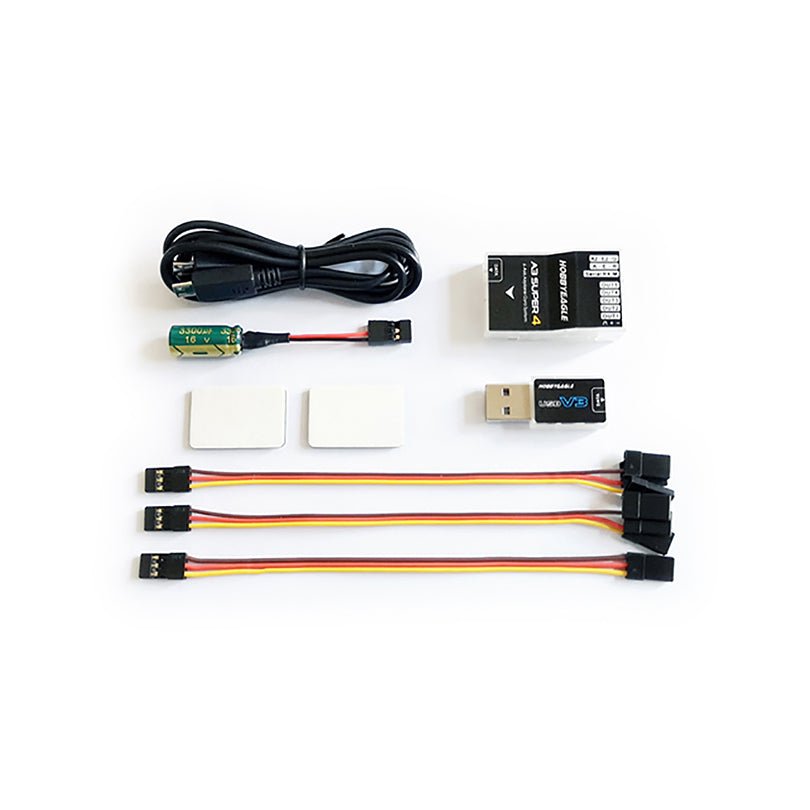

    Package Included:

    1 x A3 Super 4 Main Controller

    1× Program Card

    1×LED module

    3 x Receiver Cable(15cm)

    1 x Data Cable(40cm)

    1 x Adapter

    2 x Double-sided Tapes
