Kakute H7 Mini

  Description:

  The Holybro Kakute H7 Mini is a Flight Controller full of features including onboard VTX ON/OFF Pit Switch with battery voltage, HD System/VTX & 4in1 ESC plugs, barometer, OSD, 6x UARTs, easy soldering layout and much more.

The Kakute H7 Mini builds upon the best features of its F7 predecessor and further improves on hardware components and layout. HD ready, it has an easy plug to power HD system like Caddx Vista while supporting analog system. It features an onboard “VTX ON/OFF Pit Switch” that allows you to completely power off the video transmitter using a switch on your RC transmitter. Great if you are working on your drone, waiting for the GPS to get a fix, getting ready for a race while preventing it from overheating or interfering with others flying.

It has 6x dedicated UART ports with built-in inversion for peripherals, 4in1 ESC plug, and x8 compatible with M5-M8 Signal Pads, allowing easy support for x8 Octocopter configuration. The integrated BetaFlight OSD makes it easy to display important information on your FPV display like battery voltage, flight time, warnings, RSSI, smart audio features and more. It is also ready for autonomous flight with the on-board barometer. There are LED & buzzer pad, I2C pad (SDA & SCL) for external GPS/Magnetometers.

Update: Version 1.3 now has 1Gb Nand-Flash memory & BMI270 (instead of MPU6000).

  Tekko32 F4 4in1 mini 45A ESC

  SPEC:

  F4 MCU with BLHELI32 firmware

  Maximum PWM output upto 96K (default 48K)

  Amperage meter scale ratio has been adjusted to 168.

  PWM input, TLM supported

  Voltage output (VBAT)

  NO output BEC

  Supports oneshot / Multishot / Dshot PWM

  Supports damped light

  Supports 3-6S lipo input

  Ext. cap needed for 6s (1000uf 35v for 6s usage.)

  Mounting holes: 20x20mm(M3)

  Size:30 x 39 mm

  Weight: 7.2g

  Tekko32 F4 Bigfet 4in1 50A ESC

  F4 MCU / PWM output up to 96K / 4~6S / BLHELI32

Tekko32 F4 BigFET are made for those that uses 20x20 mount and also need the power of big MOSFET. The F4 MCU & quality big MOSFET onboard will provide smooth control, quick response, and big power for racers and freestyle pilots.

  Features:

      New F4 MCU, much faster than F3 & F0

    PWM output up to 96K (default 48K)

    20x20 Mount design with big MOSFET

    Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.

  Specification:

      Continuous Current: 50A x4

    Burst Current: 60A x4

    Supports 4-6S battery

    Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.

    ESC telemetry Supported

    Onboard analog current sensor

    No output BEC

    BLHeli_32 firmware

    1000uf 35v capacitor included (highly recommended for 6s setup)

    Amperage meter scale ratio: 168

    Dimensions: 39x36.5x6mm / Weight: 11.8g

    Mounting holes: M4 30.5x30.5mm (M3 grommets included)

  Atlatl HV micro

  Features

      Compatible with all major FPV receivers from vendors such as Fatshark, ImmersionRC, etc.

    Supports the standard 40-channel set: band A, B, E, Fatshark, and Raceband.

    SmartAudio input allows remote control by the flight controller. Change channel, transmit power, and more from Betaflight OSD, flight controller USB port, Taranis Lua Script, and more.

    All parameters are controllable via push-button on the side of the unit, for cases where SmartAudio is not used.

    MMCX connector is durable and easy to use. Rated for 100’s of mating cycles. Easy and quick antenna changes. No more ripped-off UFL connectors.

    LED indicators for channel, band, and power. Allows easy check of vTX parameters simply by glancing at the quad.

    Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and then easily switch to 800 mW for freestyle.

    0.5 mW True Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air.

    Built in microphone, so you can listen to your motors while you fly, no matter how far away you fly.

    Standard 26mm form factor allows you to mount the Atlatl directly on your flight controller stack.

  Specifications

      Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW

    Audio: 6.5 MHz Mono

    Protocol：smart audio2.0

    Antenna Connector: MMCX

    Input Voltage: 7 to 28 volts (2-6S LiPo)

    Dimensions: 30x26mm

    Mounting Holes: Standard 20mm square to center of holes (M3)

    Weight: 3.6g

  Package Includes:

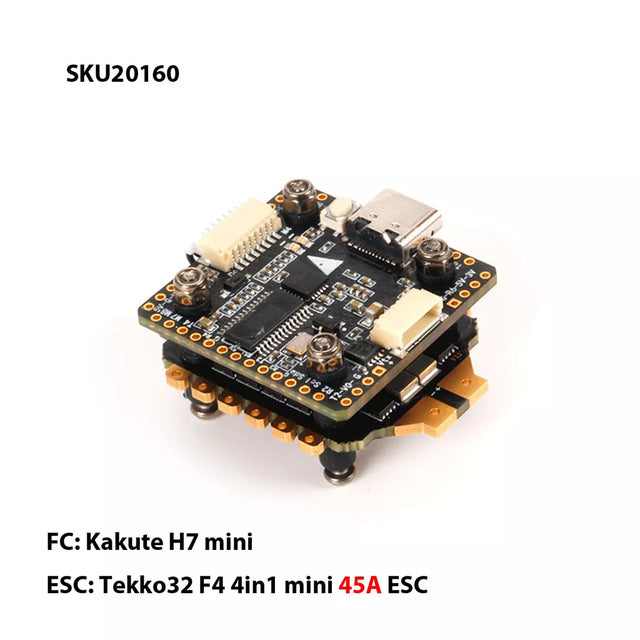

  SKU20160 Kakute H7 Mini+Tekko32 F4 4in1 mini 45A ESC Stack

SKU20162 Kakute H7 Mini+Tekko32 F4 Bigfet 4in1 50A ESC Stack

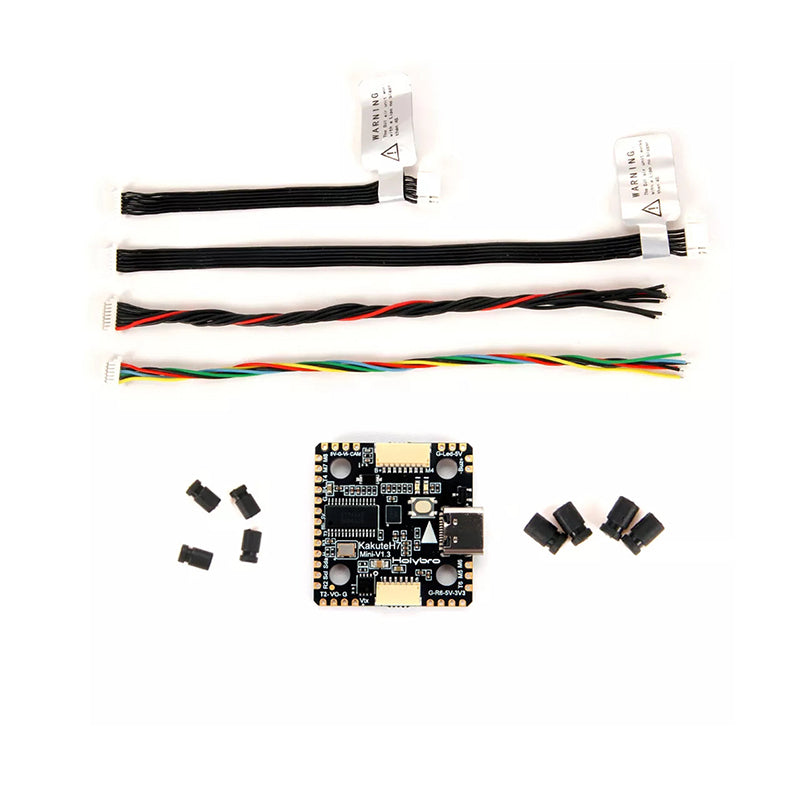

1x Kakute H7 Mini STACK

1x Electrolytic capacito: 1000uF 35v *1

1x JST SH 8pin to 8pin 65mm cable *1

1x JST SH 8pin to 8pin 25mm cable *1

1x JST SH 6pin 150mm cable*1 (The cable that goes to the CADDX Vista Air Unit is included.)

1x JST SH 6pin to GH 8pin 150mm cable*1 (The cable that goes to the DJI Air Unit is included.)

1x JST SH 6pin to GH 8pin 80mm cable*1 (The cable that goes to the DJI Air Unit is included.)

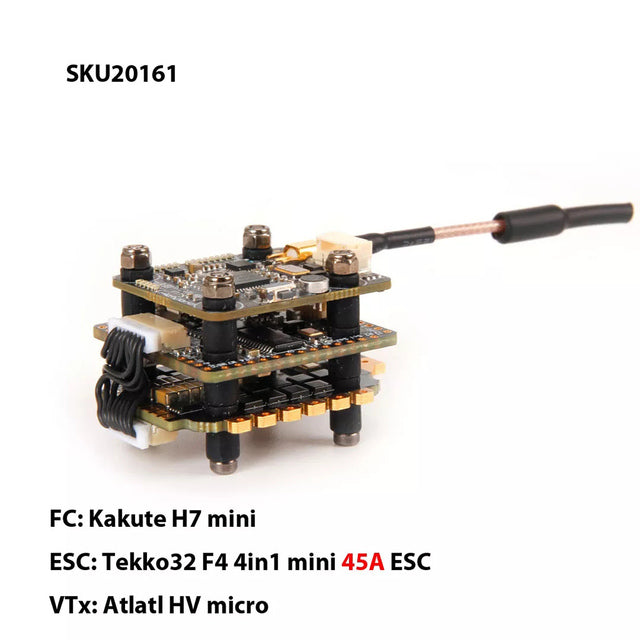

SKU20161 Kakute H7 Mini+Tekko32 F4 4in1 mini 45A ESC +Atlatl HV Micro Stack

SKU20163 Kakute H7 Mini+Tekko32 F4 Bigfet 4in1 50A ESC+Atlatl HV Micro Stack

1x Kakute H7 Mini STACK

1x Electrolytic capacito: 1000uF 35v *1

1x JST SH 8pin to 8pin 65mm cable *1

1x JST SH 8pin to 8pin 25mm cable *1

1x JST SH 6pin 150mm cable*1 ( The cable that goes to the CADDX Vista Air Unit is included.)

1x JST SH 6pin to GH 8pin 150mm cable*1 ( The cable that goes to the DJI Air Unit is included.)

1x JST SH 6pin to GH 8pin 80mm cable*1  ( The cable that goes to the DJI Air Unit is included.)

1x 80mm SMA--MMCX Cable

1x 60mm Antenna

1x 150mm 4pin JST GH wire
