MaixSense-A075V is a 3D TOF camera module with 320x240 resolution and RGB function, which supports plug and play of drive free under Linux, and can display color 3D images and record point clouds through the upper computer
Model: Maixsense A075V
processor:Cortex A7@1.5GHZ with 0.4T NPU
storage:128MB RAM,128MB ROM
interface:UART (1.25mm Connector),USB2.0 (type-c Connector)
Resolution:RGB: 800x600@30fps ,Depth: 320x240@30fps
FOV:RGB:78°( H )*98°( V )
TOF Technology:TOF:55°( H )*72°( V )
Distance:0.2-2.0m
Accuracy:less than equal 1%/ less than equal 1cm
Data channel:USB Virtual network:Web service
Display:Web browser:Depth/IR/RGB/Point cloud
ROS:Support ROS1/ROS2

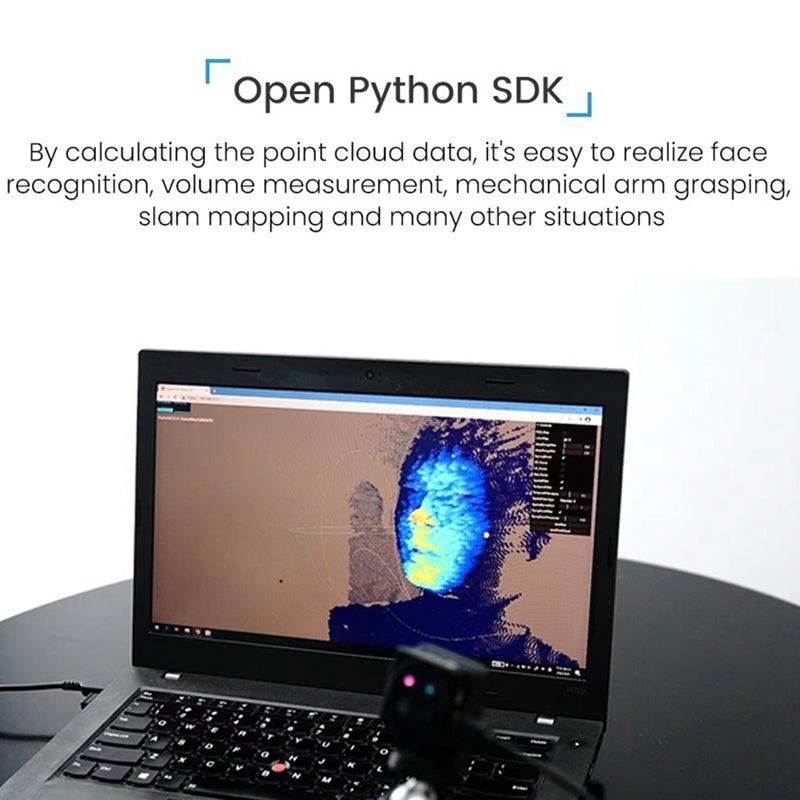

SDK:Python SDK and Sample code
Main part:36 x 36 x 13. 5mm
Main part with cooling fan:36 x 36 x 23.5mm
Colour:black
Material:PCB+metal

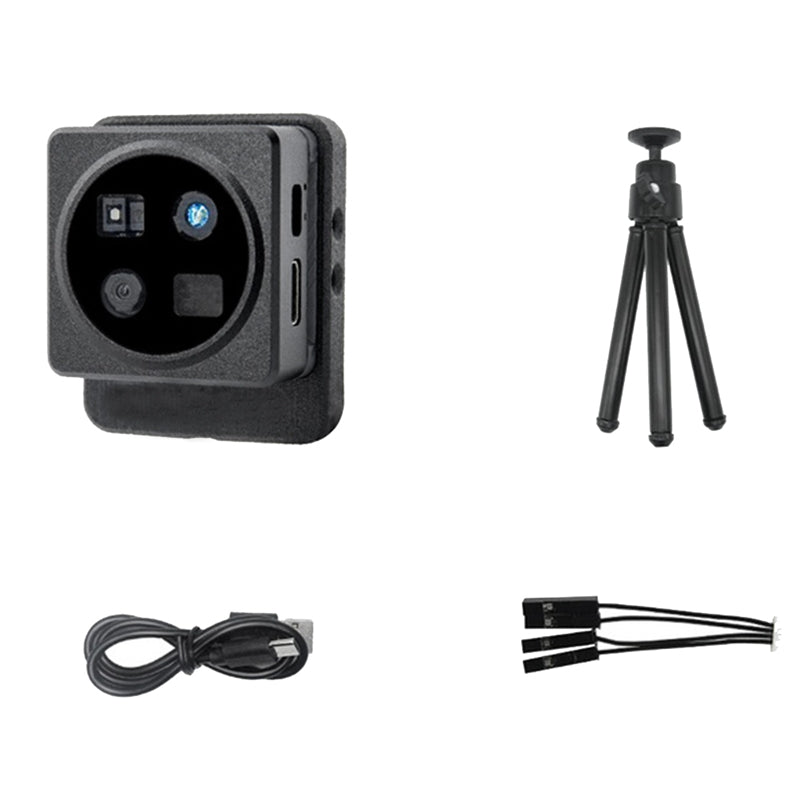

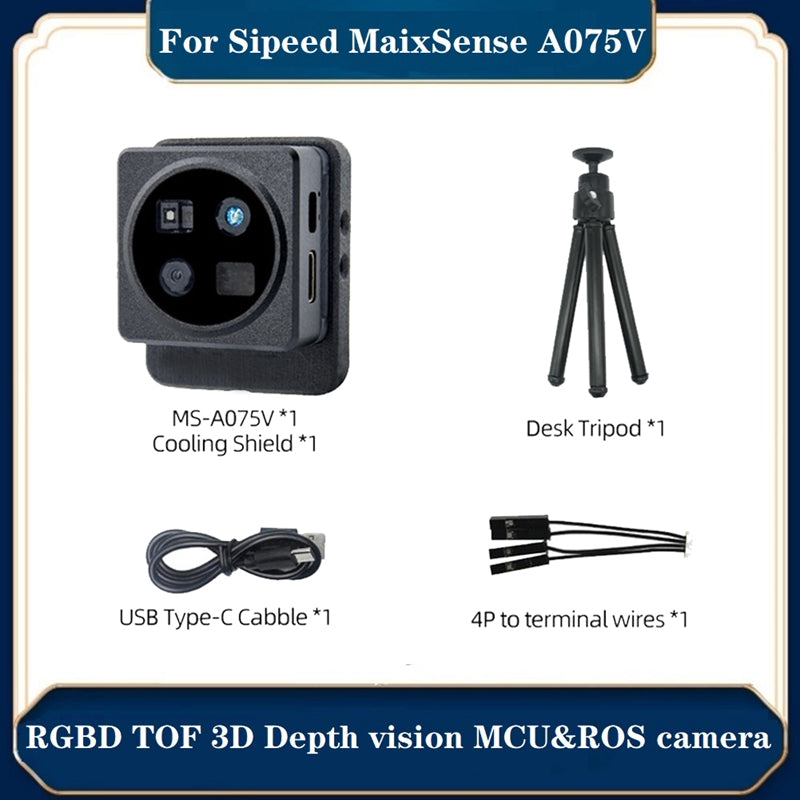

Package Contents:
1 x MS A075V host(including radiator)
1 x Tripod support
1 x USB Type-c cable
1 x 4 serial port line 1.0mm to 2.54mm 4pin
Only the above pack
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
