HT116 Digital Multimeter DC AC Current Meter Volmeter Resistance Capacitance Frequency Tester True RMS Temperature Measurement

       Description

    HT116 intelligent portable multimeter is small in size and easy to carry, more practical and novel. With multifunctions like Direct Current AC voltage, current measurement, resistance, capacitance, frequency and temperature test.

       Features

    1.With VA color big display screen, which can let you operate and see the data more clearly, give you a better using experience.

2.Non-contact voltage detection: with audible and visual alarm, ensure the safety of users, give you a better using experience.

3.Wide ranges of applications: can be used for lelctronic repairing, electrical engineering, quality inspection, research and education and so on.

4.With flash light function, it is more convenient for you to use and read in the dark.

5.Multifunction: It can be used for AC and direct current voltage and current measurement, capacitance and resistance measurement, frequency, duty and ratio test, also can be used for temperature and diode measurement.

6.With the AC and direct current voltage, resistance, on and off automatic identification function and the automatic recognition of current input function.

       Specifications:

    Direct current voltage:

Ranges: 99.99mV/999.9mV, 9.999V/99.9V/999.0V

Accuracy: ±(0.5%+3)

AC voltage:

Ranges: 99.99mV/999.9mV, 9.999V/99.9V/750.0V

Accuracy: ±(0.8%+3)

Direct current:

Ranges: 99.99uA/999.9uA, 99.99mA/999.9mA, accuracy: ±(0.8%+3)

Ranges: 9.999A, accuracy: ±(1.2%+3)

AC current:

Ranges: 99.99uA/999.9uA, 99.99mA/999.9mA, accuracy: ±(1.0%+3)

Ranges: 9.999A, accuracy: ±(1.5%+3)

Resistance:

Ranges: 99.99Ω/999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ, accuracy: ±(0.8%+3)

Ranges: 9.999MΩ/99.99MΩ, accuracy: ±(1.2%+3)

Capacitance:

Ranges: 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF, accuracy: ±(4.0%+3)

Ranges: 9.999mF/99.99mF, accuracy: ±(5.0%+5)

Frequency:

Ranges: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz

Accuracy: ±(1.0%+3)

Duty:

Ranges: 0.1%~99.9%

Accuracy: ±(1.0%+2)

Temperature (°C/°F) :

Ranges: -40°C~1000°C, -40°F~1832°F

Accuracy: ±(1.0%+3)

Counts: 9999

Bargraph: √

Live test: √(sound and light alarm)

MAX/MIN/AVG: √

Relative measurement: √

Data hold: √

Fuse burning prompt function: √

Low battery indication: √

Auto power off: √

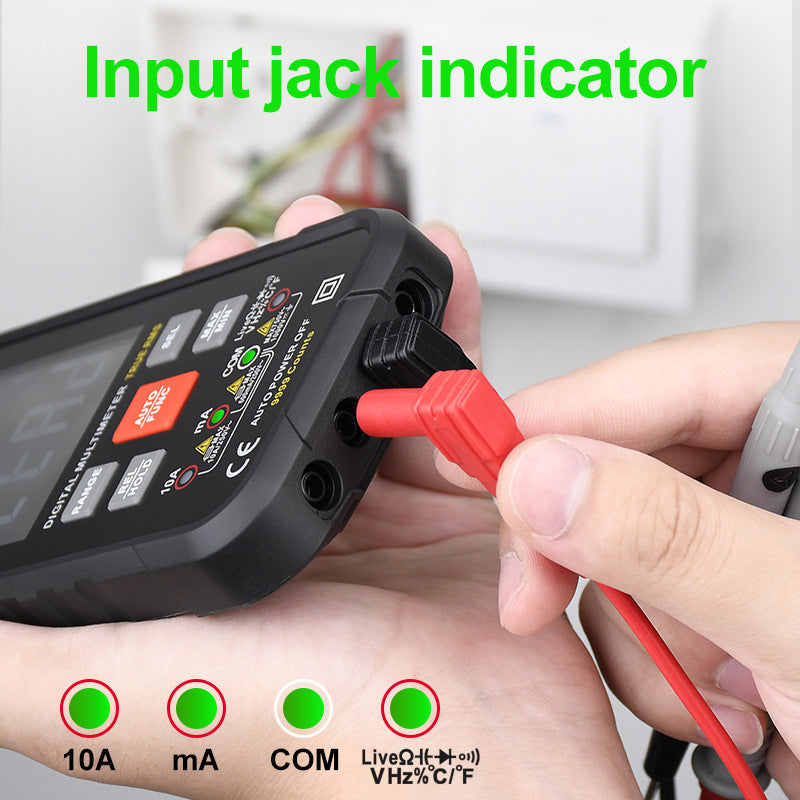

Input jack LED indication: √

Power: 3 * AAA battery (NOT included)

Item size: 160 * 80 * 20mm / 6.3 * 3.1 * 0.8in

Item weight: 264g / 9.3ounce

       Packing list:

    1 * Multimeter

1 * Test Lead
